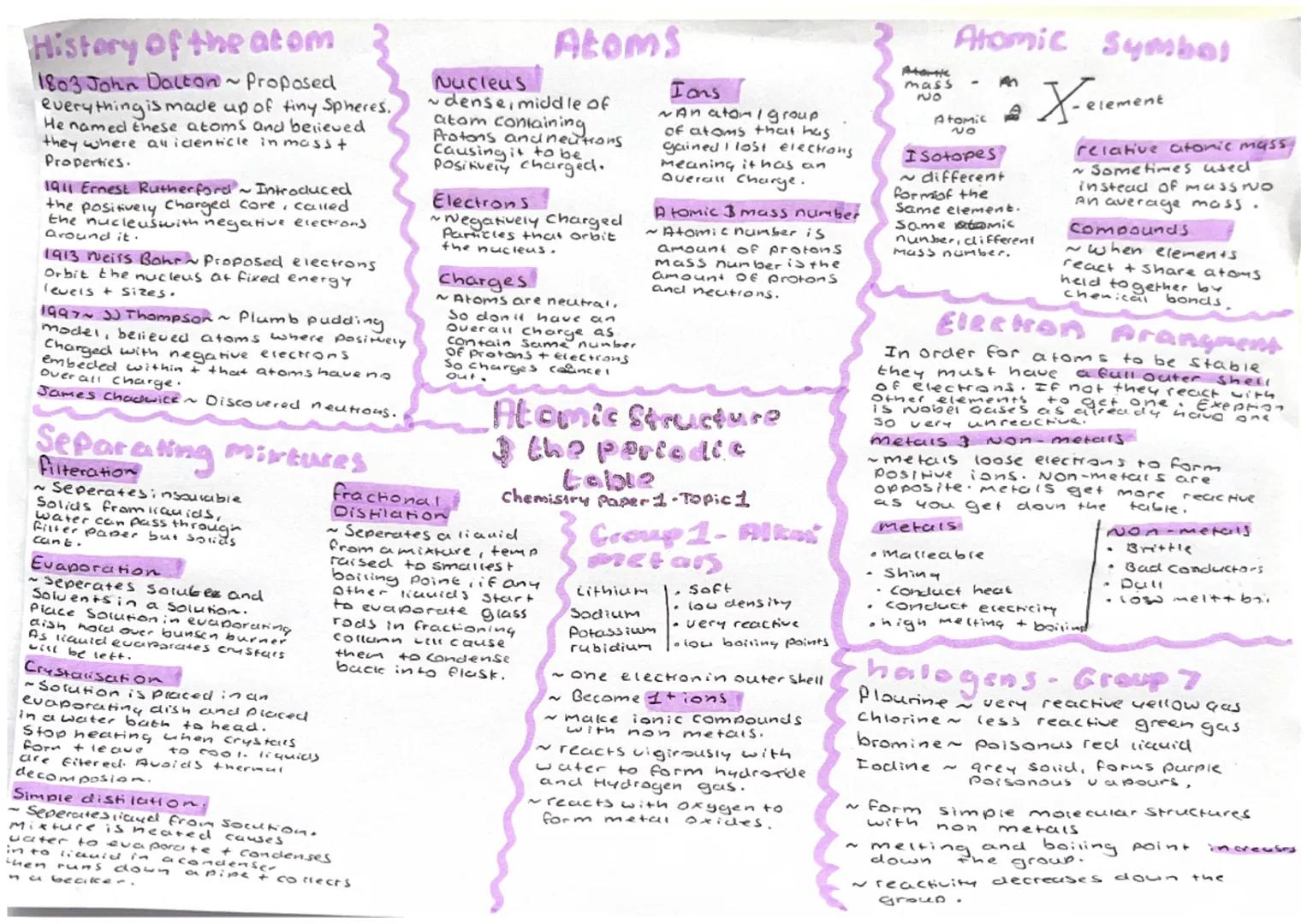

AQA Chemistry Topic 1 - Atomic structure and the periodic table. Topic summary Mindmap  – page 1

The Evolution of Atomic Theory

Your journey into chemistry starts with understanding how brilliant scientists gradually uncovered the secrets of atoms. John Dalton kicked things off in 1803, proposing that everything is made of tiny, identical spheres called atoms. Pretty basic, but it was a start!

Things got more interesting when J.J. Thomson introduced his plum pudding model in 1897. He imagined atoms as positively charged blobs with negative electrons scattered throughout, like raisins in a pudding. However, Ernest Rutherford completely revolutionised this idea in 1911 by discovering the nucleus - a dense, positively charged core with electrons orbiting around it.

Niels Bohr refined this further in 1913, suggesting that electrons orbit at fixed energy levels, whilst James Chadwick later discovered neutrons, completing our modern understanding. Each scientist built upon previous work, showing how scientific knowledge develops over time.

Key Point: Atoms consist of a dense nucleus (containing protons and neutrons) surrounded by orbiting electrons - this structure explains how all matter behaves!

Atomic Structure Essentials

Understanding atomic structure is absolutely crucial for GCSE Chemistry success. The nucleus sits at the atom's centre, packed with positively charged protons and neutral neutrons. Meanwhile, negatively charged electrons whizz around the nucleus in energy levels or shells.

Atomic number tells you how many protons an element has, whilst mass number is the total of protons plus neutrons. Since atoms contain equal numbers of protons and electrons, they're electrically neutral overall. When atoms gain or lose electrons, they become ions with an overall charge.

Isotopes are different forms of the same element - they have identical atomic numbers but different mass numbers due to varying neutron counts. The relative atomic mass you see on the periodic table is actually an average of all isotopes.

Remember: Protons determine what element you're dealing with, whilst electron arrangement determines how it behaves chemically!

Separation Techniques Made Simple

Laboratory techniques for separating mixtures are dead useful and frequently appear in exams. Filtration works brilliantly for separating insoluble solids from liquids - the liquid passes through filter paper whilst solids get trapped.

Evaporation separates dissolved substances from solutions by heating until the liquid evaporates, leaving crystals behind. Crystallisation is gentler - you heat the solution in a water bath until crystals start forming, then let it cool naturally to avoid thermal decomposition.

Simple distillation separates liquids from solutions by heating the mixture, causing water to evaporate and condense in a separate container. Fractional distillation is more sophisticated, separating liquid mixtures by using their different boiling points - perfect for separating crude oil fractions!

Exam Tip: Always explain why you'd choose each technique - it shows you understand the science behind the method!

Groups 1 and 7: Reactive Powerhouses

Group 1 metals (alkali metals) are chemistry's drama queens - they're incredibly reactive and put on quite a show! Lithium, sodium, and potassium all have one electron in their outer shell, making them desperate to lose it and form positive ions.

These metals are surprisingly soft, have low density, and reactivity increases down the group. They react vigorously with water, producing hydrogen gas and metal hydroxides, and with oxygen to form metal oxides. All Group 1 metals form ionic compounds with non-metals.

Group 7 (halogens) are equally fascinating but in the opposite way. Fluorine, chlorine, bromine, and iodine have seven electrons in their outer shell, so they're keen to gain one more. Reactivity decreases down the group - fluorine is the most reactive, whilst iodine is relatively calm.

Pattern Spotting: Group 1 gets more reactive going down, Group 7 gets less reactive - this trend knowledge is pure exam gold!
