AQA Chemistry Paper 1: Bonding, Ionic Compounds & Periodic Table Study Guide

A

Alice Stevens

@alicestevens_idux

Understanding chemical bonding and structure is fundamental to mastering GCSE... Show more

Chemistry paper (-
-Bonding
grant ionic compounds/
when solid, the lons are locked into the lattice and cannot move therefore.
they do not c

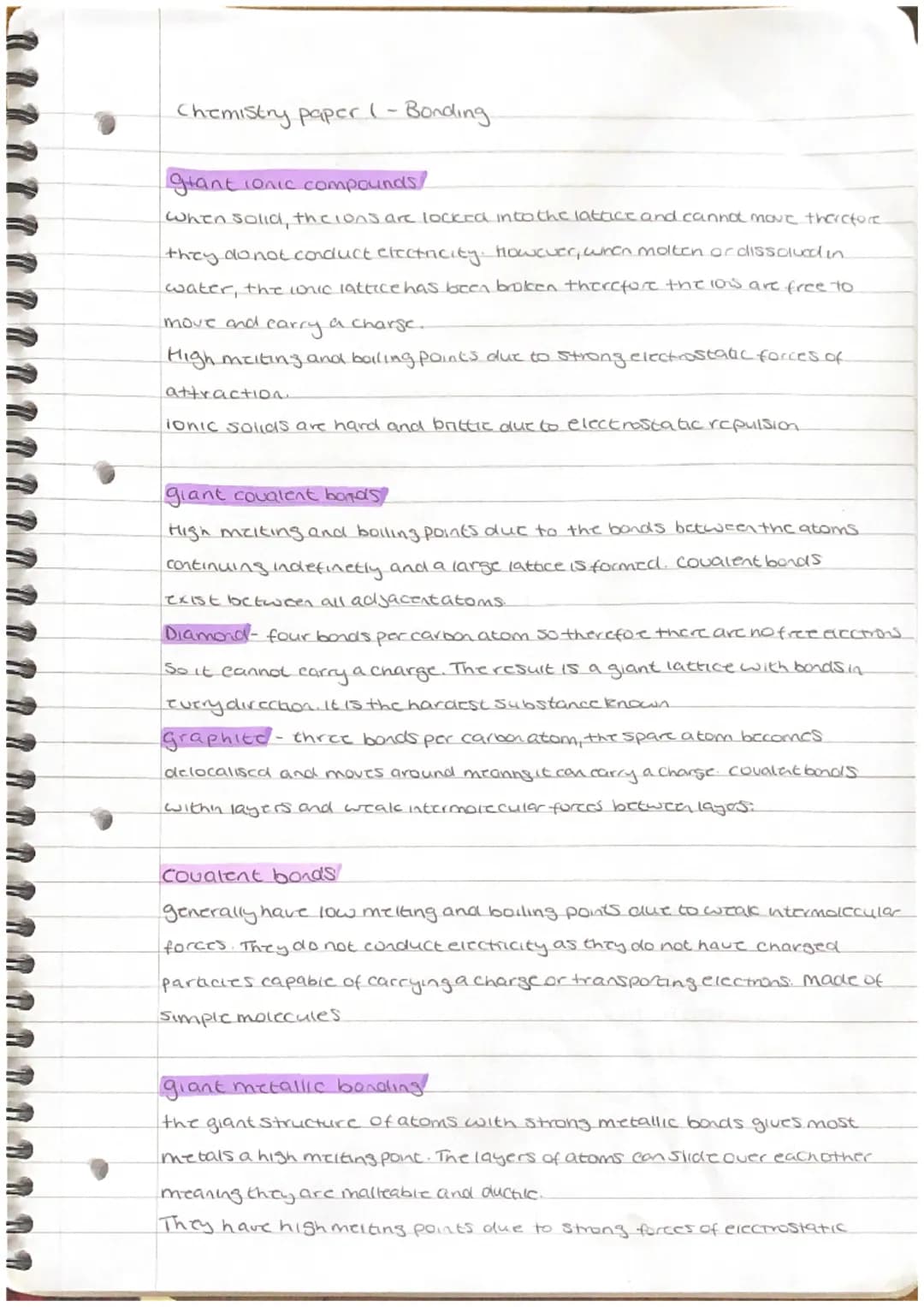

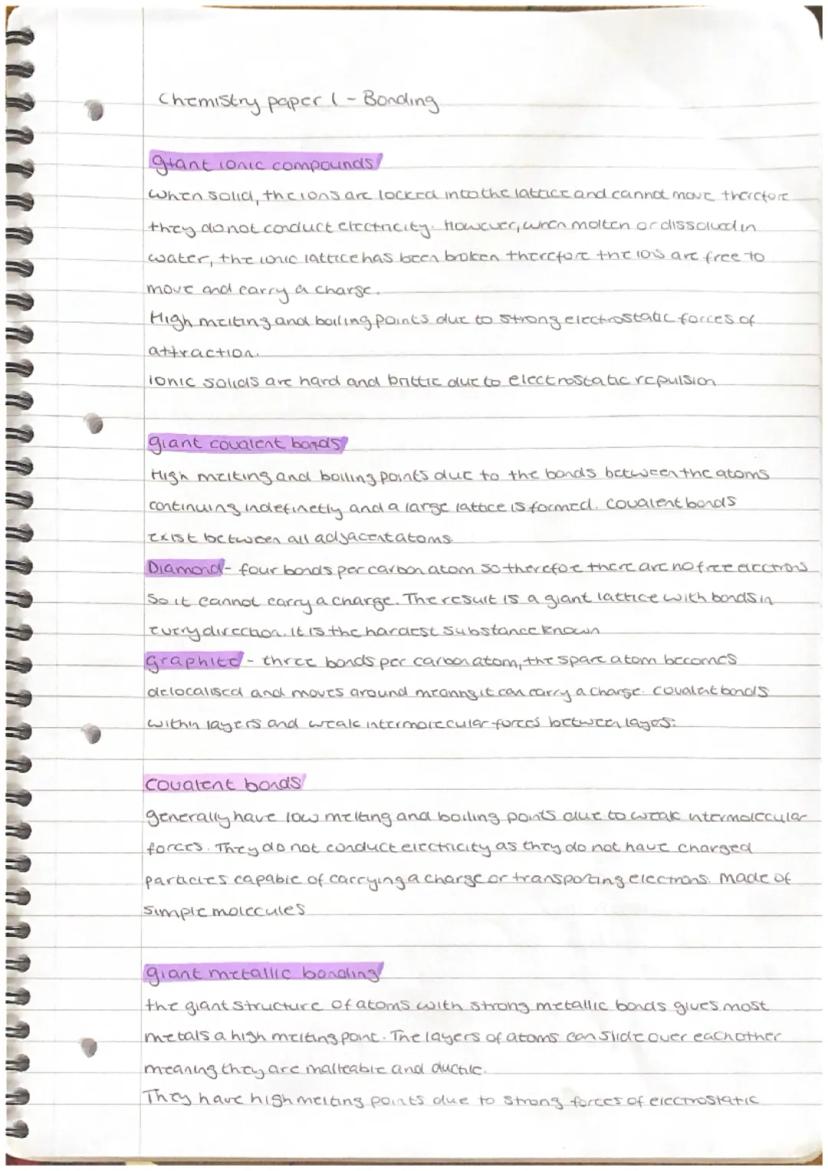

Understanding Ionic and Covalent Bonding in Chemistry

Ionic compounds demonstrate unique properties based on their bonding structure. In solid form, ions remain fixed within the crystal lattice, preventing electrical conductivity. However, when these compounds melt or dissolve in water, the ions become mobile and can conduct electricity effectively. The strong electrostatic forces between oppositely charged ions result in characteristically high melting and boiling points.

Giant covalent structures exhibit remarkable properties due to their extensive atomic networks. Diamond, with its tetrahedral arrangement of carbon atoms forming four covalent bonds, creates an incredibly strong three-dimensional structure. This arrangement makes diamond the hardest natural substance but prevents electrical conductivity due to the absence of free electrons. In contrast, graphite's layered structure, with three bonds per carbon atom, allows for electrical conductivity through delocalized electrons.

Simple molecular substances formed through covalent bonding typically display lower melting and boiling points due to weak intermolecular forces between molecules. These compounds generally don't conduct electricity because they lack charged particles or free electrons for charge transport.

Definition: Metallic bonding involves a regular arrangement of positive metal ions surrounded by a sea of delocalized electrons, resulting in unique properties like malleability and electrical conductivity.

Chemistry paper (-
-Bonding
grant ionic compounds/
when solid, the lons are locked into the lattice and cannot move therefore.
they do not c

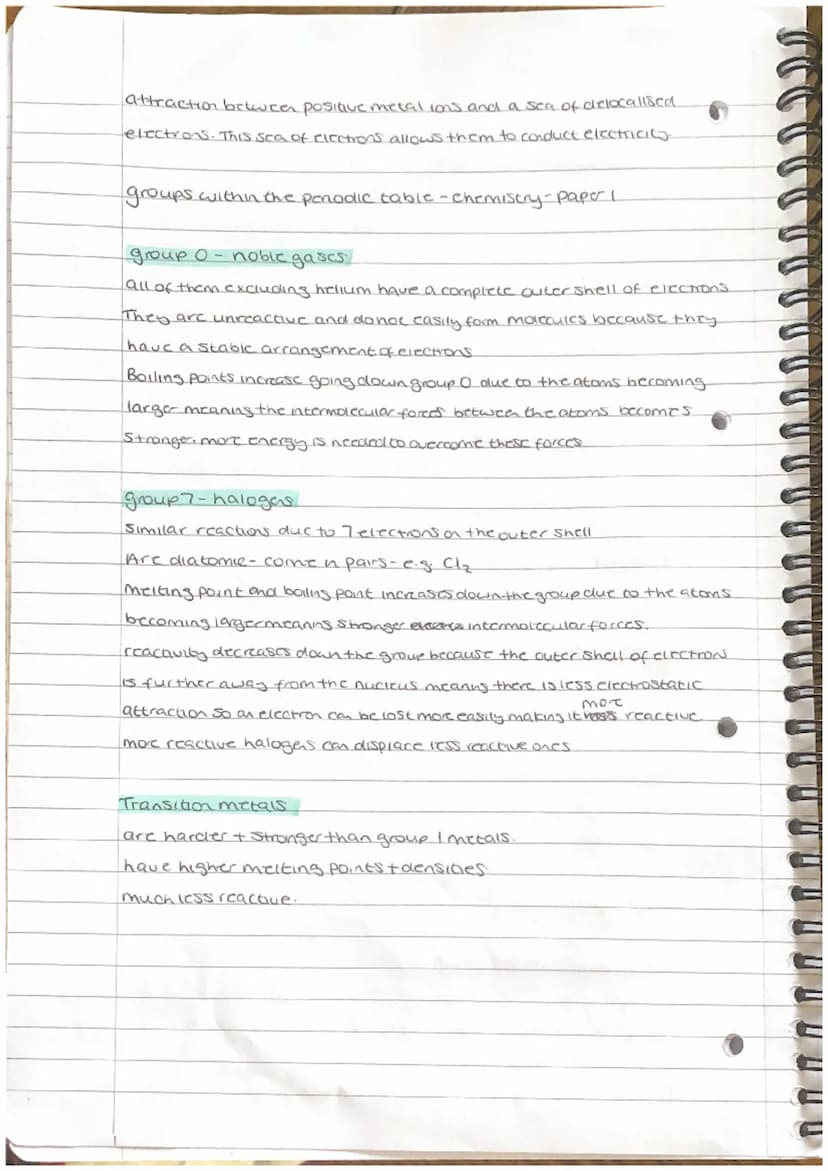

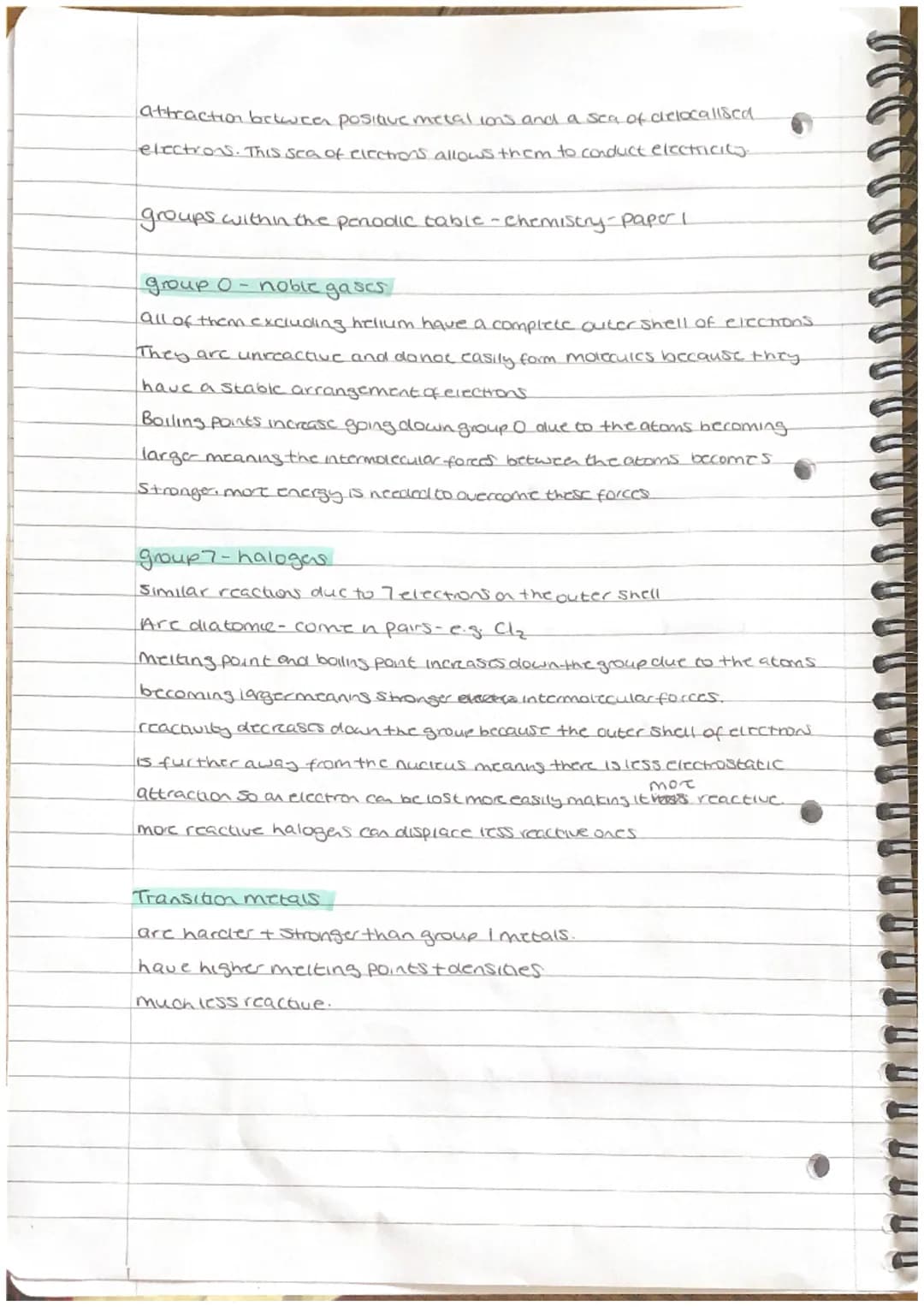

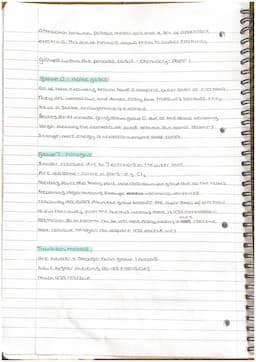

The Periodic Table: Groups and Properties

The periodic table's organization reveals important patterns in elemental properties. Group 0 noblegasesnoble gases exhibits minimal reactivity due to their complete outer electron shells. Their boiling points increase down the group as atomic size and intermolecular forces increase.

Group 7 halogenshalogens demonstrates consistent chemical behavior due to their seven outer electrons. These elements exist as diatomic molecules and show decreasing reactivity down the group as atomic size increases and electron attraction decreases.

Highlight: Transition metals display distinct characteristics including:

  • Higher strength and hardness compared to Group 1 metals
  • Elevated melting points and densities
  • Reduced chemical reactivity
Chemistry paper (-
-Bonding
grant ionic compounds/
when solid, the lons are locked into the lattice and cannot move therefore.
they do not c

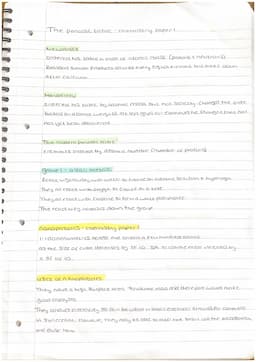

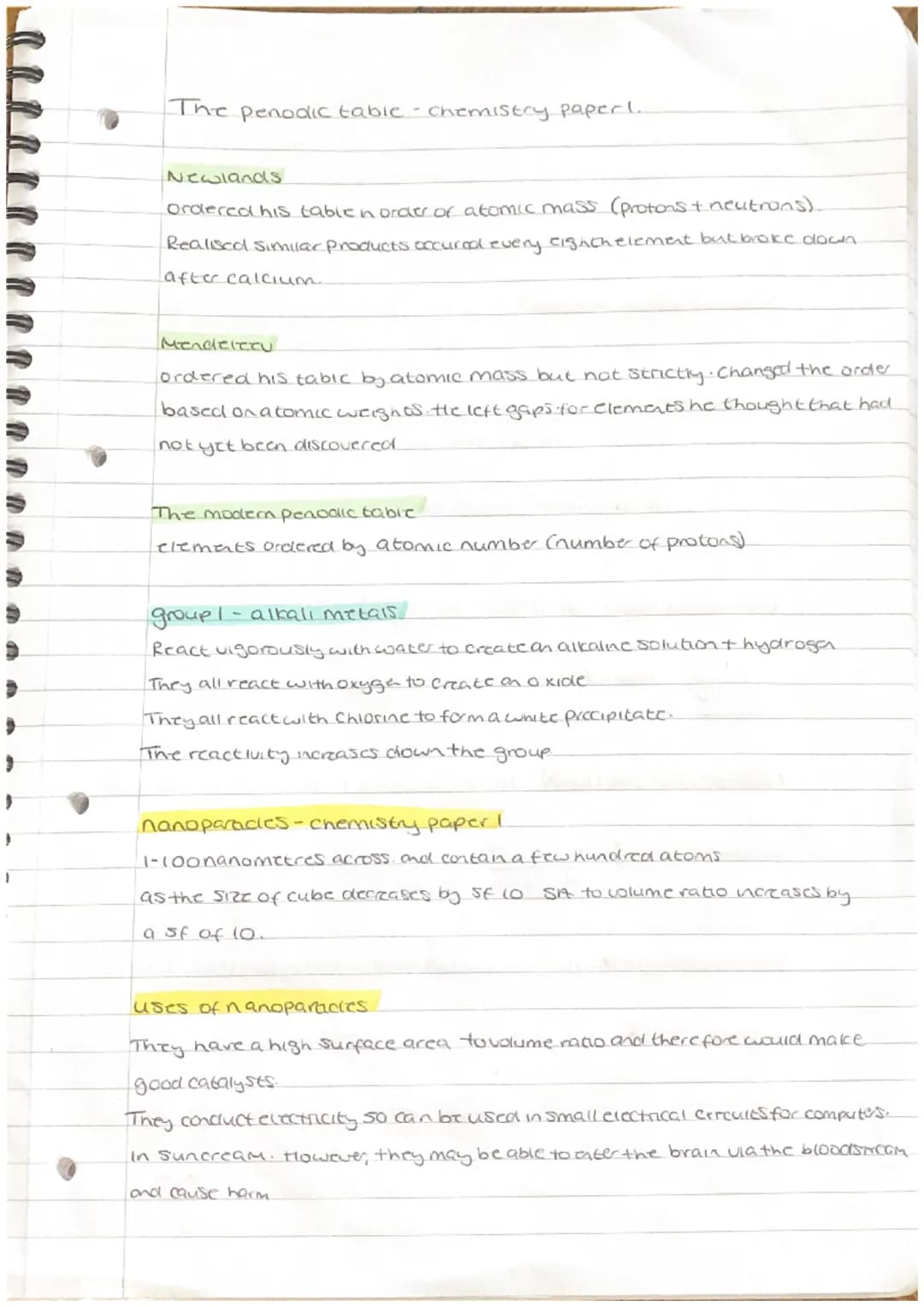

Development and Structure of the Periodic Table

The modern periodic table evolved through significant contributions. Newlands first recognized patterns in element properties, noting similarities every eighth element. Mendeleev advanced this by arranging elements by atomic mass while leaving gaps for undiscovered elements.

Today's periodic table organizes elements by atomic number protoncountproton count. Group 1 alkalimetalsalkali metals exemplifies clear trends:

  • Vigorous reactions with water producing alkaline solutions
  • Increasing reactivity down the group
  • Consistent oxide formation patterns

Example: Nanoparticles 1100nanometers1-100 nanometers demonstrate unique properties:

  • Enhanced surface area to volume ratios
  • Electrical conductivity suitable for microelectronics
  • Potential medical applications despite possible health considerations
Chemistry paper (-
-Bonding
grant ionic compounds/
when solid, the lons are locked into the lattice and cannot move therefore.
they do not c

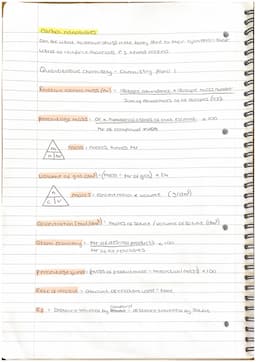

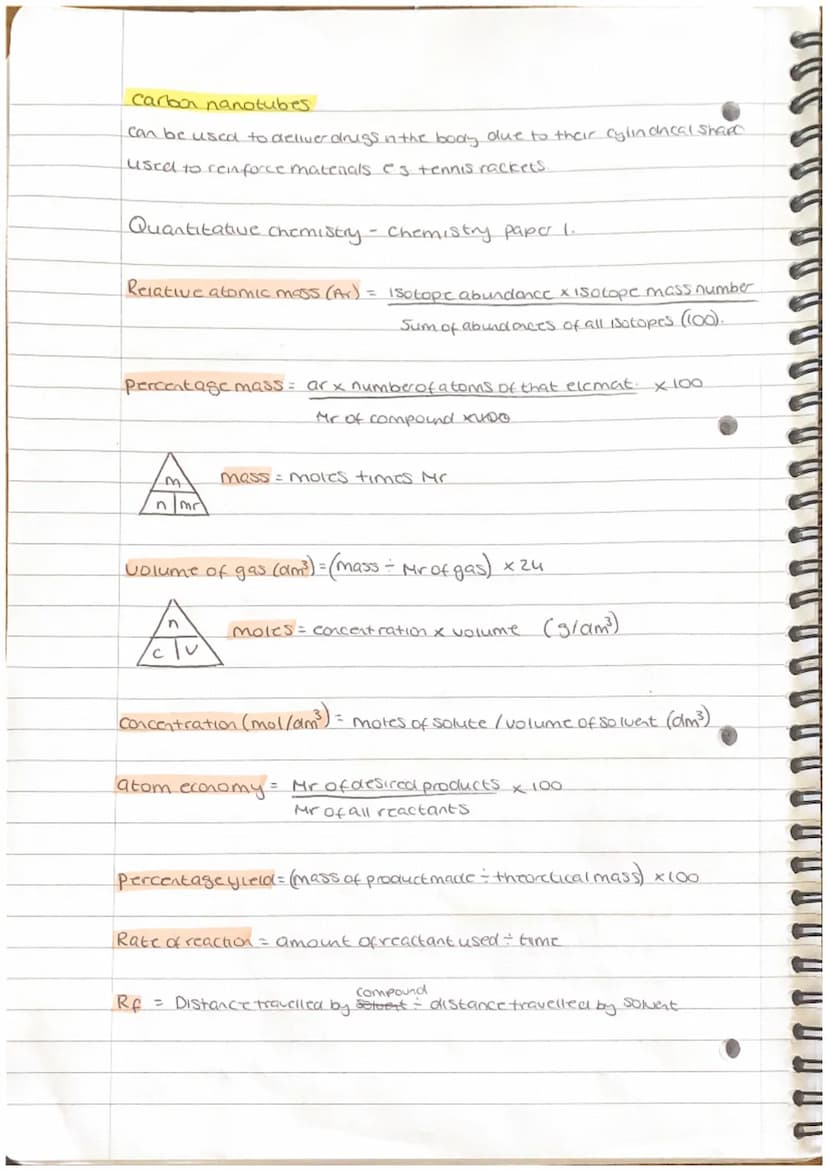

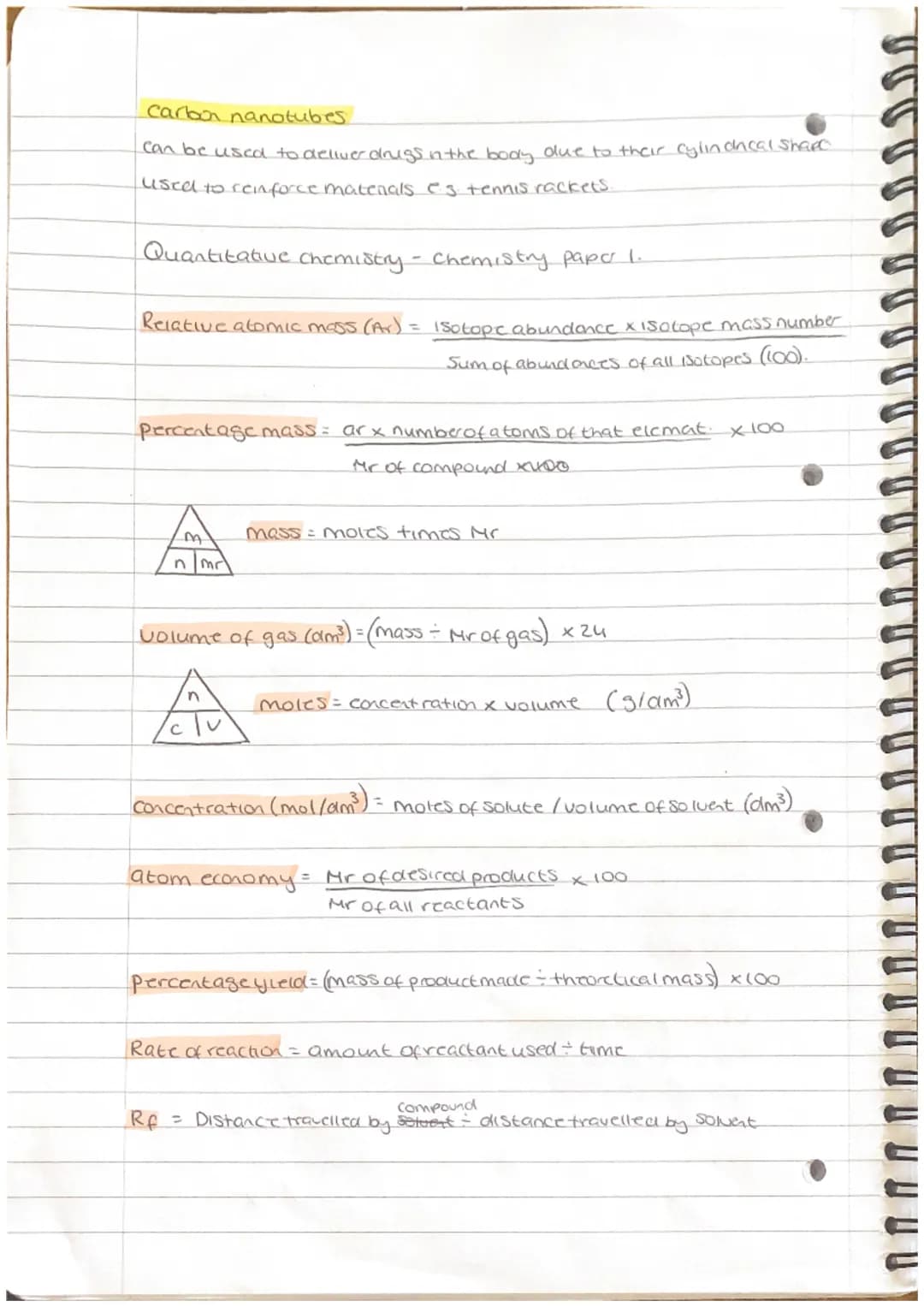

Quantitative Chemistry and Calculations

Understanding quantitative relationships in chemistry requires mastery of several key calculations:

Relative atomic mass calculations incorporate isotope abundance: Isotopeabundance×massnumberIsotope abundance × mass number ÷ total abundance

Concentration and mole relationships follow specific formulas:

  • Moles = mass ÷ relative molecular mass
  • Concentration mol/dm3mol/dm³ = moles of solute ÷ volume of solvent

Vocabulary: Key terms include:

  • Atom economy: efficiency of chemical reactions
  • Percentage yield: actual vs. theoretical product comparison
  • Rate of reaction: change in reactant/product quantity over time
Chemistry paper (-
-Bonding
grant ionic compounds/
when solid, the lons are locked into the lattice and cannot move therefore.
they do not c

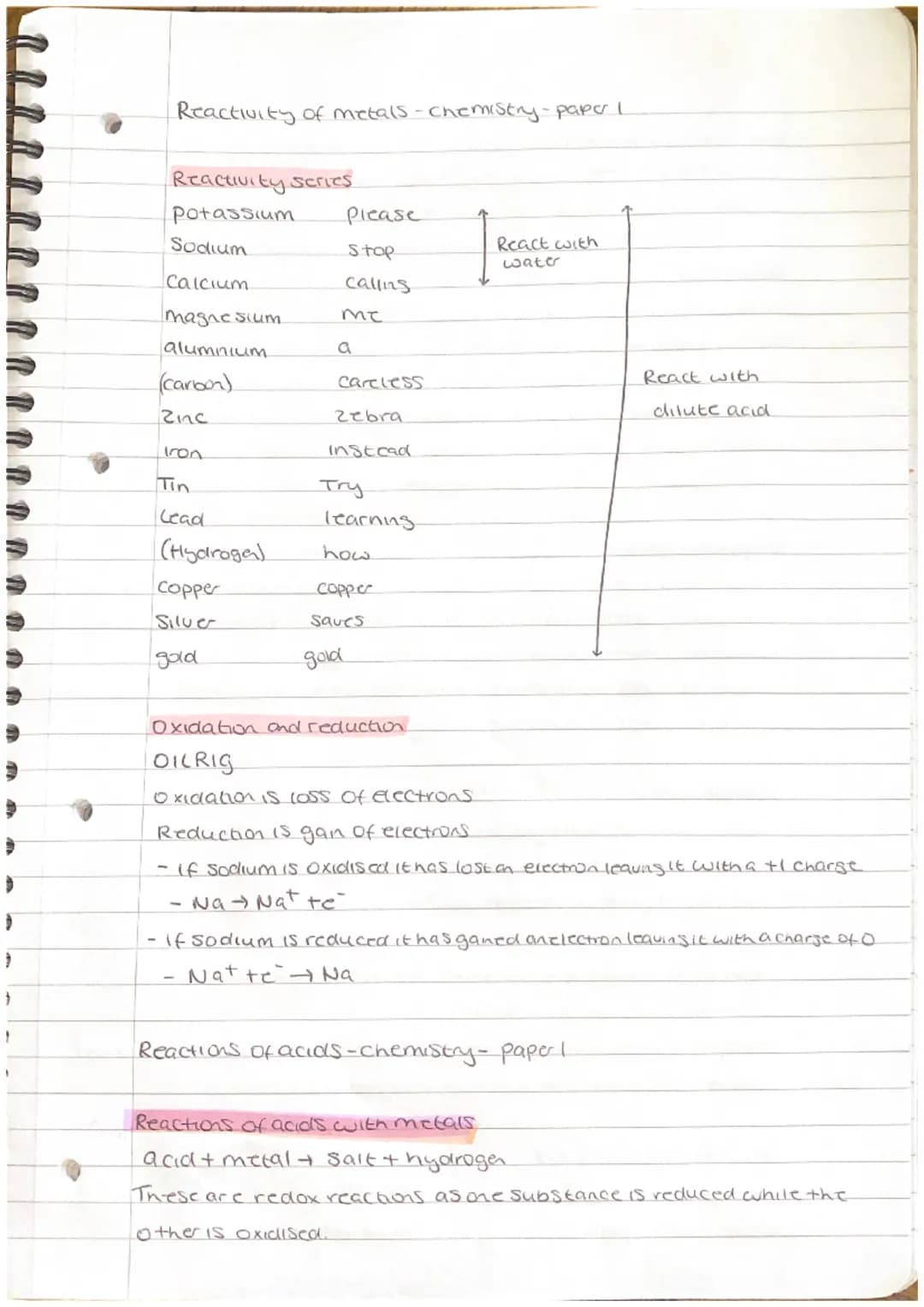

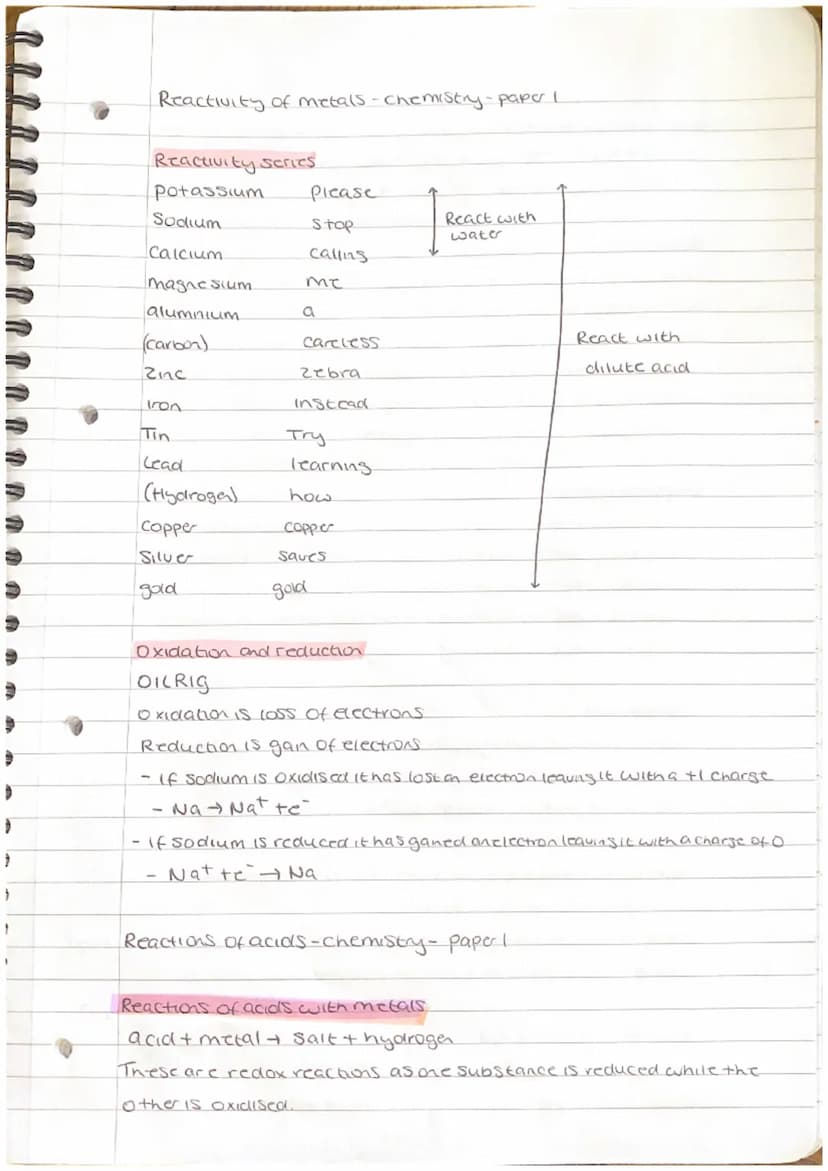

Understanding Metal Reactivity and Chemical Reactions in GCSE Chemistry

The reactivity series in chemistry forms a fundamental framework for understanding how different metals react. From most reactive to least reactive, the series progresses from potassium through sodium, calcium, magnesium, aluminum, zinc, iron, tin, lead, and finally to the noble metals copper, silver, and gold.

Definition: OILRIG OxidationIsLoss,ReductionIsGainOxidation Is Loss, Reduction Is Gain is a key memory device for understanding electron transfer in chemical reactions.

Understanding oxidation and reduction reactions is crucial for GCSE Chemistry structure and bonding questions. When sodium undergoes oxidation, it loses an electron to form Na+, while reduction involves gaining an electron to return to its neutral state. These concepts are frequently tested in AQA GCSE Chemistry structure and bonding past papers.

The reactions of acids with metals produce predictable results following the pattern: acid + metal → salt + hydrogen. These are redox reactions where one substance reduces while another oxidizes, making them important topics in Chemistry bonding questions and answers pdf resources.

Chemistry paper (-
-Bonding
grant ionic compounds/
when solid, the lons are locked into the lattice and cannot move therefore.
they do not c

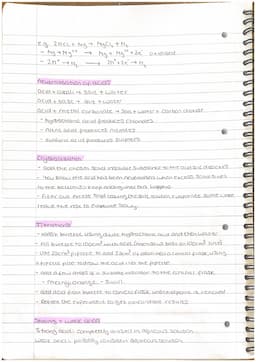

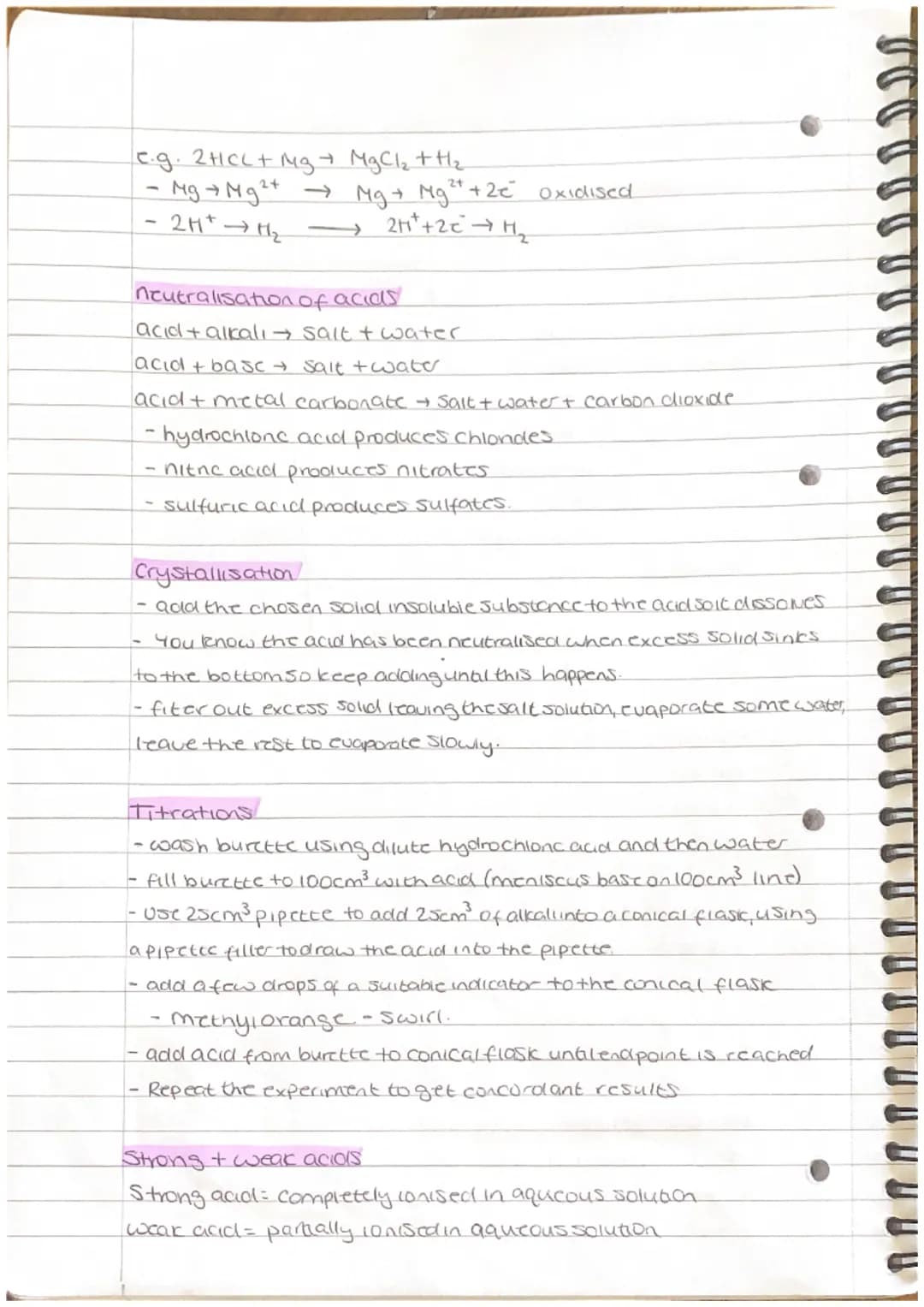

Acid Reactions and Titration Procedures in Chemistry

Neutralization reactions follow specific patterns that are essential to understand for AQA chemistry paper 1 bonding and ionic compounds questions. The three main types are:

  • Acid + alkali → salt + water
  • Acid + base → salt + water
  • Acid + metal carbonate → salt + water + carbon dioxide

Example: Different acids produce specific salts:

  • Hydrochloric acid → chlorides
  • Nitric acid → nitrates
  • Sulfuric acid → sulfates

The crystallization process, crucial for obtaining pure salts, involves careful steps of dissolution, filtration, and controlled evaporation. This process appears frequently in Structure and bonding GCSE Chemistry questions.

Chemistry paper (-
-Bonding
grant ionic compounds/
when solid, the lons are locked into the lattice and cannot move therefore.
they do not c

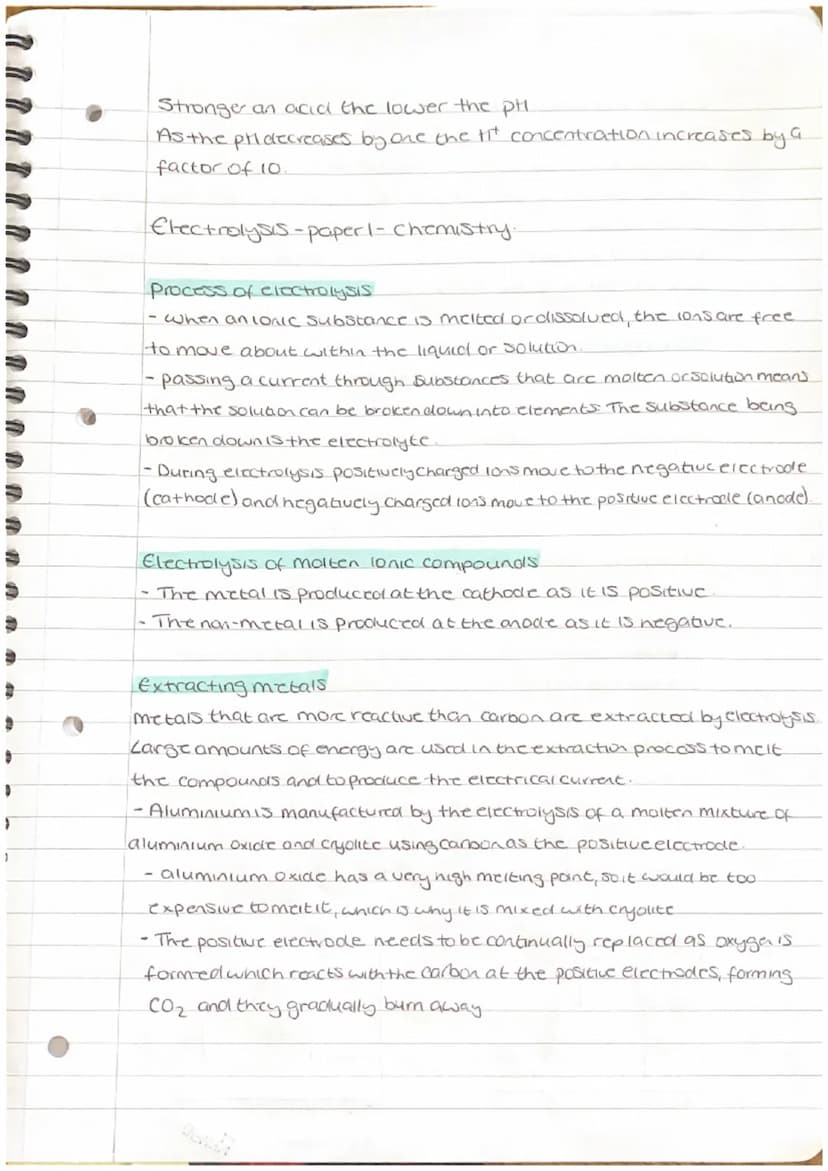

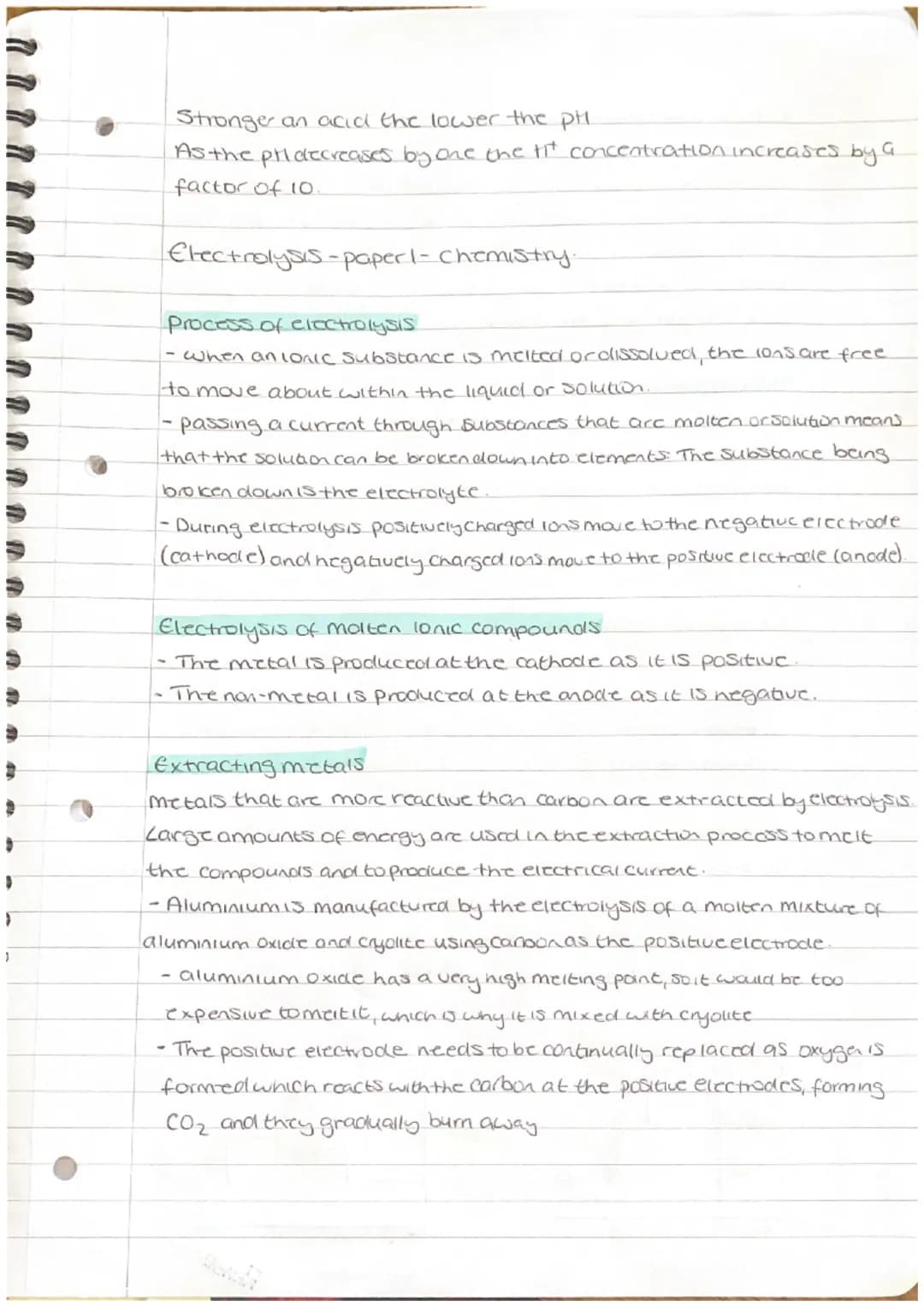

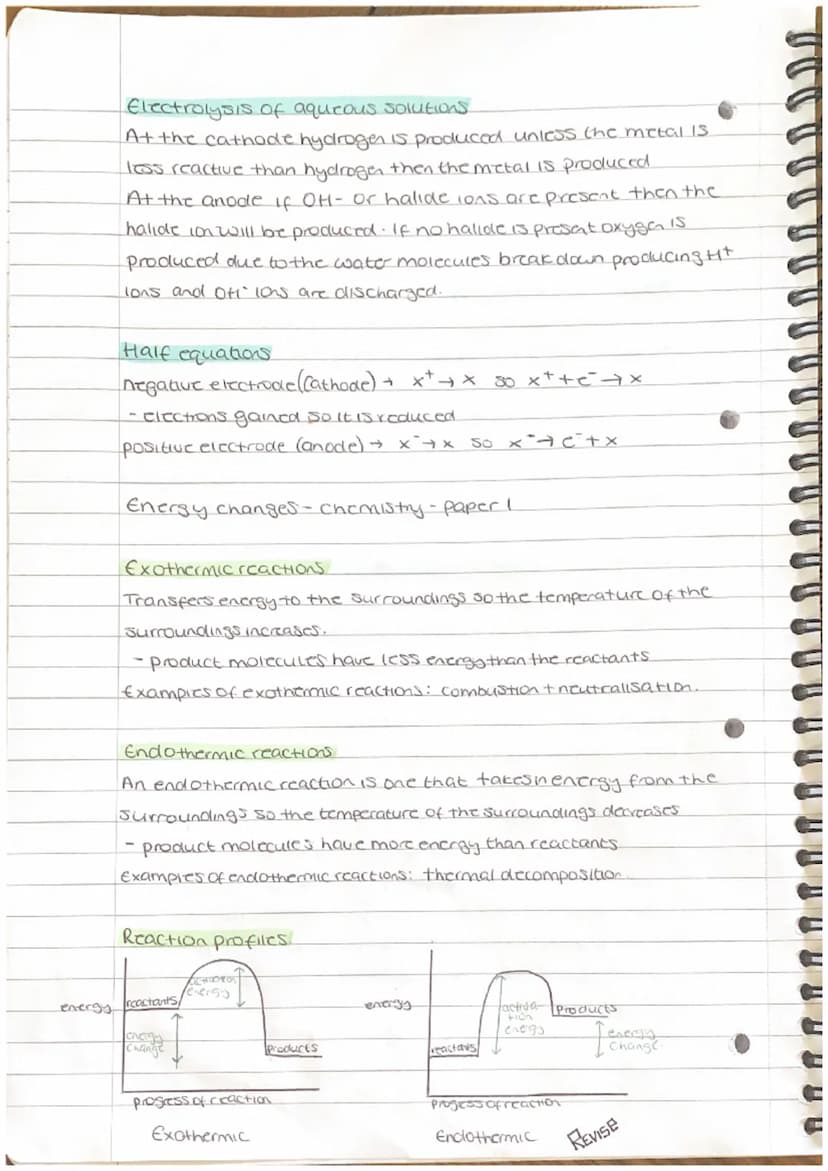

Electrolysis Principles and Applications

Electrolysis represents a crucial process in chemistry where electrical current breaks down ionic substances. This topic frequently appears in AQA chemistry paper 1 metallic and covalent bonding comparison questions.

Highlight: During electrolysis:

  • Positively charged ions move to the negative cathode
  • Negatively charged ions move to the positive anode
  • The substance being broken down is called the electrolyte

The extraction of reactive metals through electrolysis is particularly important for industrial processes. Aluminum extraction, for example, requires a mixture of aluminum oxide and cryolite, demonstrating practical applications of Ionic bonding GCSE questions pdf concepts.

Chemistry paper (-
-Bonding
grant ionic compounds/
when solid, the lons are locked into the lattice and cannot move therefore.
they do not c

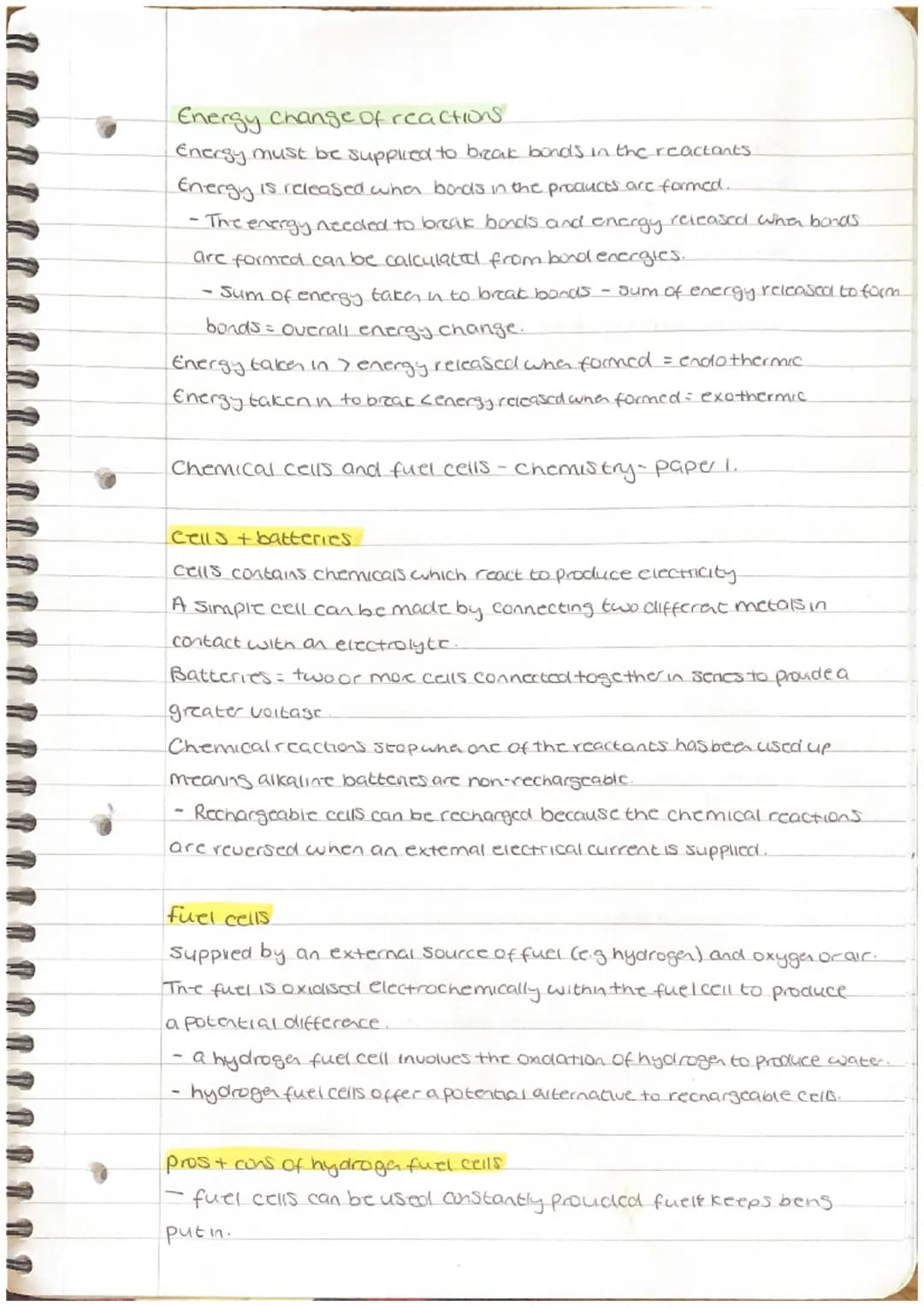

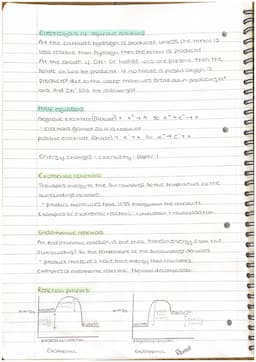

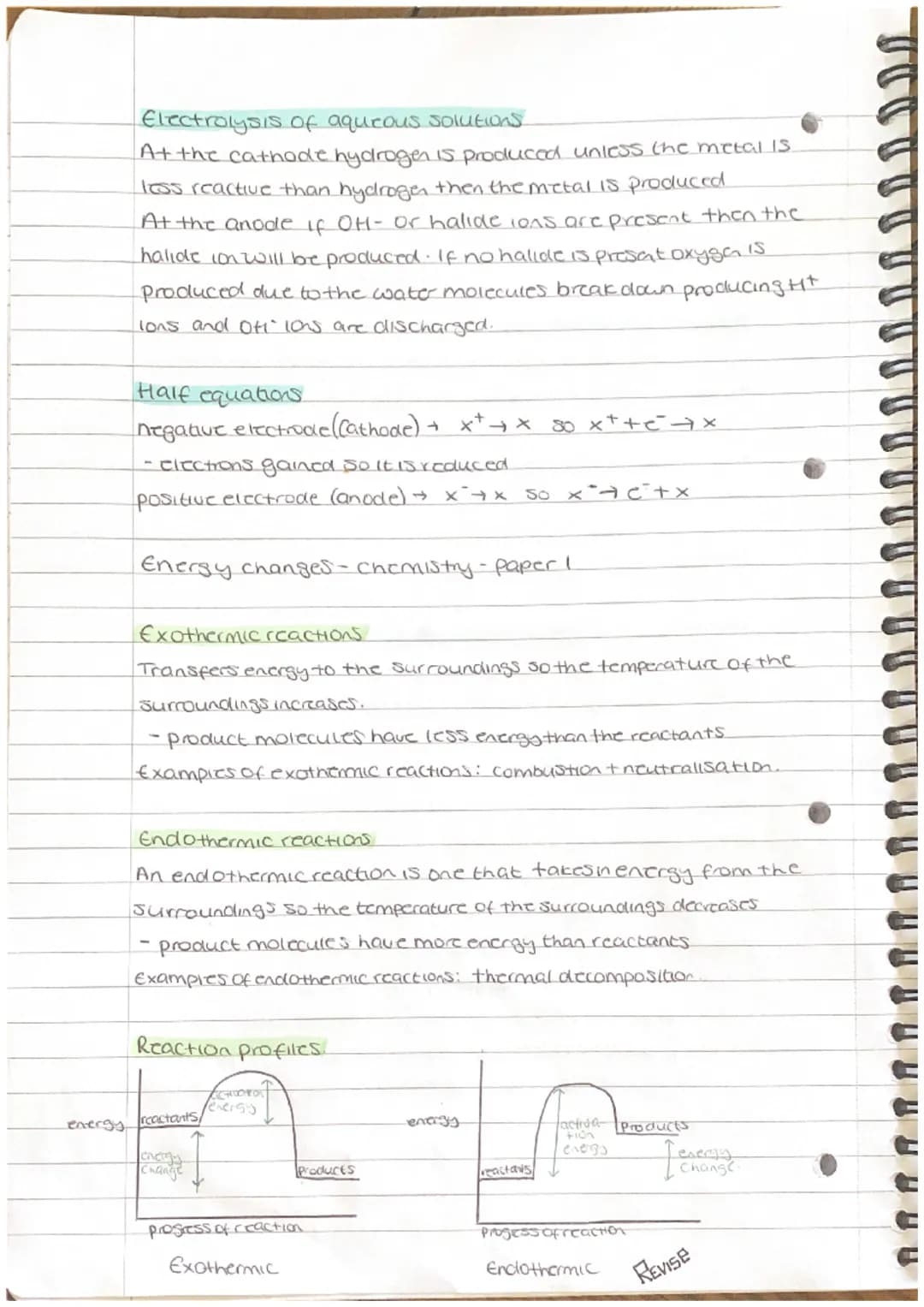

Energy Changes and Chemical Cells

Understanding energy changes in chemical reactions is fundamental to AQA Chemistry Paper 1 success. Exothermic reactions release energy to surroundings, while endothermic reactions absorb energy.

Vocabulary:

  • Exothermic reactions: Release energy e.g.,combustion,neutralizatione.g., combustion, neutralization
  • Endothermic reactions: Absorb energy e.g.,thermaldecompositione.g., thermal decomposition

Chemical cells and fuel cells represent practical applications of electrochemical principles. Hydrogen fuel cells, which produce electricity through hydrogen oxidation, demonstrate modern applications of bonding, structure and the properties of matter past papers concepts.

The energy changes in reactions can be calculated using bond energies:

  • Energy needed to break bonds - Energy released when bonds form = Overall energy change
  • If energy absorbed > energy released = Endothermic
  • If energy absorbed < energy released = Exothermic
Chemistry paper (-
-Bonding
grant ionic compounds/
when solid, the lons are locked into the lattice and cannot move therefore.
they do not c

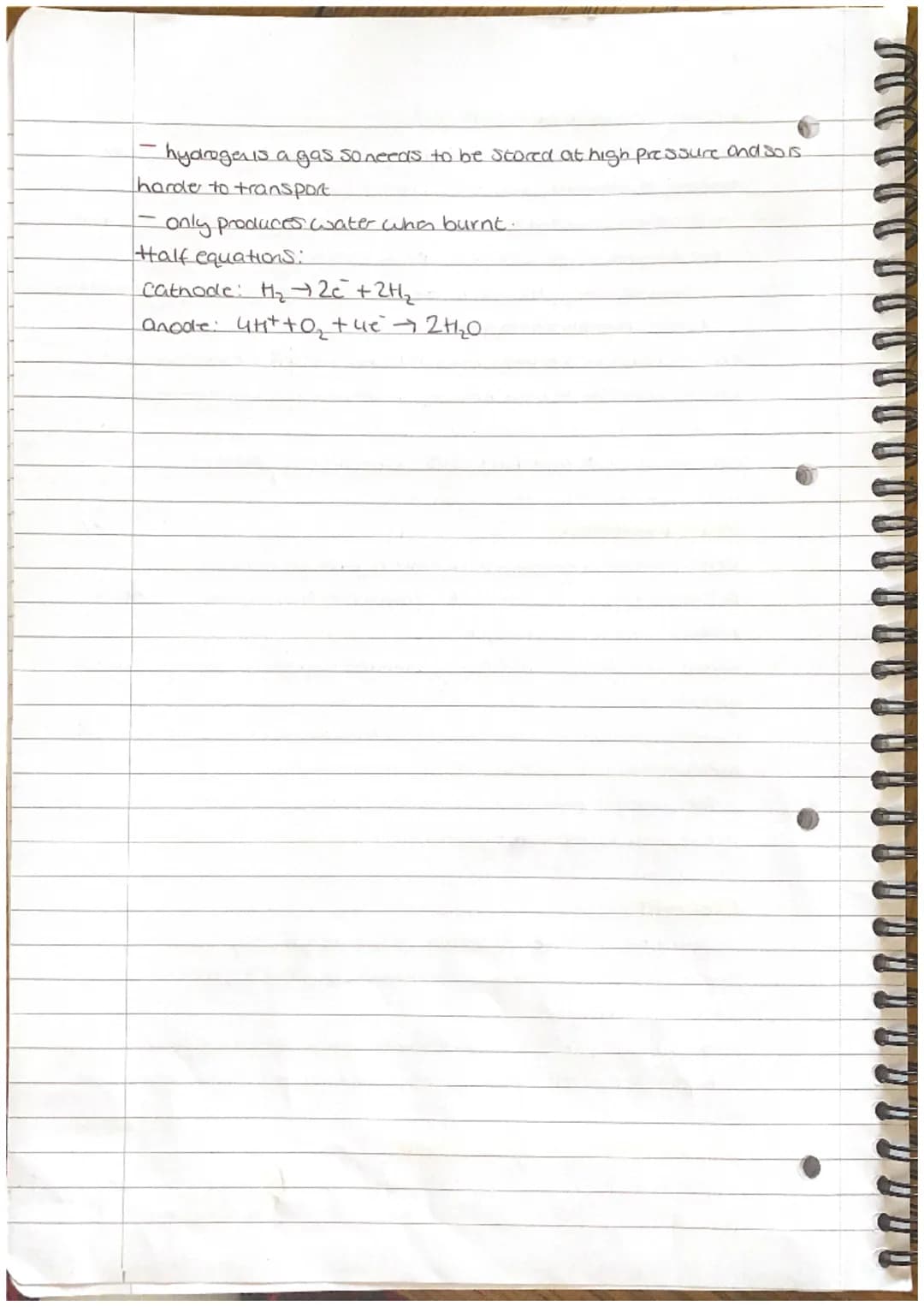

Understanding Hydrogen Fuel Cells and Half Equations in Chemistry

The storage and transportation of hydrogen presents unique challenges in Chemistry bonding questions and answers. As a gas at room temperature, hydrogen must be compressed under high pressure for practical storage and transportation purposes. This compression requirement adds complexity and cost to hydrogen fuel infrastructure, though the environmental benefit of producing only water as a byproduct makes it an attractive clean energy source.

When examining the chemical reactions in hydrogen fuel cells, we must understand the half equations that occur at both electrodes. At the cathode, hydrogen gas H2H₂ undergoes oxidation, releasing electrons and forming hydrogen ions H+H⁺. This process can be represented by the half equation: H₂ → 2H⁺ + 2e⁻. The electrons travel through an external circuit, providing useful electrical energy.

Definition: Half equations show the separate oxidation and reduction processes occurring at each electrode in an electrochemical cell.

At the anode, oxygen gas combines with hydrogen ions and electrons in a reduction reaction, producing water as the only product. This reaction is represented by: 4H⁺ + O₂ + 4e⁻ → 2H₂O. Understanding these half equations is crucial for GCSE Chemistry structure and Bonding questions and Answers, as they demonstrate how hydrogen fuel cells convert chemical energy into electrical energy without producing harmful emissions.

Chemistry paper (-
-Bonding
grant ionic compounds/
when solid, the lons are locked into the lattice and cannot move therefore.
they do not c

Chemical Bonding and Electrode Reactions in Fuel Cells

The efficiency of hydrogen fuel cells relies heavily on understanding Structure and bonding GCSE Chemistry questions related to electrode materials and reaction kinetics. The electrodes must be designed with specific properties to facilitate the half reactions while maintaining structural integrity under operating conditions.

The cathode material must effectively catalyze the hydrogen oxidation reaction, typically using platinum or platinum-based alloys. This relates directly to Chemistry bonding questions and answers pdf content, as the interaction between the electrode surface and hydrogen molecules determines the reaction rate and overall cell efficiency.

Highlight: The choice of electrode materials significantly impacts fuel cell performance and is based on understanding chemical bonding principles.

The anode material must similarly catalyze the oxygen reduction reaction while resisting corrosion from the acidic environment created by the hydrogen ions. This connects to AQA GCSE Chemistry structure and bonding past papers topics, demonstrating how theoretical knowledge of bonding translates into practical applications in sustainable energy technology.
