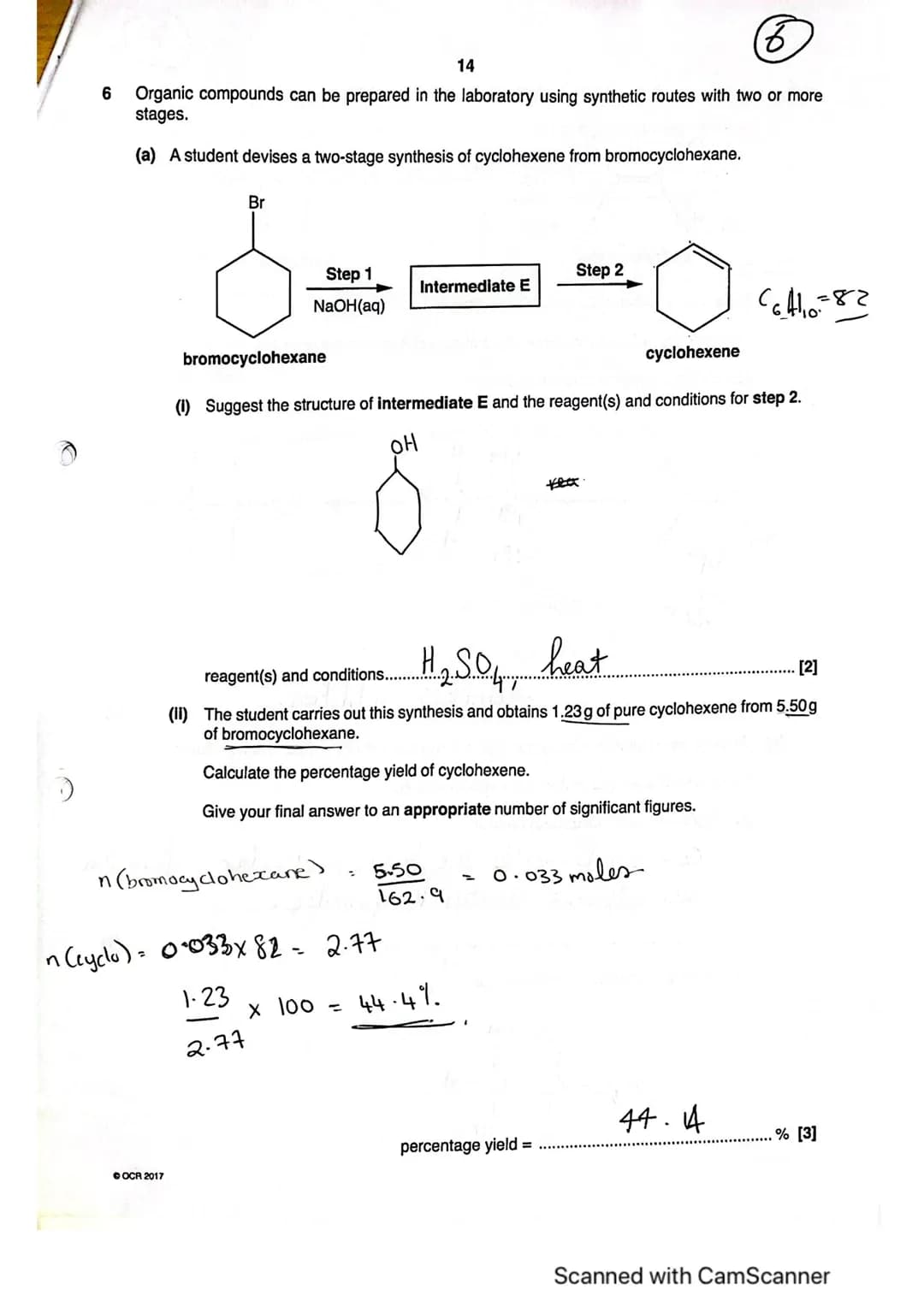

Understanding Two-Stage Organic Synthesis and Reaction Mechanisms

The two-stage synthesis of cyclohexene from bromocyclohexane represents a fundamental organic chemistry transformation that demonstrates important reaction principles. In this process, bromocyclohexane undergoes nucleophilic substitution followed by elimination to yield cyclohexene.

The first stage involves treating bromocyclohexane with aqueous sodium hydroxide (NaOH) to form cyclohexanol as an intermediate. This substitution reaction replaces the bromine with a hydroxyl group $-OH$. The second stage requires careful selection of reagents and conditions to promote elimination of water, typically using concentrated sulfuric acid under heat.

When performing these reactions, yield calculations provide crucial information about reaction efficiency. For example, obtaining 1.23g of cyclohexene from 5.50g of bromocyclohexane represents a 44.4% yield, calculated by comparing actual yield to theoretical yield based on balanced equations and molar ratios.

Definition: Percentage yield compares the actual amount of product obtained to the theoretical maximum amount possible, expressed as a percentage.

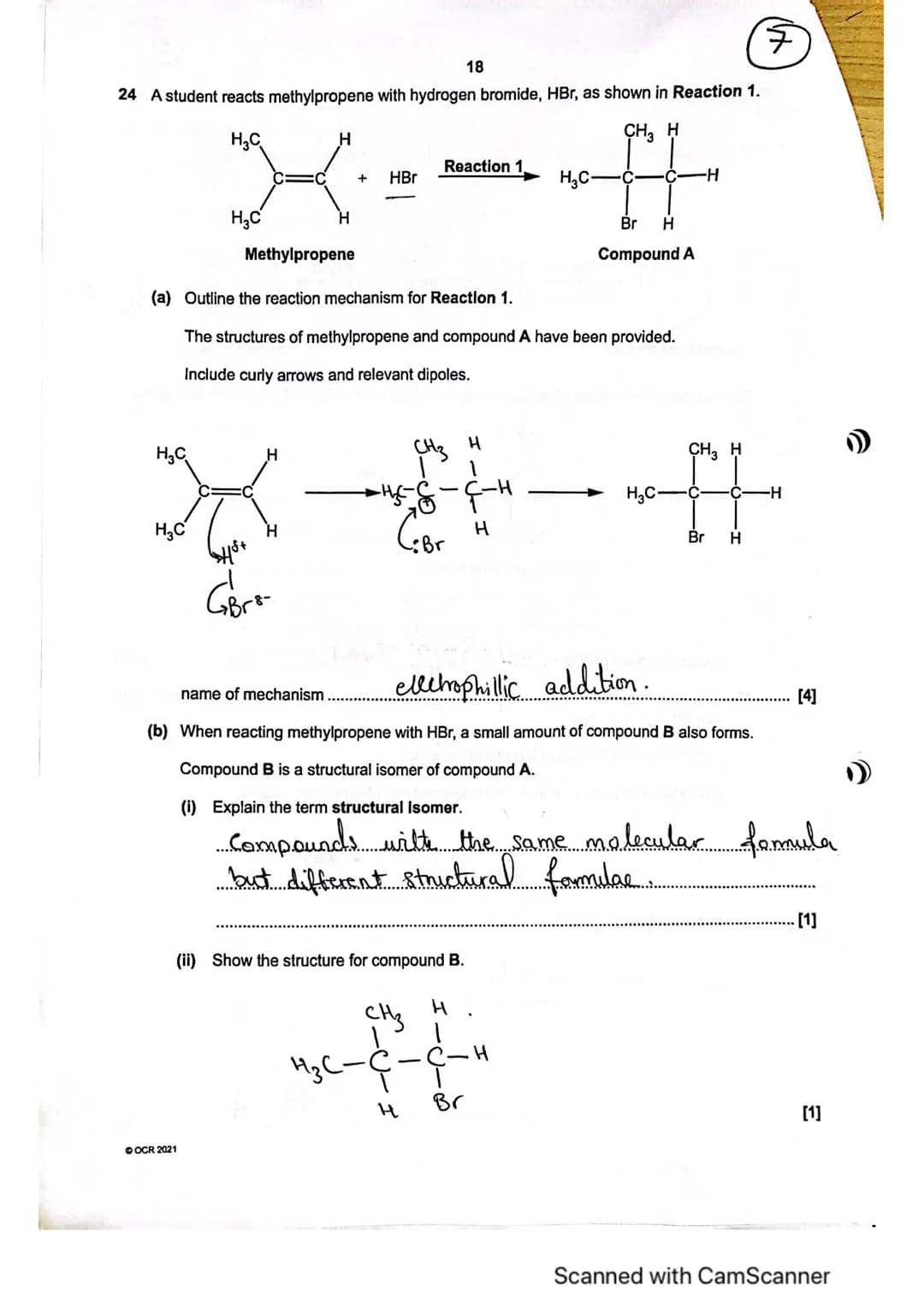

Exploring Addition Reactions and Structural Isomers

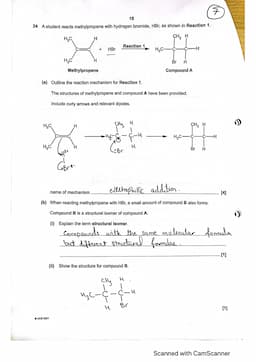

The reaction mechanism of methylpropene with hydrogen bromide illustrates electrophilic addition across a carbon-carbon double bond. This process begins with the polarization of HBr, allowing the electrophilic H+ to attack the electron-rich double bond of methylpropene.

The reaction predominantly forms one major product (Compound A) due to Markovnikov's rule, which states that the H+ adds to the carbon with more hydrogen atoms. However, a small amount of the anti-Markovnikov product (Compound B) also forms as a structural isomer.

Understanding structural isomerism is crucial in organic chemistry as it explains how compounds with identical molecular formulas can have different arrangements of atoms, leading to distinct chemical and physical properties.

Vocabulary: Markovnikov's rule predicts the major product in hydrohalogenation reactions, where the halogen attaches to the more substituted carbon.

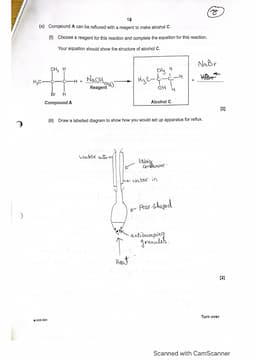

Reflux Techniques in Organic Synthesis

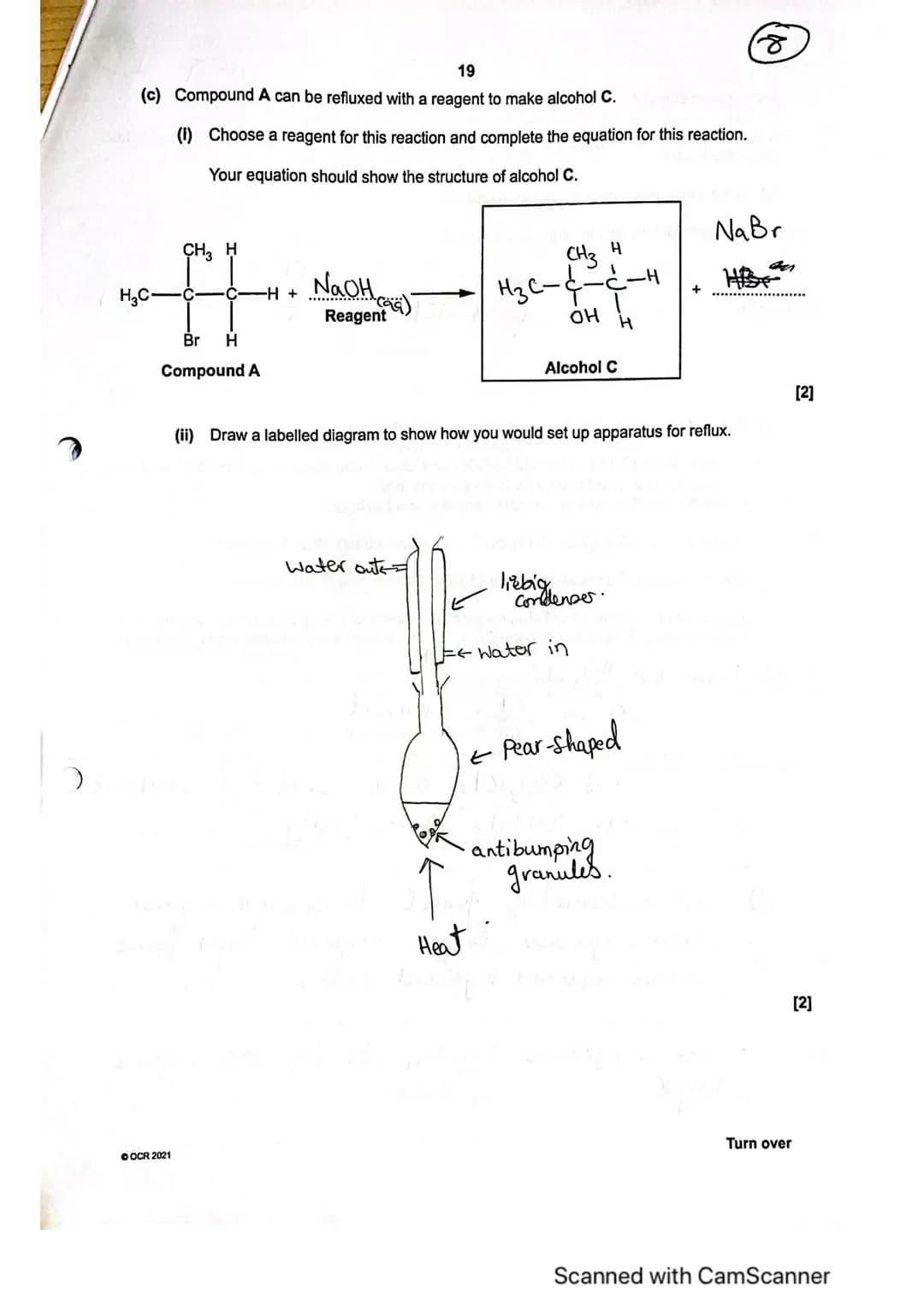

Converting alkyl halides to alcohols through nucleophilic substitution requires careful control of reaction conditions. Reflux apparatus provides an efficient method for maintaining constant temperature while preventing loss of volatile reagents.

The setup includes essential components like a Liebig condenser, which allows continuous recycling of solvent through cooling. Anti-bumping granules prevent violent boiling, while proper water flow through the condenser ensures efficient cooling and condensation.

This technique proves particularly valuable when converting compound A to alcohol C using aqueous NaOH, as it allows the reaction to proceed at elevated temperatures while containing all reagents within the system.

Example: In a typical reflux setup, cold water enters the condenser jacket from the bottom and exits from the top, while hot vapors rise and condense inside the inner tube.

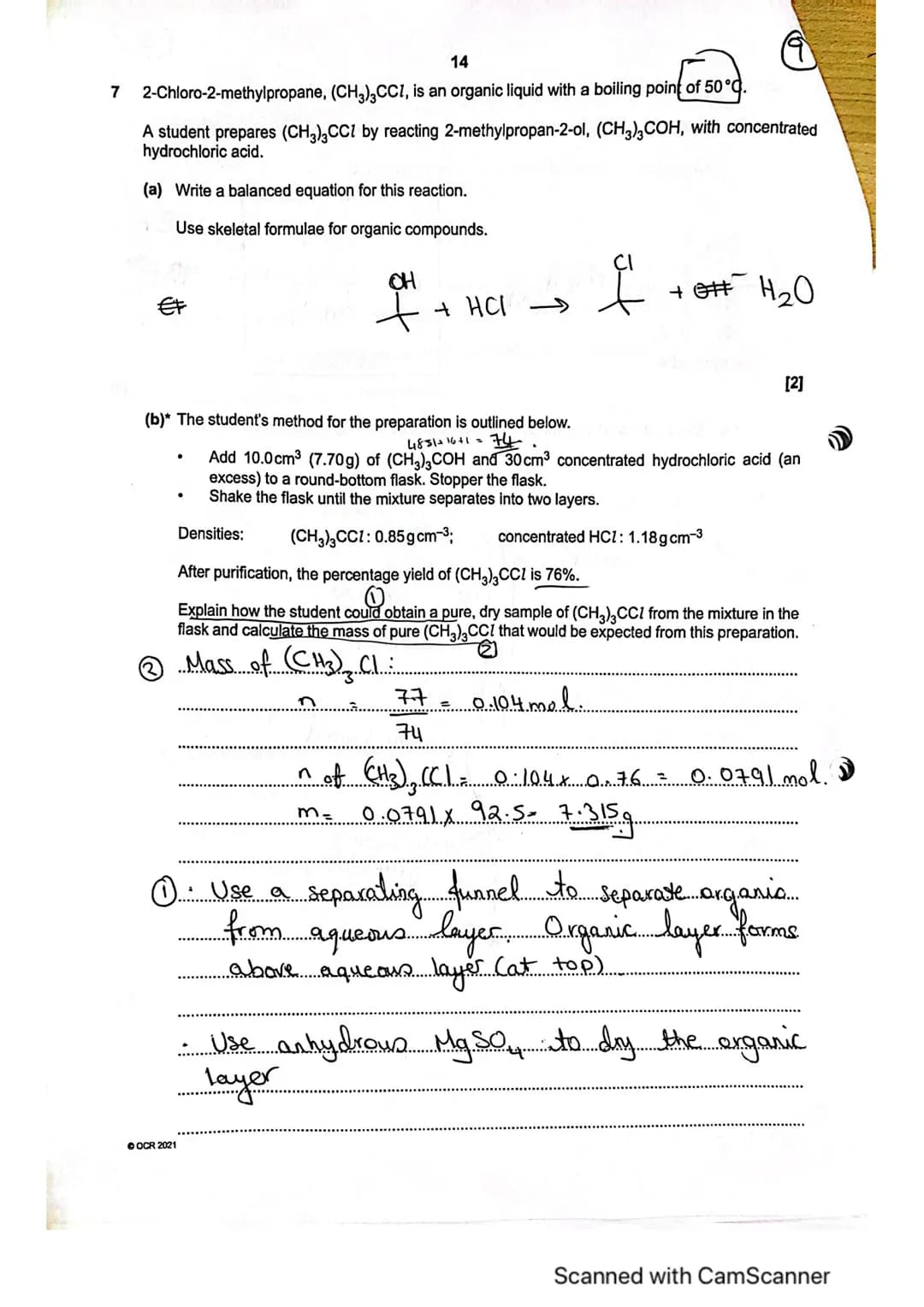

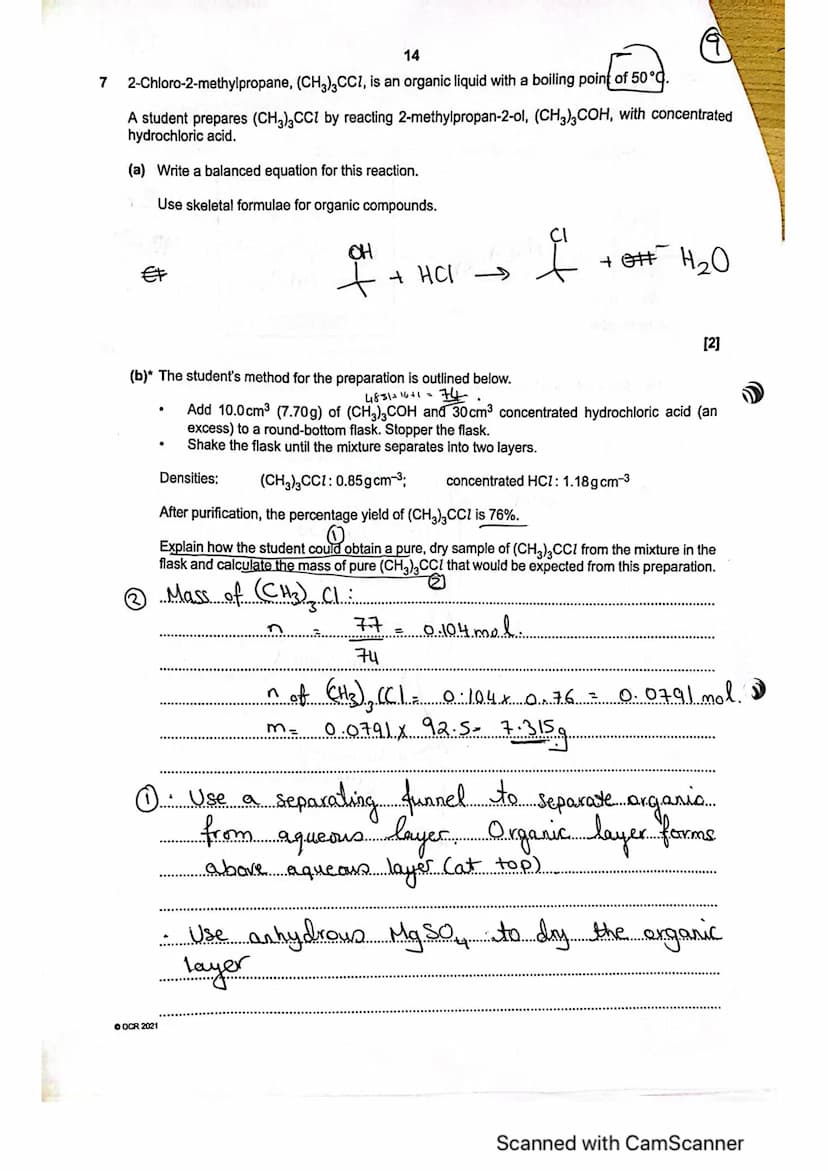

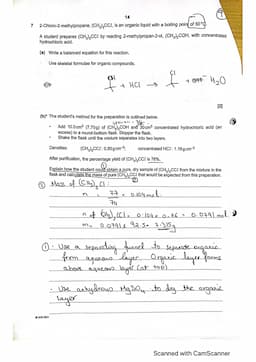

Synthesis and Purification of Halogenated Compounds

The synthesis of 2-Chloro-2-methylpropane using hydrochloric acid demonstrates important concepts in organic preparation and purification. This SN1 reaction between 2-methylpropan-2-ol and concentrated HCl produces the desired chlorinated product along with water.

The reaction mixture forms two distinct layers due to differences in density and polarity. The organic layer containing the product can be separated using a separating funnel, with the less dense organic layer floating above the aqueous layer.

Final purification requires drying with anhydrous magnesium sulfate to remove trace water, ensuring high product purity. Yield calculations help assess reaction efficiency, with a 76% yield indicating successful conversion while accounting for inevitable losses during purification.

Highlight: Proper purification techniques are essential for obtaining pure organic products. The separation process takes advantage of differences in density and solubility between products and reactants.

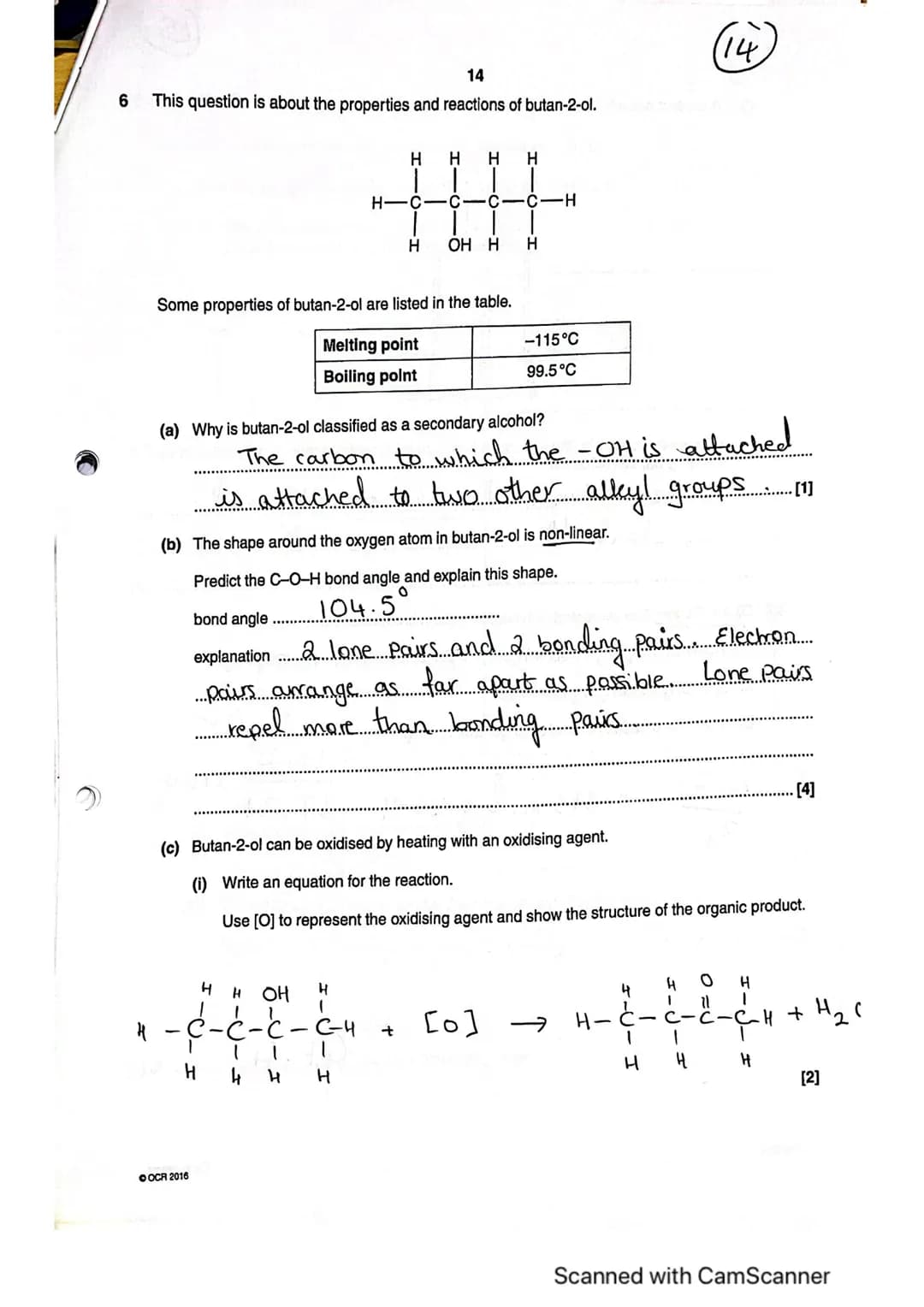

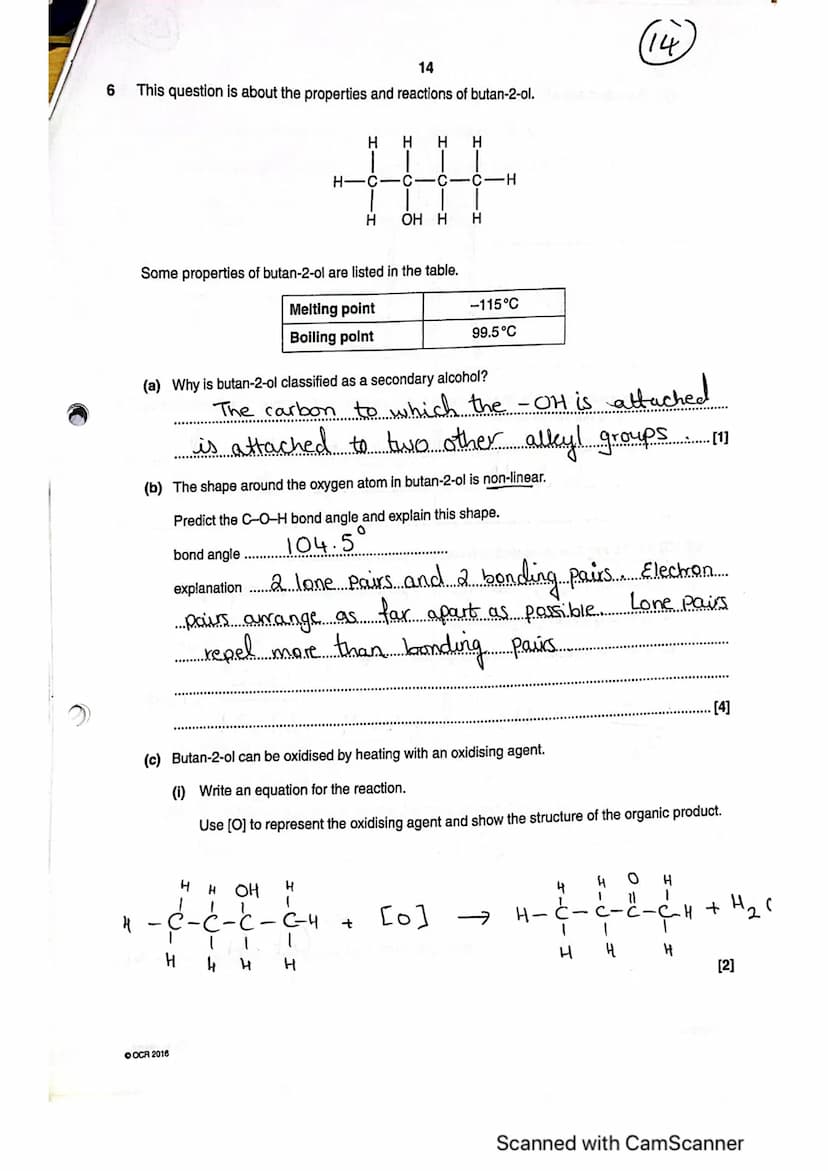

Understanding Alcohol Properties and Reactions

The properties and reactions of alcohols form a crucial foundation in organic chemistry. Butan-2-ol serves as an excellent example to understand secondary alcohols and their characteristic behaviors.

Secondary alcohols like butan-2-ol have distinct structural features where the carbon atom bearing the hydroxyl $-OH$ group is attached to two other carbon atoms. This arrangement gives butan-2-ol its unique chemical properties, including a melting point of -115°C and a boiling point of 99.5°C.

Definition: A secondary alcohol has its hydroxyl group $-OH$ attached to a carbon atom that is bonded to exactly two other carbon atoms.

The three-dimensional structure around the oxygen atom in butan-2-ol reveals important molecular geometry concepts. The C-O-H bond angle measures approximately 104.5°, deviating from a linear arrangement due to electron pair repulsion theory. This non-linear shape results from the presence of two lone pairs of electrons on the oxygen atom, which repel each other and the bonding pairs.

Highlight: The oxidation of butan-2-ol produces a ketone, demonstrating a characteristic reaction of secondary alcohols. This differs from primary alcohols, which form aldehydes upon oxidation.

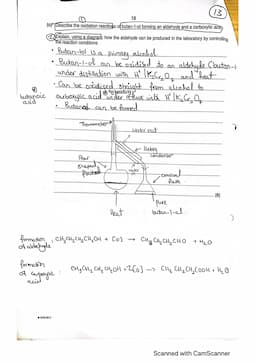

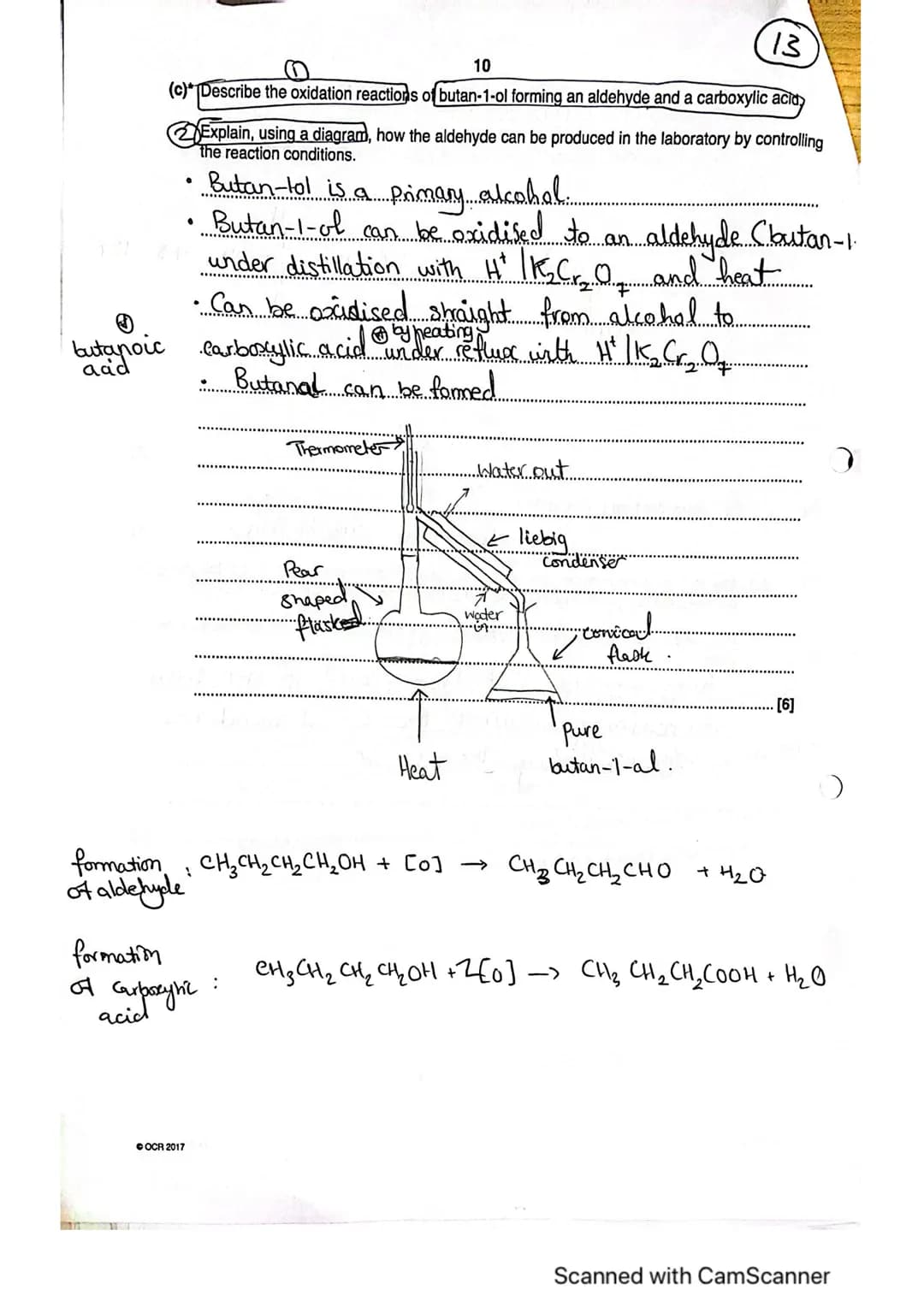

Laboratory Synthesis and Oxidation Reactions

The controlled oxidation of primary alcohols like butan-1-ol requires careful laboratory techniques to obtain specific products. When oxidizing butan-1-ol, different conditions yield either an aldehyde (butanal) or a carboxylic acid (butanoic acid).

To produce butanal, the reaction must be carried out under distillation conditions using acidified potassium dichromate as the oxidizing agent. The setup includes specialized glassware like a Liebig condenser and pear-shaped flask to ensure proper collection of the pure aldehyde product.

Example: Laboratory setup for aldehyde synthesis:

• Distillation apparatus with thermometer
• Liebig condenser for product collection
• Controlled heating system
• Water cooling system

For complete oxidation to butanoic acid, the reaction is performed under reflux conditions with excess oxidizing agent. This demonstrates how reaction conditions can be manipulated to control product formation in organic synthesis.

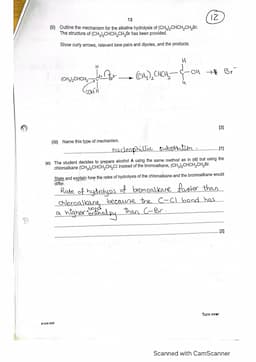

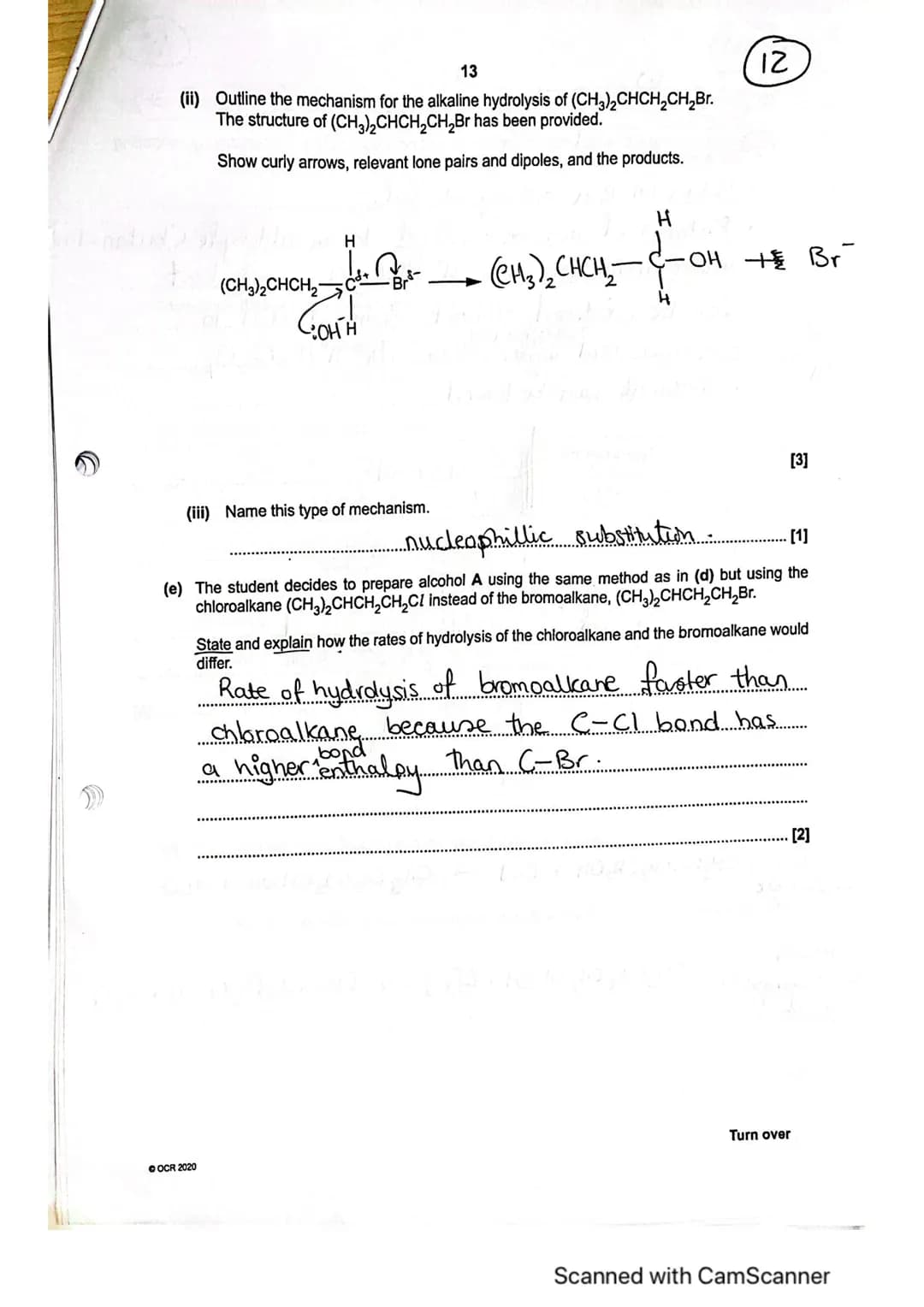

Mechanisms and Structural Analysis

The alkaline hydrolysis of bromoalkanes provides an important route to alcohol synthesis. This reaction proceeds through a nucleophilic substitution mechanism, where the hydroxide ion acts as the nucleophile attacking the carbon-bromine bond.

When comparing reaction rates between chloroalkanes and bromoalkanes, the C-Br bond's lower bond enthalpy makes it more reactive than the C-Cl bond. This results in faster hydrolysis rates for bromoalkanes under similar conditions.

Vocabulary: Nucleophilic substitution - A reaction mechanism where an electron-rich species (nucleophile) attacks an electron-deficient carbon center, displacing a leaving group.

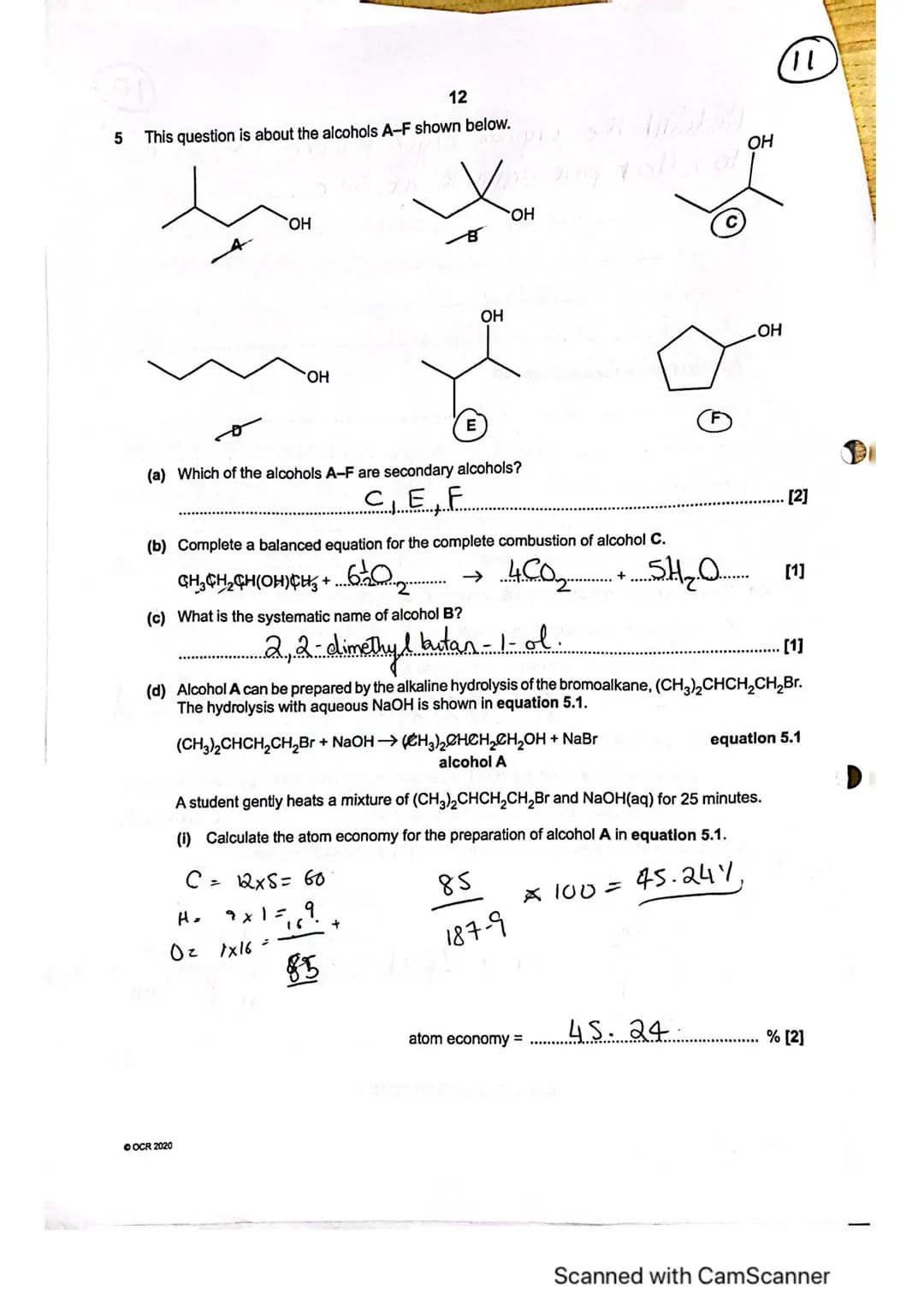

The atom economy for these conversions can be calculated by comparing the molecular mass of desired product to the total mass of all reactants. This provides insight into the reaction's efficiency and environmental impact.

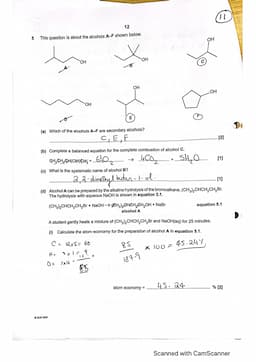

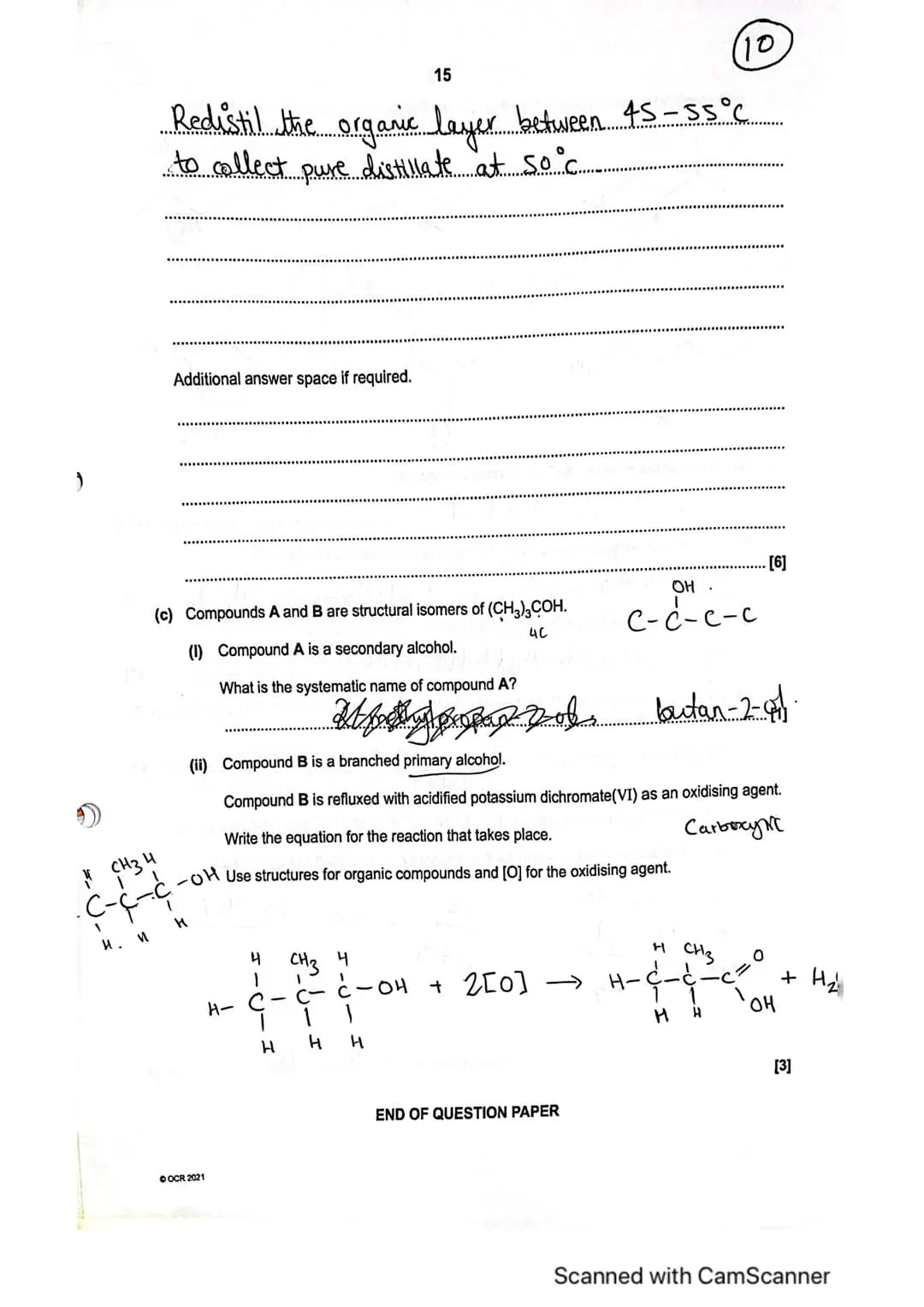

Structural Isomers and Oxidation Products

Structural isomers of alcohols demonstrate how different arrangements of the same molecular formula can lead to distinct chemical properties. For example, compounds with the formula (CH₃)₃COH can exist as either secondary or primary alcohols, each showing characteristic oxidation patterns.

Secondary alcohols undergo oxidation to form ketones, while primary alcohols can be oxidized to aldehydes and further to carboxylic acids. The oxidation process typically employs acidified potassium dichromate(VI) as the oxidizing agent.

Definition: Structural isomers are compounds with the same molecular formula but different arrangements of atoms, resulting in different chemical properties.

The systematic naming of these compounds follows IUPAC nomenclature rules, considering the longest carbon chain and the position of functional groups. This standardized naming system ensures clear communication of molecular structures in chemistry.

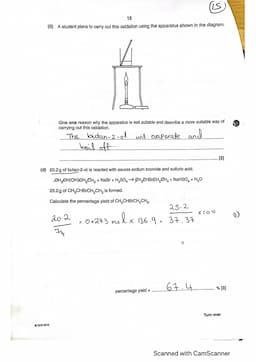

Understanding Organic Chemistry Reactions and Yields

The oxidation of alcohols and calculation of reaction yields represents a fundamental aspect of organic chemistry that students must master. Let's explore a practical example involving butan-2-ol and examine both theoretical and experimental considerations.

When butan-2-ol reacts with sodium bromide and sulfuric acid, it undergoes a substitution reaction to form bromobutane. This reaction demonstrates how alcohols can be converted to alkyl halides under appropriate conditions. The balanced equation shows:

CH₃CH(OH)CH₂CH₃ + NaBr + H₂SO₄ → CH₃CHBrCH₂CH₃ + NaHSO₄ + H₂O

Definition: Percentage yield compares the actual amount of product obtained to the theoretical maximum amount possible, expressed as a percentage.

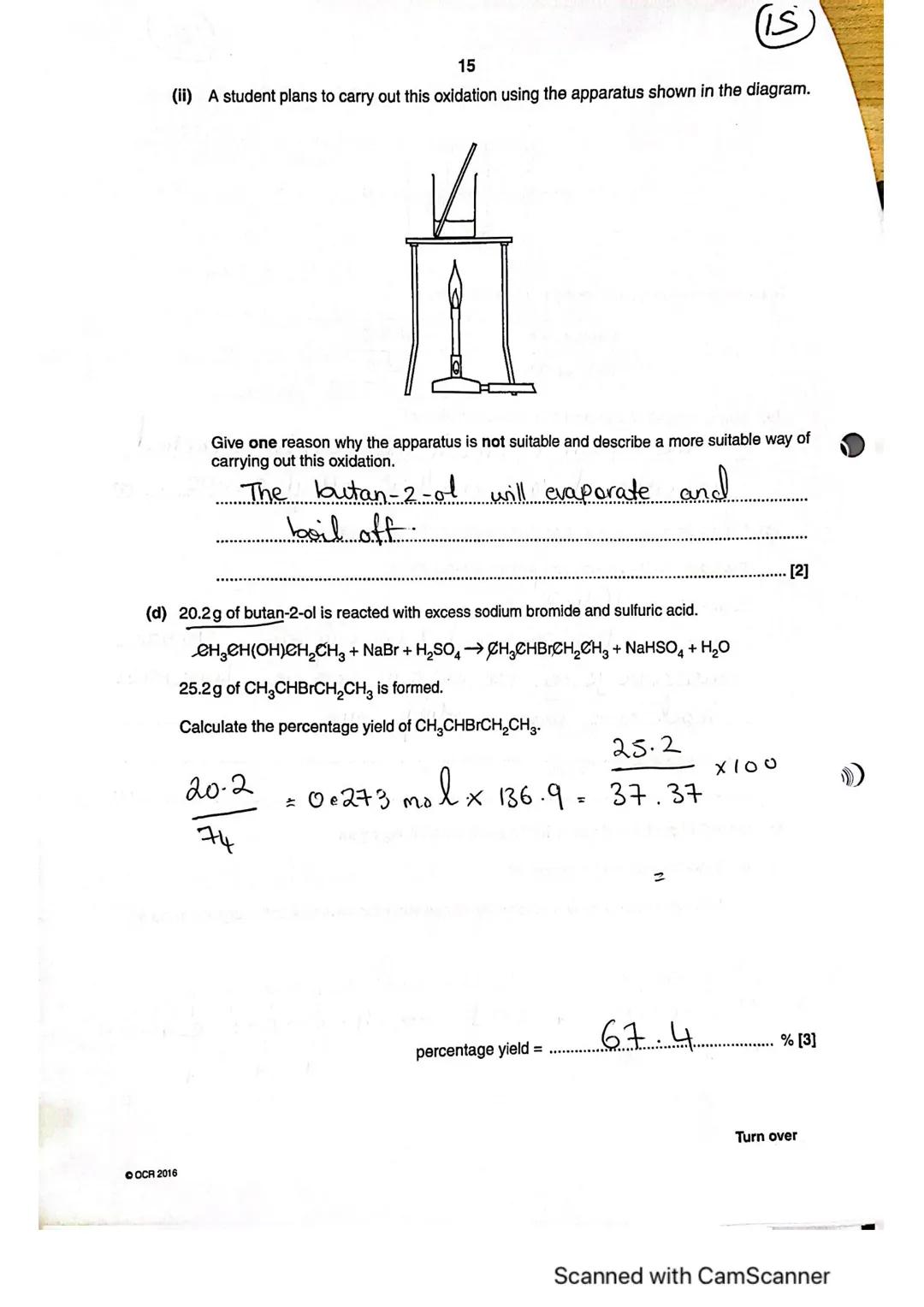

Understanding the practical aspects of this reaction is crucial. The experimental setup requires careful consideration of the physical properties of the reactants. Butan-2-ol has a relatively low boiling point, which means standard open apparatus may not be suitable due to evaporation losses. A more appropriate setup would include a reflux condenser to prevent the escape of volatile compounds.

The calculation of percentage yield provides insight into reaction efficiency:

• Starting mass of butan-2-ol: 20.2g
• Actual yield of bromobutane: 25.2g
• Theoretical yield calculation involves converting masses to moles and accounting for the stoichiometry of the reaction
• The final percentage yield of 67.4% indicates moderate reaction efficiency

Advanced Reaction Mechanisms and Laboratory Techniques

Laboratory techniques in organic chemistry require careful attention to both theoretical understanding and practical considerations. When working with volatile compounds like butan-2-ol, proper apparatus selection becomes crucial for successful experimentation.

Highlight: Using a reflux condenser is essential when working with volatile organic compounds to prevent loss of reactants and ensure accurate yields.

The reaction mechanism involves several key steps:

1. Protonation of the alcohol by sulfuric acid
2. Formation of a carbocation intermediate
3. Nucleophilic attack by bromide ion
4. Formation of the final alkyl bromide product

Understanding why certain apparatus choices are unsuitable helps develop critical thinking in experimental design. In this case, an open system would allow the butan-2-ol to evaporate, leading to:

• Loss of reactant
• Reduced yield
• Inaccurate results
• Potential safety hazards

The proper setup should include:

• A round-bottom flask
• Reflux condenser
• Heating mantle or water bath
• Appropriate glassware joints and clamps
• Temperature monitoring capability
