Your nervous system is basically your body's electrical wiring -...
Biology188 views·Updated 19 Aug 2026·14 pagesUnderstanding the Nervous System - WJEC A Level Biology 3.8
Caitlin Ellis@caitlinellis0312
1 / 10
1
of 10
Nervous System Structure and Neurone Types

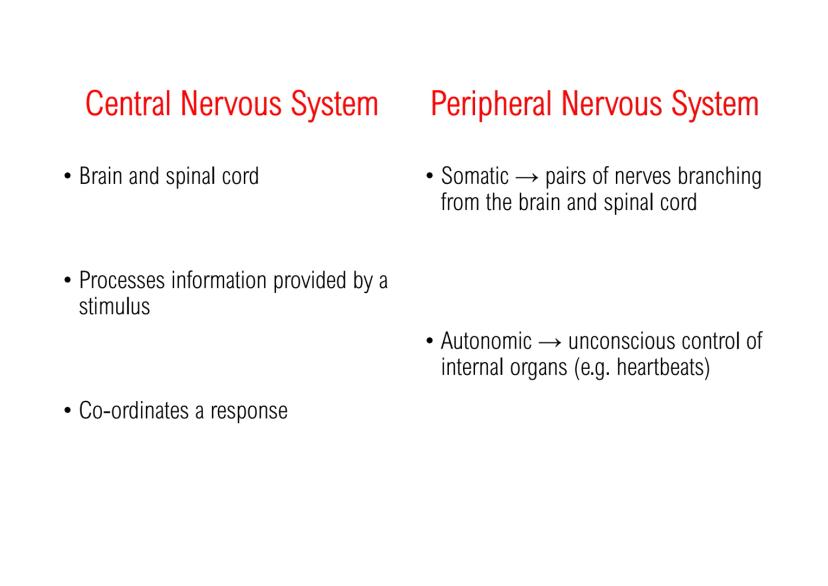

Think of your nervous system as having two main parts: the central nervous system (brain and spinal cord) that processes information, and the peripheral nervous system that carries messages to and from your body. It's like having a control centre connected to a massive communication network.
You've got three key types of neurones working as a team. Sensory neurones carry signals from receptors (like your skin or eyes) to your brain, motor neurones send instructions from your brain to muscles, and relay neurones act as connectors in your spinal cord. Each has the same basic parts: dendrites to receive signals, a cell body, and an axon to send signals on.
The clever bit is that axons are wrapped in a myelin sheath made of Schwann cells, with gaps called nodes of Ranvier. This setup massively speeds up nerve transmission - think of it like insulation on electrical wires.

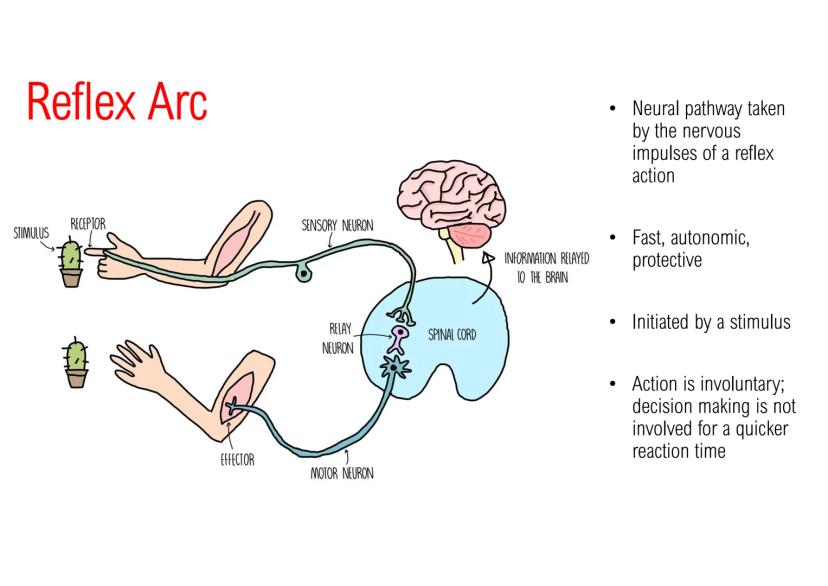

Key Point: The reflex arc bypasses your brain for super-quick responses, going straight through your spinal cord from sensory to motor neurones via relay neurones.
2
of 10

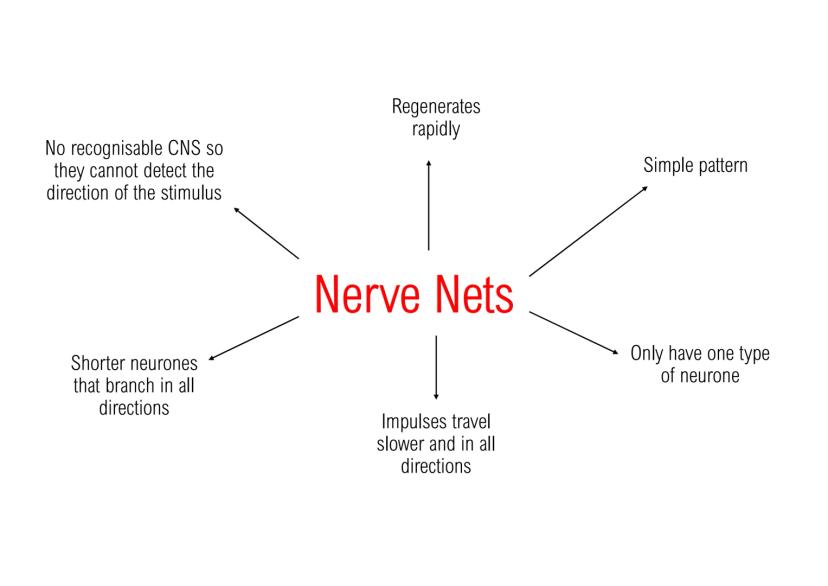

Simple Nervous Systems - Nerve Nets
Before we had complex brains, simpler organisms developed nerve nets - and they're still around today in creatures like jellyfish. These systems show us how nervous systems evolved and help explain why our setup is so much more sophisticated.
Nerve nets have just one type of neurone that branches in all directions. When stimulated, impulses travel slowly in every direction rather than following specific pathways. The organism can't tell where the stimulus came from because there's no central nervous system to process directional information.
While this sounds basic, nerve nets do have advantages - they regenerate rapidly when damaged and create simple, reliable response patterns. It's like having a basic alarm system rather than a sophisticated security network.
Key Point: The lack of directional control in nerve nets shows why having specialised neurone types and a CNS gives us such precise responses.
3
of 10

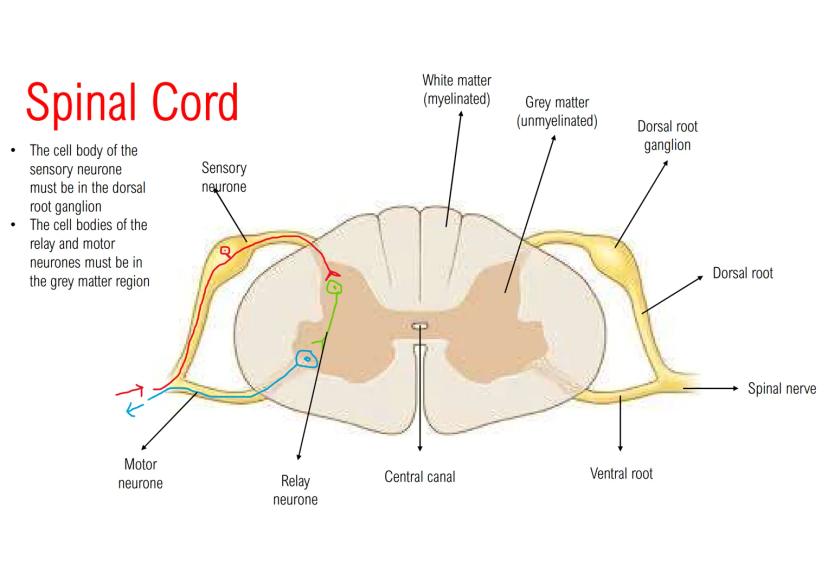

Spinal Cord Organisation
Your spinal cord is brilliantly organised to handle reflexes and relay information to your brain. The structure is crucial for understanding how quick responses happen without conscious thought.
The grey matter (unmyelinated) sits in the centre and contains the cell bodies of relay neurones and motor neurones. The white matter (myelinated) surrounds it and carries signals up and down the cord. Sensory neurone cell bodies live in the dorsal root ganglion, just outside the spinal cord.
When you touch something hot, the signal travels along the dorsal root, synapses with relay neurones in the grey matter, then connects to motor neurones that exit via the ventral root. Your hand pulls away before your brain even knows what's happening.
Key Point: The specific positioning of cell bodies in different regions ensures signals flow in the right direction for effective reflexes.
4
of 10
Action Potentials - The Electrical Signal
Action potentials are basically electrical pulses that zoom along neurones, and understanding them is essential for explaining how your nervous system actually works. The process follows a predictable pattern that's the same every time.
Your neurone starts at resting potential with sodium channels closed and potassium channels open. When stimulation reaches the threshold potential , voltage-gated sodium channels snap open, sodium floods in, and the neurone becomes positive . This is depolarisation.
After reaching the action potential, sodium channels close and potassium channels open wide. Potassium rushes out, making the neurone negative again (repolarisation). It actually becomes more negative than resting potential (hyperpolarisation) during the refractory period, which stops signals travelling backwards.
Key Point: The refractory period ensures action potentials only travel in one direction and prevents the neurone from being over-stimulated.
5
of 10
All-or-Nothing Principle
Here's something that might surprise you - action potentials are always exactly the same strength, regardless of how strong the original stimulus was. This is called the all-or-nothing principle, and it's crucial for preventing your brain from being overwhelmed.
If a stimulus doesn't reach the threshold value, absolutely nothing happens - no action potential is generated at all. But once threshold is reached, you get the full action potential every single time. Your nervous system doesn't do "half-measures."
So how does your brain tell the difference between a gentle touch and a painful pinch? It's all about frequency. Stronger stimuli create more action potentials per second, not stronger individual signals. This system acts like a filter, ensuring only significant stimuli get through to your brain.
Key Point: The all-or-nothing principle prevents minor stimuli from overwhelming your nervous system while ensuring important signals always get through clearly.
6
of 10

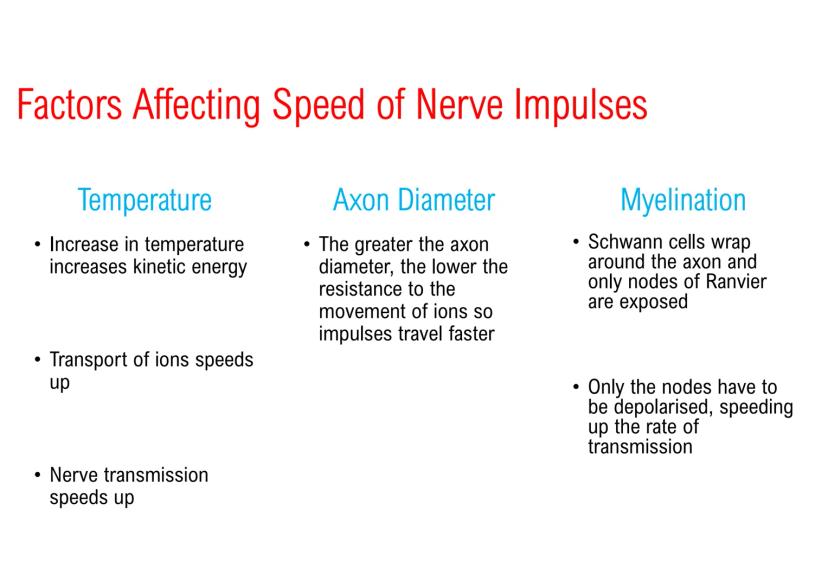

Speed of Nerve Transmission
Not all nerve impulses travel at the same speed - and understanding what affects transmission speed helps explain why some responses are lightning-fast while others are slower. Three main factors control how quickly signals move.
Temperature affects the kinetic energy of ions, so warmer conditions mean faster ion movement and quicker transmission. This is why you might feel sluggish in cold weather. Axon diameter matters too - thicker axons have less resistance, allowing ions to move more easily.
Myelination is the real game-changer though. Instead of the whole axon depolarising, action potentials jump between nodes of Ranvier. This saltatory conduction can increase transmission speed by up to 50 times compared to unmyelinated neurones.
Key Point: Myelinated neurones with large diameters in warm conditions transmit impulses fastest - which is why your major motor and sensory pathways are heavily myelinated.
