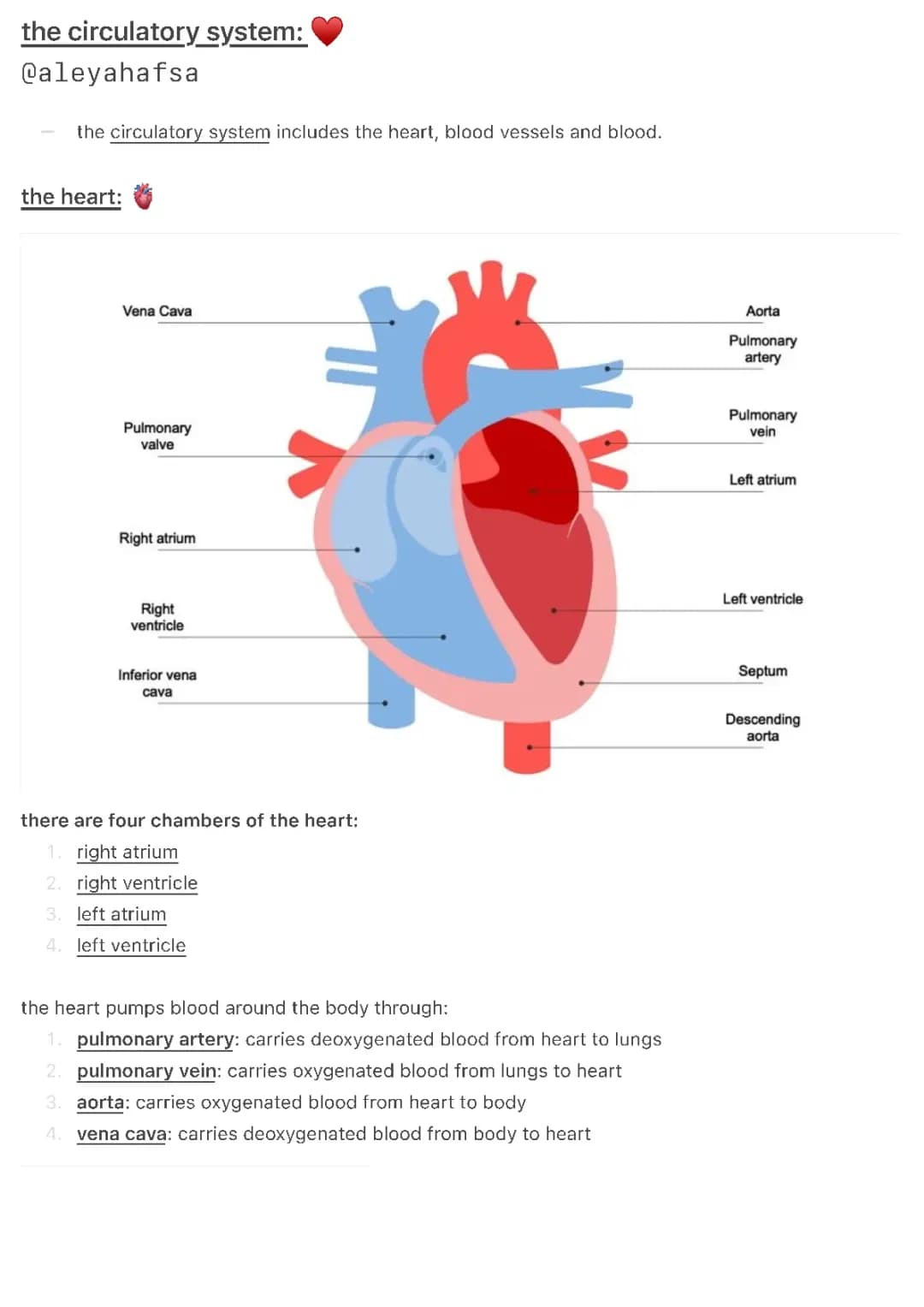

the circulatory system:
@aleyahafsa
the circulatory system includes the heart, blood vessels and blood.
the heart:
Vena Cava
Pulmonary
valve

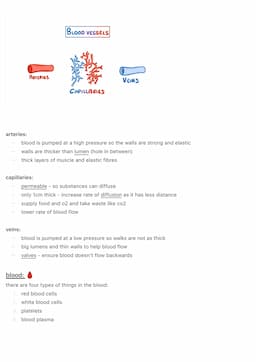

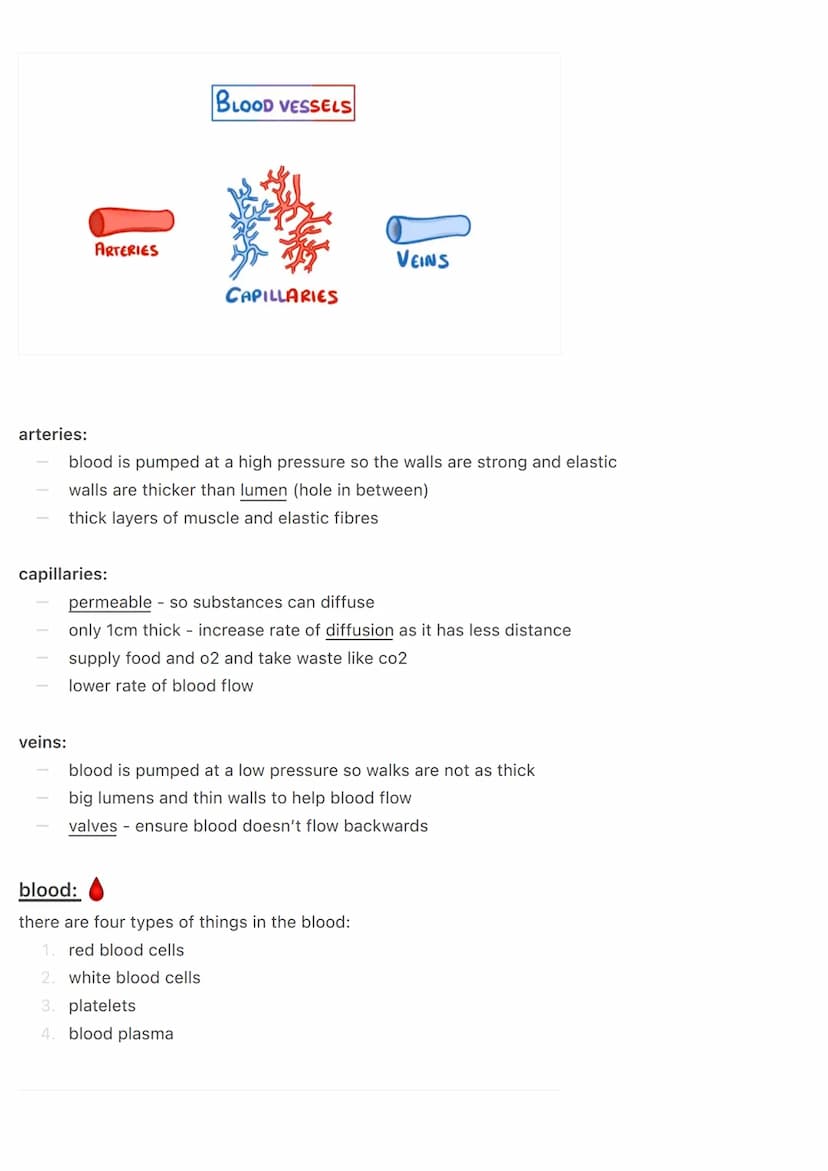

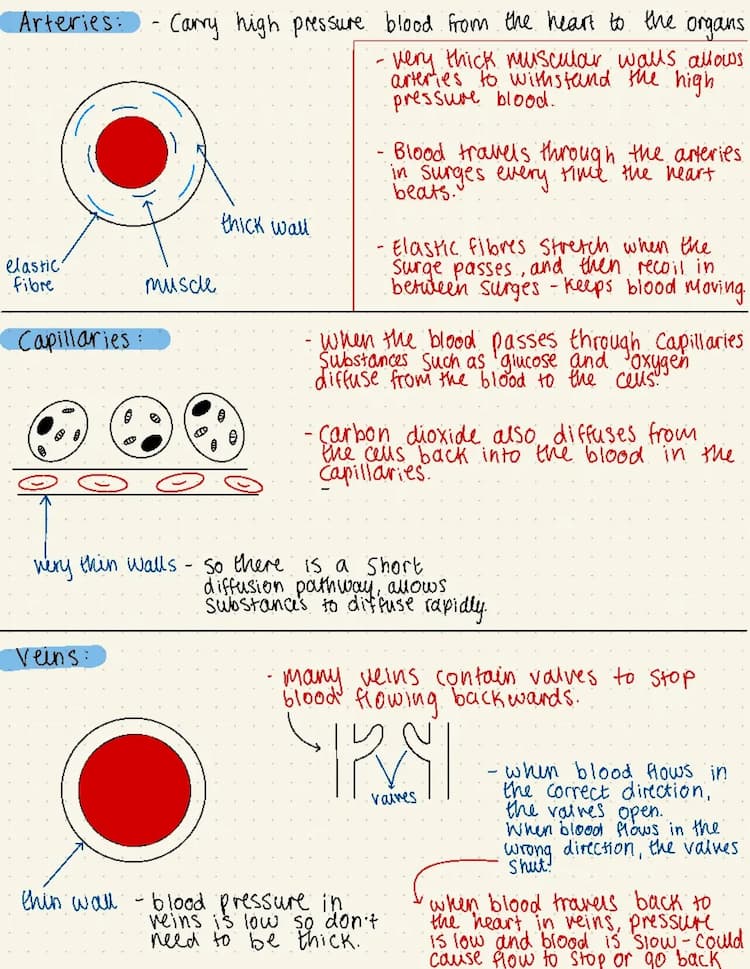

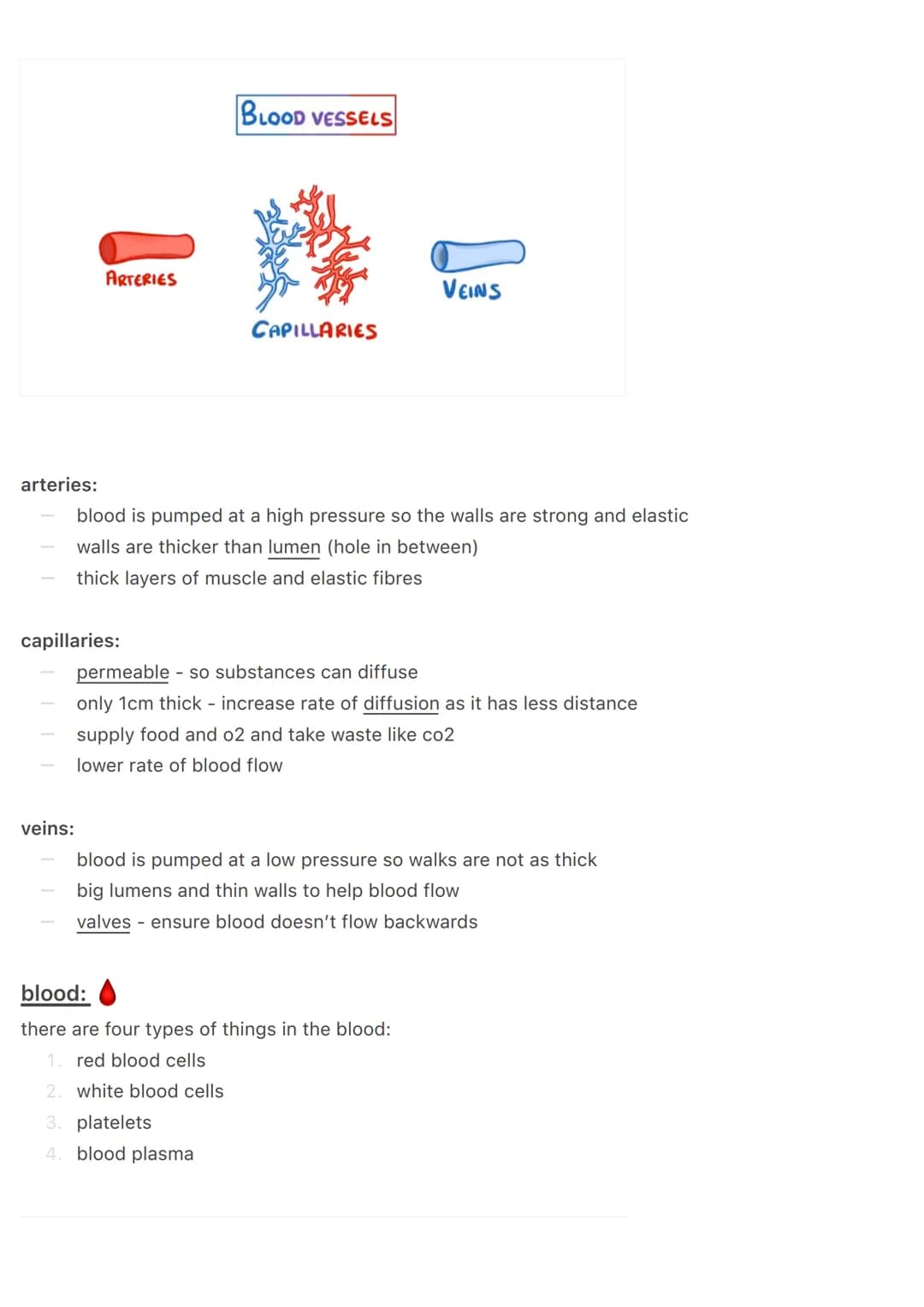

Blood Vessels and Their Functions

Blood vessels are essential components of the circulatory system, facilitating the transport of blood throughout the body. There are 3 types of blood vessels, each with unique characteristics and functions:

  1. Arteries: These vessels carry blood away from the heart. They have strong, elastic walls to withstand the high pressure of blood pumped by the heart.

  2. Capillaries: These tiny vessels are where the exchange of materials occurs between blood and tissues. Their thin, permeable walls allow for efficient diffusion of oxygen, nutrients, and waste products.

  3. Veins: These vessels return blood to the heart. They have thinner walls than arteries and contain valves to prevent backflow of blood.

Highlight: Understanding the structure of blood vessels is crucial for comprehending how blood circulates efficiently through the body.

Arteries have thick walls with layers of muscle and elastic fibers, allowing them to withstand high blood pressure. Their lumen (the hollow space inside the vessel) is relatively small compared to the thickness of the walls.

Vocabulary: Lumen - The interior space of a tubular structure, such as a blood vessel.

Capillaries are extremely thin, often just one cell thick, which maximizes the rate of diffusion between blood and surrounding tissues. This structure and function of blood vessels class 10 concept is fundamental to understanding gas exchange and nutrient delivery.

Veins have larger lumens and thinner walls compared to arteries, as they carry blood at lower pressure. The function of veins is not only to return blood to the heart but also to serve as a blood reservoir.

Example: The 3 types of blood vessels and their functions can be likened to a city's transportation system: arteries are like highways (fast-moving, high-capacity), capillaries are like local streets (where exchanges occur), and veins are like return routes (bringing traffic back to the center).

While these are the main types of blood vessels, some sources may refer to 5 types of blood vessels by including arterioles and venules, which are smaller versions of arteries and veins, respectively.

the circulatory system:
@aleyahafsa
the circulatory system includes the heart, blood vessels and blood.
the heart:
Vena Cava
Pulmonary
valve

View

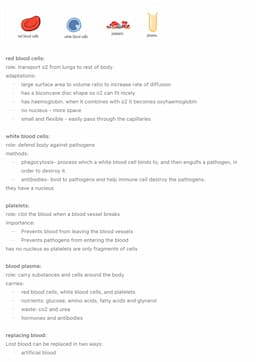

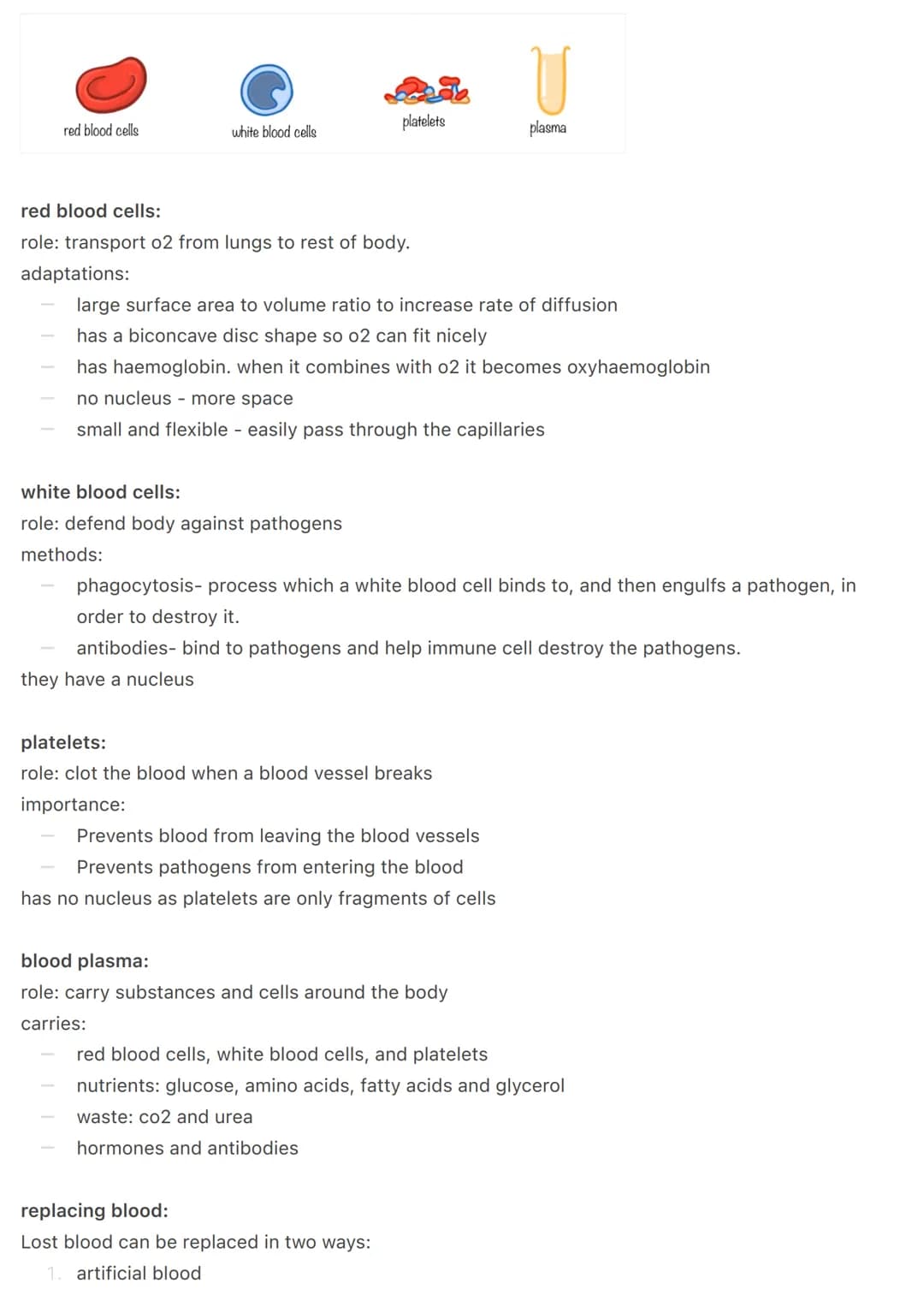

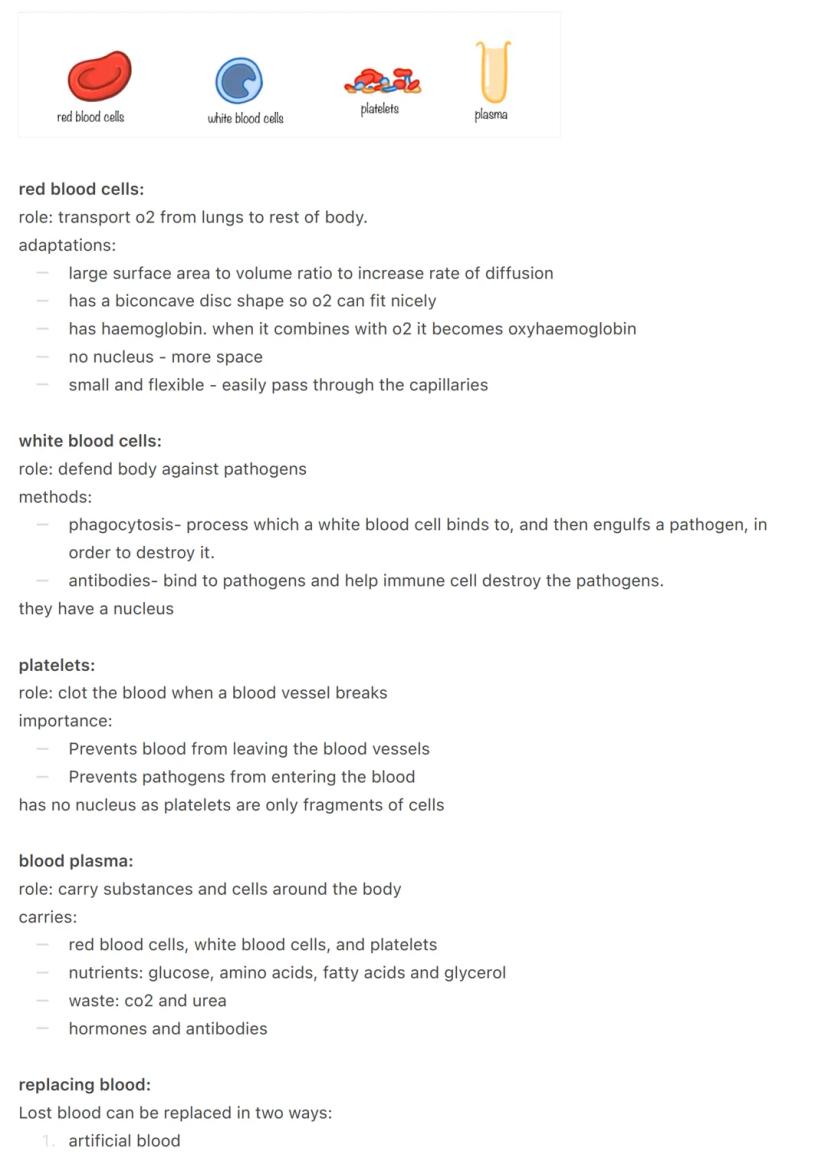

Components of Blood

Blood is a complex fluid that consists of several components, each serving specific functions in the body. The 4 components of blood and their functions are:

  1. Red Blood Cells (Erythrocytes)
  2. White Blood Cells (Leukocytes)
  3. Platelets (Thrombocytes)
  4. Blood Plasma

Red Blood Cells (RBCs): The primary function of red blood cells is to transport oxygen from the lungs to the rest of the body. They have several adaptations that make them highly efficient at this task:

  • Biconcave disc shape for increased surface area
  • Contain hemoglobin, which binds to oxygen
  • Lack a nucleus to maximize space for hemoglobin
  • Small and flexible to pass through narrow capillaries

Definition: Hemoglobin is an iron-containing protein in red blood cells that binds to oxygen and gives blood its red color.

White Blood Cells (WBCs): White blood cells function as defenders of the body against pathogens and other foreign invaders. There are several types of white blood cells and their functions vary:

  • Phagocytes engulf and destroy pathogens
  • Lymphocytes produce antibodies and coordinate immune responses

Vocabulary: Phagocytosis - The process by which certain cells engulf and destroy foreign particles or microorganisms.

Platelets: Platelets play a crucial role in blood clotting when blood vessels are damaged. They help to:

  • Prevent excessive blood loss
  • Block the entry of pathogens into the bloodstream

Blood Plasma: Plasma is the liquid component of blood that carries various substances throughout the body, including:

  • Nutrients (glucose, amino acids, fatty acids, and glycerol)
  • Waste products (carbon dioxide and urea)
  • Hormones and antibodies

Highlight: While some sources may refer to the 3 types of blood cells, it's important to note that platelets are actually cell fragments rather than complete cells.

Understanding these 4 types of blood cells and their functions is essential for comprehending the complexity of the circulatory system and its role in maintaining overall health.

Example: White blood cells are also called leukocytes, and they act like the body's personal army, defending against invading pathogens and helping to maintain overall health.

the circulatory system:
@aleyahafsa
the circulatory system includes the heart, blood vessels and blood.
the heart:
Vena Cava
Pulmonary
valve

View

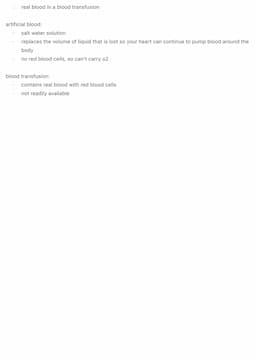

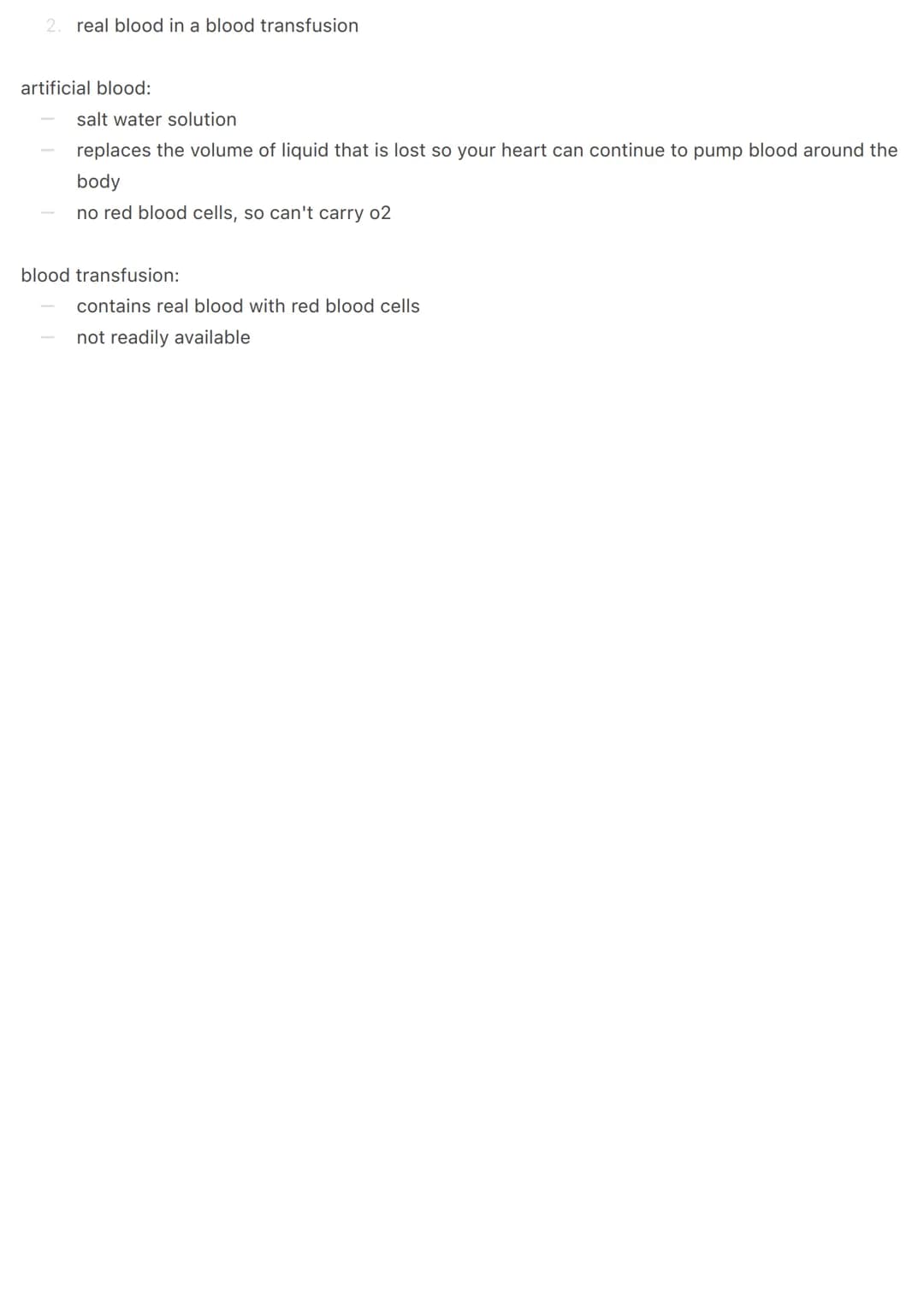

Blood Replacement and Transfusions

In situations where blood loss occurs, there are two primary methods of replacing blood:

  1. Artificial Blood
  2. Real Blood Transfusion

Artificial Blood: Artificial blood is a salt water solution designed to temporarily replace lost blood volume. Its characteristics include:

  • Helps maintain blood pressure and allows the heart to continue pumping
  • Does not contain red blood cells, so it cannot carry oxygen
  • Primarily used in emergency situations to stabilize patients

Definition: Artificial blood is a blood substitute that aims to replicate some of the functions of biological blood, particularly in maintaining blood volume.

Real Blood Transfusion: A blood transfusion involves transferring real blood or blood components from a donor to a recipient. This method:

  • Provides actual blood cells, including red blood cells capable of oxygen transport
  • Replaces lost blood volume and cellular components
  • Requires careful matching of blood types to prevent adverse reactions

Highlight: Blood transfusions are critical in many medical situations, but the availability of compatible blood can be a limiting factor.

The choice between artificial blood and real blood transfusion depends on the specific medical situation, the urgency of the need, and the availability of compatible blood. Both methods play crucial roles in emergency medicine and surgical procedures.

Example: In a severe accident where a patient has lost a significant amount of blood, doctors might first use artificial blood to stabilize the patient's blood pressure, followed by a real blood transfusion to restore oxygen-carrying capacity.

Understanding these blood replacement methods is essential for appreciating the complexities of modern medical interventions in critical situations involving blood loss.

the circulatory system:
@aleyahafsa
the circulatory system includes the heart, blood vessels and blood.
the heart:
Vena Cava
Pulmonary
valve

View

Blood Replacement and Transfusion

This section covers methods for replacing lost blood through artificial solutions and transfusions.

Definition: Artificial blood is a salt water solution that maintains blood volume but cannot carry oxygen.

Highlight: Blood transfusions provide real blood containing all components, including red blood cells for oxygen transport.

Example: While artificial blood can maintain blood volume, only real blood transfusions can restore oxygen-carrying capacity.

the circulatory system:
@aleyahafsa
the circulatory system includes the heart, blood vessels and blood.
the heart:
Vena Cava
Pulmonary
valve

View

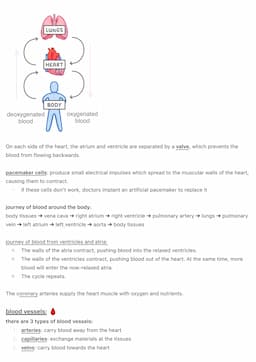

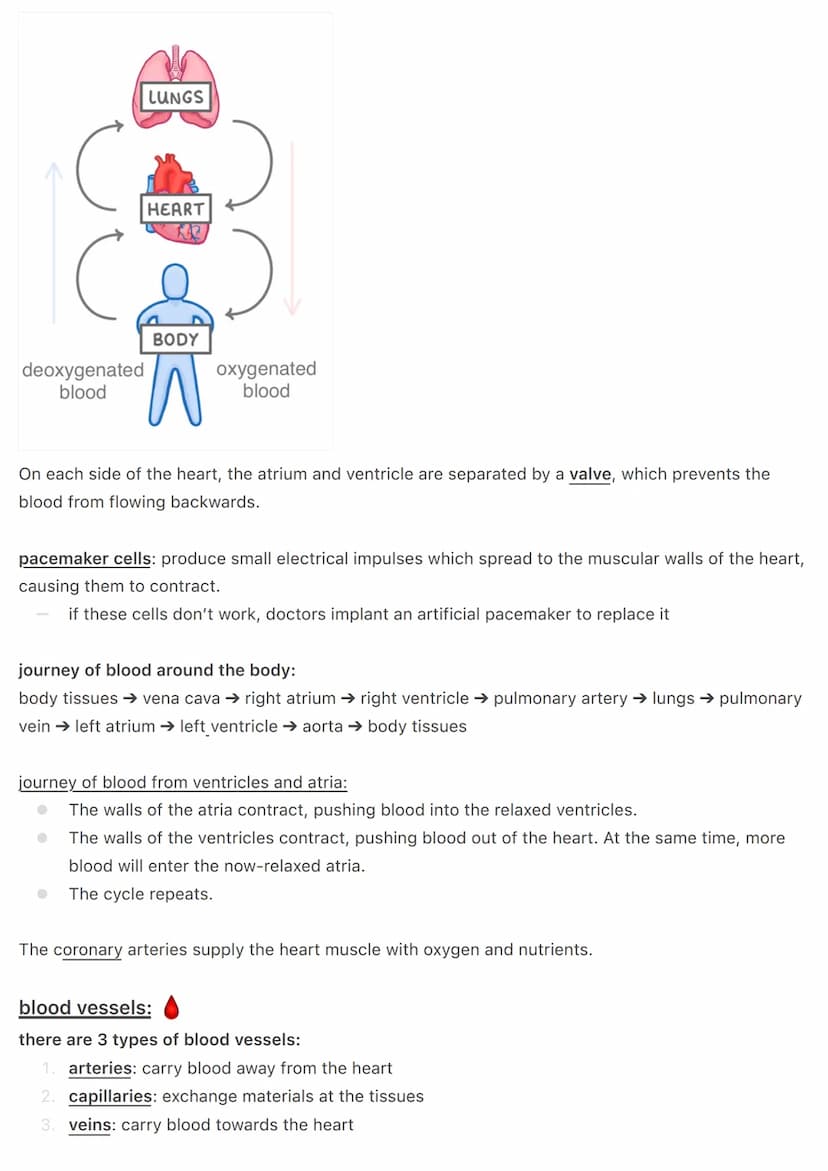

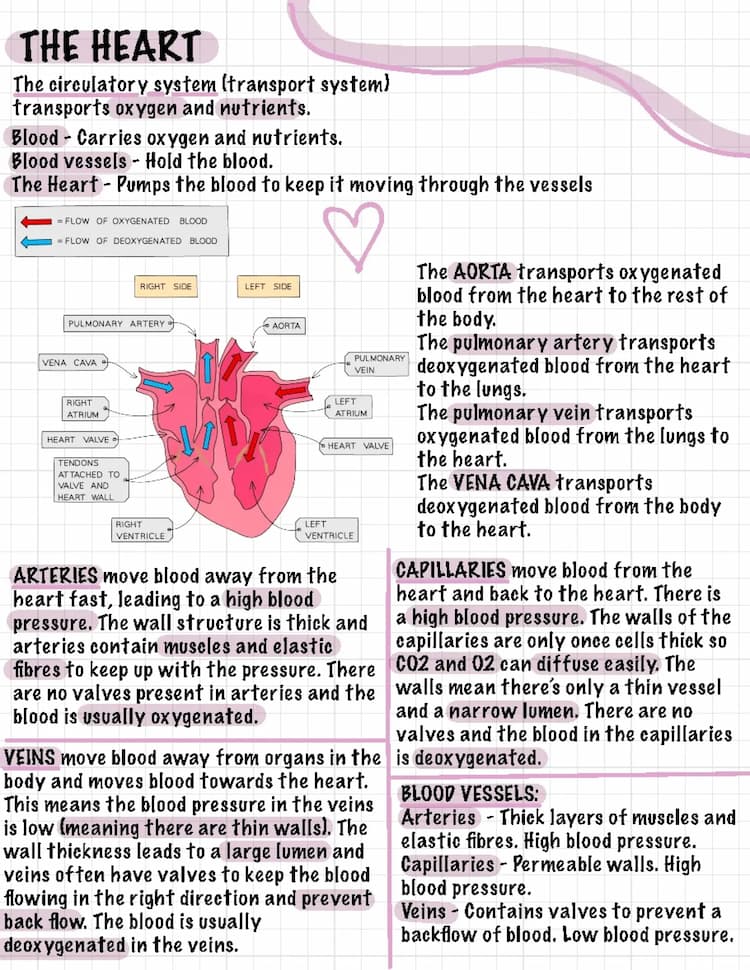

The Heart and Blood Flow

The heart is the central organ of the circulatory system function, pumping blood throughout the body. It consists of four chambers: the right atrium, right ventricle, left atrium, and left ventricle. These chambers work in coordination to ensure proper blood flow through the heart step by step.

Vocabulary: Atrium - The upper chambers of the heart that receive blood from the body or lungs.

Vocabulary: Ventricle - The lower chambers of the heart that pump blood to the body or lungs.

The heart is connected to major blood vessels that play crucial roles in circulation:

  1. Pulmonary artery: Carries deoxygenated blood from the heart to the lungs
  2. Pulmonary vein: Transports oxygenated blood from the lungs to the heart
  3. Aorta: Delivers oxygenated blood from the heart to the body
  4. Vena cava: Returns deoxygenated blood from the body to the heart

Highlight: The blood circulation in heart flowchart shows how blood moves through these chambers and vessels in a specific sequence.

Valves between the atria and ventricles prevent blood from flowing backward, ensuring efficient circulation. Pacemaker cells in the heart produce electrical impulses that cause the heart muscles to contract, maintaining a steady rhythm.

Definition: Pacemaker cells are specialized cardiac cells that generate electrical impulses to control heart rate and rhythm.

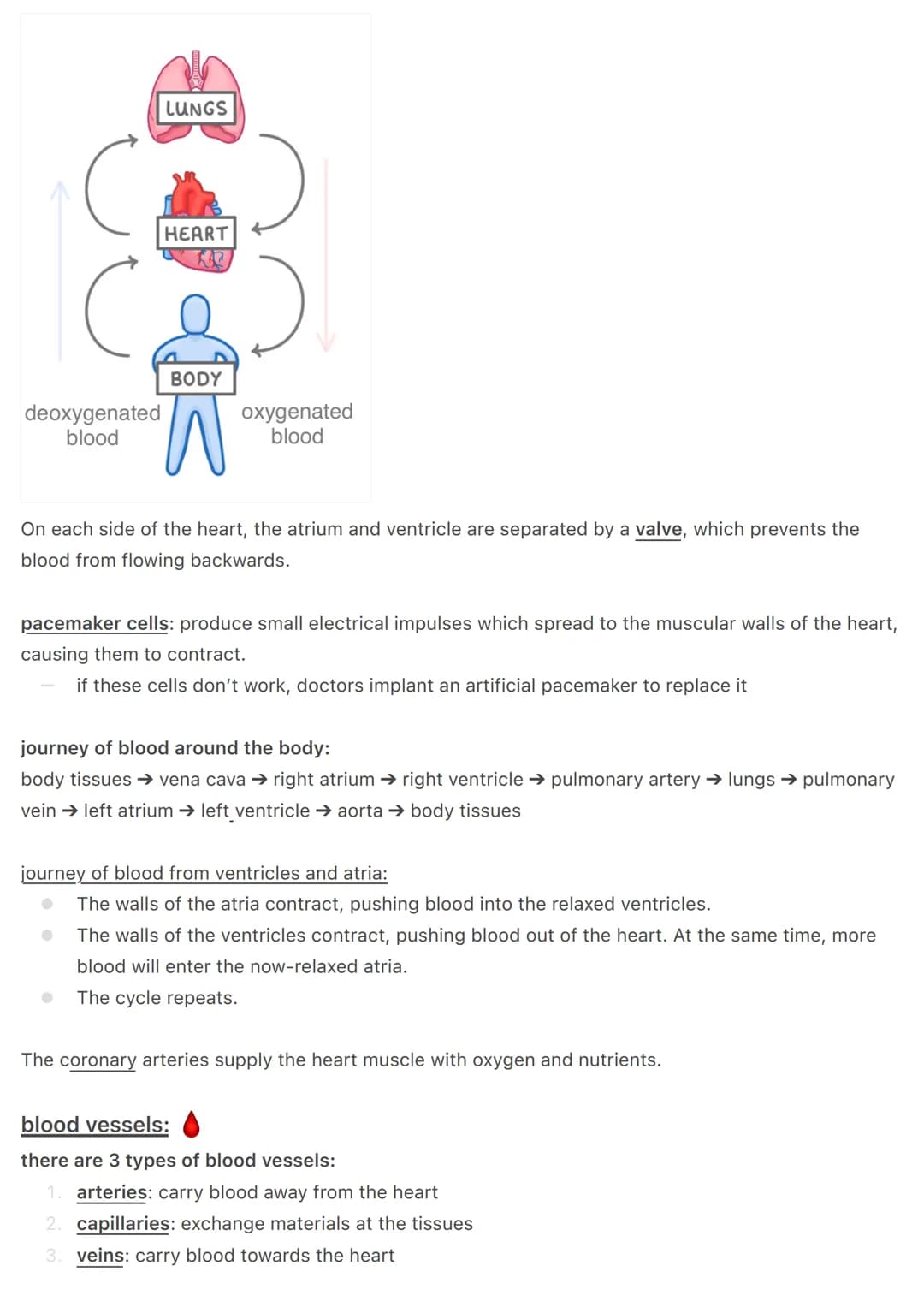

The journey of blood around the body follows a specific path: body tissues → vena cava → right atrium → right ventricle → pulmonary artery → lungs → pulmonary vein → left atrium → left ventricle → aorta → body tissues. This cycle represents the 12 steps of blood flow through the heart and beyond.

Example: An easy way to remember blood flow through the heart is to think of it as a figure-eight pattern, with one loop going to the lungs and the other to the body.
