GCSE Biology SB6 - Plant Structures and Their Functions - Comprehensive Notes

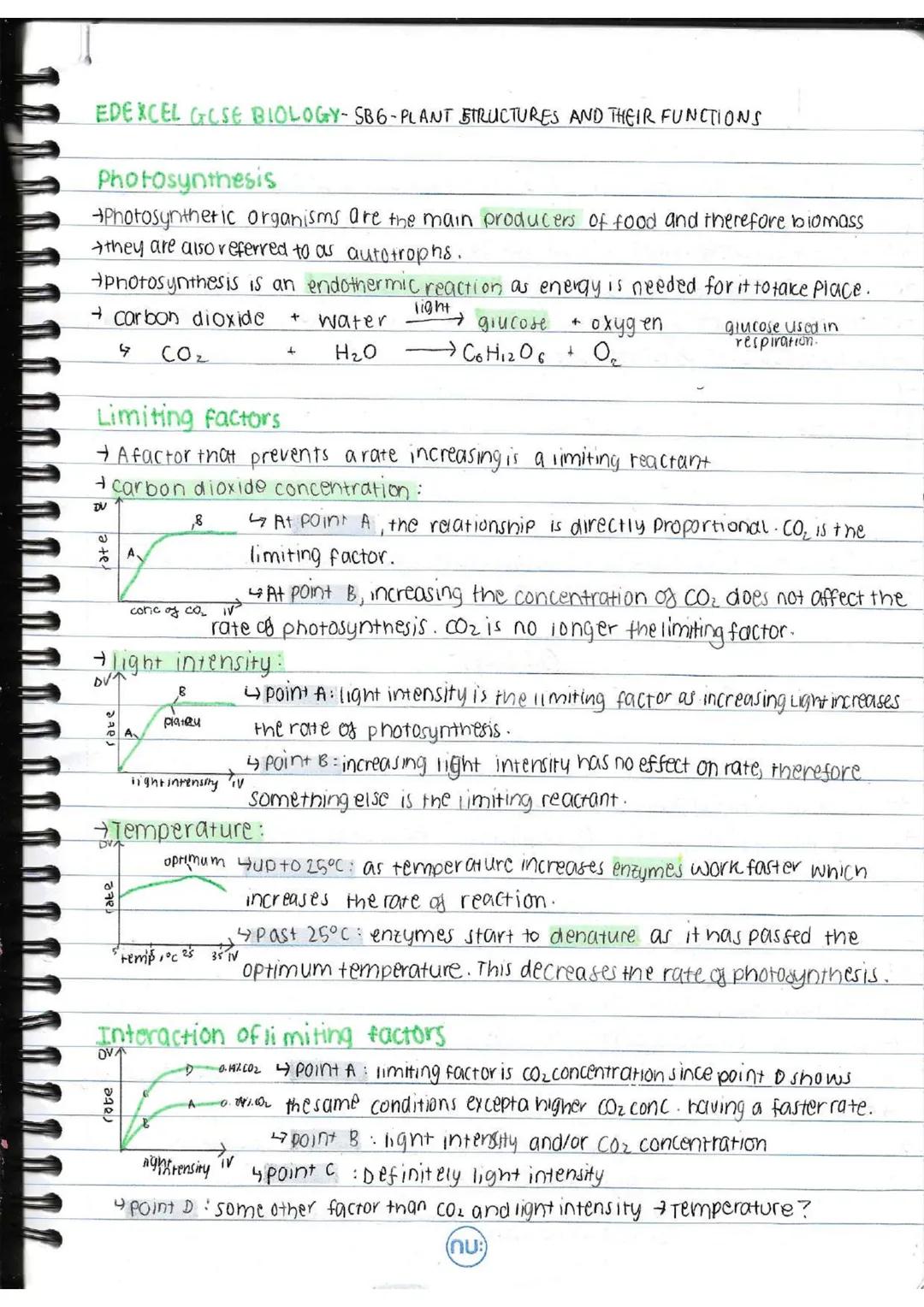

Photosynthesis and Limiting Factors

Photosynthesis is how plants make their own food, making them autotrophs (self-feeders) and the main producers of food in ecosystems. The basic equation shows how plants use an endothermic reaction to transform carbon dioxide and water into glucose and oxygen using light energy.

The rate of photosynthesis is affected by three main limiting factors. Carbon dioxide concentration initially shows a directly proportional relationship with photosynthesis rate until another factor becomes limiting. Similarly, light intensity increases photosynthesis rate until a point where something else becomes the limiting factor.

Temperature affects photosynthesis in a unique way. Up to about 25°C, higher temperatures increase the rate as enzymes work faster. Beyond this optimum temperature, enzymes begin to denature, causing the rate to decrease dramatically.

💡 In real situations, multiple factors can limit photosynthesis simultaneously. For example, increasing CO₂ might have no effect if light intensity is too low, and vice versa!

These limiting factors often interact with each other. For instance, at low light intensity, increasing CO₂ might have little effect because light is the primary limiting factor. Understanding which factor is limiting at any given time is crucial for maximizing plant growth.

Measuring Photosynthesis and Root Structure

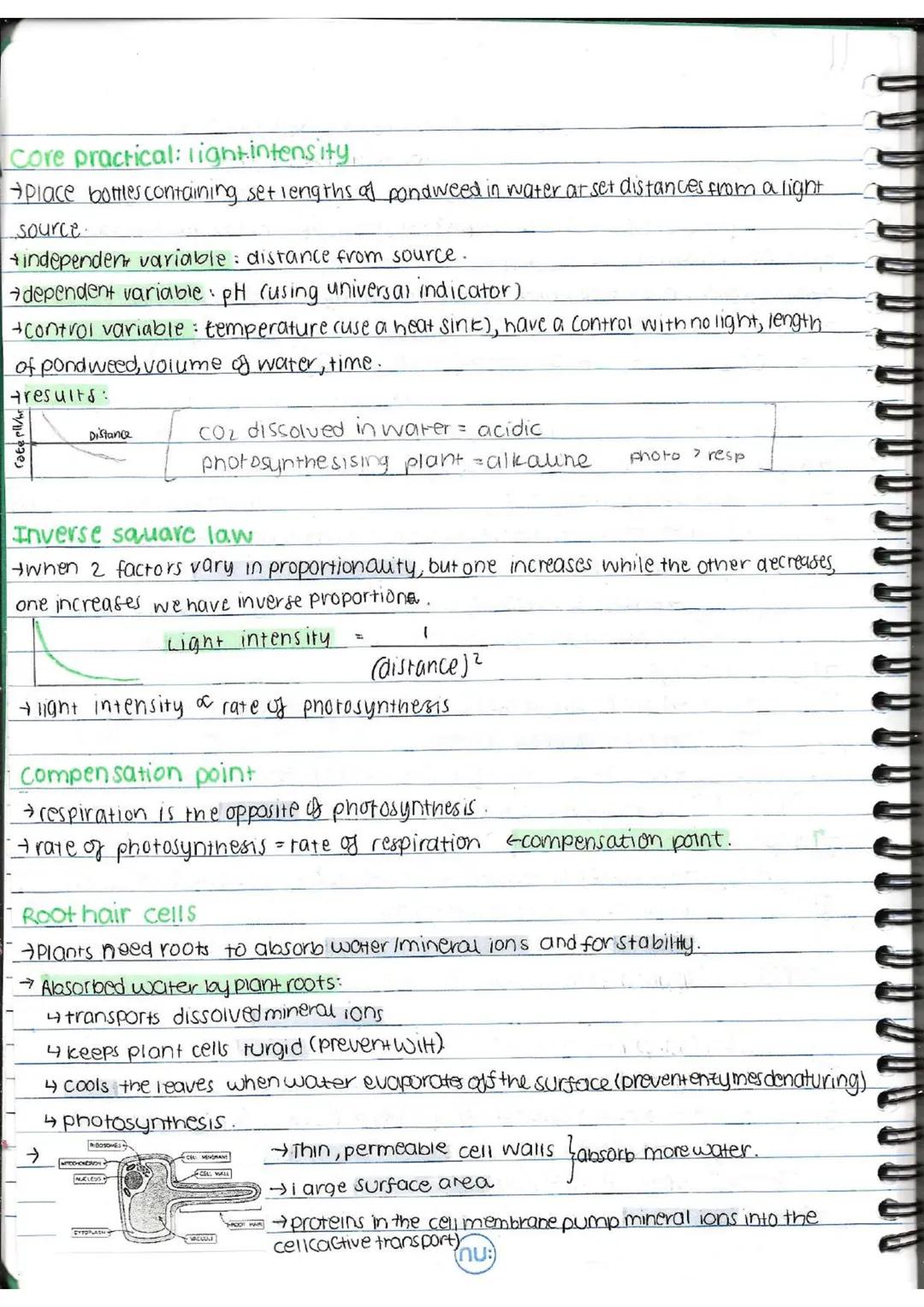

Scientists can measure photosynthesis using clever experiments. In a typical practical, pondweed is placed at various distances from a light source, and the pH of the water is measured. As photosynthesis occurs, the water becomes more alkaline, allowing us to determine how light intensity affects the rate.

The relationship between light intensity and distance follows the inverse square law. This means light intensity is proportional to 1/(distance)², so moving twice as far from a light source gives you only ¼ of the intensity!

Plants also have a compensation point where the rate of photosynthesis exactly equals the rate of respiration. At this point, the plant neither gains nor loses carbon overall.

Root hair cells are specialized structures crucial for plant survival. They have several key adaptations:

• Thin, permeable cell walls that maximize water absorption
• Enormous surface area to capture more water and minerals
• Special proteins in cell membranes that use active transport to pump in essential minerals

🌱 Root hair cells are remarkable structures! A single plant can have billions of them, collectively creating a surface area larger than a tennis court in some plants.

These root adaptations help plants absorb water for transporting minerals, keeping cells firm (turgid), cooling leaves through evaporation, and supporting photosynthesis.

Xylem and Transportation

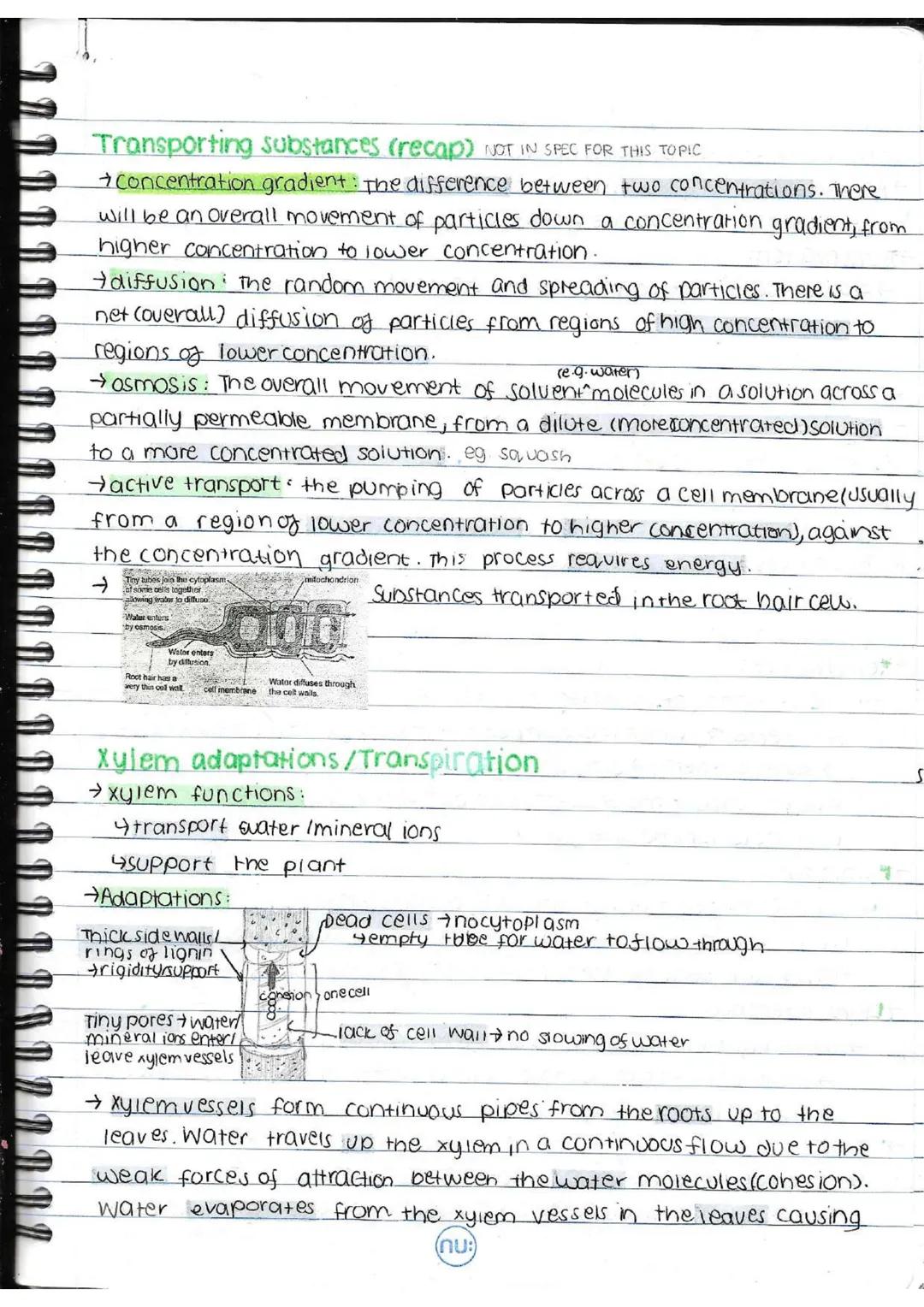

Plants have specialized tissues for transporting essential substances. The xylem vessels are remarkable structures that carry water and minerals from roots to leaves.

Xylem vessels have several brilliant adaptations that make them perfect for their job. They're made of dead cells with no cytoplasm, creating empty tubes for water to flow through. Their walls are reinforced with rings of lignin which provide both strength and flexibility, supporting the plant while allowing water movement.

Water travels up the xylem in a continuous column thanks to cohesion - the attractive forces between water molecules that allow them to stick together. This creates an unbroken water column from roots to leaves. As water evaporates from the leaves, more water is pulled up from below in a process known as the transpiration stream.

🔍 Think of xylem vessels as the plant's plumbing system - they can transport over 100 litres of water per day in a large tree!

The movement of water through a plant follows a simple path: it enters through the roots, travels up the stem through the xylem, and exits through tiny pores (stomata) in the leaves. This entire process helps deliver essential minerals to all parts of the plant while cooling the leaves through evaporation.

Transpiration and Environmental Factors

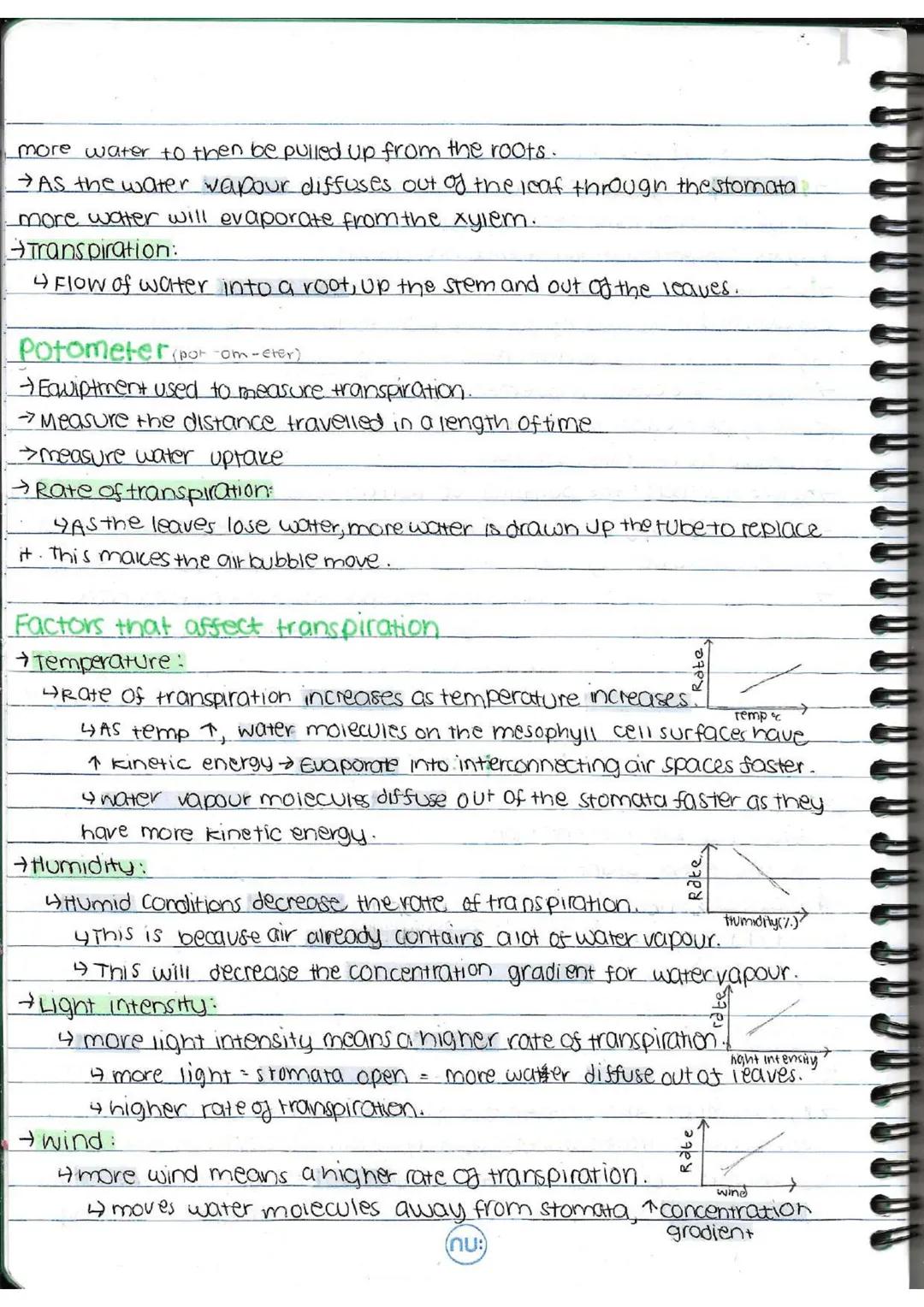

Transpiration is the flow of water through a plant, from roots to leaves, where it evaporates and diffuses out through stomata. Scientists measure this process using a potometer, which tracks how quickly an air bubble moves in a tube as a plant draws up water.

Environmental factors dramatically affect transpiration rates. Temperature increases transpiration because warmer water molecules have more kinetic energy, causing faster evaporation from leaf surfaces. This creates a steeper concentration gradient that pulls more water through the plant.

Humidity has the opposite effect. In humid conditions, the air already contains lots of water vapour, which reduces the concentration gradient between the leaf and the atmosphere. This means water molecules diffuse out of the stomata more slowly, decreasing transpiration.

🌡️ On a hot, dry, windy day, plants can lose water through transpiration so quickly that they wilt if they can't absorb enough water through their roots to keep up!

Light intensity affects transpiration because it controls stomata opening. More light means more open stomata, allowing more water to escape. Similarly, wind increases transpiration by blowing away water molecules that have just exited the stomata, maintaining a steeper concentration gradient that speeds up water loss.

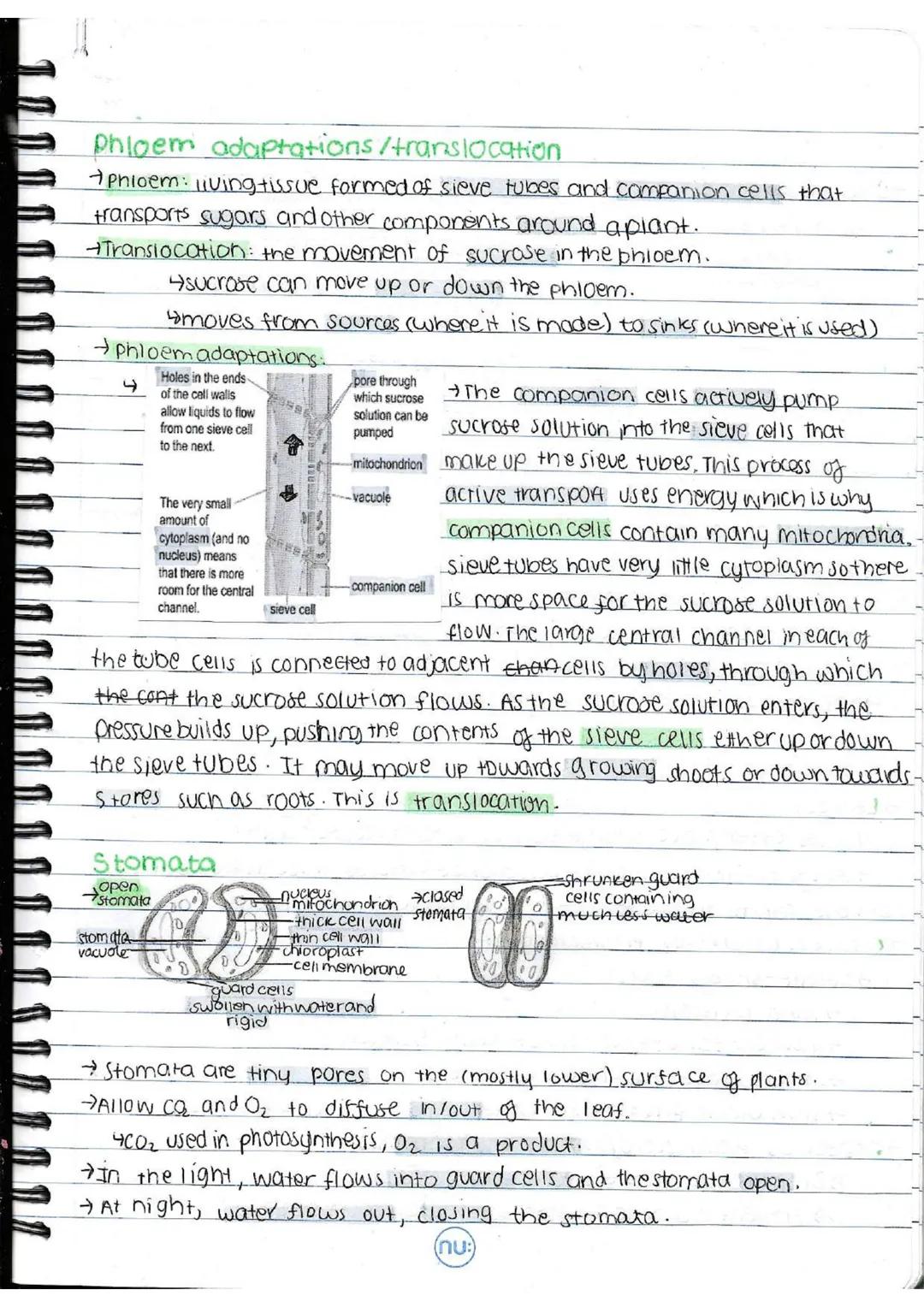

Phloem and Stomata

Phloem tissue transports sugars and other organic compounds around the plant through a process called translocation. Unlike xylem, phloem can move substances both up and down the plant, from sources (where sugars are made, usually leaves) to sinks (where sugars are used or stored).

Phloem consists of sieve tubes and companion cells with clever adaptations. Sieve tubes have pores in their end walls that allow sugars to flow through. They contain very little cytoplasm, creating more space for sugar solution. The companion cells use active transport to pump sugars into the sieve tubes, which builds pressure and pushes the solution through the phloem.

Stomata are tiny pores, mainly on the undersides of leaves, that control gas exchange. They allow carbon dioxide in for photosynthesis and oxygen out as a waste product. Each stoma is surrounded by two guard cells that change shape to open or close the pore.

💧 A single leaf can contain millions of stomata, and collectively they can account for up to 70% of a plant's water loss!

During daylight, guard cells absorb water and become swollen and rigid, opening the stomata. This allows gas exchange for photosynthesis but also increases water loss. At night, when photosynthesis stops, water flows out of the guard cells, causing stomata to close and conserving water.

Leaf Structure and Adaptations

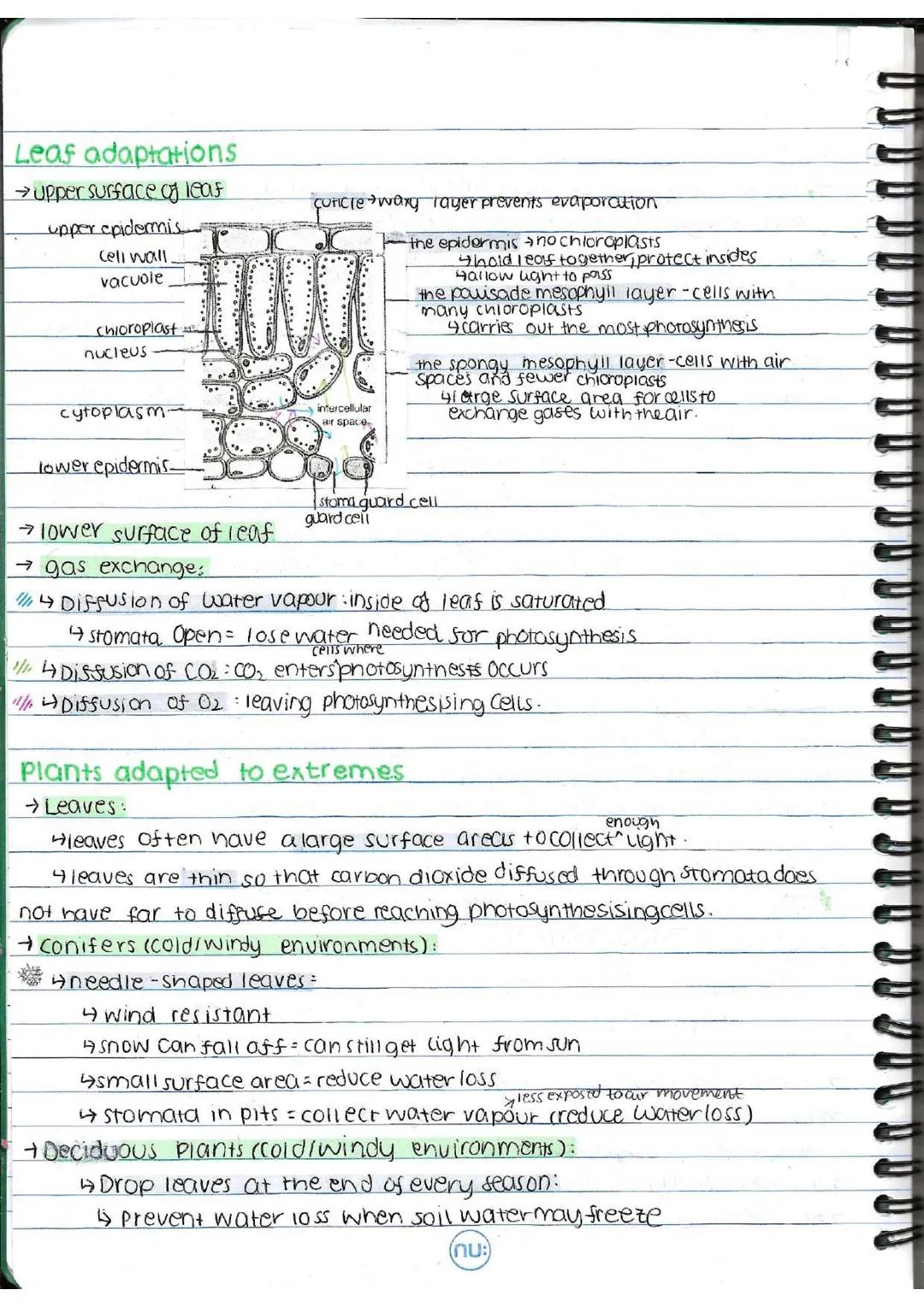

Leaves are remarkable structures perfectly designed for photosynthesis. The upper epidermis has a waxy cuticle that prevents water evaporation while allowing light to pass through. Below this lies the palisade mesophyll layer, packed with chloroplasts to capture maximum sunlight for photosynthesis.

The spongy mesophyll layer contains fewer chloroplasts but has large air spaces between cells. These spaces create an enormous surface area for gas exchange, allowing carbon dioxide to reach photosynthesising cells quickly. The lower epidermis contains most of the stomata, allowing gases to enter and exit while minimizing water loss.

Gas exchange in leaves is a balancing act. When stomata open, carbon dioxide enters for photosynthesis, and oxygen exits as a waste product. However, this also allows water vapour to escape. Plants must balance their need for photosynthesis against the risk of dehydration.

🌵 Desert plants can perform photosynthesis while losing 100 times less water than typical plants through their specialized adaptations!

Plants in extreme environments have evolved fascinating adaptations. Conifers have needle-shaped leaves that resist wind, shed snow, and reduce water loss. Deciduous trees drop their leaves in winter to prevent water loss when soil water may be frozen. These adaptations show how plants have evolved to thrive in challenging conditions.

Plant Adaptations and Hormones

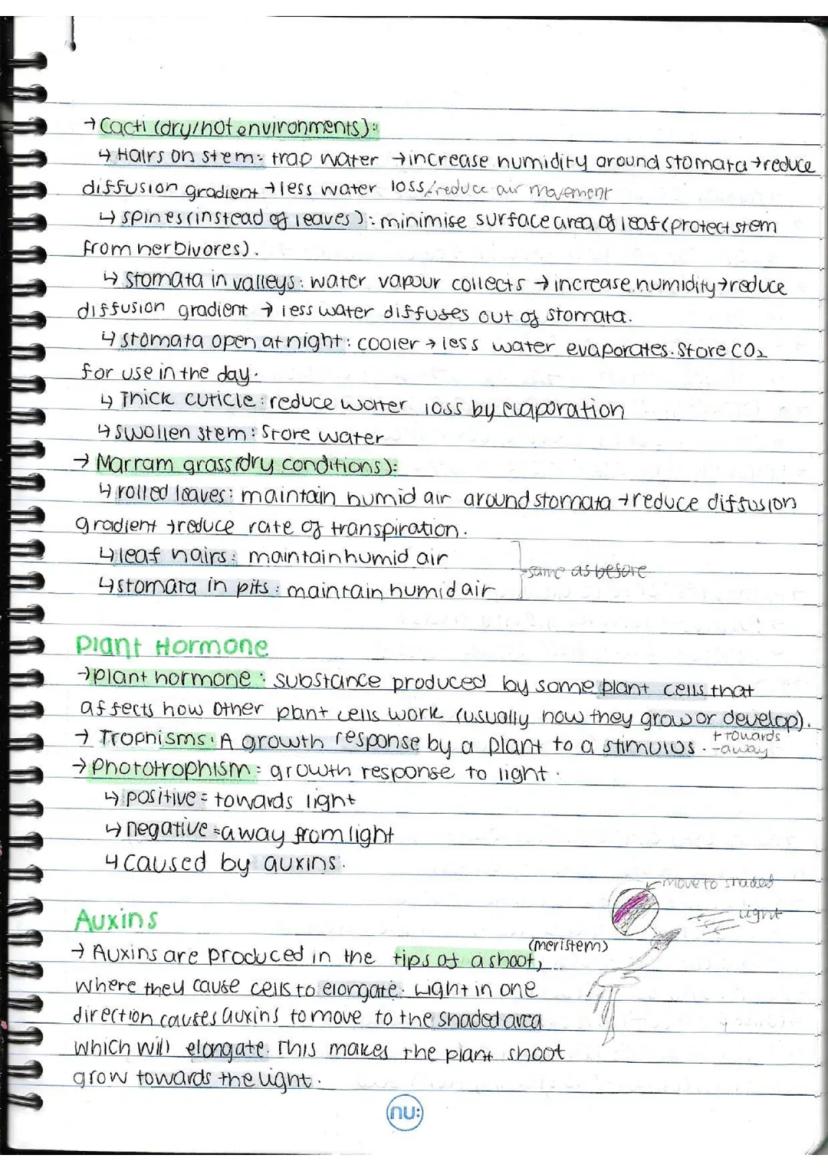

Plants in harsh environments have evolved remarkable adaptations to survive. Cacti in hot, dry environments have spines instead of leaves to reduce surface area and water loss. They open their stomata at night when it's cooler and store the collected CO₂ for use during daylight. Their thick cuticle and swollen stems further help conserve water.

Marram grass found in dry, sandy conditions has rolled leaves that trap humid air around stomata, reducing water loss. Leaf hairs maintain this humid microclimate, while stomata tucked away in pits are protected from drying winds.

Plant hormones are chemical messengers that control plant responses to their environment. They trigger tropisms - growth responses to external stimuli. Phototropism is a growth response to light, with auxins playing a key role in this process.

🌱 The tip of a growing plant shoot can detect light from as little as 0.005% of normal daylight intensity - that's more sensitive than your eyes!

When light hits a plant shoot from one direction, auxins (produced in the shoot tip) move to the shaded side. These hormones cause cells on the shaded side to elongate more than those on the lit side, making the shoot bend toward the light. This clever mechanism ensures plants grow toward their energy source.

Plant Hormones and Commercial Applications

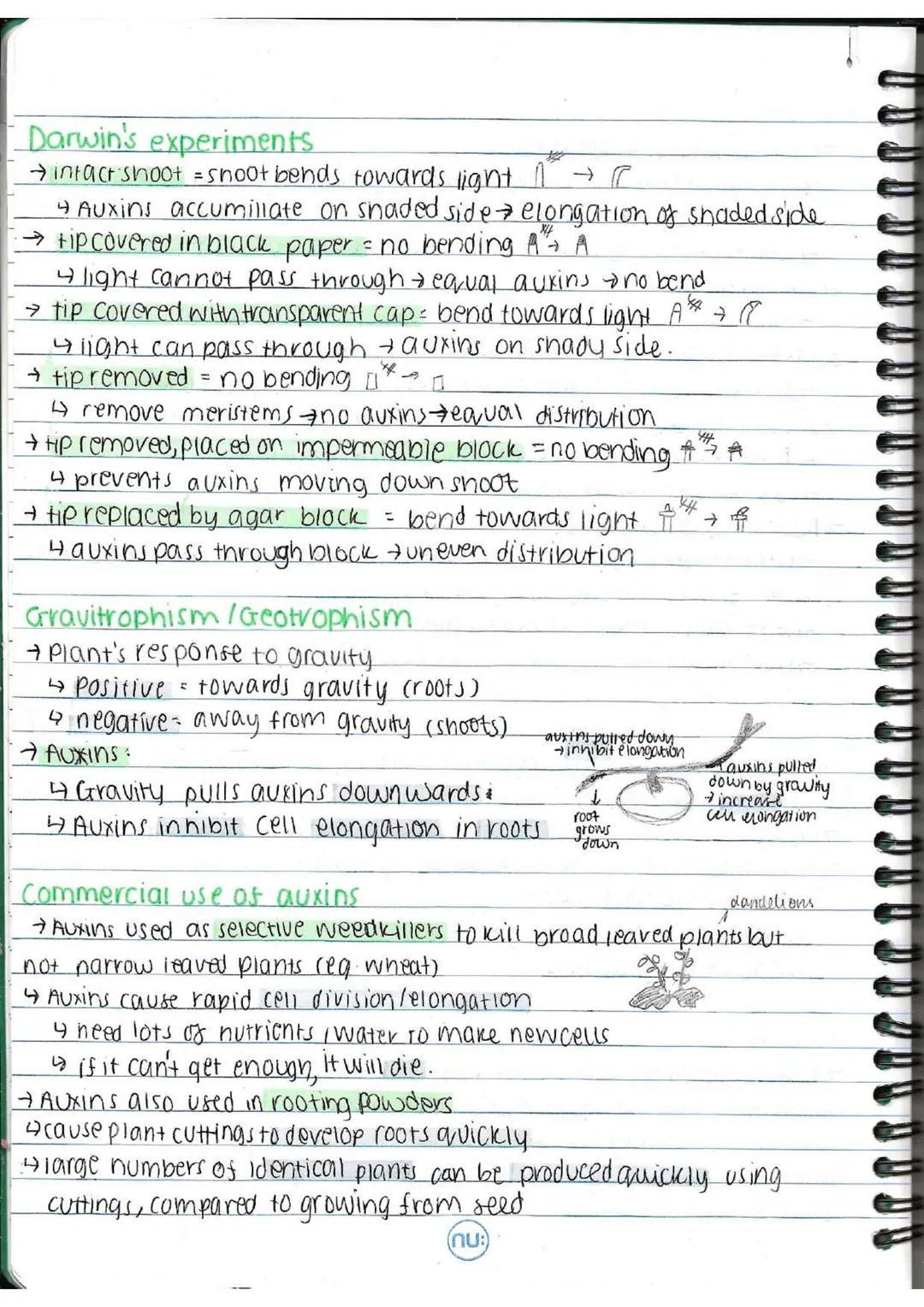

Darwin's experiments with plant shoots revealed how phototropism works. When a shoot tip is covered with an opaque cap or removed entirely, the plant doesn't bend toward light because auxin production or movement is blocked. However, if the tip is covered with a transparent cap or replaced with an agar block containing auxins, the plant still bends toward light.

Gravitropism (also called geotropism) is a plant's response to gravity. Roots show positive gravitropism (growing toward gravity), while shoots show negative gravitropism (growing away from gravity). This response occurs because gravity pulls auxins downward. Interestingly, auxins have opposite effects in roots and shoots - inhibiting cell elongation in roots but promoting it in shoots.

Plant hormones have valuable commercial applications. Auxins are used as selective weedkillers that target broad-leaved plants while sparing narrow-leaved crops like wheat. They work by causing such rapid cell growth that the weeds essentially grow themselves to death!

🌿 One application of auxin-based weedkiller can increase crop yields by up to 40% by eliminating competition for water, light, and nutrients!

Auxins are also used in rooting powders to help plant cuttings develop roots quickly. This technique allows growers to produce large numbers of identical plants much faster than growing from seeds, which is particularly valuable for commercial horticulture.

Commercial Plant Hormones and Adaptations

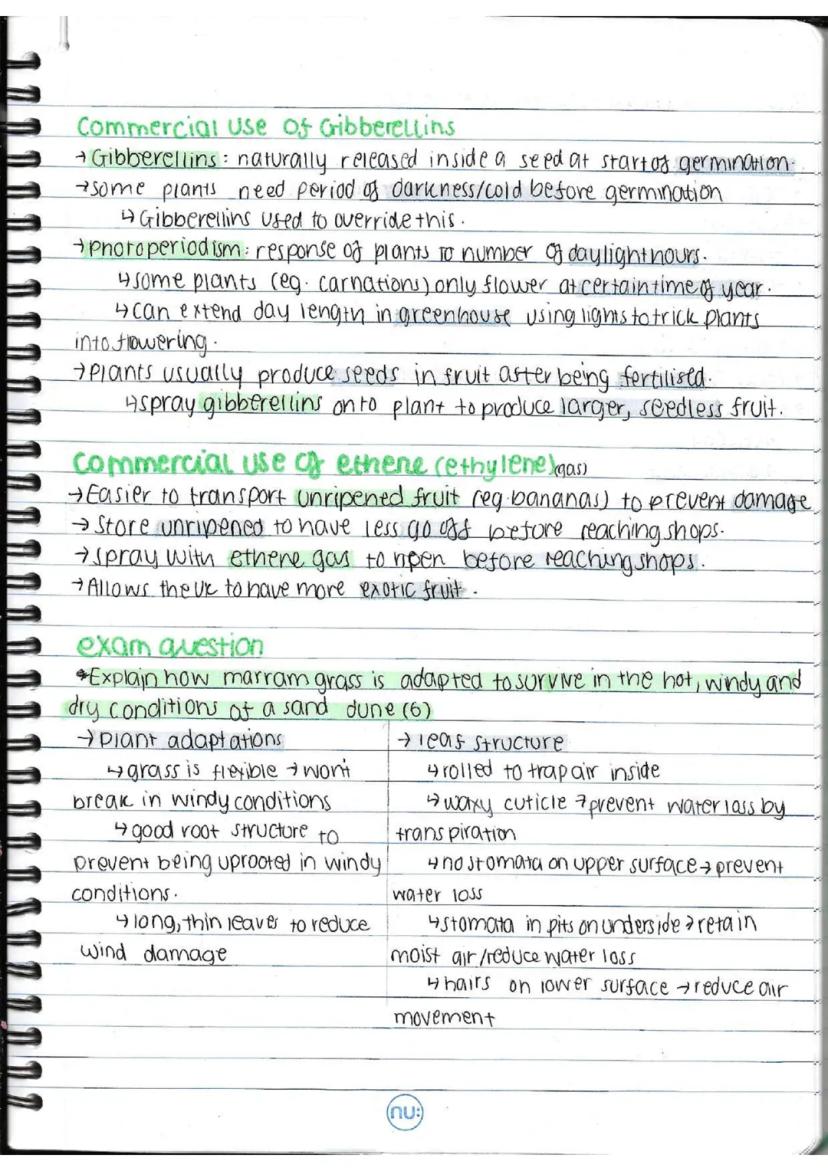

Gibberellins are plant hormones with several commercial uses. They can trigger seed germination, overriding the natural dormancy that some plants require. Commercial growers use gibberellins to manipulate photoperiodism - a plant's response to daylight hours - tricking plants like carnations into flowering out of season.

Another clever application of gibberellins is producing larger, seedless fruits. By applying these hormones to unpollinated flowers, growers can stimulate fruit development without fertilisation, creating more marketable produce.

Ethene (also called ethylene) is a gaseous plant hormone that controls fruit ripening. Commercial growers transport unripened fruit to prevent damage during shipping, then spray them with ethene just before they reach shops. This allows exotic fruits like bananas to arrive in perfect condition and ripen on demand.

🍌 A single ripe banana can release enough ethene gas to trigger ripening in an entire box of unripe fruit - that's why one overripe fruit in a bowl can cause others to ripen faster!

Marram grass exemplifies how plants adapt to extreme conditions. It thrives in hot, windy, dry sand dunes thanks to specialized adaptations: rolled leaves that trap humid air, stomata hidden in protective pits, a waxy cuticle to prevent water loss, and protective hairs that reduce air movement around the leaf surface. These features allow it to conserve water while still performing photosynthesis in challenging environments.
