Understanding Mitosis: A Practical Investigation

Report

Emily Anne@emilyanne

Microscopy is a fundamental skill in biology that lets you measure tiny cells and structures with incredible precision. You'll learn how to calibrate measuring tools, identify cell division stages, and calculate important biological indices - skills that are essential for A-level practical work and understanding how life works at the cellular level.

By signing up you accept Terms of Service and Privacy Policy

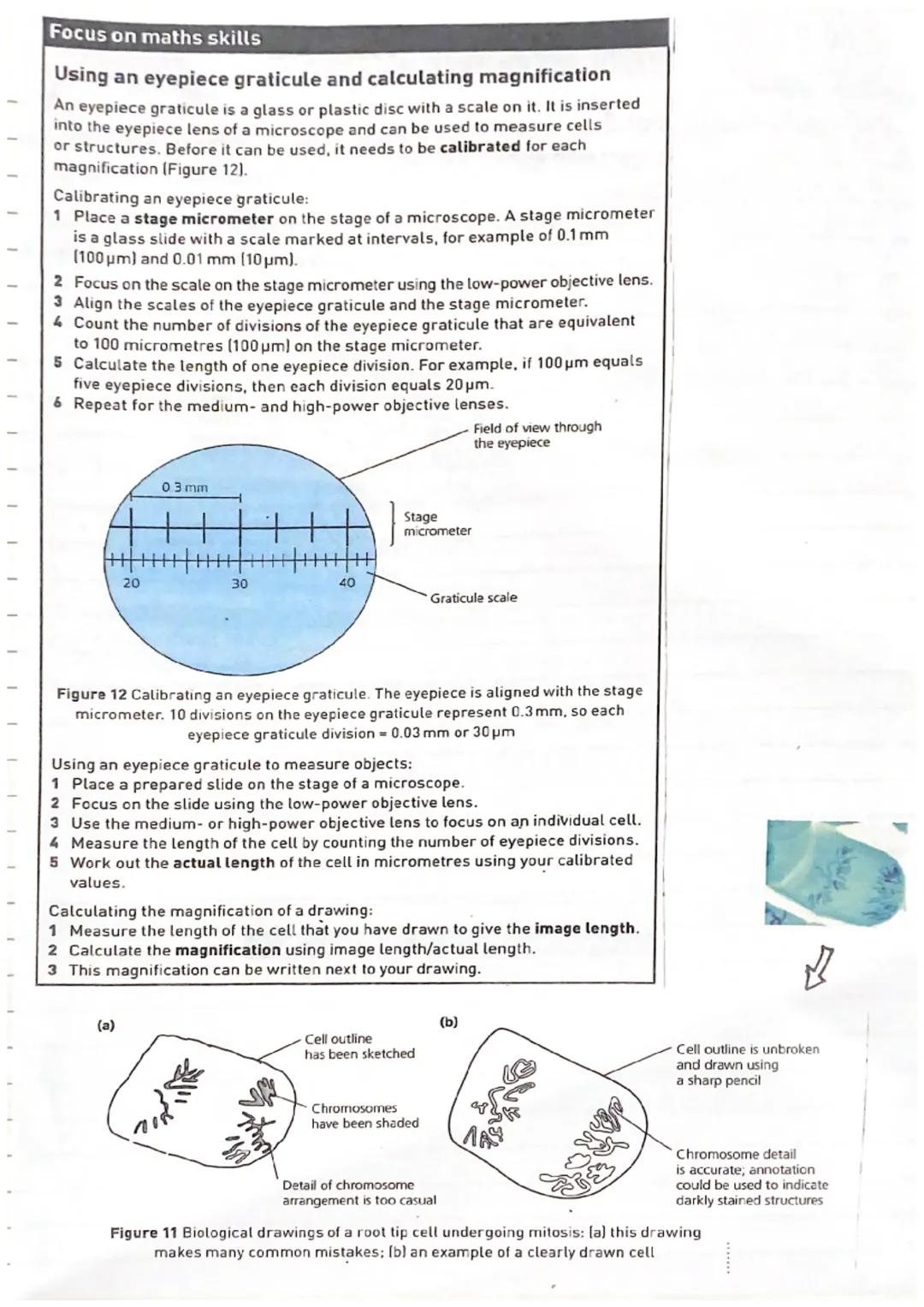

Using an Eyepiece Graticule and Calculating Magnification

Ever wondered how scientists measure structures that are too small to see with the naked eye? An eyepiece graticule is your key tool - it's a glass disc with a scale that fits into your microscope's eyepiece lens.

Before you can measure anything, you need to calibrate the graticule using a stage micrometer (a slide with precise measurements). The process is straightforward: align both scales, count how many eyepiece divisions equal 100 micrometers on the stage micrometer, then calculate what each division represents. For example, if 5 eyepiece divisions = 100 µm, then each division = 20 µm.

Once calibrated, measuring cells becomes simple. Focus on your specimen, count the eyepiece divisions it spans, then multiply by your calibration value to get the actual size. You can also calculate the magnification of your drawings using the formula: image length ÷ actual length.

Top Tip: You must recalibrate for each different objective lens, as magnification changes the scale!

By signing up you accept Terms of Service and Privacy Policy

Measuring Sizes and Converting Units

Getting accurate measurements under a light microscope requires understanding the relationship between millimetres and micrometers. Remember: 1 mm = 1000 µm, so multiply by 1000 to convert mm to µm, and divide by 1000 to go the other way.

The stage micrometer has large divisions of 1000 µm (1 mm) and smaller divisions of 100 µm (0.1 mm). When you line these up with your eyepiece graticule, you can work out exactly what each graticule unit represents. This calibration value changes with different objective lenses.

Practical calculations become routine once you understand the process. If your calibrated graticule shows 1 unit = 34.5 µm, and a cell spans 5 units, then the cell is 5 × 34.5 = 172.5 µm across. Always include scale bars or magnification values on your biological drawings to show the actual size.

Quick Check: Practice unit conversions regularly - they're essential for practical assessments and understanding cellular scales!

By signing up you accept Terms of Service and Privacy Policy

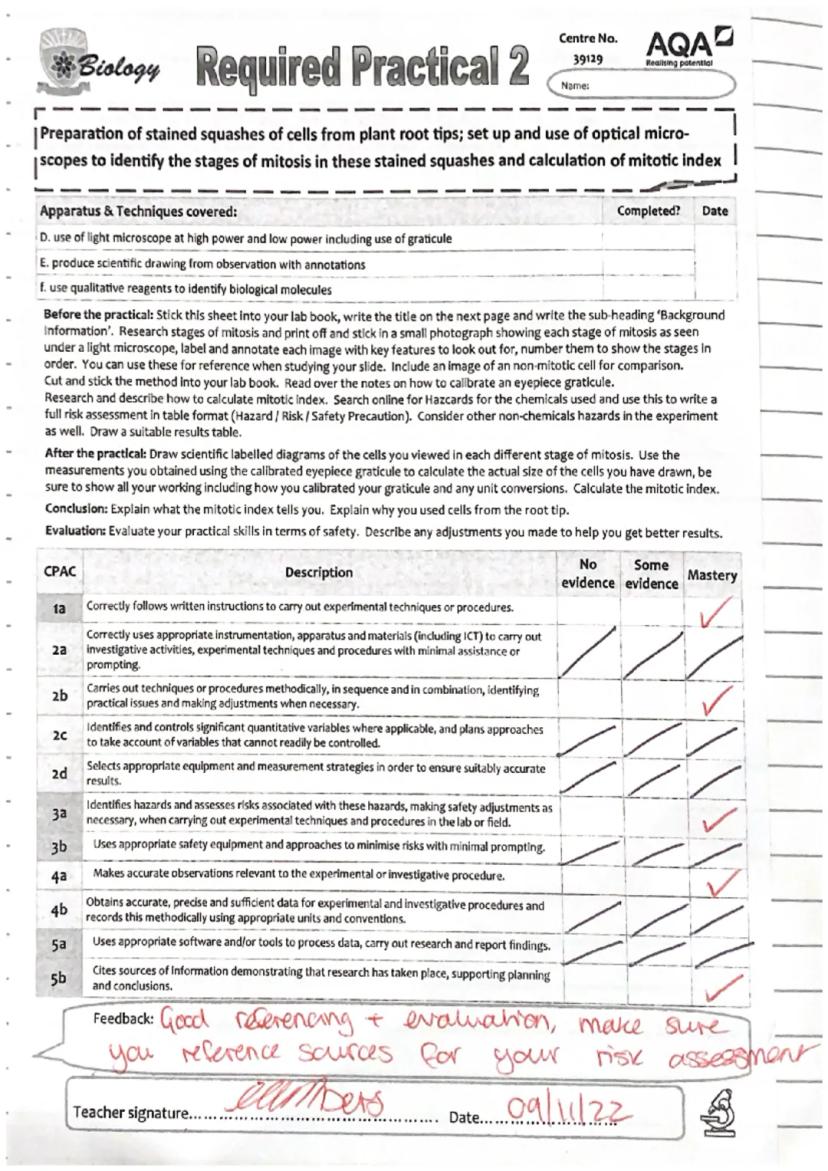

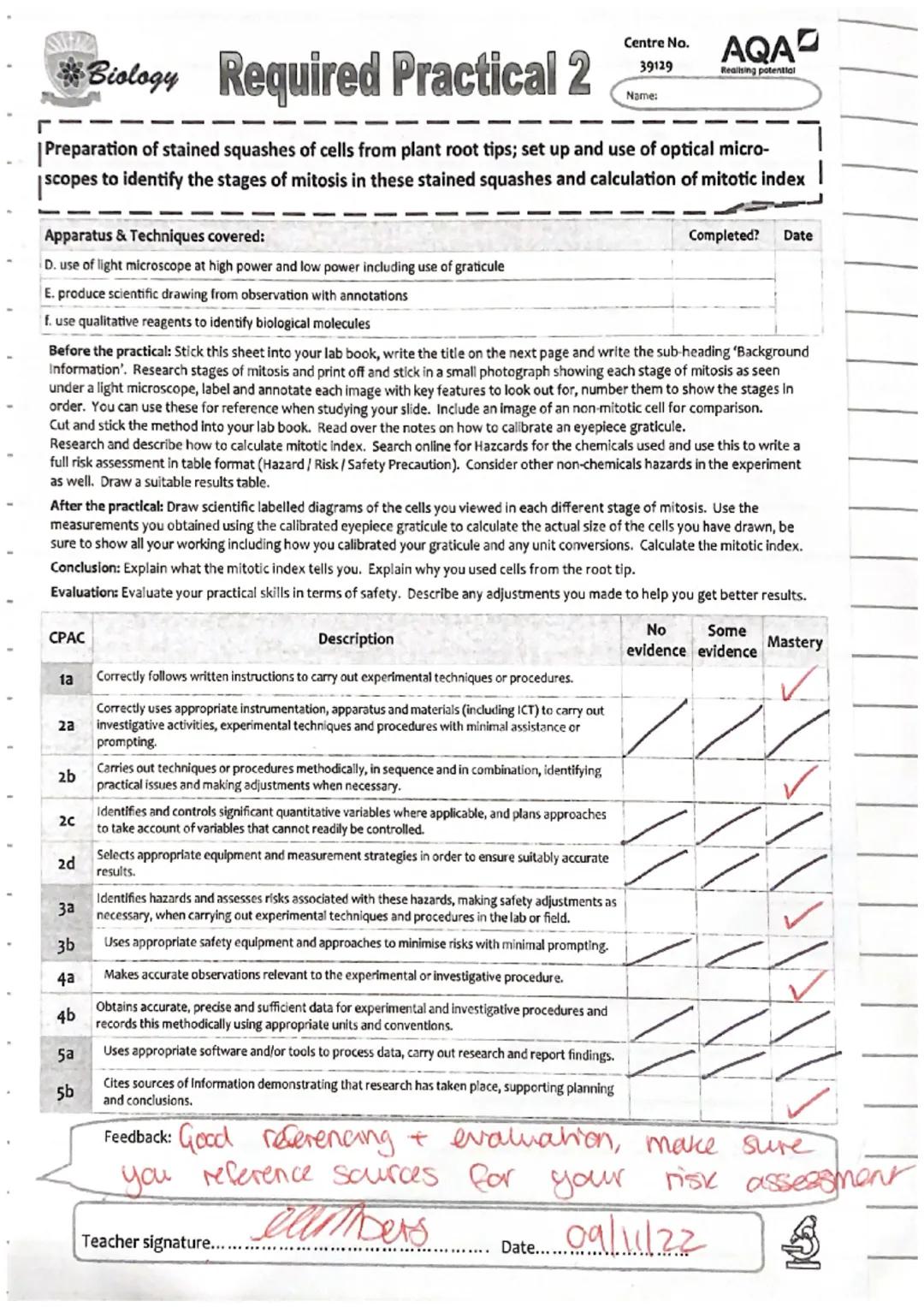

Required Practical 2: Mitosis Investigation

This practical combines several crucial A-level biology skills into one comprehensive investigation. You'll prepare root tip squashes, use microscopy techniques, and calculate the mitotic index - all essential skills for your CPAC assessment.

The investigation covers key apparatus skills including high and low power microscopy, graticule use, scientific drawing, and qualitative reagent identification. Your preparation should include researching mitosis stages, creating reference images, and writing a thorough risk assessment covering all chemicals and equipment hazards.

Success in this practical requires methodical technique and accurate observation. You'll need to identify cells in different stages of mitosis, measure them using your calibrated graticule, and calculate both actual cell sizes and the mitotic index. The assessment criteria focus on following procedures safely, using equipment correctly, and recording accurate data.

Essential Prep: Complete your background research thoroughly - having clear reference images of each mitosis stage will make identification much easier during the practical!

By signing up you accept Terms of Service and Privacy Policy

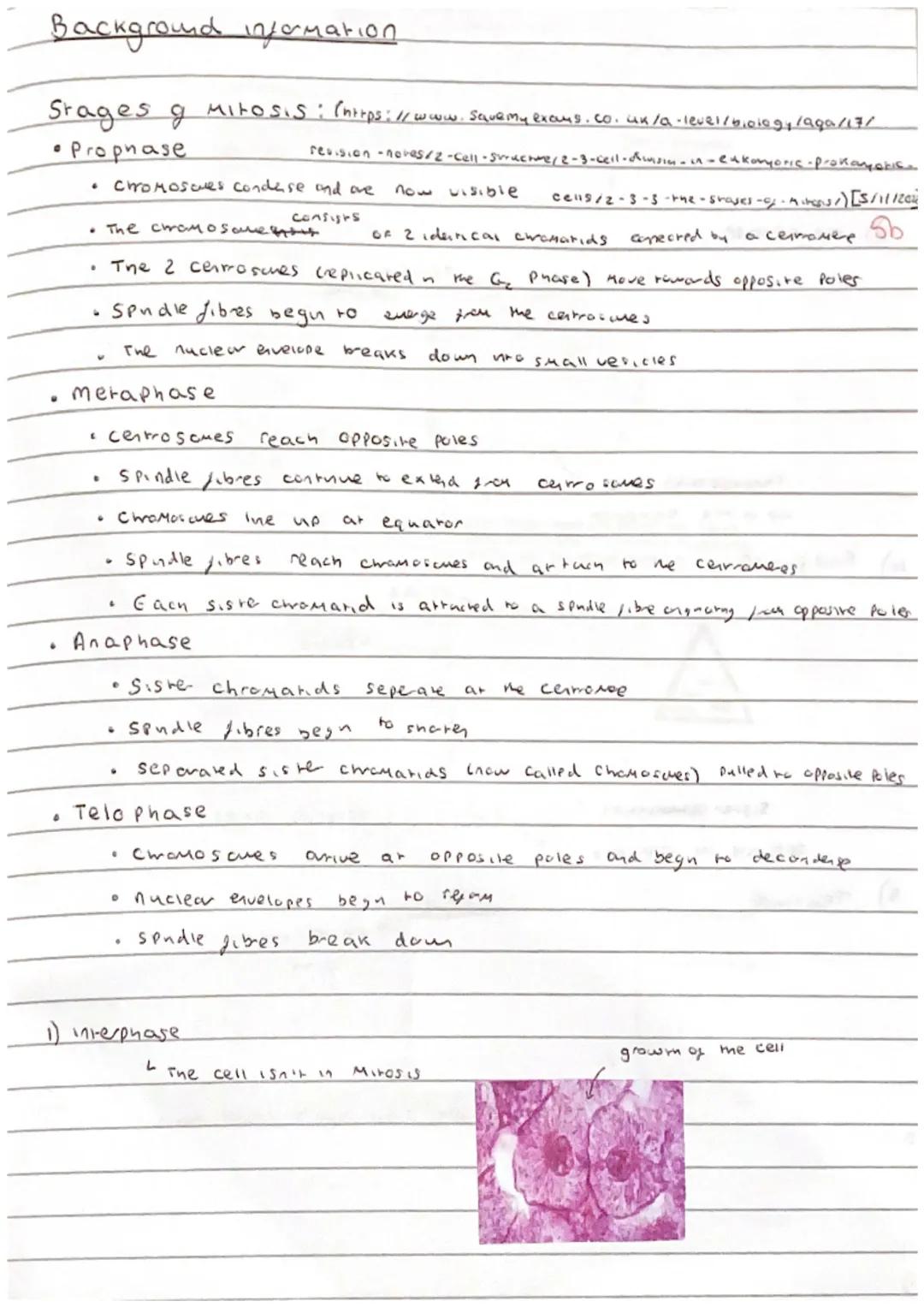

Understanding Mitosis Stages

Mitosis follows a predictable sequence that you need to recognize under the microscope. During prophase, chromosomes condense and become visible, while the nuclear envelope breaks down and spindle fibres emerge from centrosomes moving to opposite poles.

Metaphase shows chromosomes lined up at the cell's equator, with spindle fibres attached to each sister chromatid from opposite poles. This alignment is crucial for equal chromosome distribution. Anaphase sees sister chromatids separate at the centromere and move to opposite poles as spindle fibres shorten.

Telophase completes the process as chromosomes decondense, nuclear envelopes reform around each set of chromosomes, and spindle fibres break down. Most cells you observe will be in interphase - the growth phase between divisions when the cell isn't actively dividing.

Study Tip: Create a flow chart showing the key features of each stage - this makes identification much easier during practical work!

By signing up you accept Terms of Service and Privacy Policy

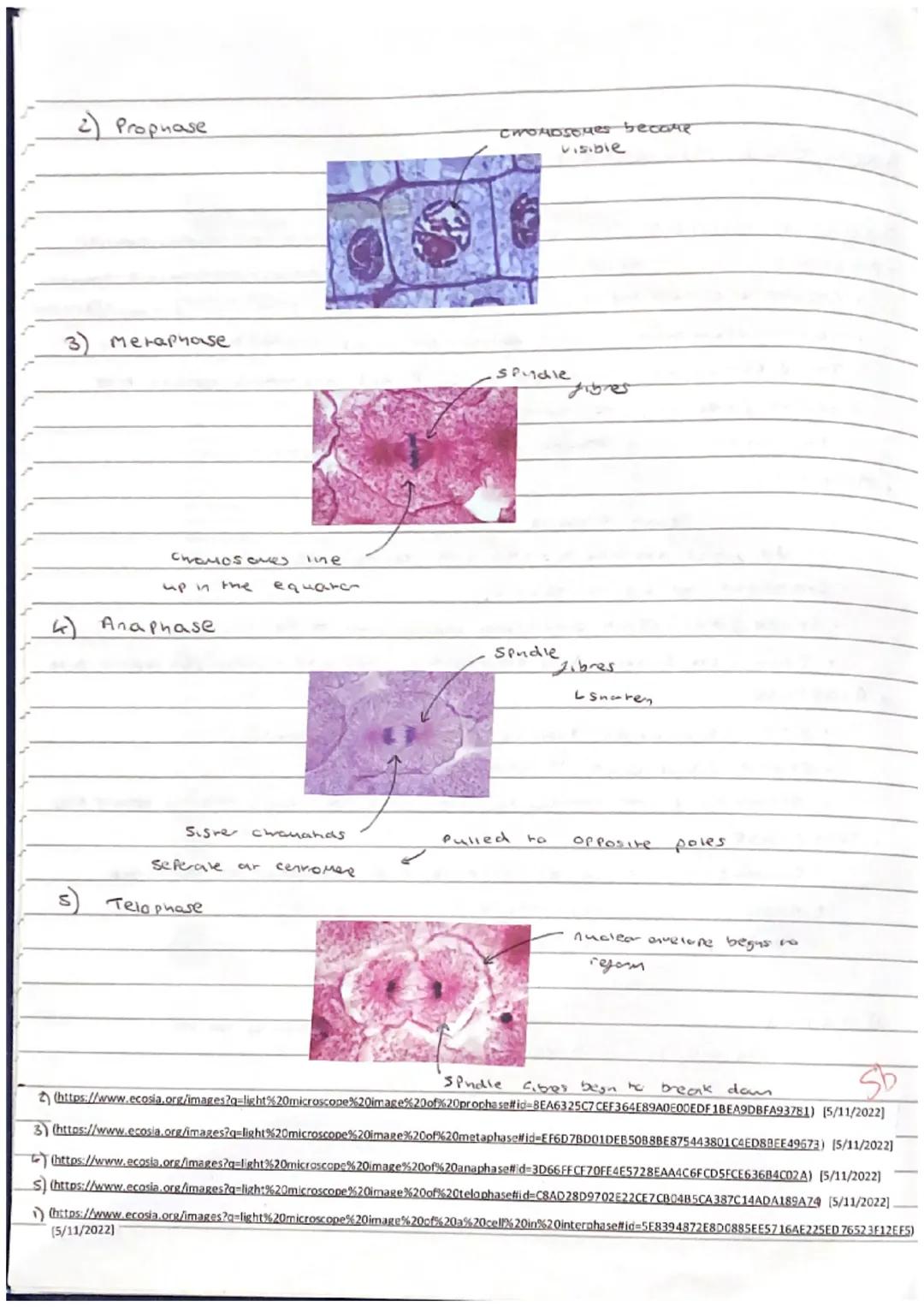

Microscope Images of Cell Division

Visual recognition of mitosis stages under a light microscope requires practice and good reference materials. Each stage has distinct characteristics that become clearer with experience: condensed chromosomes in prophase, aligned chromosomes in metaphase, and separated chromatids in anaphase.

Interphase cells appear relatively unremarkable with a visible nucleus but no obvious chromosomes. This is the longest phase of the cell cycle, so you'll see many more interphase cells than dividing ones. The quality of your root tip squash preparation affects how clearly you can see these details.

Good staining with toluidine blue makes chromosomes appear dark blue against lighter cytoplasm. This contrast is essential for accurate identification and counting. Taking time to examine multiple fields of view gives you better data for calculating the mitotic index.

Practical Tip: Use both low and high power objectives - low power helps you locate dividing cells, while high power reveals the detailed chromosome arrangements!

By signing up you accept Terms of Service and Privacy Policy

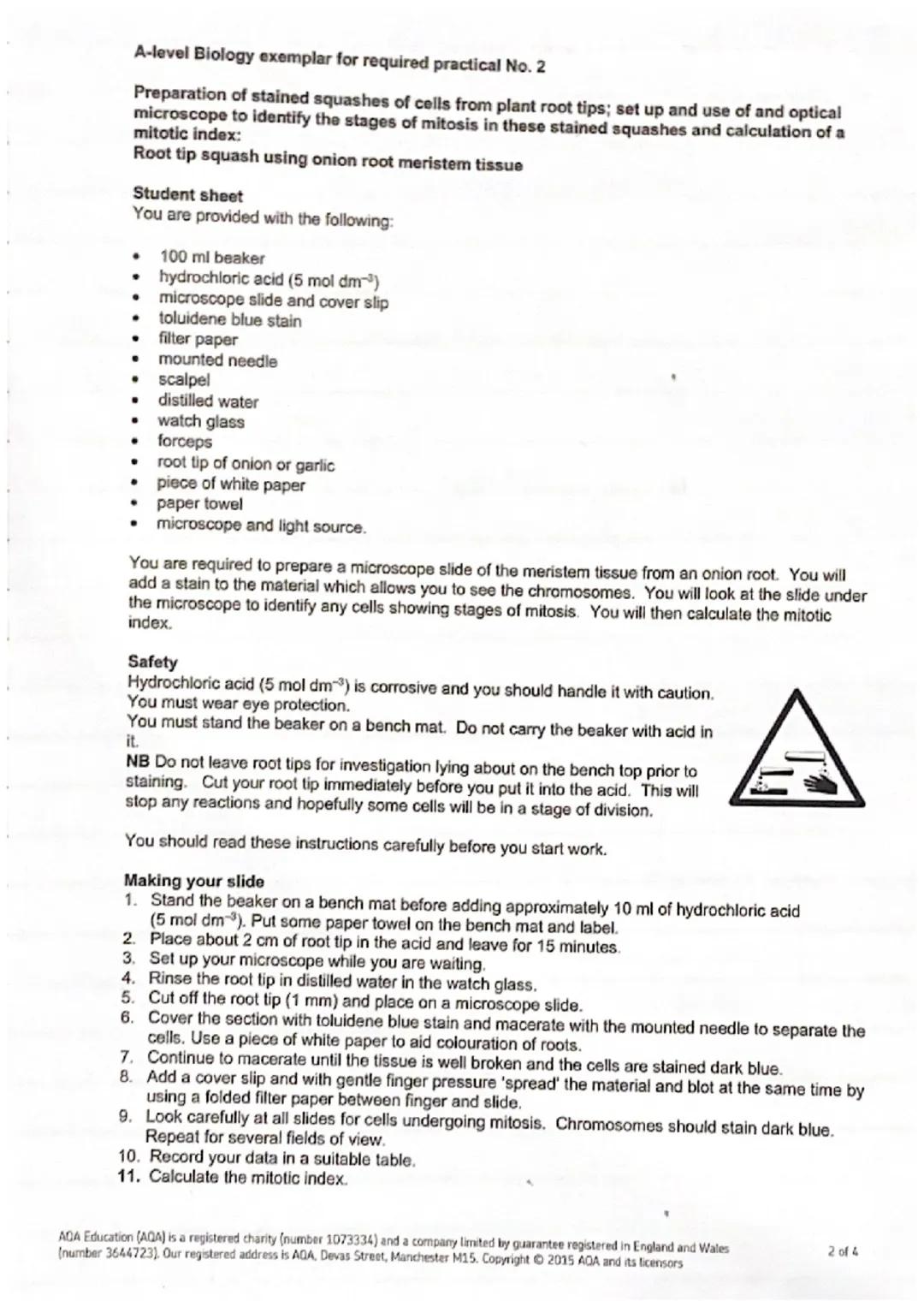

Root Tip Squash Preparation

The root tip squash technique reveals actively dividing cells in the meristem tissue. Safety is paramount when handling 5 mol dm⁻³ hydrochloric acid - always wear eye protection and handle beakers carefully without carrying them around the lab.

The preparation process starts with treating root tips in hydrochloric acid for 15 minutes to soften cell walls, making squashing easier. After rinsing with distilled water, you add toluidine blue stain and macerate the tissue to separate individual cells. The stain makes chromosomes visible as dark blue structures.

Gentle pressure during squashing spreads cells into a single layer without overlapping, essential for clear observation. Using filter paper between your finger and the slide prevents damage while removing excess stain. The microscope examination should cover several fields of view to gather sufficient data.

Safety First: Never leave unstained root tips lying around - cut them fresh and stain immediately to preserve cells in various division stages!

By signing up you accept Terms of Service and Privacy Policy

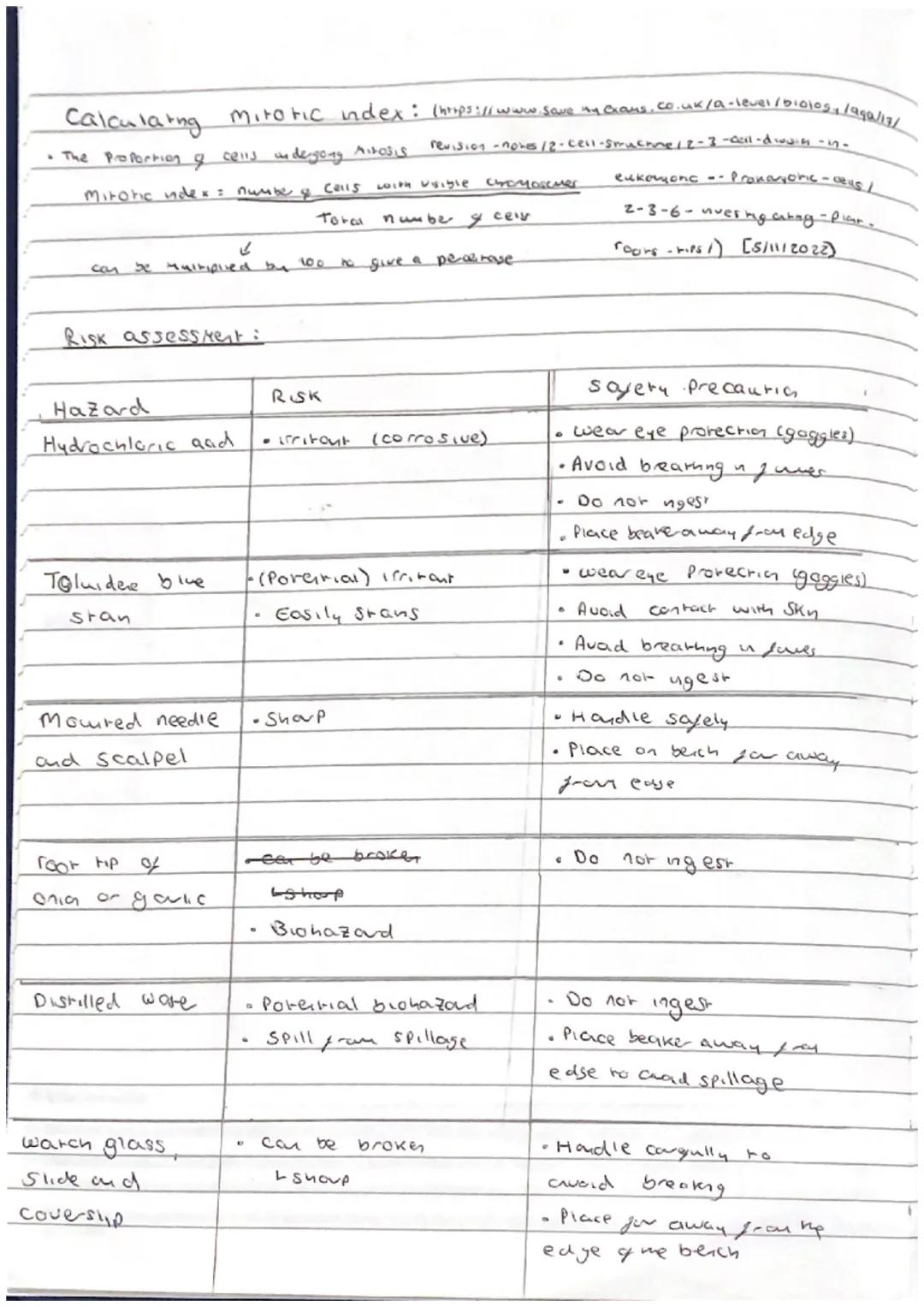

Risk Assessment and Mitotic Index

A thorough risk assessment identifies all hazards including corrosive hydrochloric acid, potentially irritating toluidine blue stain, sharp instruments, and breakable glassware. Each hazard requires specific safety precautions like eye protection, careful handling, and proper disposal.

The mitotic index calculation is straightforward: count cells with visible chromosomes (in any stage of mitosis) and divide by the total cell count. Multiplying by 100 gives a percentage. This index indicates how actively the tissue is dividing - root tips typically show higher values due to rapid growth.

Your results table should record cell counts for each mitosis stage plus interphase cells. A typical root tip might show around 10% of cells in mitosis, though this varies with growing conditions and tissue age. Multiple field counts improve reliability.

Data Quality: Count at least 100 cells across several fields of view for reliable mitotic index calculations!

By signing up you accept Terms of Service and Privacy Policy

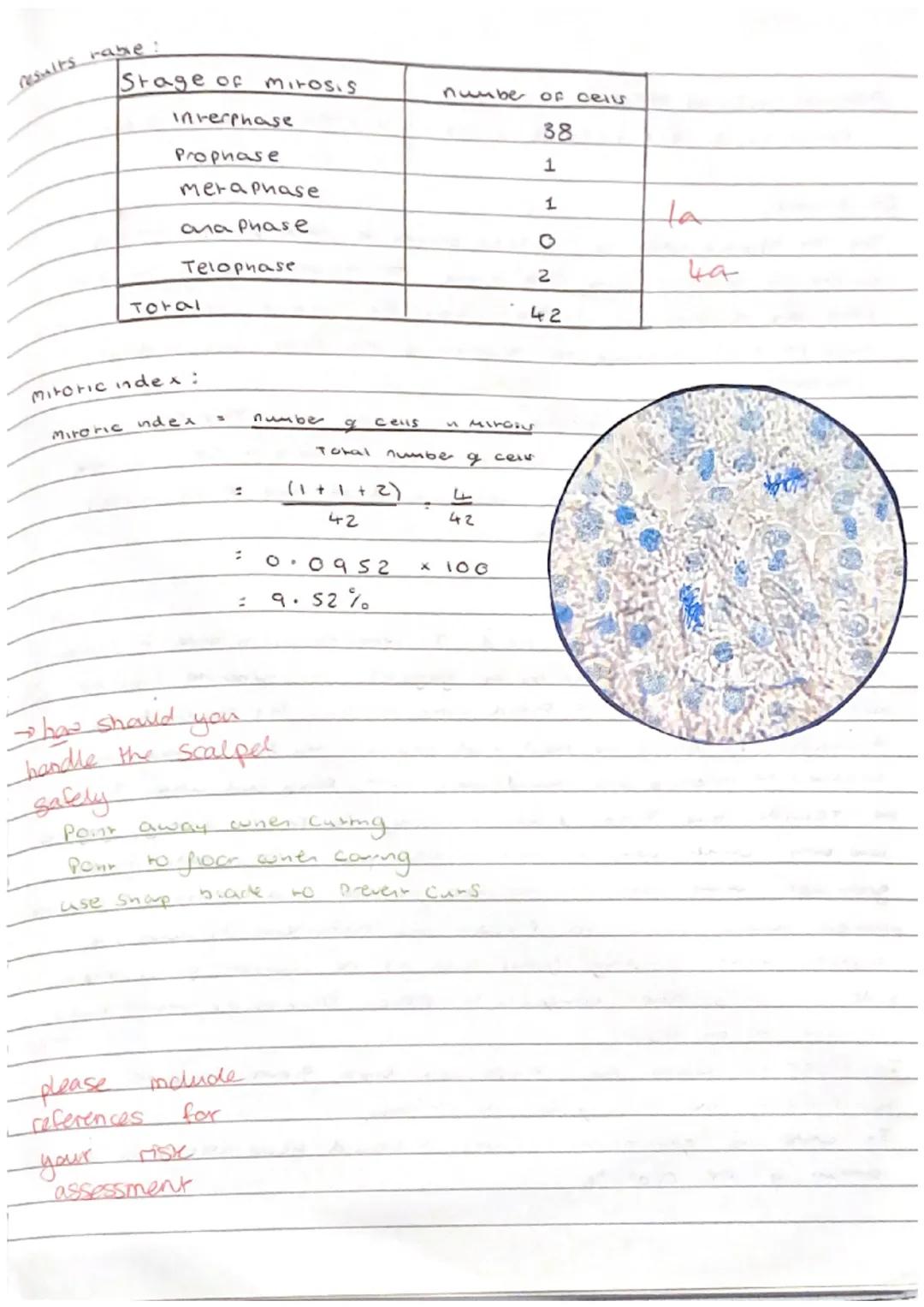

Results and Calculations

Recording your observations systematically in a clear results table makes calculations straightforward. In this example, 4 cells out of 42 total were in mitosis (1 in prophase, 1 in metaphase, 0 in anaphase, 2 in telophase), giving a mitotic index of 9.52%.

Cell size calculations use your calibrated graticule measurements. If the calibration shows 1000 µm equals 4 eyepiece divisions, then each division represents 250 µm. This allows you to convert your cell measurements from graticule units to actual micrometers.

Safety evaluation should reflect your actual laboratory practice - wearing goggles when handling acid, careful instrument handling, and immediate cleanup of spills. These practical skills demonstrate your competence in laboratory techniques and contribute to your CPAC assessment.

Accuracy Check: Always show your working for calculations and include proper units - this demonstrates your mathematical skills alongside practical competence!

By signing up you accept Terms of Service and Privacy Policy

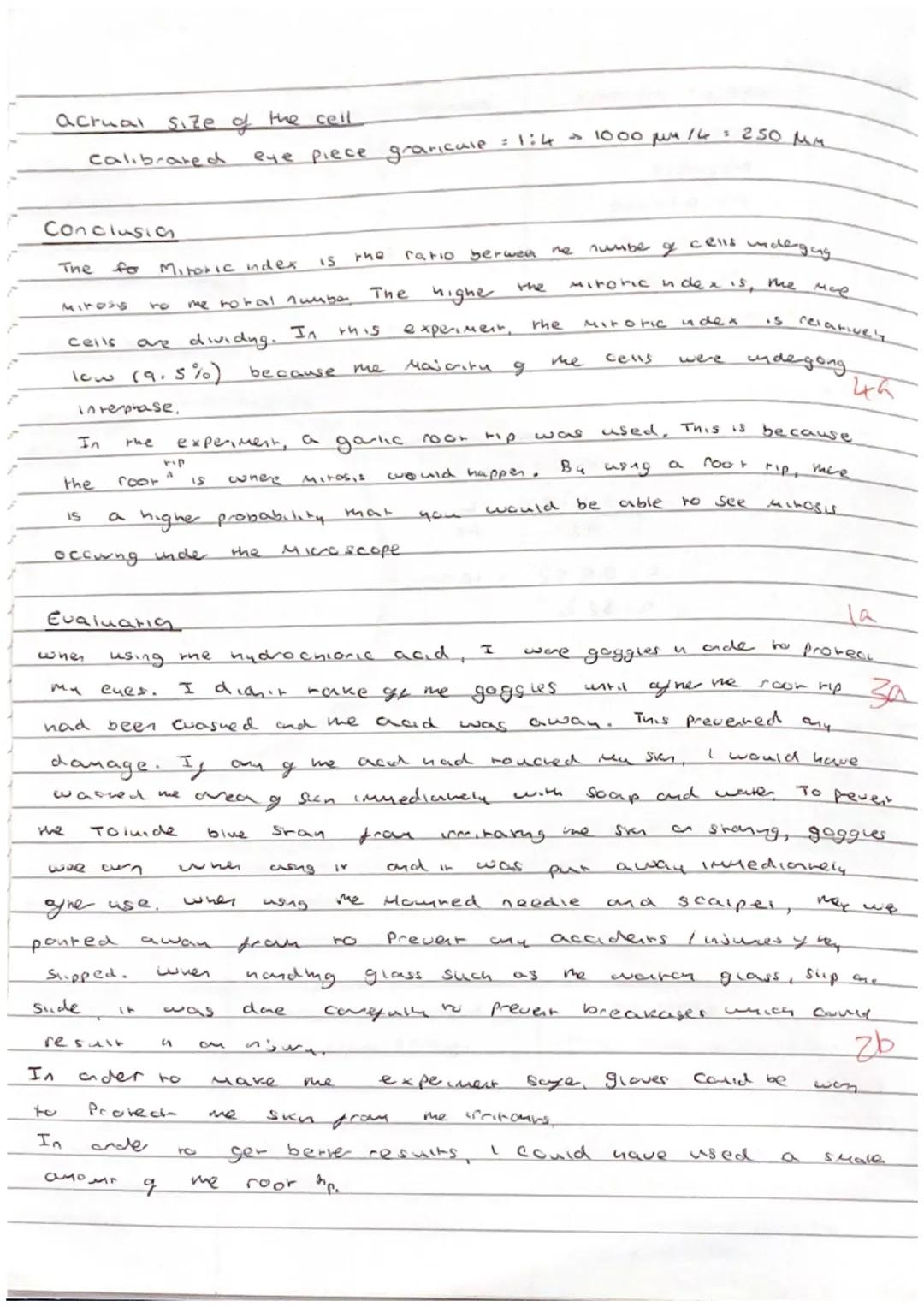

Conclusions and Evaluation

The mitotic index reveals the proportion of actively dividing cells in your sample. Root tips are ideal for this investigation because meristem tissue contains rapidly dividing cells, giving you a good chance of observing mitosis stages. Most cells remain in interphase, explaining why the mitotic index is typically below 15%.

Your conclusion should explain why root tips are chosen (rapid growth and cell division) and interpret your mitotic index value. A 9.5% index indicates active growth, typical for healthy root tissue. Higher values might suggest more rapid growth conditions or younger tissue.

Evaluation demonstrates your understanding of laboratory safety and technique improvement. Discussing proper handling of corrosive chemicals, safe instrument use, and potential modifications shows mature practical thinking. Suggesting improvements like smaller samples or repeat counts indicates scientific awareness.

Reflection Skills: Good evaluation shows you understand both what you did well and how you could improve - this critical thinking is highly valued in A-level assessment!

By signing up you accept Terms of Service and Privacy Policy

Practical Questions and Analysis

Understanding why each step matters deepens your practical knowledge. Holding root tips by the cut end prevents damage to actively dividing cells in the meristem region. Toluidine blue stain makes chromosomes visible by providing contrast against the cytoplasm.

Hydrochloric acid treatment softens cell walls, making squashing easier and preventing cell damage. Heating speeds up this process by increasing molecular movement. Squashing spreads cells into a single layer, preventing overlapping that would obscure individual cells during counting.

Mitotic index calculations must be based on sufficient data for reliability. Examining only one field of view or using a single sample provides insufficient data. Professional investigations use multiple samples and larger cell counts to ensure accurate results. Your practical skills develop through understanding these quality considerations.

Exam Success: Practice explaining the purpose of each step - examiners often ask why specific procedures are followed in practical investigations!
