OCR A Level Biology Exchange and Transport Notes

Gas exchange is absolutely crucial for keeping all living things alive - and different organisms have evolved brilliant... Show more

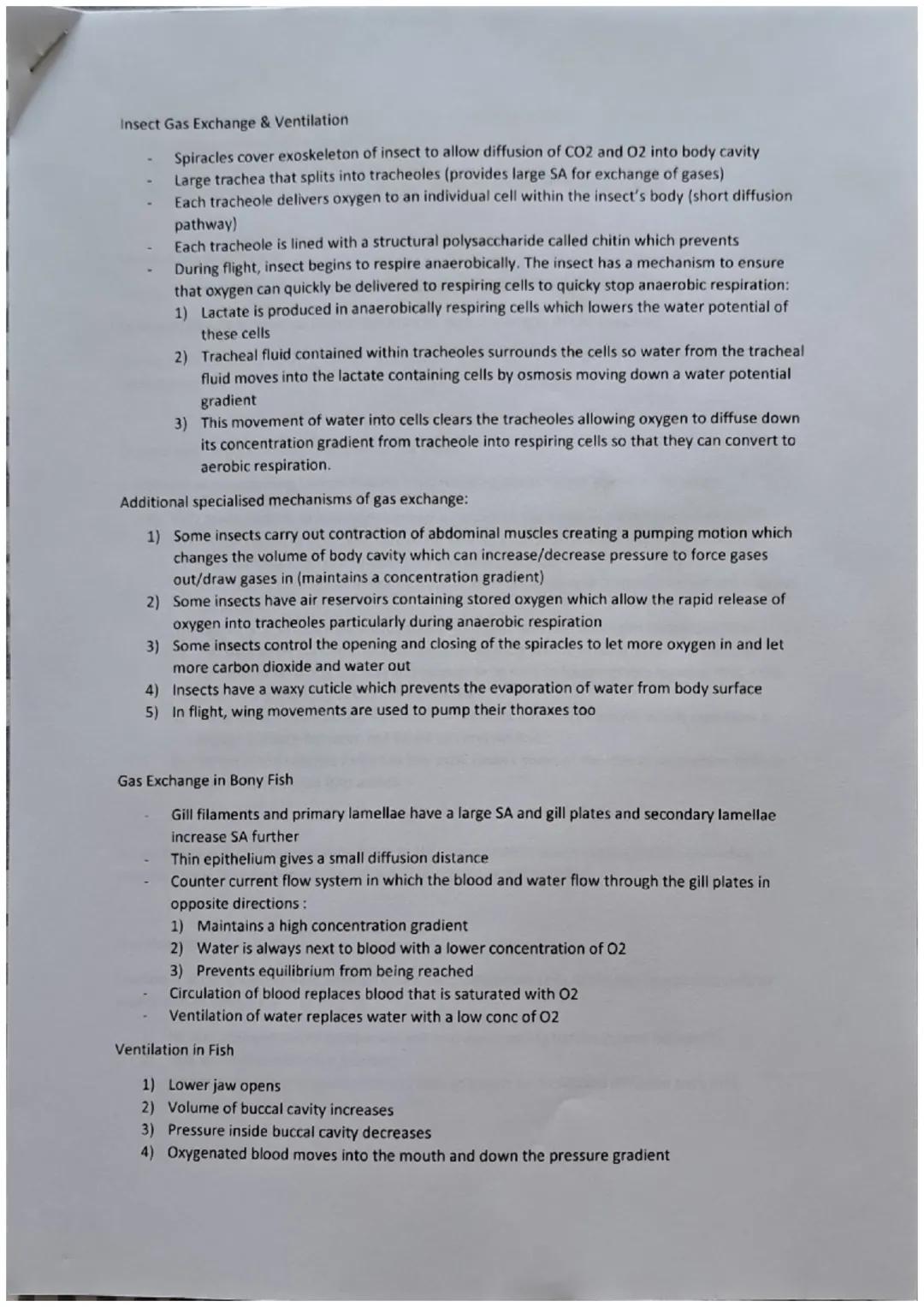

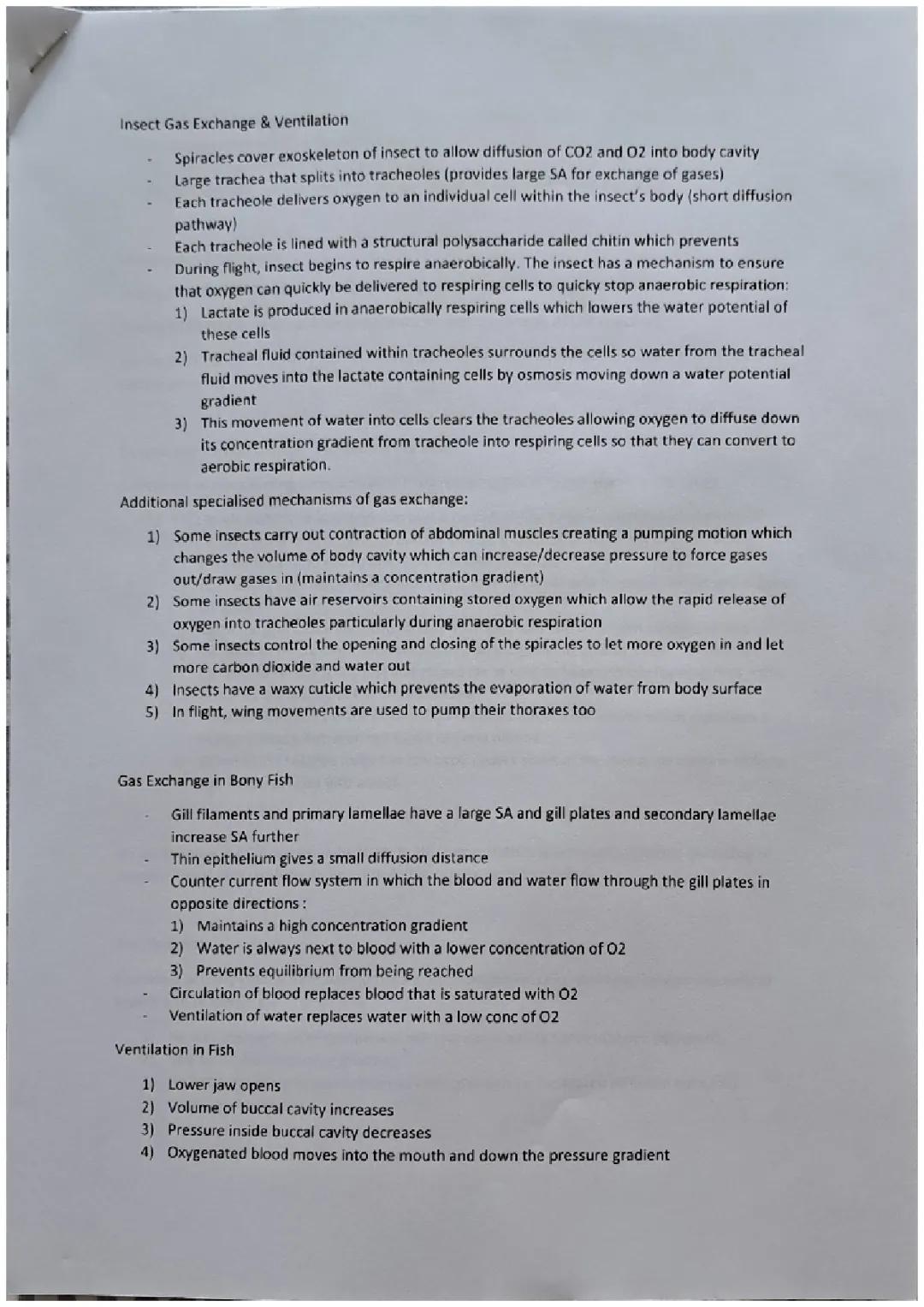

Insect Gas Exchange & Ventilation
Spiracles cover exoskeleton of insect to allow diffusion of CO2 and O2 into body cavity
Large trachea that

Insect Gas Exchange & Ventilation

Ever wonder how a buzzing fly gets oxygen without lungs? Spiracles act like tiny doorways scattered across an insect's exoskeleton, letting gases flow in and out. These connect to large trachea that branch into ultra-thin tracheoles - think of them as oxygen delivery tubes that reach every single cell in the insect's body.

Here's where it gets clever each tracheole is lined with chitin (the same stuff that makes up their tough exterior) and delivers oxygen directly to individual cells. This creates an incredibly short diffusion pathway, making gas exchange super efficient.

When insects fly hard and start respiring anaerobically, they've got a brilliant backup system. Lactate builds up in oxygen-starved cells, which lowers their water potential. Water from the tracheal fluid then rushes into these cells by osmosis, clearing the tracheoles like unclogging a drain - allowing oxygen to flood back in and stop anaerobic respiration.

Quick Tip Remember that insects don't just passively exchange gases - they actively pump their abdomens, control spiracle openings, and even use wing movements to force air through their system!

Insect Gas Exchange & Ventilation
Spiracles cover exoskeleton of insect to allow diffusion of CO2 and O2 into body cavity
Large trachea that

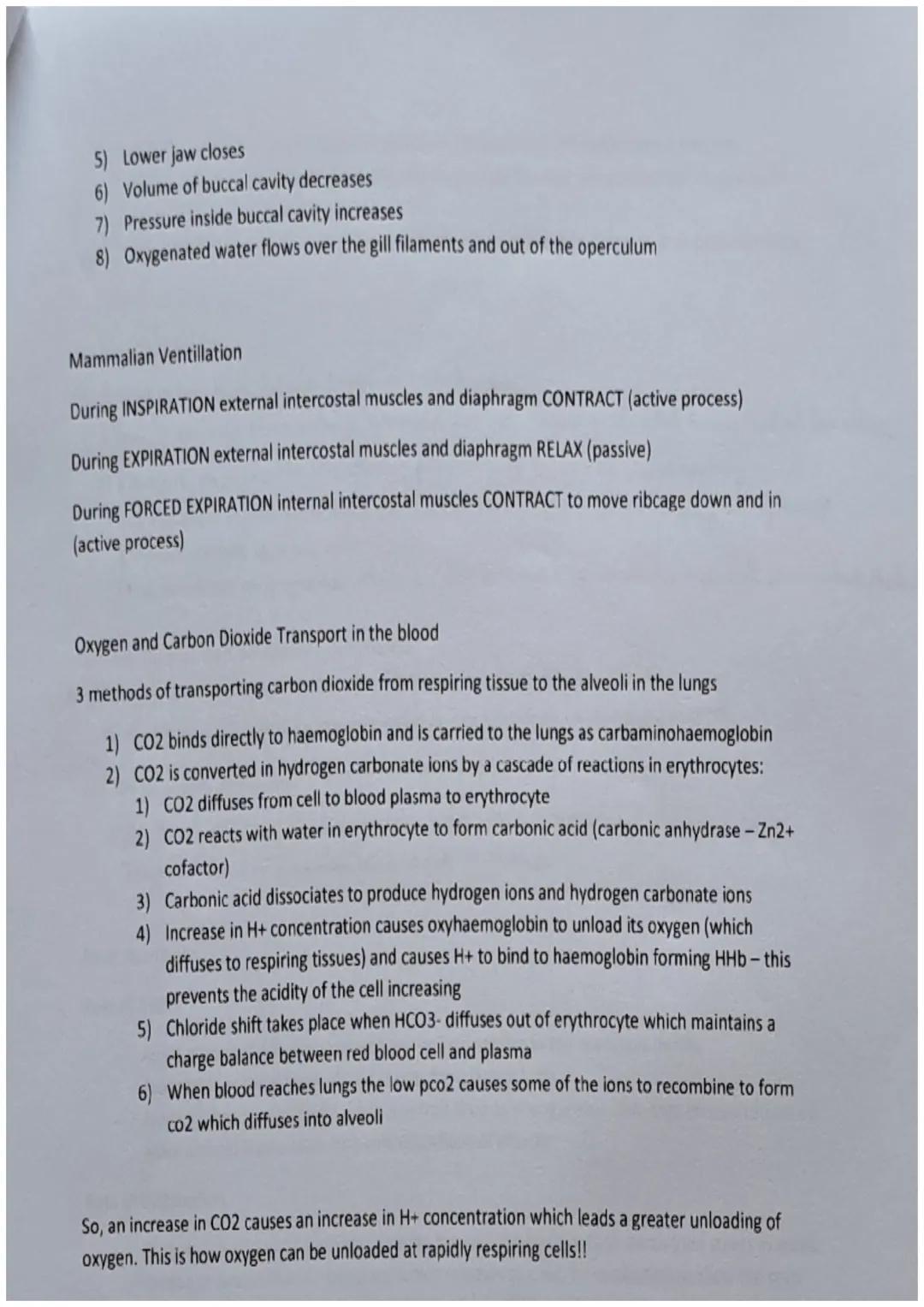

Fish Gills and Mammalian Breathing

Fish have mastered underwater breathing through counter-current flow - the secret sauce of gill efficiency. Water flows over gill filaments in the opposite direction to blood flow, which maintains a steep concentration gradient and prevents oxygen levels from equalising.

Fish ventilation works like a two-stroke engine jaw opens → buccal cavity expands → pressure drops → water rushes in. Then jaw closes → cavity contracts → pressure rises → water flows over gills and out through the operculum. Simple but effective!

Mammalian breathing is all about muscle teamwork. Inspiration requires your external intercostal muscles and diaphragm to contract (it's active work), whilst normal expiration happens when these muscles relax (completely passive). Need to breathe out forcefully? Your internal intercostals kick in to squeeze everything out.

The real magic happens with carbon dioxide transport in your blood. CO₂ doesn't just dissolve - it gets converted to hydrogen carbonate ions through a cascade of reactions. When CO₂ levels rise, more hydrogen ions form, which actually helps haemoglobin release oxygen exactly where cells need it most!

Remember Higher CO₂ = more H⁺ ions = greater oxygen unloading at rapidly respiring tissues. It's a perfectly coordinated system!
