The Fluid Mosaic Model: Easy Guide with Diagrams for A Level Biology

The fluid mosaic model is a fundamental concept in A...

1
of 4

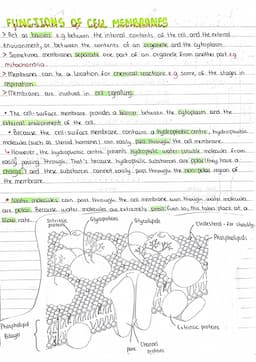

Membrane Structure & The fluid-mosaic model – page 1

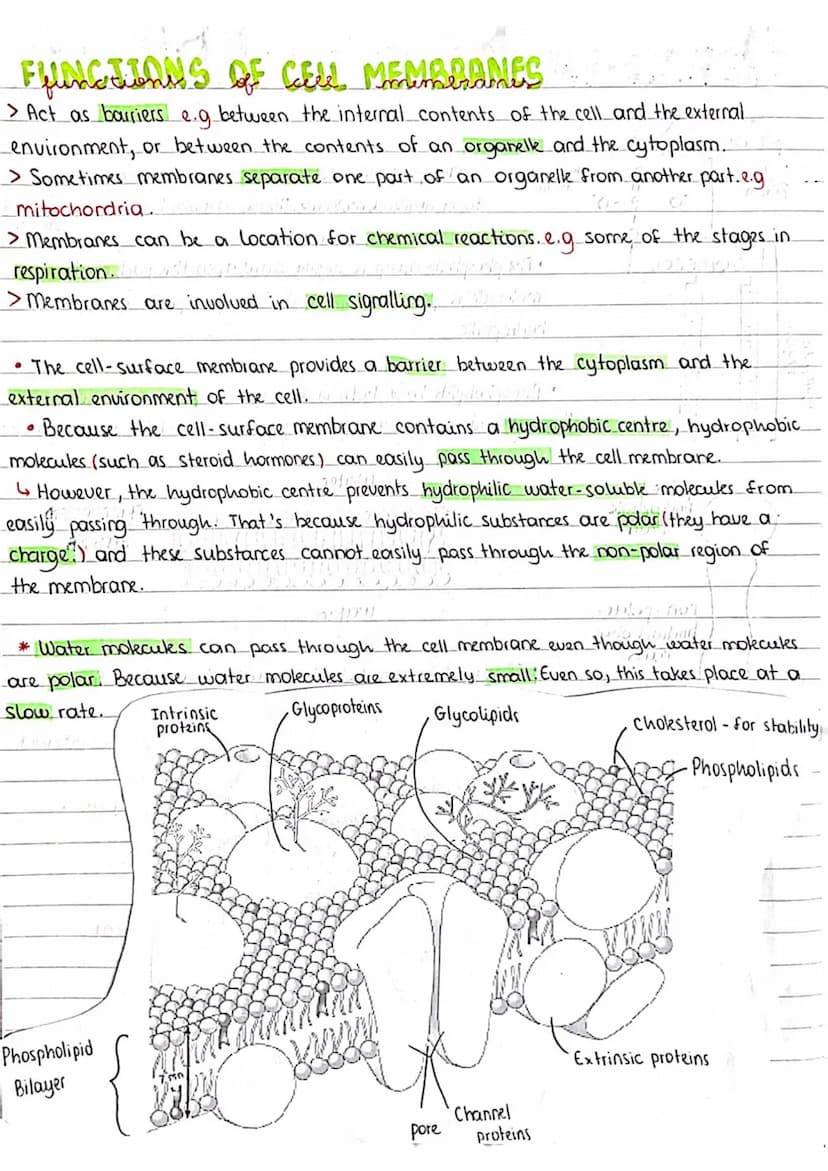

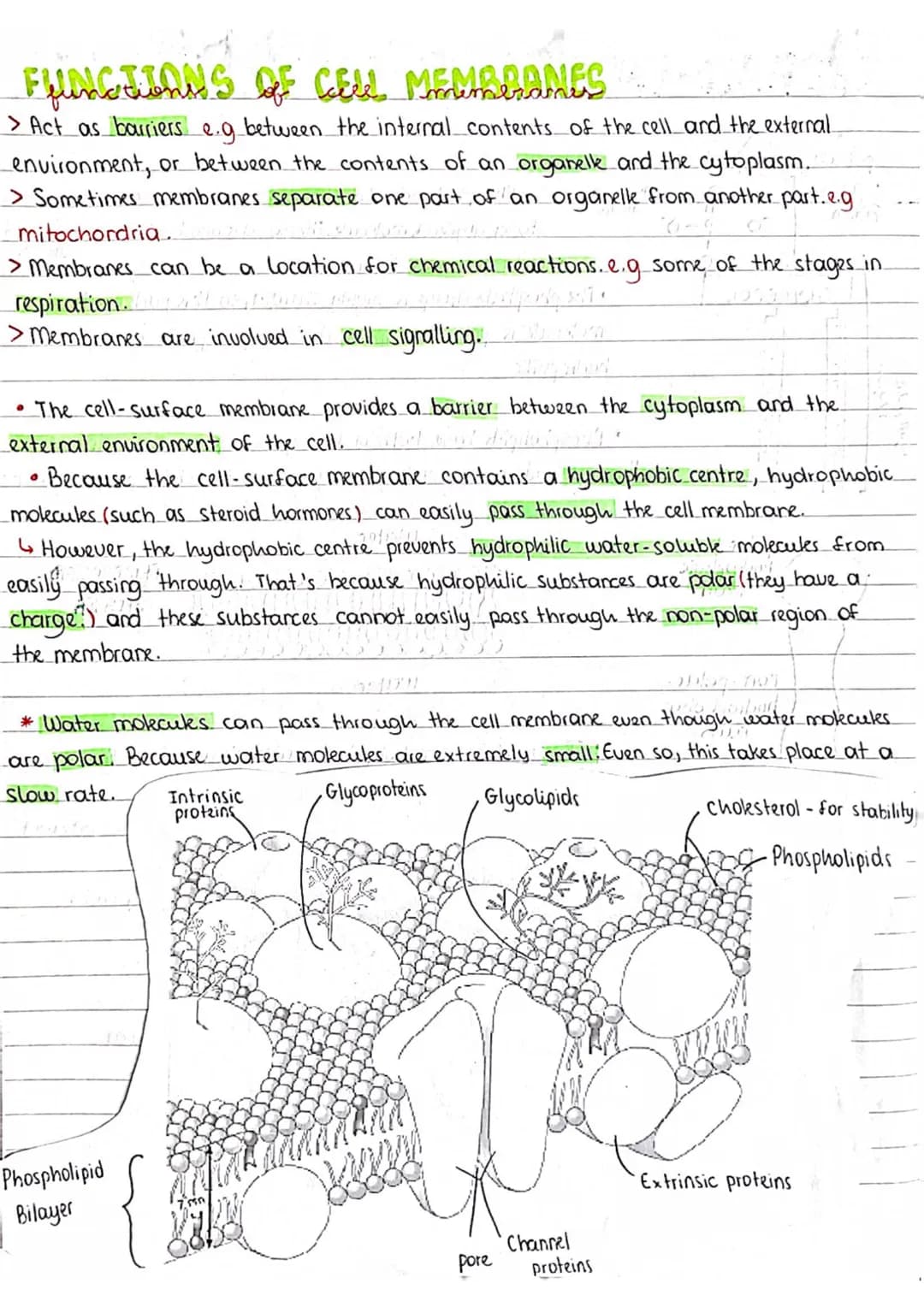

Functions of Cell Membranes

Cell membranes play vital roles in cellular function, as understood in A Level Biology. This page delves into the various functions of cell membranes and their importance in maintaining cellular homeostasis.

Key functions of cell membranes include:

  1. Acting as barriers between cellular compartments and the external environment
  2. Separating different regions within organelles (e.g., mitochondria)
  3. Providing a location for chemical reactions
  4. Participating in cell signaling processes

The cell-surface membrane, in particular, serves as a critical barrier between the cytoplasm and the cell's external environment. Its structure allows for selective permeability:

  • Hydrophobic molecules (e.g., steroid hormones) can easily pass through the membrane.
  • Hydrophilic, water-soluble molecules face difficulty passing through due to the hydrophobic center of the membrane.

Definition: Selective permeability refers to the membrane's ability to allow certain substances to pass through while restricting others.

Water molecules, despite being polar, can pass through the cell membrane slowly due to their small size.

The fluid mosaic model of the cell membrane includes various components:

  • Phospholipid bilayer
  • Intrinsic and extrinsic proteins
  • Glycoproteins and glycolipids
  • Cholesterol (for stability)

Highlight: The complex structure of the cell membrane, as described by the fluid mosaic model, enables it to perform its diverse functions effectively.

2
of 4
Membrane Structure & The fluid-mosaic model – page 2

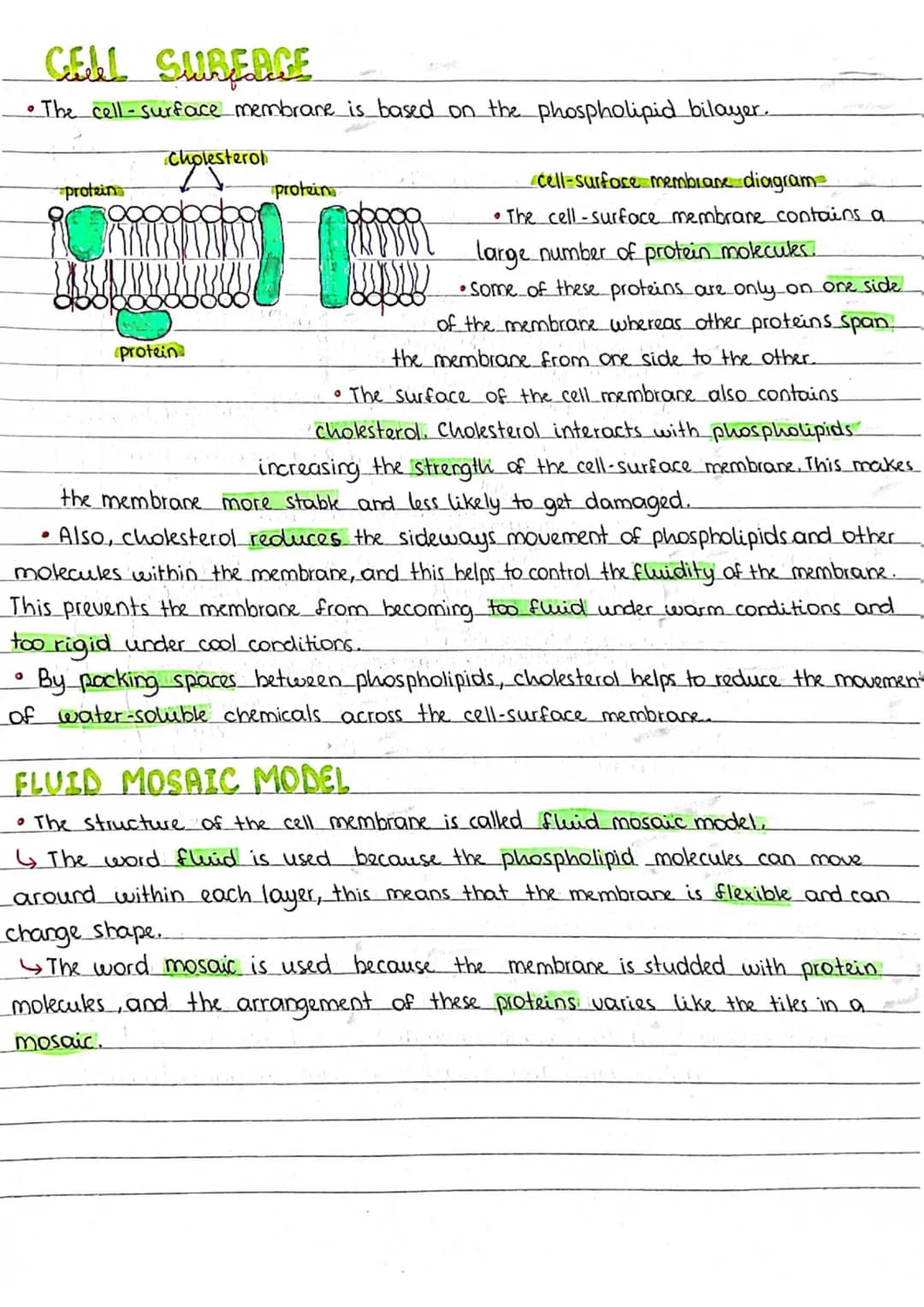

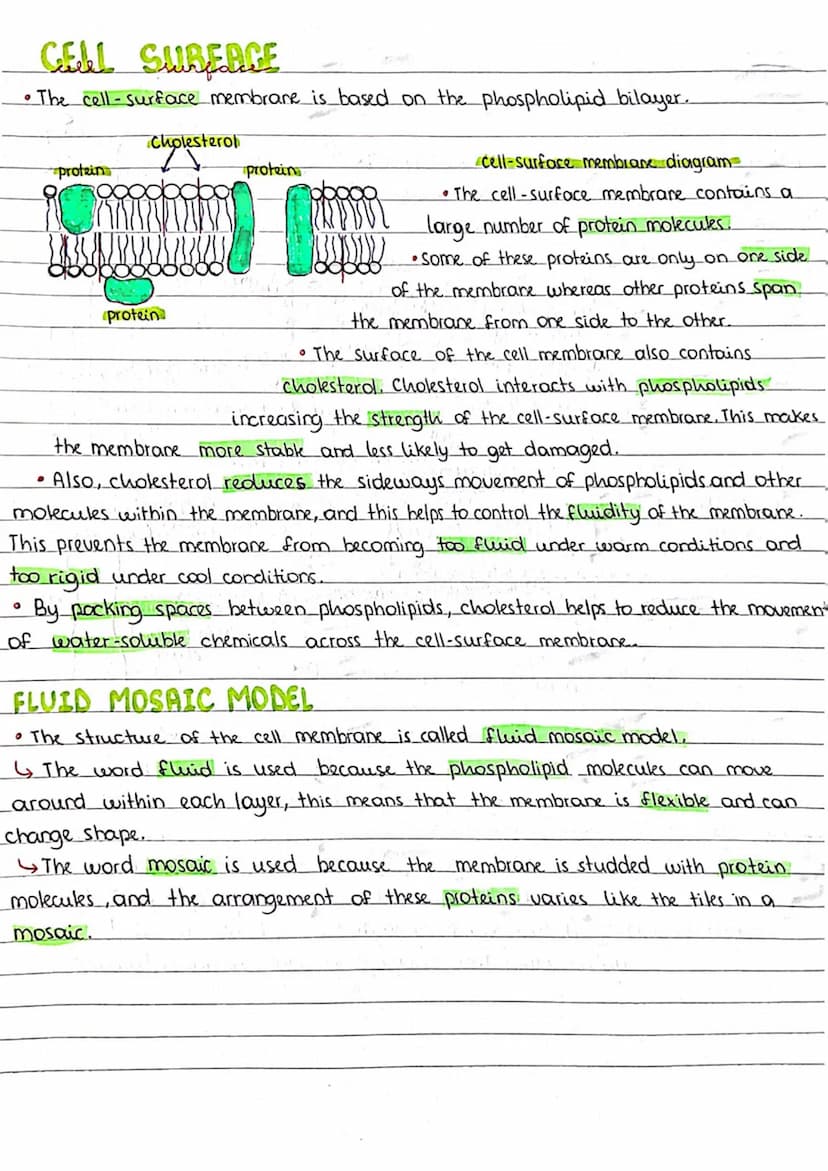

Cell Surface Membrane Structure

The cell surface membrane, a key topic in A Level Biology, is a complex structure based on the phospholipid bilayer. This page explores the various components that make up the cell surface membrane and their roles in maintaining cellular function.

Key components of the cell surface membrane include:

  1. Phospholipid bilayer: The foundation of the membrane structure
  2. Proteins: Both intrinsic (spanning the entire membrane) and extrinsic (on one side only)
  3. Cholesterol: Enhances membrane stability and regulates fluidity

Vocabulary: Intrinsic proteins span the entire membrane, while extrinsic proteins are attached to only one side of the membrane.

Cholesterol plays several crucial roles in the cell surface membrane:

  • Increases membrane strength and stability
  • Regulates membrane fluidity, preventing it from becoming too fluid in warm conditions or too rigid in cool conditions
  • Reduces the movement of water-soluble chemicals across the membrane

Highlight: Cholesterol is essential for maintaining the optimal fluidity and stability of the cell surface membrane across various environmental conditions.

The fluid mosaic model accurately describes the structure of the cell membrane:

  • "Fluid" refers to the ability of phospholipid molecules to move within each layer, providing flexibility and allowing shape changes.
  • "Mosaic" describes the varied arrangement of protein molecules embedded in the membrane, resembling a mosaic pattern.

Definition: The fluid mosaic model is a concept that describes the dynamic and varied structure of the cell membrane, emphasizing its fluid nature and mosaic-like arrangement of components.

3
of 4
Membrane Structure & The fluid-mosaic model – page 3

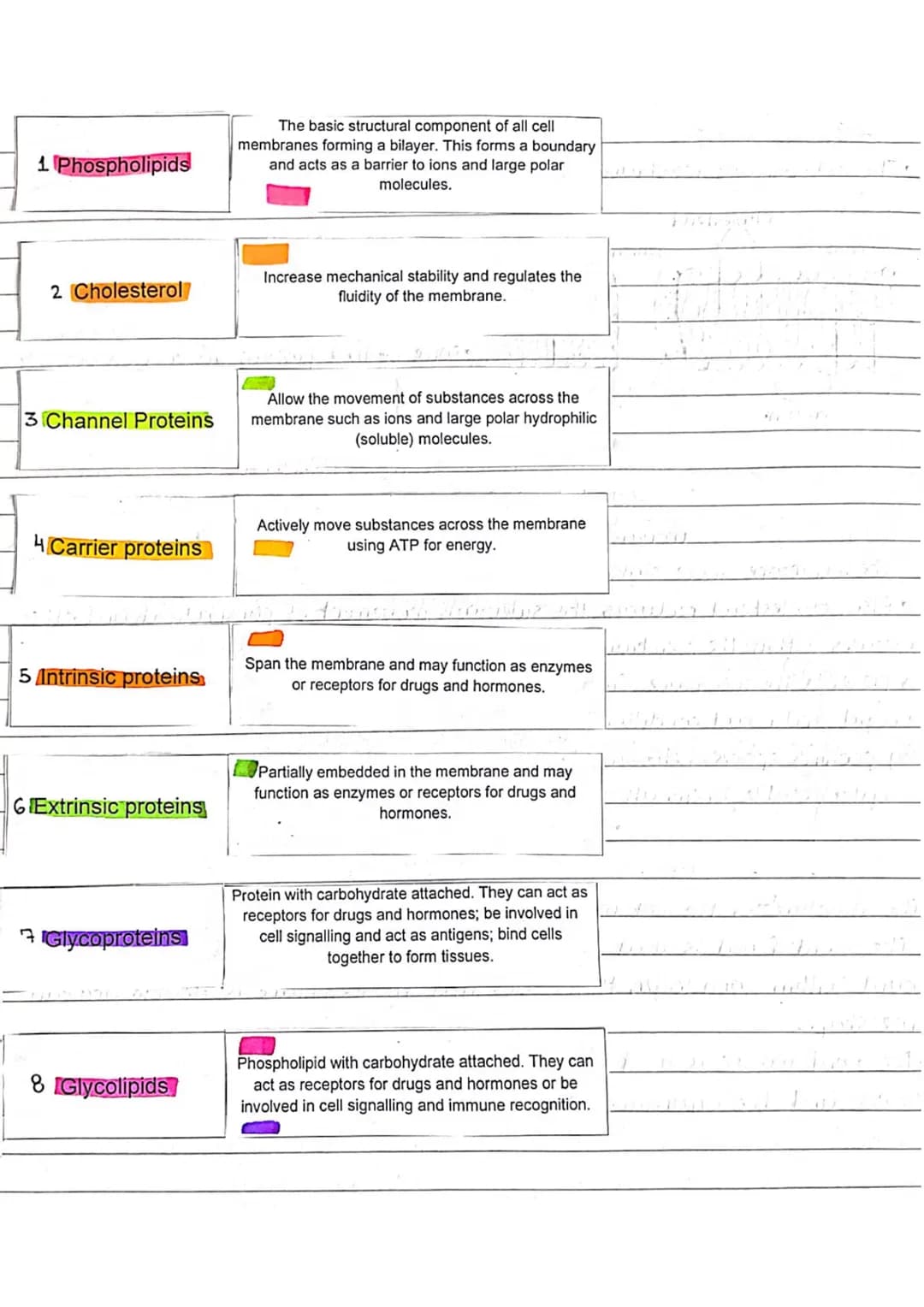

Components and Functions of the Cell Membrane

This page provides a detailed overview of the key components of the cell membrane and their specific functions, essential knowledge for A Level Biology students studying the fluid mosaic model.

  1. Phospholipids:

    • Form the basic structural component of all cell membranes
    • Create a bilayer that acts as a barrier to ions and large polar molecules
  2. Cholesterol:

    • Increases mechanical stability of the membrane
    • Regulates membrane fluidity
  3. Channel Proteins:

    • Allow movement of substances across the membrane
    • Facilitate passage of ions and large polar hydrophilic molecules
  4. Carrier Proteins:

    • Actively move substances across the membrane using ATP for energy
  5. Intrinsic Proteins:

    • Span the entire membrane
    • May function as enzymes or receptors for drugs and hormones
  6. Extrinsic Proteins:

    • Partially embedded in the membrane
    • Can function as enzymes or receptors
  7. Glycoproteins:

    • Proteins with attached carbohydrates
    • Act as receptors, participate in cell signaling, and function as antigens
    • Help bind cells together to form tissues
  8. Glycolipids:

    • Phospholipids with attached carbohydrates
    • Act as receptors, participate in cell signaling and immune recognition

Highlight: The diverse components of the cell membrane work together to maintain cellular integrity, facilitate communication, and regulate the passage of substances in and out of the cell.

Example: Channel proteins act like selective gates, allowing specific ions or molecules to pass through the membrane while blocking others, demonstrating the concept of selective permeability in action.

This comprehensive overview of the fluid mosaic model and cell membrane structure provides students with a solid foundation for understanding more complex cellular processes in A Level Biology.

4
of 4
Membrane Structure & The fluid-mosaic model – page 4

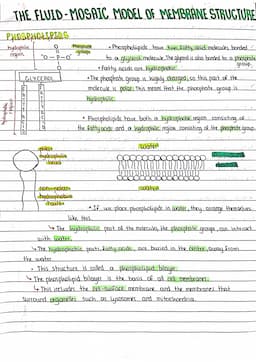

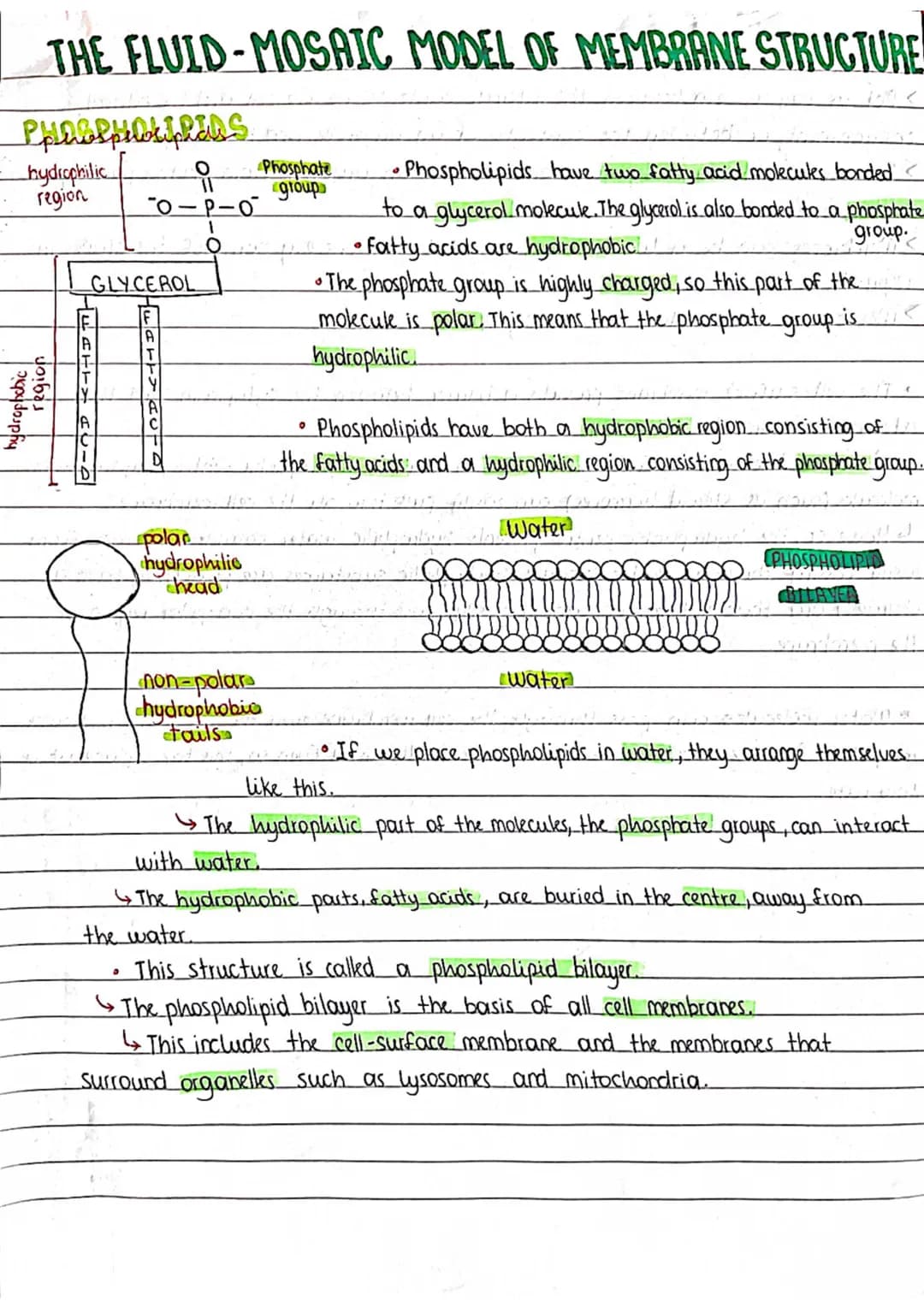

The Fluid-Mosaic Model of Membrane Structure

The fluid-mosaic model is a crucial concept in understanding cell membrane structure and function in A Level Biology. This page introduces the fundamental components of cell membranes, focusing on phospholipids and their unique properties.

Phospholipids are the primary building blocks of cell membranes. They consist of two main regions:

  1. A hydrophilic (water-loving) region: This includes the phosphate group and glycerol molecule.
  2. A hydrophobic (water-fearing) region: This comprises two fatty acid tails.

Vocabulary: Hydrophilic means "water-loving," while hydrophobic means "water-fearing."

The unique structure of phospholipids allows them to form a bilayer in aqueous environments. This bilayer serves as the foundation for all cell membranes, including those of organelles like lysosomes and mitochondria.

Example: When phospholipids are placed in water, they spontaneously arrange themselves with the hydrophilic phosphate groups facing the water and the hydrophobic fatty acid tails tucked away in the center, forming a bilayer.

Highlight: The phospholipid bilayer is the basis for all cell membranes, providing a crucial barrier between cellular compartments and the external environment.
