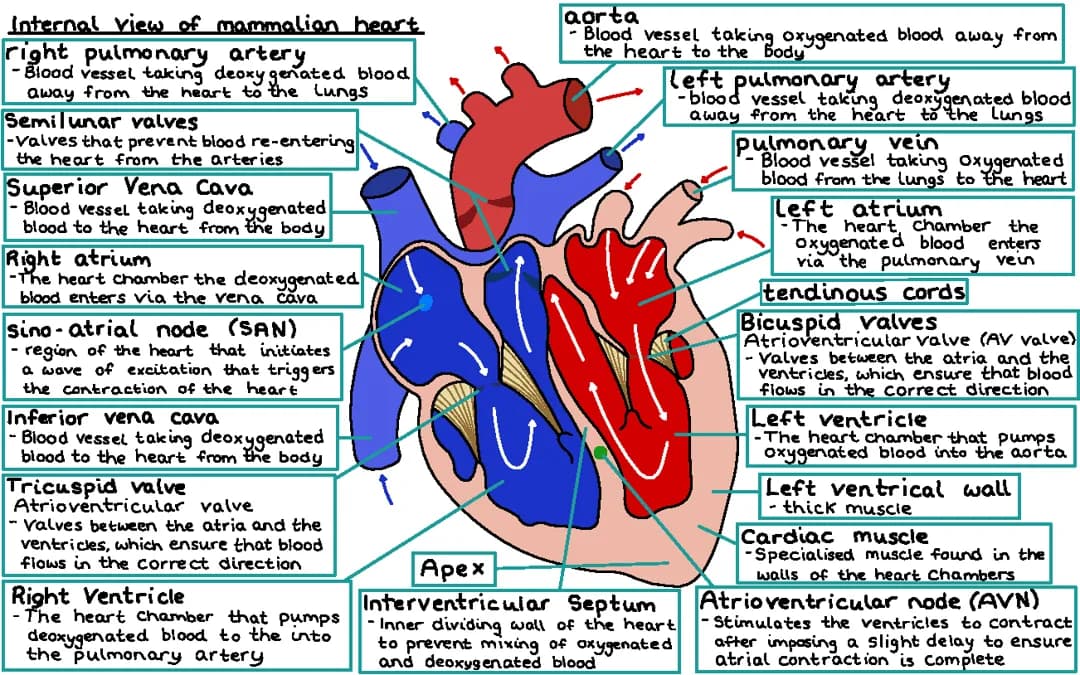

Internal Mammalian Heart – page 1

Internal Structure of the Mammalian Heart

The detailed internal structure of mammalian heart is a complex system designed for efficient blood circulation. This page provides a comprehensive overview of the heart's anatomy, highlighting key components and their functions.

The heart is divided into four main chambers: the right atrium, right ventricle, left atrium, and left ventricle. Each chamber plays a specific role in the circulation of blood.

Vocabulary: Atria (singular: atrium) are the upper chambers of the heart, while ventricles are the lower chambers.

The right side of the heart deals with deoxygenated blood, while the left side handles oxygenated blood. The structure and function of mammalian heart is intricate, with several key features:

  1. Blood Vessels:

    • Superior and inferior vena cava bring deoxygenated blood to the right atrium.
    • Pulmonary arteries carry deoxygenated blood from the right ventricle to the lungs.
    • Pulmonary veins return oxygenated blood from the lungs to the left atrium.
    • The aorta distributes oxygenated blood from the left ventricle to the body.
  2. Valves:

    • Semilunar valves prevent blood from re-entering the heart from the arteries.
    • Tricuspid valve (right side) and bicuspid valve (left side) are atrioventricular valves that ensure unidirectional blood flow between atria and ventricles.

Definition: Atrioventricular valves are located between the atria and ventricles, ensuring that blood flows in the correct direction during the cardiac cycle.

  1. Specialized Structures:
    • Sino-atrial node (SAN): Initiates the heart's electrical activity, triggering contractions.
    • Atrioventricular node (AVN): Delays electrical signals to ensure proper timing of atrial and ventricular contractions.
    • Interventricular septum: Separates the left and right ventricles, preventing mixing of oxygenated and deoxygenated blood.

Highlight: The left ventricular wall is notably thicker than the right, as it needs to generate more force to pump blood throughout the entire body.

  1. Cardiac Muscle:
    • The heart walls are composed of specialized cardiac muscle tissue, which enables the heart's rhythmic contractions.

Example: In an A level Biology heart Diagram, students might be asked to label these structures and explain their functions, making it crucial to understand the relationships between different components.

Understanding the external structure of mammalian heart is also important, as it provides context for the internal anatomy. The apex of the heart, for instance, is the pointed lower tip of the heart, primarily formed by the left ventricle.

Quote: "Cardiac muscle is specialised muscle found in the walls of the heart chambers."

This comprehensive overview of the heart's structure is essential for A level biology OCR internal mammalian heart study, providing a foundation for understanding more complex topics like the cardiac cycle a level Biology OCR and the electrical activity of the heart A level Biology ocr.
