Photosynthesis is one of the most important processes on Earth...
GCSE Triple Biology Paper 1 - Photosynthesis (B8)

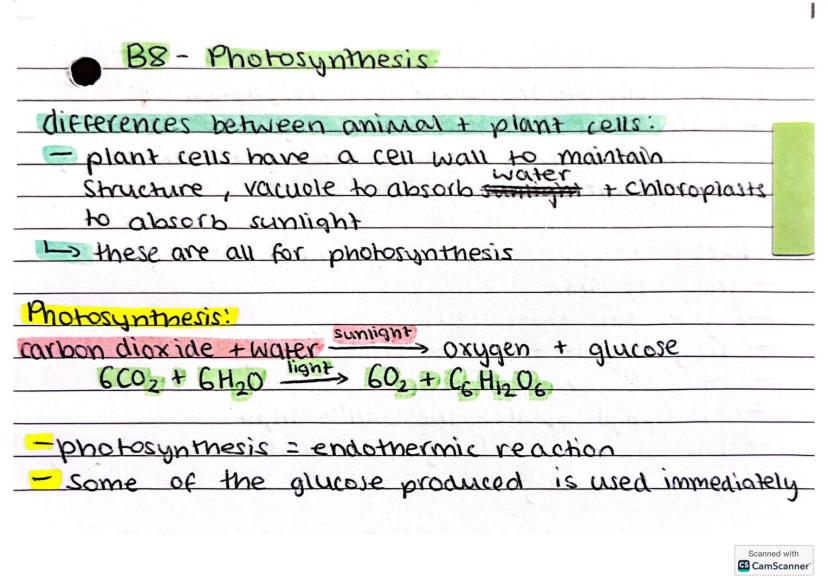

Plant Cells and the Photosynthesis Equation
Ever wonder what makes plants so different from animals? Plant cells have three special features that animal cells don't: a cell wall for structure, a vacuole to store water, and chloroplasts to capture sunlight. These are all designed for one main job - photosynthesis!
The photosynthesis equation is dead simple: carbon dioxide + water → oxygen + glucose (using sunlight). In chemical symbols, that's 6CO₂ + 6H₂O → 6O₂ + C₆H₁₂O₆.
Photosynthesis is an endothermic reaction, meaning it takes in energy from light. Plants use some glucose straight away for respiration, but most gets converted into starch for storage - think of it as the plant's packed lunch for later!
💡 Quick tip: Remember that photosynthesis is basically the opposite of respiration - plants take in CO₂ and release O₂, whilst we do the reverse.

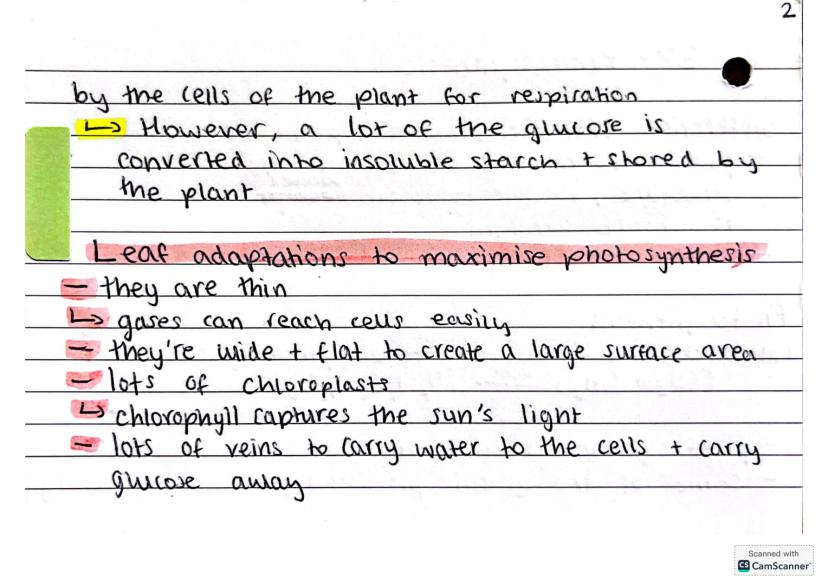

How Leaves Are Perfect for Photosynthesis
Leaves are basically photosynthesis factories, and they're brilliantly designed for the job. They're thin so gases can easily reach all the cells, and wide and flat to create a massive surface area for catching sunlight.
Inside leaves, you'll find loads of chloroplasts packed with chlorophyll - that's the green stuff that actually captures light energy. The veins act like a transport system, with xylem carrying water in and phloem taking glucose away to other parts of the plant.

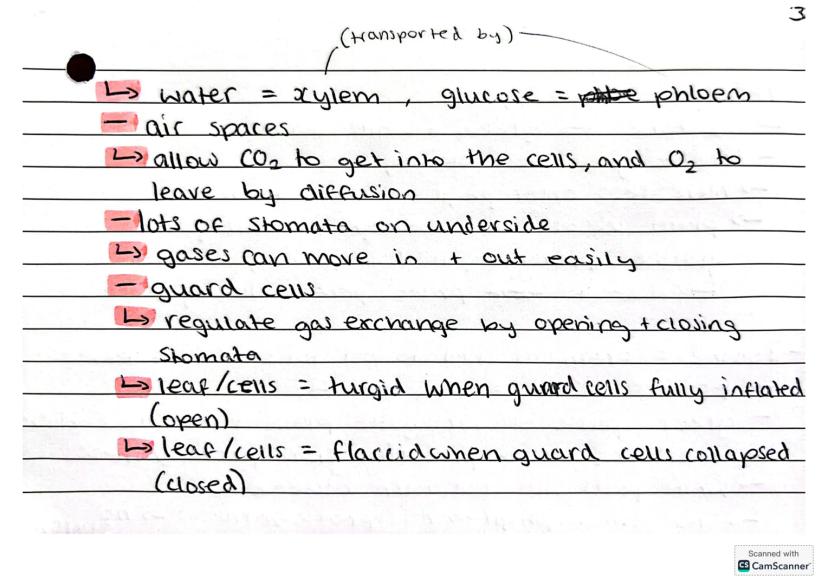

Air spaces throughout the leaf allow CO₂ to flow in and O₂ to flow out by diffusion. On the underside, tiny pores called stomata control this gas exchange - they're like little doorways that can open and close.
💡 Remember: Guard cells control the stomata - when they're inflated (turgid), stomata open; when they collapse (flaccid), stomata close.

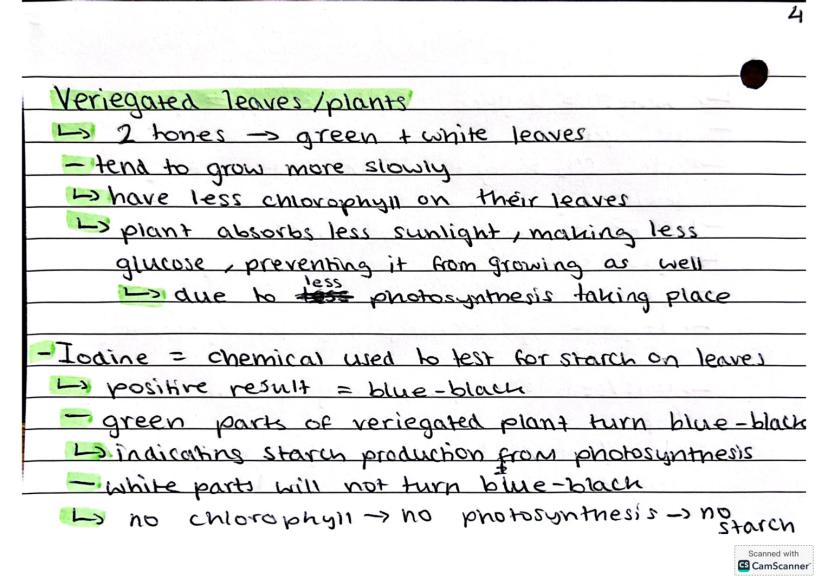

Variegated Plants and Testing for Starch
Variegated plants have those cool green and white patterned leaves you see in gardens. But here's the thing - they actually grow more slowly than fully green plants because the white bits contain no chlorophyll.
Less chlorophyll means less photosynthesis, which means less glucose production for growth. It's like trying to cook with half your kitchen equipment missing!
You can prove this using the iodine test. When you add iodine to a leaf, areas with starch turn blue-black (positive result). On variegated leaves, only the green parts turn blue-black because that's where photosynthesis happened. The white parts stay unchanged because no chlorophyll = no photosynthesis = no starch.
💡 Exam tip: This is a classic required practical - make sure you know that iodine tests for starch and turns blue-black when starch is present.

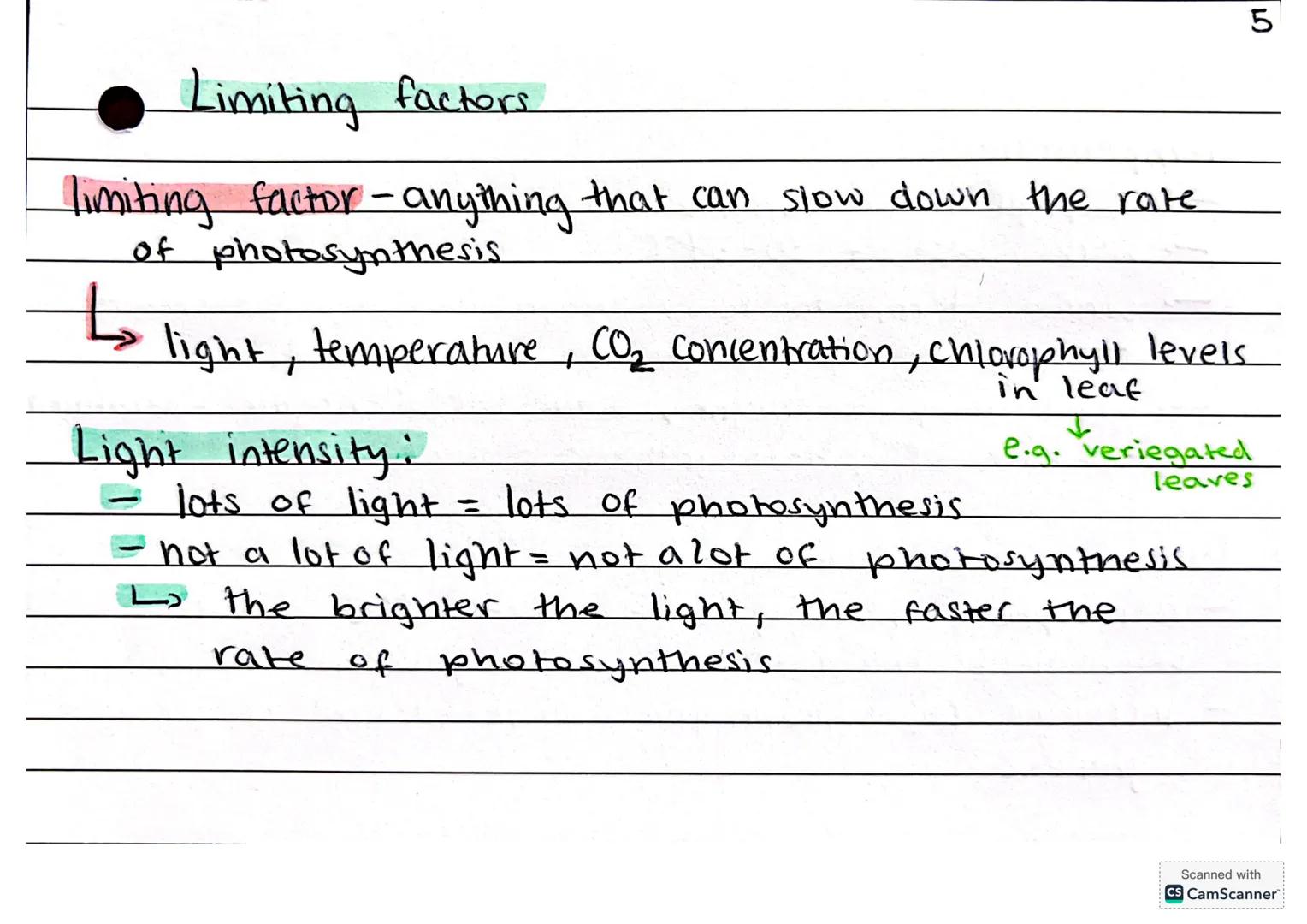

Limiting Factors - What Slows Photosynthesis Down
A limiting factor is anything that puts the brakes on photosynthesis. The main culprits are light intensity, temperature, CO₂ concentration, and chlorophyll levels.
Light intensity works exactly as you'd expect - more light equals faster photosynthesis, less light equals slower photosynthesis. It's like having a dimmer switch on the whole process.

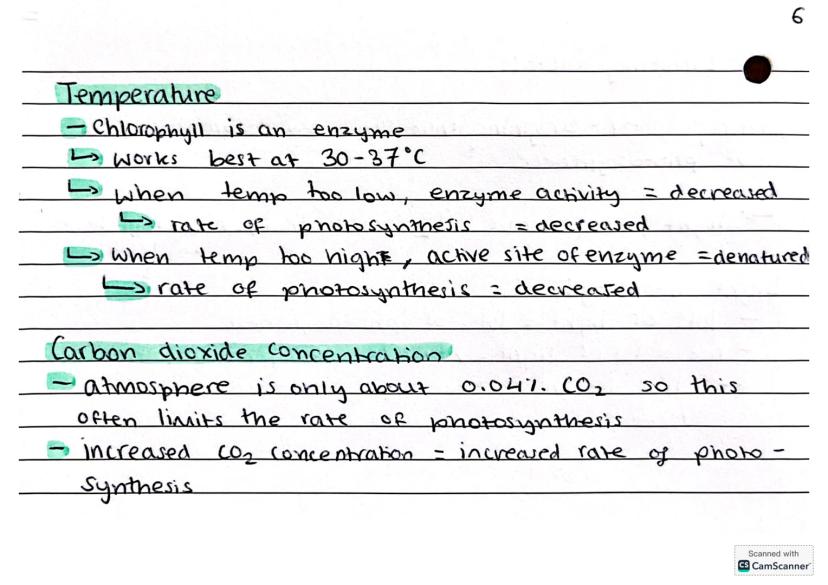

Temperature is trickier because chlorophyll is actually an enzyme. It works best at 30-37°C (body temperature range). Too cold and the enzyme is sluggish; too hot and the enzyme denatures (breaks down permanently). CO₂ concentration matters because air only contains about 0.04% CO₂, so there's often not enough to go around.

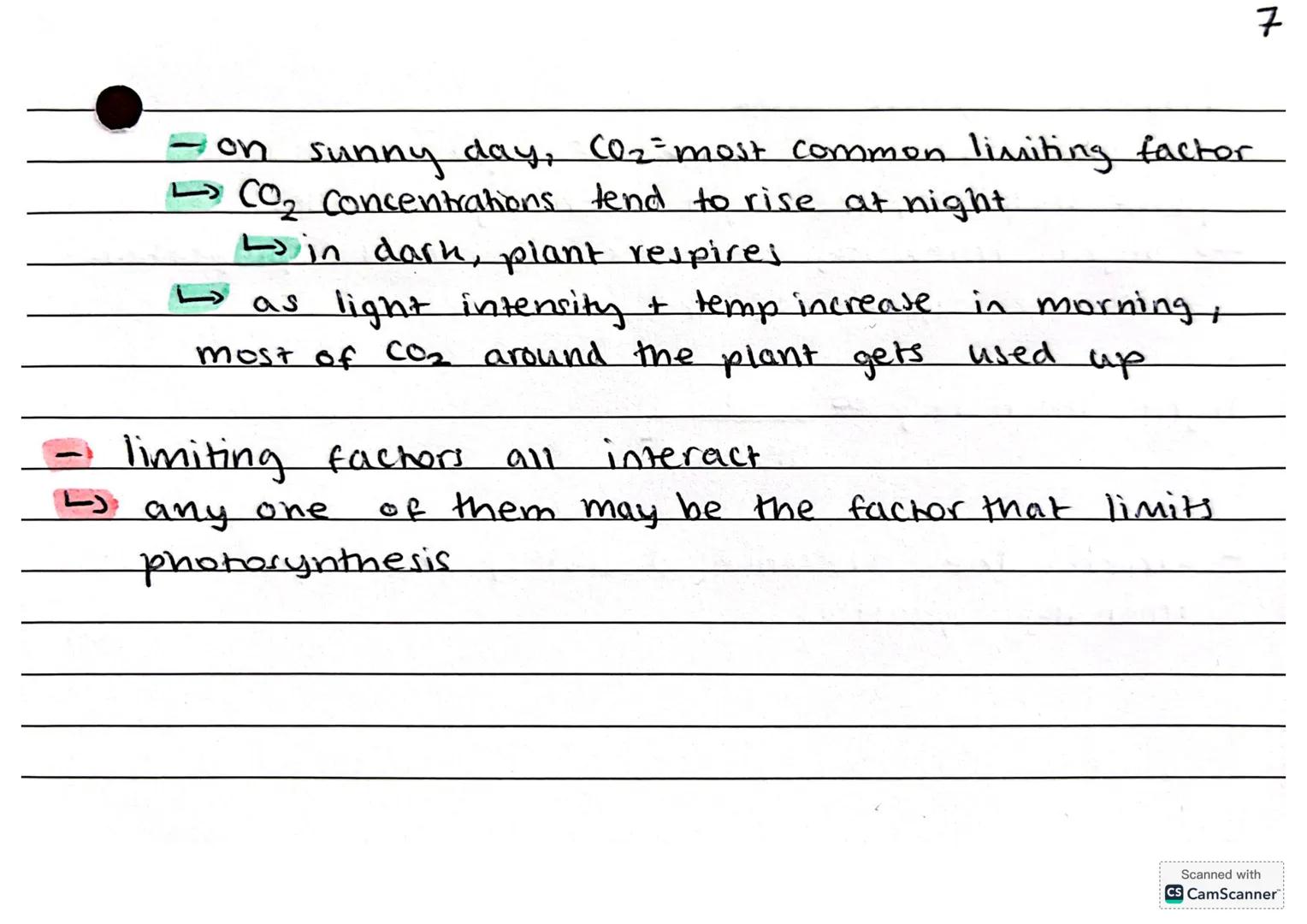

💡 Key point: On sunny days, CO₂ is usually the limiting factor because plants quickly use up all the available CO₂ around them.

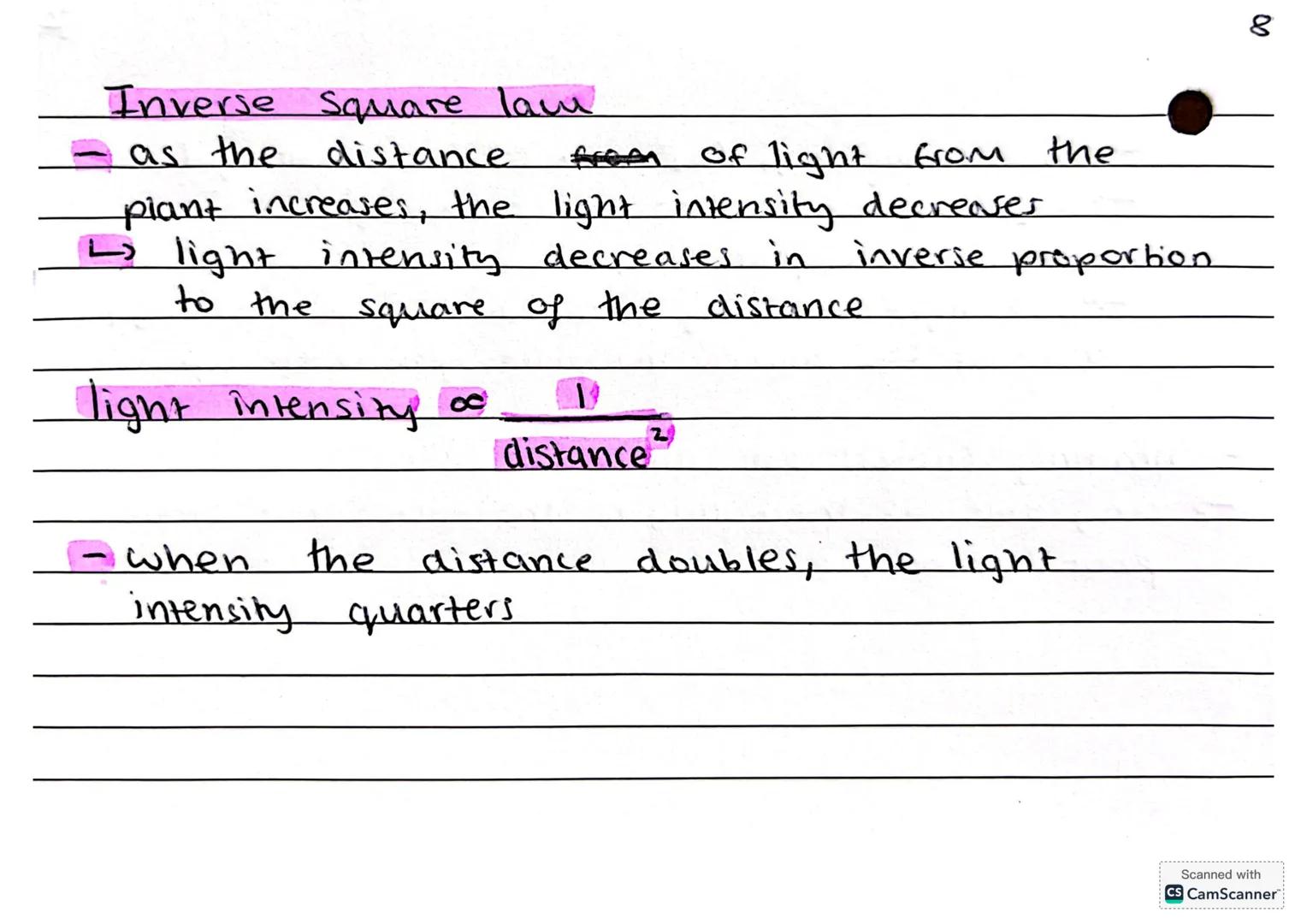

The Inverse Square Law and Light
Here's some physics mixed into your biology! The inverse square law explains why moving a light source affects photosynthesis so dramatically.
As distance from the light increases, light intensity decreases much faster than you might expect. The intensity is inversely proportional to the square of the distance. This means if you double the distance, the light intensity doesn't just halve - it becomes four times weaker!
The formula is: light intensity ∝ 1/distance². This relationship is crucial for understanding experimental results when investigating photosynthesis rates.
💡 Maths connection: This law appears in physics too (with gravity and electromagnetic forces), so understanding it here helps across multiple subjects.

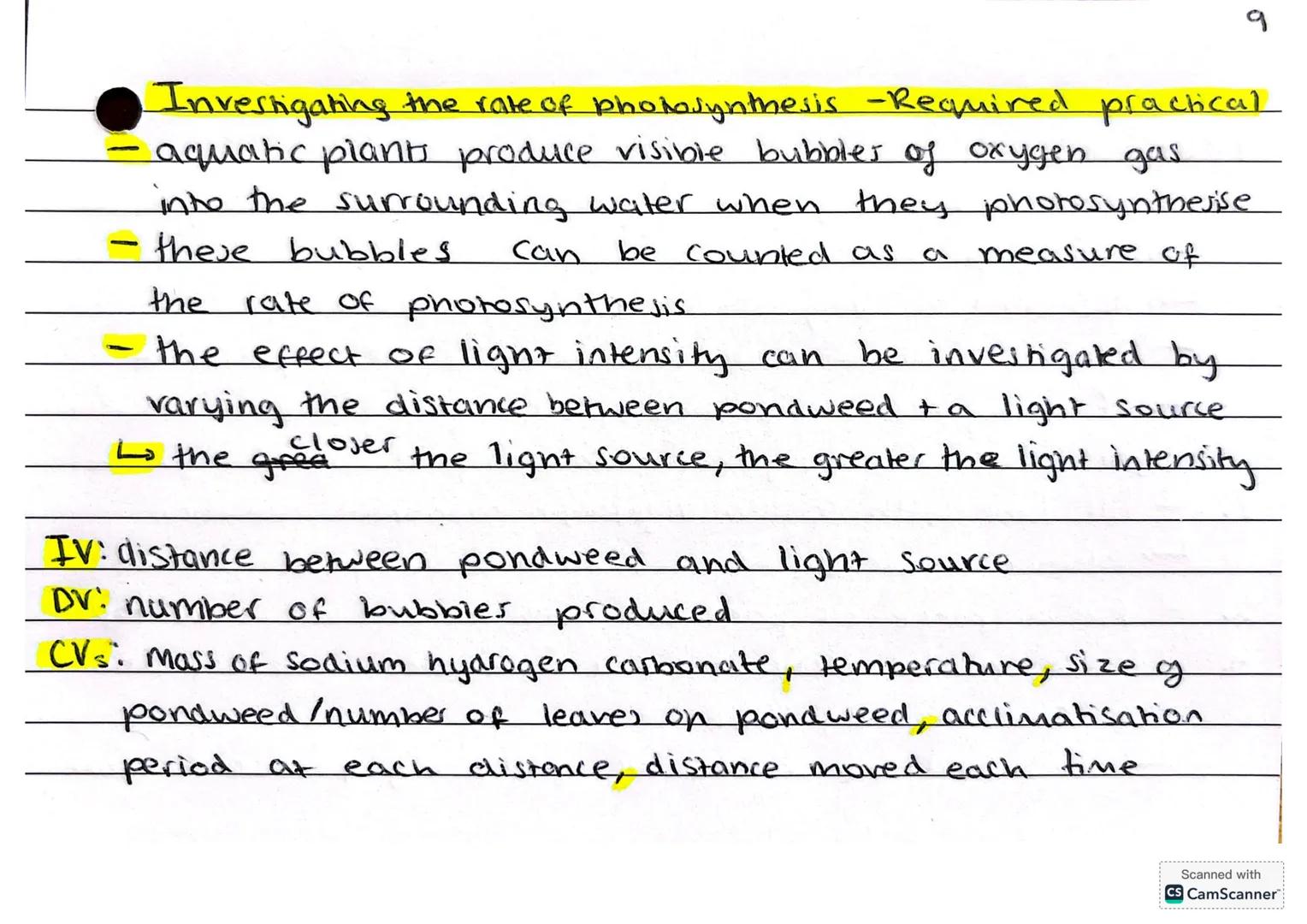

Investigating Photosynthesis - The Required Practical
This is a classic GCSE required practical that you absolutely need to know! Aquatic plants like pondweed produce visible oxygen bubbles when they photosynthesise, and you can count these bubbles to measure the rate.
Your independent variable is the distance between pondweed and light source. Your dependent variable is the number of bubbles produced. Keep everything else constant (control variables): temperature, mass of sodium hydrogen carbonate solution, and size of pondweed.

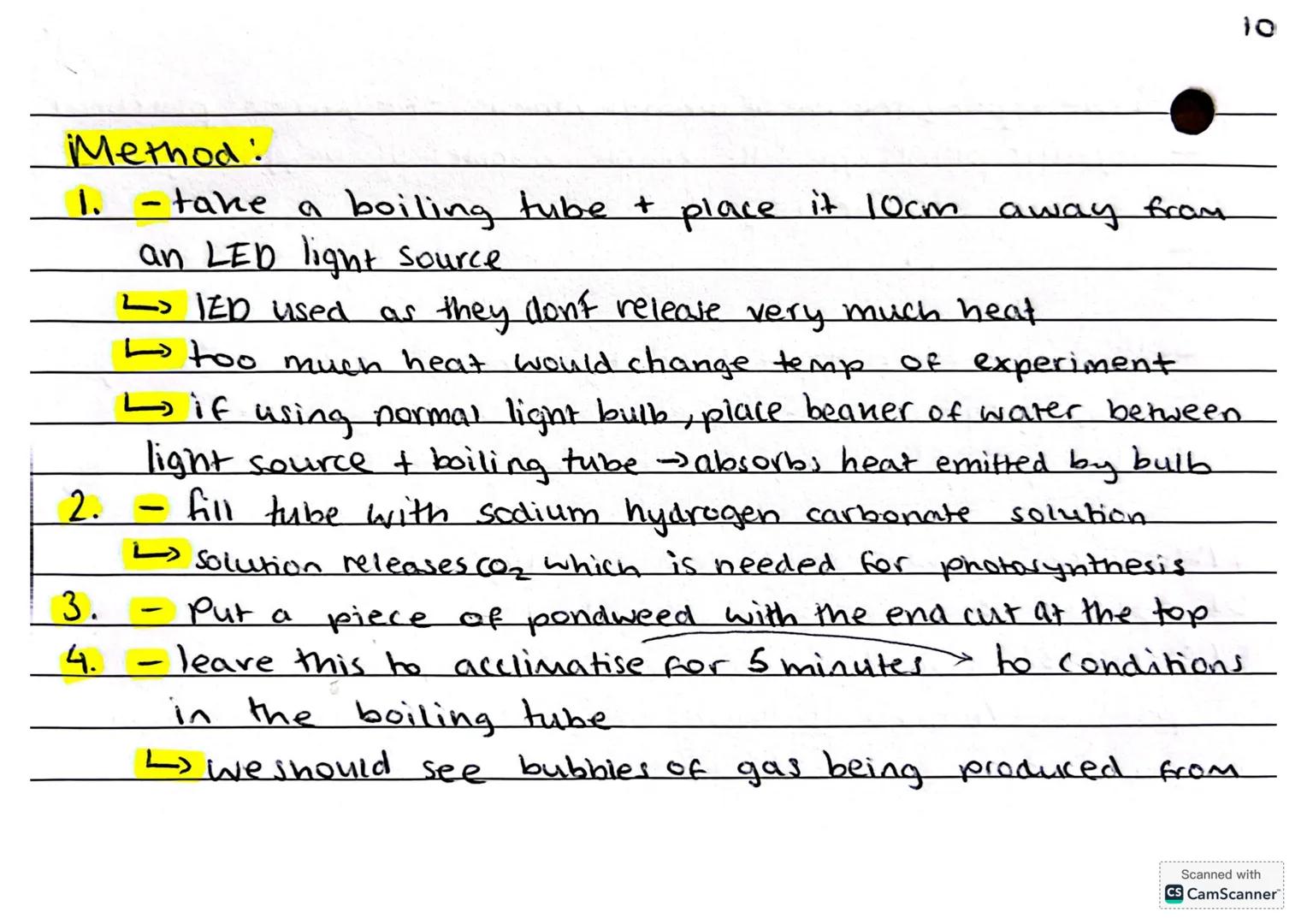

The method is straightforward: place pondweed in a boiling tube filled with sodium hydrogen carbonate solution (releases CO₂), position an LED light source at measured distances, and count bubbles. Use LEDs because they don't produce much heat - you don't want temperature messing up your light intensity investigation!
💡 Practical tip: Always leave 5 minutes for acclimatisation at each distance before counting bubbles - this ensures accurate results.
