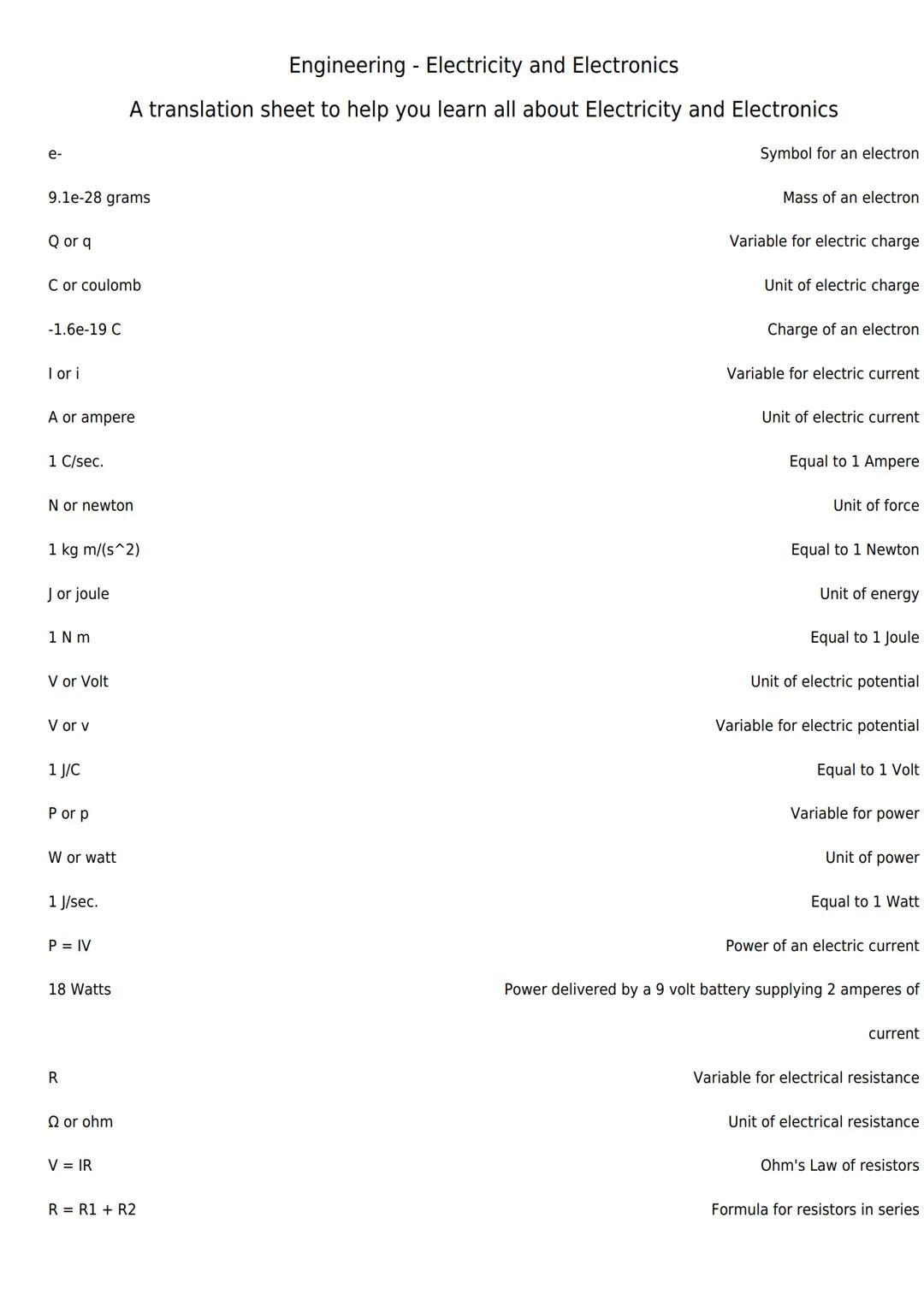

Basic Electrical Concepts and Measurements
Understanding electricity starts with knowing what you're measuring and how to express it properly. Electric charge (Q) is measured in coulombs (C), whilst electric current (I) flows at a rate measured in amperes (A) - which is simply 1 coulomb per second.
Electric potential (V) tells you how much energy each unit of charge carries, measured in volts. Think of it like water pressure in a pipe - higher voltage means more "push" behind the electricity. One volt equals one joule of energy per coulomb of charge.
Electrical power (P) shows how quickly energy is being used, measured in watts (W). The key formula here is P = IV, which means power equals current times voltage. For example, a 9-volt battery supplying 2 amperes delivers 18 watts of power.
Electrical resistance (R) opposes the flow of current and is measured in ohms (Ω). The most important relationship in electronics is Ohm's Law: V = IR, which connects voltage, current, and resistance together.
Quick Tip: Remember Ohm's Law with the triangle method - cover the value you want to find, and the remaining two show you the calculation!
2
of 2
Circuit Components and Their Behaviour
Real circuits contain three main types of components, each with unique properties. Resistors combine differently depending on how they're connected - in series, you simply add them up , but in parallel, you use the formula R = 1/.
Capacitors store electrical charge and are measured in farads (F). They behave opposite to resistors when combining - parallel capacitors add up , whilst series capacitors use the reciprocal formula. The key equation for capacitors is i = C, showing how current relates to changing voltage.
Inductors resist changes in current and are measured in henries (H). Their differential equation is v = L, meaning voltage appears when current changes. Like resistors, inductors in series add up , but parallel inductors use the reciprocal formula.
Conductance (G) is the opposite of resistance, measured in siemens (S). It tells you how easily current flows rather than how much it's opposed, making some calculations simpler.
Memory Trick: Capacitors and inductors behave like "opposite twins" - whatever rule applies to one in series applies to the other in parallel!
