Ever wonder how the tiny cells in your body work,...
GCSE Science Biology B1 Notes for CCEA Double Award

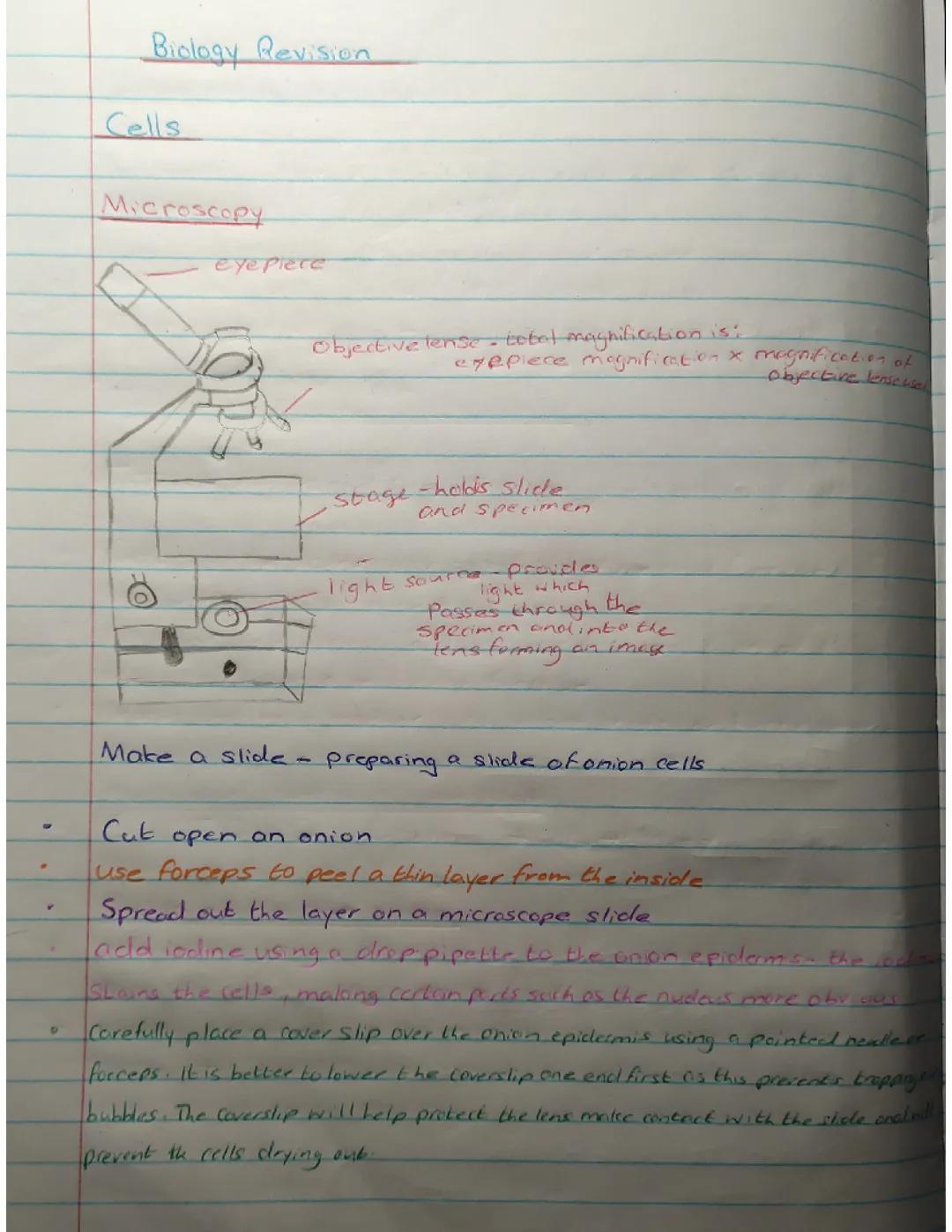

Using Microscopes and Making Cell Slides
Your microscope is basically your window into the invisible world of cells. To calculate the total magnification, simply multiply the eyepiece magnification by the objective lens magnification - dead simple maths that might come up in your exam.
Making a proper slide takes a bit of practice, but it's worth getting right. Start by cutting an onion and using forceps to peel off a thin layer from the inside surface. Pop this onto your microscope slide and spread it out nicely.
Next, add a drop of iodine using a pipette - this stains the cells and makes important bits like the nucleus stand out clearly. Finally, lower your cover slip carefully from one end to avoid trapping air bubbles, which will mess up your view.
Top tip: Always lower the cover slip from one side rather than dropping it flat - this prevents those annoying air bubbles that ruin your specimen!

Plant vs Animal Cells - What's the Difference?
Both plant and animal cells share some basic parts, but plants have a few extra features that make them special. Every cell has a cell membrane (controls what goes in and out), cytoplasm (where chemical reactions happen), a nucleus (the control centre with DNA), and mitochondria (powerhouses for respiration).
Plant cells get three bonus features that animal cells don't have. The cellulose cell wall provides rigid support, chloroplasts contain chlorophyll for photosynthesis, and a large vacuole stores water and minerals whilst providing structure.
Remember MRS GREN for the seven life processes: Movement, Respiration, Sensitivity, Growth, Reproduction, Excretion, and Nutrition. This acronym is your best friend for remembering what makes something alive.
Remember: If you can see a cell wall, chloroplasts, or a big vacuole, you're definitely looking at a plant cell!

Bacteria, Tissues, and Plant Organisation
Bacteria cells are completely different from plant and animal cells - they're much simpler. They have a cell membrane and cell wall (but not cellulose), plus their DNA floats freely as a circular chromosome rather than being tucked away in a nucleus.
The organisation of living things follows a clear pattern: cells → tissues → organs → organ systems. Cells with the same job group together to form tissues, different tissues combine to make organs, and organs work together in systems.
Photosynthesis is how plants make their own food using light energy - it's an endothermic process because it needs energy input. The word equation is simple: carbon dioxide + water → glucose + oxygen (with light and chlorophyll needed).
Key fact: Photosynthesis happens in chloroplasts, where chlorophyll absorbs light energy to power the whole process.

How Photosynthesis Actually Works
The balanced chemical equation for photosynthesis is: 6CO₂ + 6H₂O → C₆H₁₂O₆ + 6O₂. Don't panic about memorising this - focus on understanding what's happening instead.
Carbon dioxide enters leaves through tiny pores called stomata (only 0.04% of air is CO₂, so plants work hard to collect it). Water travels up from the roots through xylem vessels, whilst phloem transports the sugars made during photosynthesis to wherever the plant needs them.
Testing for starch proves photosynthesis has occurred. First, destarch your plant by keeping it in darkness for two days. Then: boil the leaf, dip it in hot ethanol to remove chlorophyll, soften it in hot water again, and add iodine. If starch is present, the iodine turns from yellow-brown to blue-black.
Safety reminder: Always wear eye protection when using ethanol - it's flammable and can damage your eyes.

Investigating What Plants Need for Photosynthesis
You can prove plants need light for photosynthesis by covering part of a leaf with lightproof paper, leaving it in bright light for hours, then testing for starch. Only the uncovered bits will test positive for starch.
To show plants need chlorophyll, use a variegated plant (one with green and white patches). After destarching and exposing to light, only the green parts will test positive for starch because they contain chlorophyll.
For the carbon dioxide experiment, you'll need two setups: one with sodium hydroxide (which removes CO₂ from the air) and a control with just water. The leaf deprived of CO₂ won't produce starch, proving it's essential for photosynthesis.
Remember: Always destarch your plants first - otherwise you can't be sure any starch you find was made during your experiment!

Limiting Factors in Photosynthesis
A limiting factor is whatever's in shortest supply that's holding back the rate of photosynthesis. Think of it like the narrowest part of a funnel - it controls how fast everything else can flow.
Light intensity can be controlled by moving a lamp closer or further from your plant. As light intensity increases, photosynthesis speeds up - until something else becomes the limiting factor.
Carbon dioxide concentration can be increased by adding sodium hydrogen carbonate to water. Again, more CO₂ means faster photosynthesis, but only up to a point where temperature or light becomes limiting instead.
Understanding check: The rate of photosynthesis is always controlled by whichever factor is in shortest supply - never by the most abundant one.

Temperature Effects and Gas Exchange
Temperature affects photosynthesis because enzymes are involved. As temperature rises, enzymes work faster and photosynthesis speeds up. But if it gets too hot, enzymes become denatured (permanently damaged) and the rate crashes.
Gas exchange changes throughout the day. At night, with no photosynthesis happening, plants only respire - so CO₂ enters and O₂ leaves. During bright daylight, photosynthesis outpaces respiration, so CO₂ enters and O₂ leaves overall.
The compensation point occurs at dawn and dusk when photosynthesis and respiration rates are equal. At this point, there's no net gas exchange because the two processes cancel each other out perfectly.
Key insight: Plants respire 24/7 just like us, but they only photosynthesise when there's enough light available.

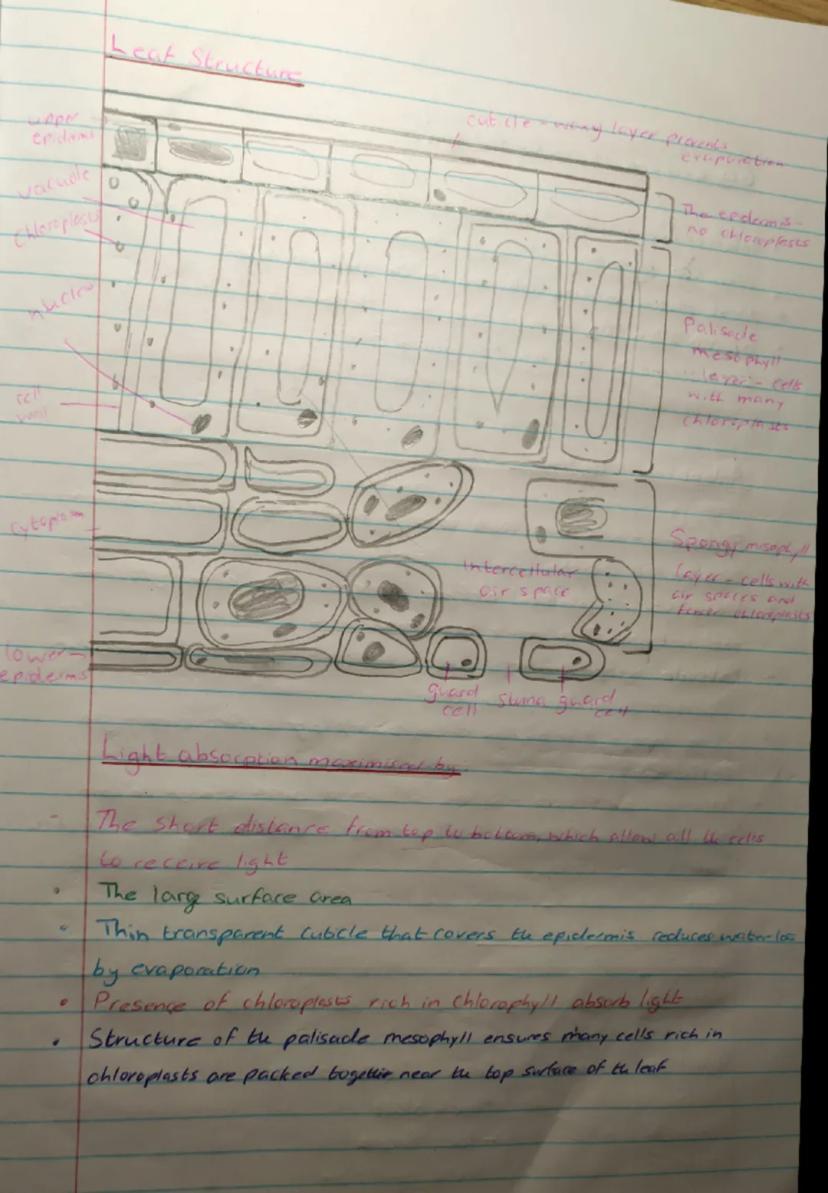

Leaf Structure and Adaptations
Leaf structure is perfectly designed for photosynthesis. The waxy cuticle prevents water loss but stays transparent for light. The upper epidermis has no chloroplasts, allowing light to pass through to the working cells below.
Palisade mesophyll cells are packed with chloroplasts and arranged near the top surface for maximum light absorption. Below them, spongy mesophyll has fewer chloroplasts but loads of air spaces for gas exchange.
Stomata (controlled by guard cells) allow gases in and out. In most plants, these stay open during the day for photosynthesis and close at night to prevent water loss when photosynthesis isn't happening.
Design perfection: Every part of a leaf's structure has evolved to maximise either light absorption or gas exchange - nothing is there by accident!

Gas Exchange and Food Tests
Gas exchange works brilliantly because of the spongy mesophyll's air spaces and the stomata openings. Most photosynthesis happens in the chloroplast-rich palisade layer, whilst the spongy layer handles the gas movement.
Food tests are essential practical skills you'll definitely need. Benedict's test for sugars goes from blue to brick-red, iodine for starch goes from yellow-brown to blue-black, biuret for proteins goes from blue to purple, and the ethanol test for fats produces a white emulsion.
Each leaf adaptation serves a specific purpose: transparent epidermis lets light through, waxy cuticle reduces water loss, packed palisade cells maximise photosynthesis, and stomata with guard cells control gas exchange perfectly.
Exam tip: Learn the colour changes for food tests - they come up constantly in practical questions and are easy marks if you know them!
