Microscope Slide Preparation and Respiratory System

This section provides detailed instructions for preparing microscope slides to observe cheek and onion cells, a common practical exercise in GCSE Biology 6 mark questions AQA pdf.

For cheek cells:

1. Place a drop of methylene blue on a glass slide
2. Gently rub the inside of your cheek with a cotton bud
3. Wipe the cotton bud into the methylene blue on the slide
4. Lower a coverslip onto the slide using a mounted needle
5. Examine using a light microscope with a 40x objective lens

For onion cells:

1. Peel a thin layer of epidermis from a freshly cut onion
2. Place the epidermis on a slide and add a drop of iodine
3. Lower a coverslip and examine with a 40x objective lens

The document then transitions to the respiratory system, explaining the processes of inhalation and exhalation. This topic is frequently featured in WJEC question bank and AQA GCSE Biology Paper 1 6 mark questions.

Vocabulary: Intercostal muscles - muscles between the ribs that assist in breathing.

During inhalation:

• Intercostal muscles contract, moving the rib cage up and out
• The diaphragm contracts and flattens, moving down
• The thorax volume increases, decreasing pressure and drawing air in

During exhalation, these processes are reversed.

The Bell Jar Model of Respiration

This section explains how the bell jar model illustrates inhalation, a common topic in WJEC GCSE Biology past papers. The model uses everyday objects to represent parts of the respiratory system:

• Glass tube represents the trachea
• Balloons represent the lungs
• Glass jar represents the rib cage
• Rubber sheet represents the diaphragm

Highlight: Understanding the limitations of this model is crucial for answering higher-level questions in GCSE Biology 6 mark questions AQA pdf.

Limitations of the model include:

• The diaphragm (rubber sheet) is pulled down further than it would be in reality
• The jar does not move up and out like the rib cage does
• Intercostal muscles are not represented
• The rubber sheet must be manually pushed down, unlike the automatic contraction of the diaphragm

This section provides valuable insight into how scientific models are used to explain biological processes, a key skill tested in WJEC Biology past papers and AQA GCSE Biology Paper 1 6 mark questions.

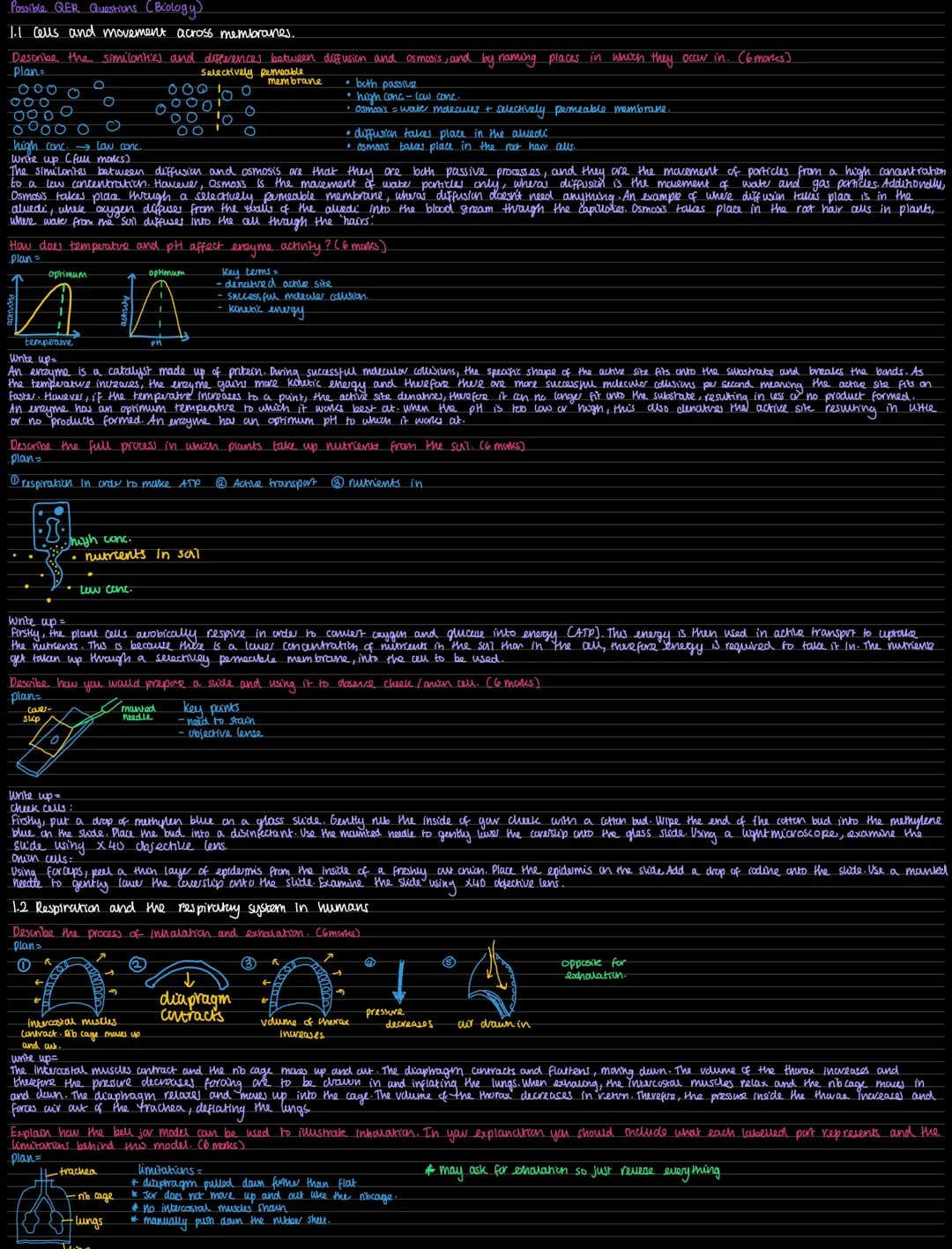

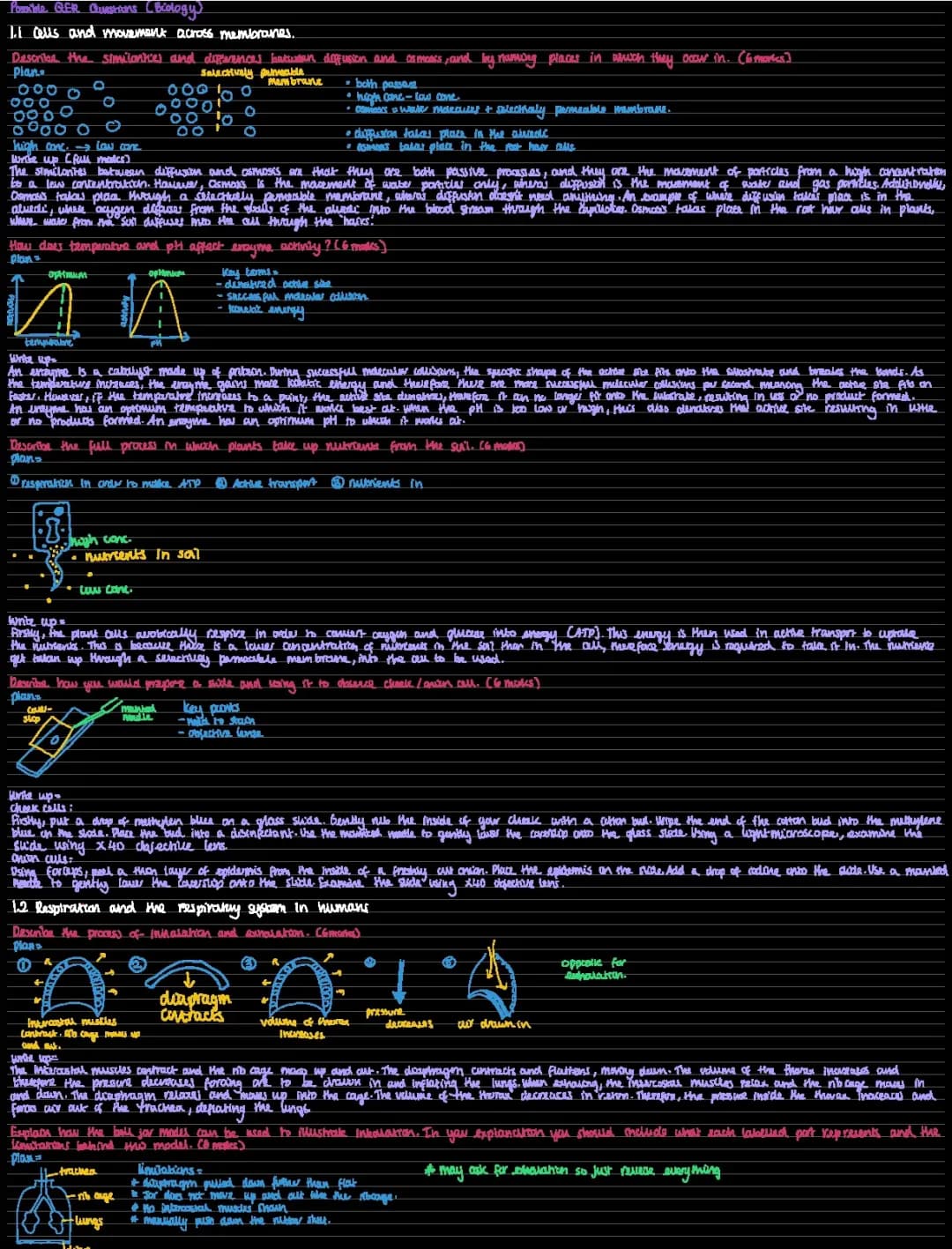

Cells and Movement Across Membranes

This section focuses on the similarities and differences between diffusion and osmosis, crucial concepts in WJEC GCSE Biology topics.

The explanation highlights that both diffusion and osmosis are passive processes involving the movement of particles from high to low concentration. However, osmosis specifically refers to the movement of water particles through a selectively permeable membrane, while diffusion can involve various particles and doesn't require a membrane.

Example: Diffusion occurs in alveoli where oxygen moves from the alveolar walls into the bloodstream through capillaries. Osmosis takes place in plant root hair cells, where water from the soil enters the cell.

The document also covers the effect of temperature on enzyme activity and effect of pH on enzyme activity, which are common topics in WJEC Biology past papers.

Definition: An enzyme is a protein catalyst that speeds up chemical reactions in living organisms.

As temperature increases, enzymes gain more kinetic energy, leading to more successful molecular collisions and faster reactions. However, excessive heat can denature the enzyme's active site, reducing or stopping product formation.

Highlight: Enzymes have an optimum temperature and pH at which they function most effectively.

The section concludes with a description of how plants take up nutrients from the soil, emphasizing the role of active transport and the energy (ATP) required for this process.
