How Waterfalls, Oxbow Lakes, and Floods Happen!

Rivers and Waterways: Formation and Management

This comprehensive guide explores the formation of rivers, waterfalls, and oxbow lakes, as well as flood management strategies. It covers the processes of erosion, transportation, and deposition in rivers, and examines the Boscastle flood case study.

  • Rivers undergo changes from upper to lower courses
  • Waterfalls form through differential erosion of rock layers
  • Meanders and oxbow lakes develop through erosion and deposition
  • Flood management includes both hard and soft engineering techniques
  • Boscastle flood case study highlights real-world application of flood management
...

17/10/2022

151

Rivers
upper course sleep v-shaped valley, narrow, shallow channe
deeper channel
Middle course medium wider
f
LOWer course - Gentle very wid

View

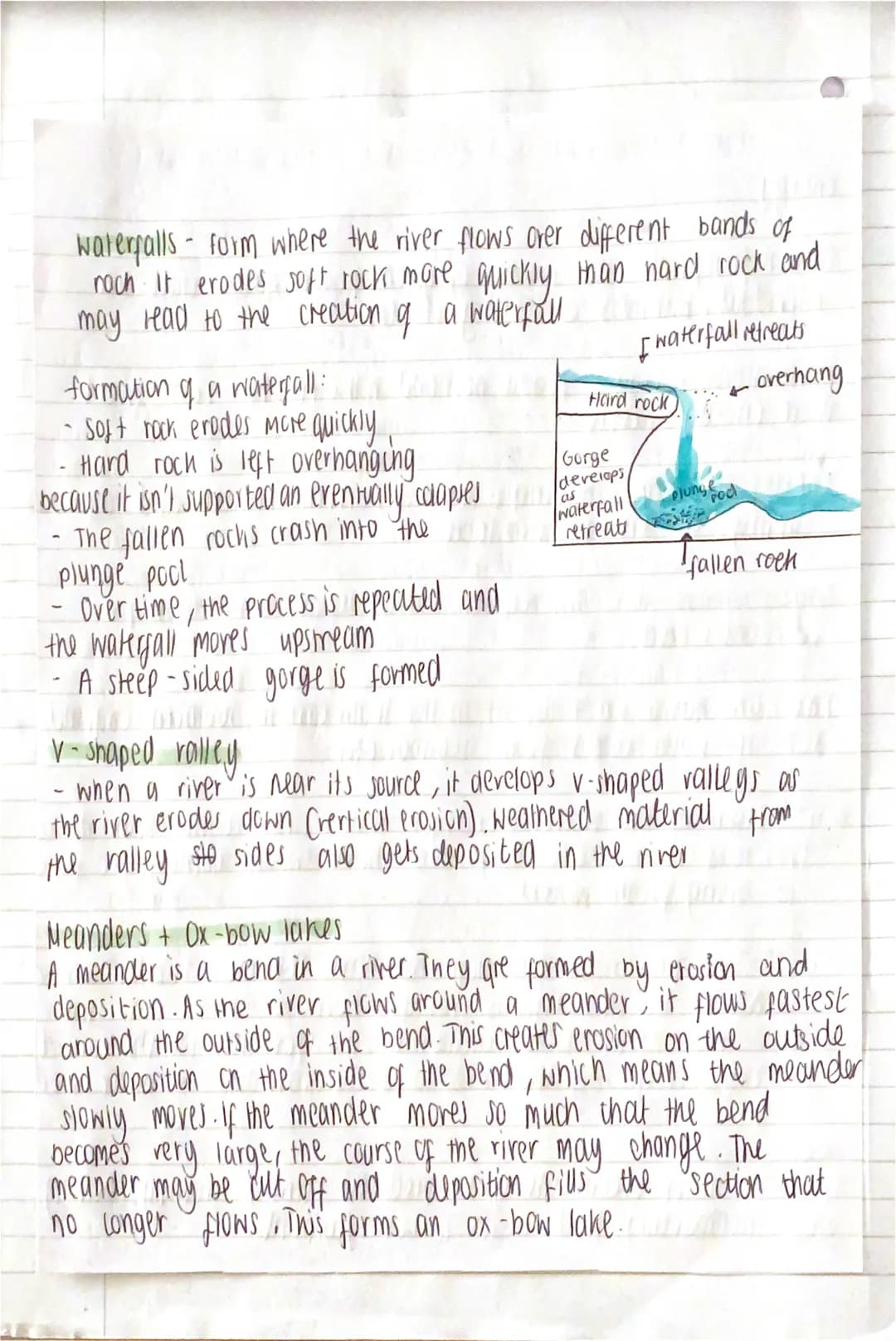

Waterfall Formation and River Features

This page delves into the formation of waterfalls, V-shaped valleys, meanders, and oxbow lakes, showcasing the dynamic nature of river systems.

Waterfall Formation Process

Waterfalls form where rivers flow over different bands of rock, with softer rock eroding more quickly than harder rock. The process involves:

  1. Differential erosion of soft and hard rock layers
  2. Undercutting of hard rock, creating an overhang
  3. Collapse of unsupported hard rock
  4. Formation of a plunge pool from fallen rocks
  5. Upstream retreat of the waterfall, forming a gorge

Definition: A plunge pool is a deep depression at the base of a waterfall, formed by the erosive action of falling water and rocks.

Highlight: The waterfall formation process in rivers is a prime example of how differential erosion shapes landscapes over time.

V-Shaped Valleys

Near its source, a river develops V-shaped valleys through:

  • Vertical erosion (downcutting)
  • Deposition of weathered material from valley sides into the river

Vocabulary: Vertical erosion, or downcutting, is the process by which a river deepens its channel.

Meanders and Ox-Bow Lakes

Meanders are bends in a river formed by erosion and deposition:

  1. Faster flow on the outside of bends causes erosion
  2. Slower flow on the inside leads to deposition
  3. Over time, meanders become more pronounced

Example: The formation of meanders and oxbow lakes can be observed in many lowland river systems, such as the Mississippi River.

Ox-bow lakes form when:

  1. A meander's neck becomes very narrow
  2. The river cuts through the neck during a flood
  3. Deposition seals off the old meander loop
  4. The cut-off meander becomes an ox-bow lake

Definition: An ox-bow lake is a U-shaped body of water formed when a river meander is cut off from the main channel.

Highlight: Understanding the formation of oxbow lakes is crucial for GCSE Geography students studying river landscapes and processes.

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

20 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.



Biology

151

17 Oct 2022

2 pages

How Waterfalls, Oxbow Lakes, and Floods Happen!

user profile picture

Freya Clarke

@freyaclarke_vfbl

Rivers and Waterways: Formation and Management

This comprehensive guide explores the formation of rivers, waterfalls, and oxbow lakes, as well as flood management strategies. It covers the processes of erosion, transportation, and deposition in rivers, and examines the Boscastle flood... Show more

Rivers
upper course sleep v-shaped valley, narrow, shallow channe
deeper channel
Middle course medium wider
f
LOWer course - Gentle very wid

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Waterfall Formation and River Features

This page delves into the formation of waterfalls, V-shaped valleys, meanders, and oxbow lakes, showcasing the dynamic nature of river systems.

Waterfall Formation Process

Waterfalls form where rivers flow over different bands of rock, with softer rock eroding more quickly than harder rock. The process involves:

  1. Differential erosion of soft and hard rock layers
  2. Undercutting of hard rock, creating an overhang
  3. Collapse of unsupported hard rock
  4. Formation of a plunge pool from fallen rocks
  5. Upstream retreat of the waterfall, forming a gorge

Definition: A plunge pool is a deep depression at the base of a waterfall, formed by the erosive action of falling water and rocks.

Highlight: The waterfall formation process in rivers is a prime example of how differential erosion shapes landscapes over time.

V-Shaped Valleys

Near its source, a river develops V-shaped valleys through:

  • Vertical erosion (downcutting)
  • Deposition of weathered material from valley sides into the river

Vocabulary: Vertical erosion, or downcutting, is the process by which a river deepens its channel.

Meanders and Ox-Bow Lakes

Meanders are bends in a river formed by erosion and deposition:

  1. Faster flow on the outside of bends causes erosion
  2. Slower flow on the inside leads to deposition
  3. Over time, meanders become more pronounced

Example: The formation of meanders and oxbow lakes can be observed in many lowland river systems, such as the Mississippi River.

Ox-bow lakes form when:

  1. A meander's neck becomes very narrow
  2. The river cuts through the neck during a flood
  3. Deposition seals off the old meander loop
  4. The cut-off meander becomes an ox-bow lake

Definition: An ox-bow lake is a U-shaped body of water formed when a river meander is cut off from the main channel.

Highlight: Understanding the formation of oxbow lakes is crucial for GCSE Geography students studying river landscapes and processes.

Rivers
upper course sleep v-shaped valley, narrow, shallow channe
deeper channel
Middle course medium wider
f
LOWer course - Gentle very wid

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

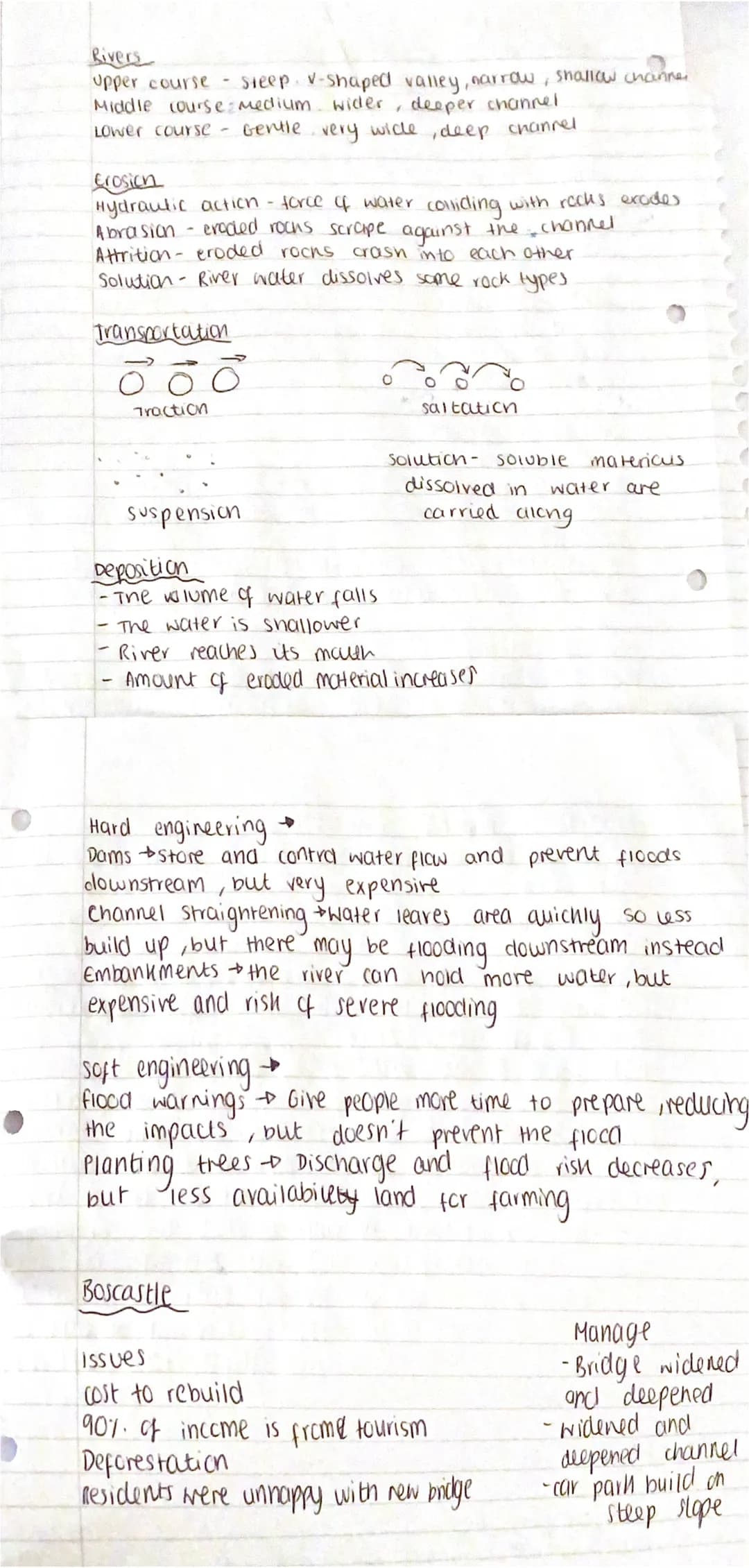

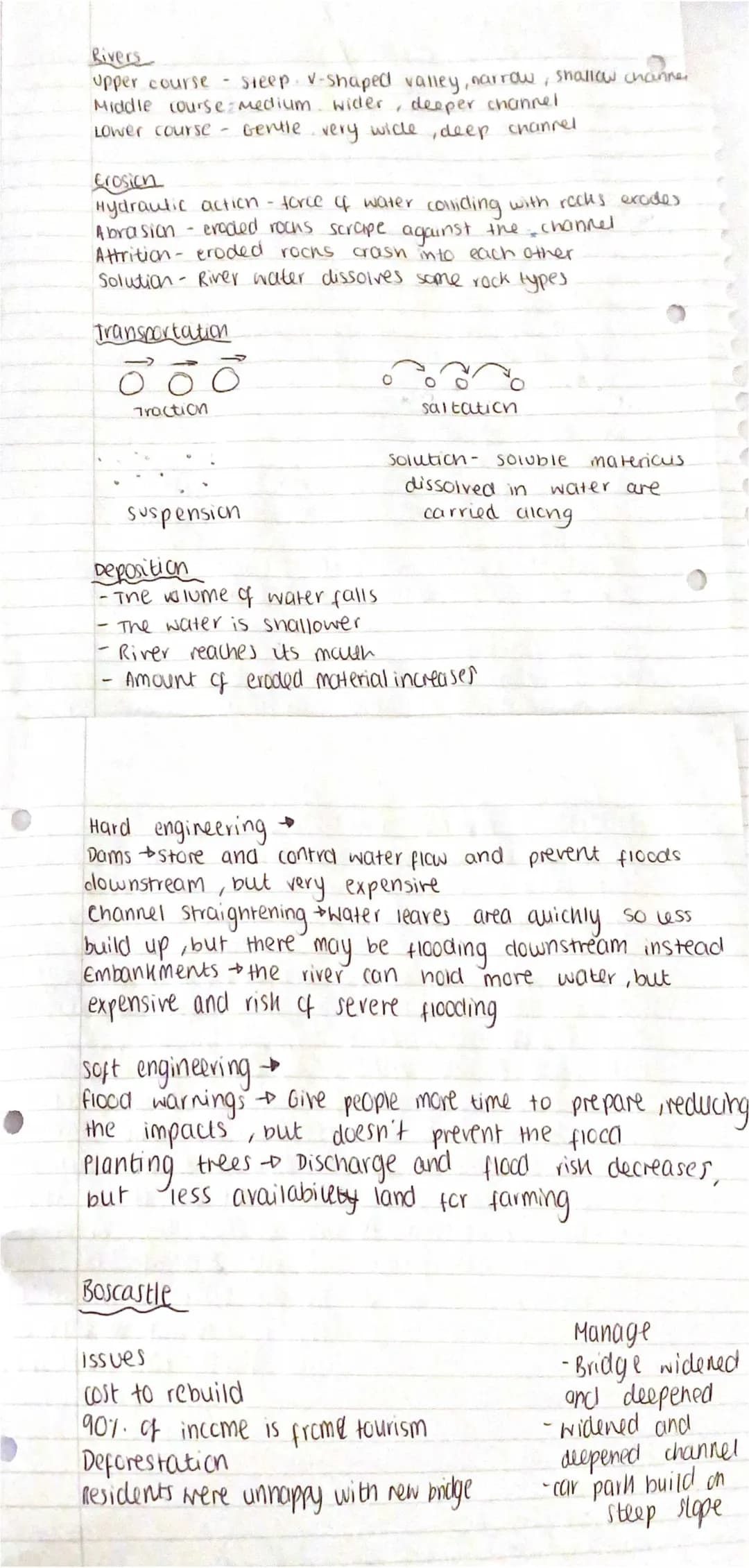

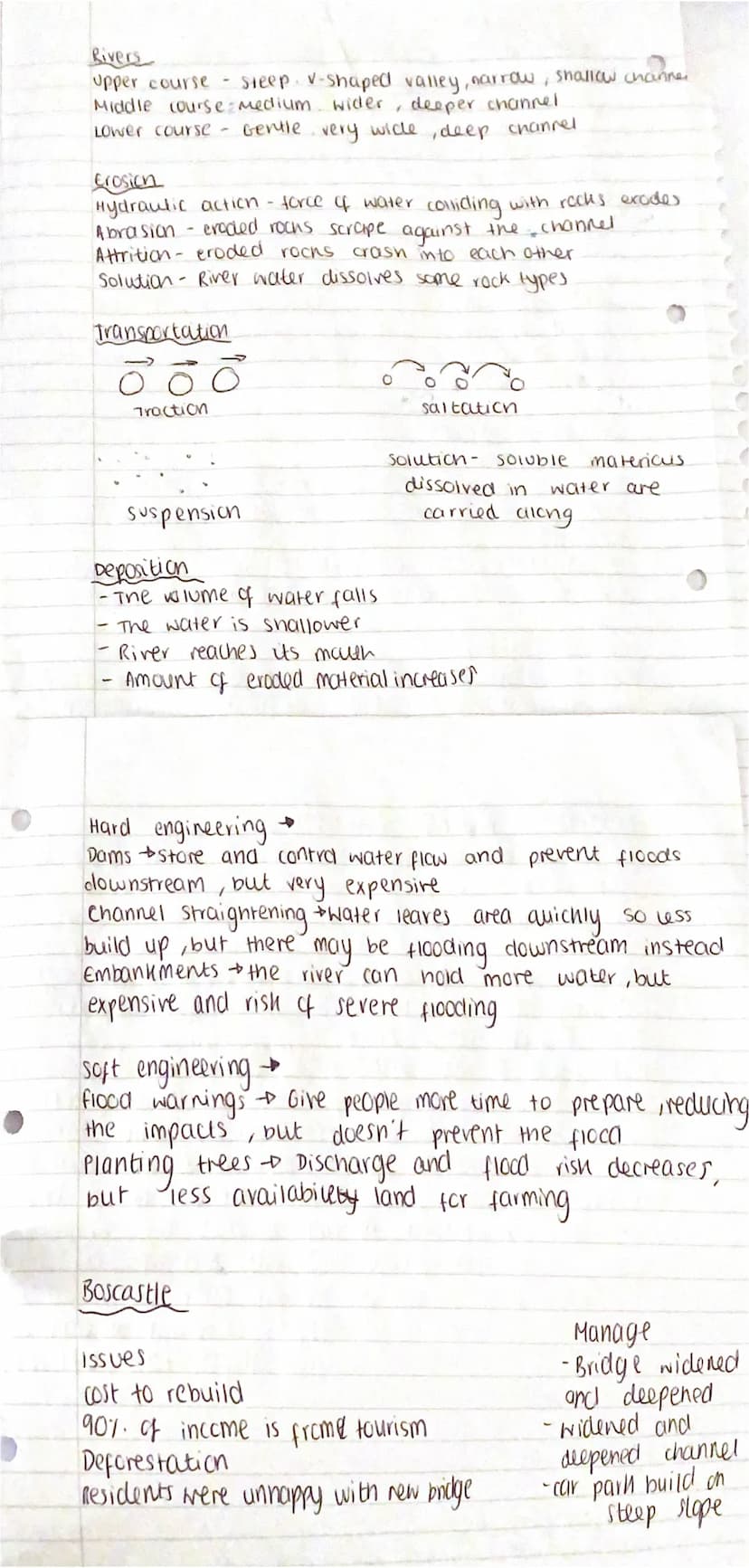

River Processes and Formations

Rivers play a crucial role in shaping landscapes and supporting ecosystems. This page explores the various stages of river development and the processes that occur within them.

River Courses

Rivers change dramatically from their source to their mouth:

  1. Upper Course: Characterized by steep V-shaped valleys and narrow, shallow channels.
  2. Middle Course: Features medium-width channels with increasing depth.
  3. Lower Course: Exhibits gentle slopes with very wide and deep channels.

Definition: The upper course of a river is the section closest to its source, typically characterized by steep gradients and rapid flow.

Erosion Processes

Rivers erode the landscape through four main processes:

  1. Hydraulic Action: The force of water collides with rocks, causing erosion.
  2. Abrasion: Eroded rocks scrape against the channel, further eroding it.
  3. Attrition: Eroded rocks crash into each other, breaking into smaller pieces.
  4. Solution: River water dissolves some rock types.

Vocabulary: Hydraulic action refers to the erosive force of moving water against rock surfaces.

Transportation Methods

Rivers transport eroded materials in four ways:

  1. Traction: Large particles are rolled along the river bed.
  2. Saltation: Smaller particles bounce along the river bed.
  3. Suspension: Fine particles are carried within the water flow.
  4. Solution: Soluble materials are dissolved in the water.

Example: Pebbles moving along the river bed by rolling or bouncing demonstrate traction and saltation.

Deposition

Deposition occurs when:

  • The volume of water decreases
  • The water becomes shallower
  • The river reaches its mouth
  • The amount of eroded material increases

Highlight: Deposition is crucial in forming features like deltas and flood plains in the lower course of rivers.

Boscastle Flood Case Study

The Boscastle flood provides insights into flood management strategies:

Hard Engineering Solutions:

  • Dams: Store and control water flow, preventing floods downstream but are expensive.
  • Channel Straightening: Allows water to leave the area quickly but may cause flooding downstream.
  • Embankments: Increase river capacity but are expensive and risk severe flooding if breached.

Soft Engineering Approaches:

  • Flood Warnings: Give people time to prepare, reducing impacts but not preventing floods.
  • Tree Planting: Decreases discharge and flood risk but reduces land available for farming.

Quote: "90% of income is from tourism" - This highlights the economic importance of managing flood risk in Boscastle.

Management Strategies Implemented:

  • Bridge widening and deepening
  • Channel widening and deepening
  • Car park built on a steep slope

Highlight: The Boscastle flood management scheme demonstrates a combination of hard and soft engineering techniques to mitigate future flood risks.
