Understanding Fluid Flow Basics

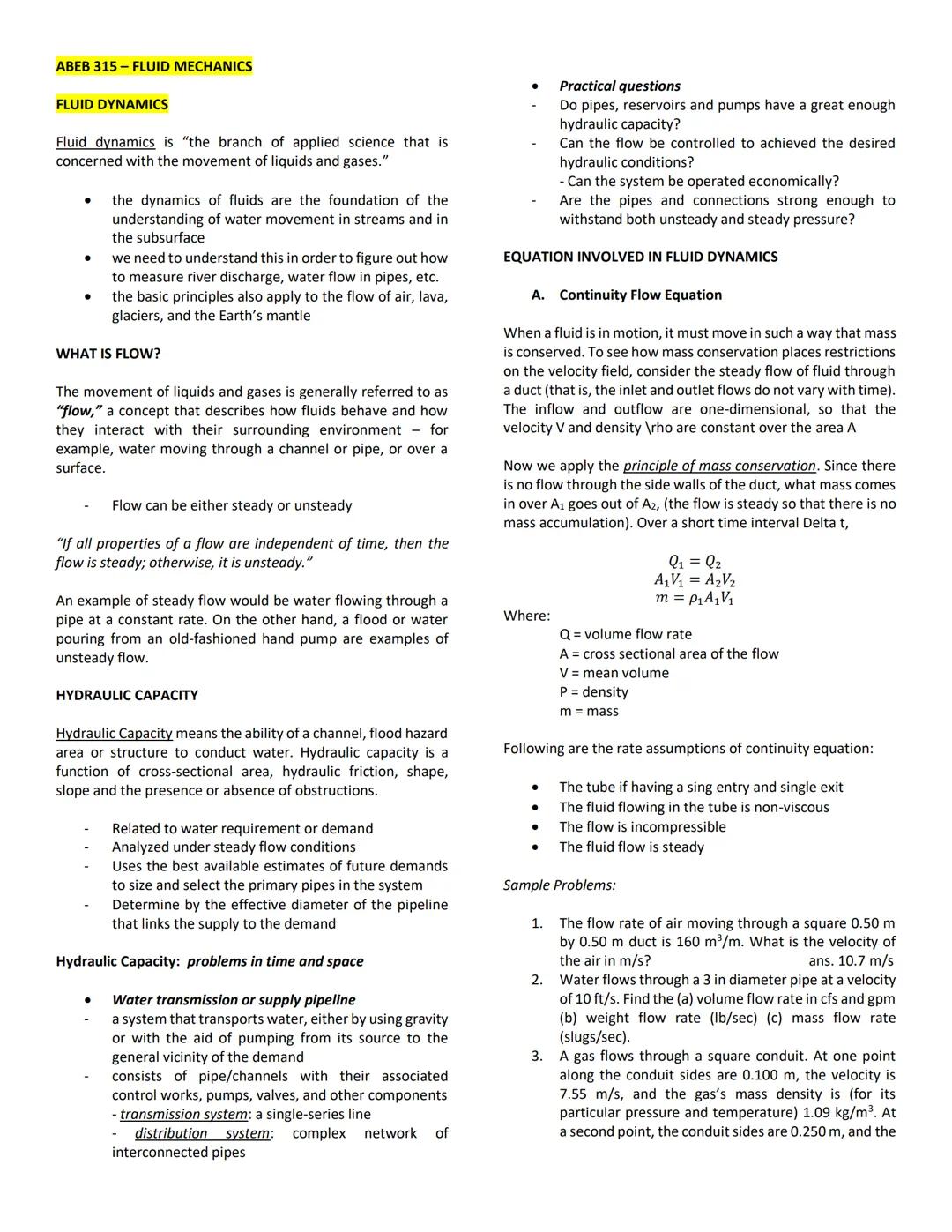

Ever wondered why water pressure drops when someone else turns on a tap? That's fluid dynamics in action! This branch of science explains how liquids and gases move, which is essential for everything from measuring river flow to designing water pipes.

Flow simply means the movement of fluids like water or air. Think of it as either steady (constant rate, like a tap running consistently) or unsteady (changing rate, like water gushing from a burst pipe). Understanding this difference helps predict how fluids will behave in different situations.

Hydraulic capacity tells us how much water a pipe or channel can actually handle. It depends on factors like the pipe's size, shape, slope, and any blockages. Engineers use this to design systems that won't overflow during peak demand.

Key Insight: The continuity equation $Q₁ = Q₂$ shows that when water flows through different sized pipes, it speeds up in narrow sections and slows down in wide ones - but the total flow rate stays the same!

The continuity equation works on a simple principle: what goes in must come out. If water flows from a wide pipe into a narrow one, it has to move faster to maintain the same flow rate. This fundamental concept helps solve real engineering problems.

Energy and Flow Types in Fluid Systems

Bernoulli's equation is like the conservation of energy for fluids - it shows that energy can't be created or destroyed, only transformed between pressure, velocity, and height. This explains why water shoots out faster from the bottom of a tall tank than from the top.

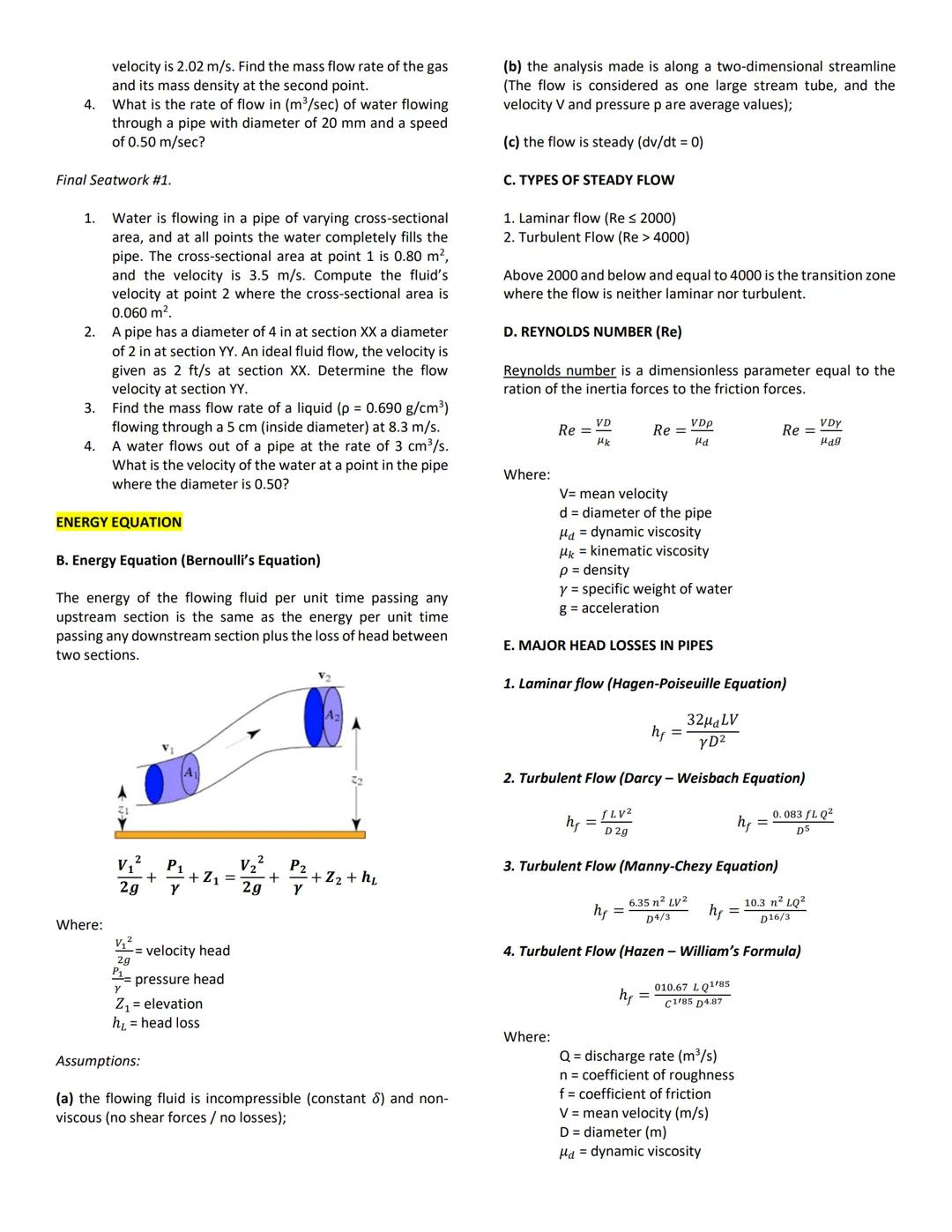

Fluid flow comes in two main types: laminar flow (smooth, organised layers with Reynolds number ≤ 2000) and turbulent flow $chaotic, mixed-up motion with Reynolds number > 4000$. Between these values is a transition zone where flow behaviour is unpredictable.

The Reynolds number helps predict which type of flow you'll get by comparing inertial forces to friction forces. This matters because engineers need different equations for different flow types to calculate pressure losses accurately.

Head losses represent energy lost due to friction as fluid moves through pipes. Major losses occur along straight pipe lengths, while minor losses happen at bends, valves, and fittings. Several equations like Darcy-Weisbach and Hazen-Williams help calculate these losses.

Pro Tip: Understanding whether you have laminar or turbulent flow is crucial - it completely changes which equations you need to use for accurate calculations!

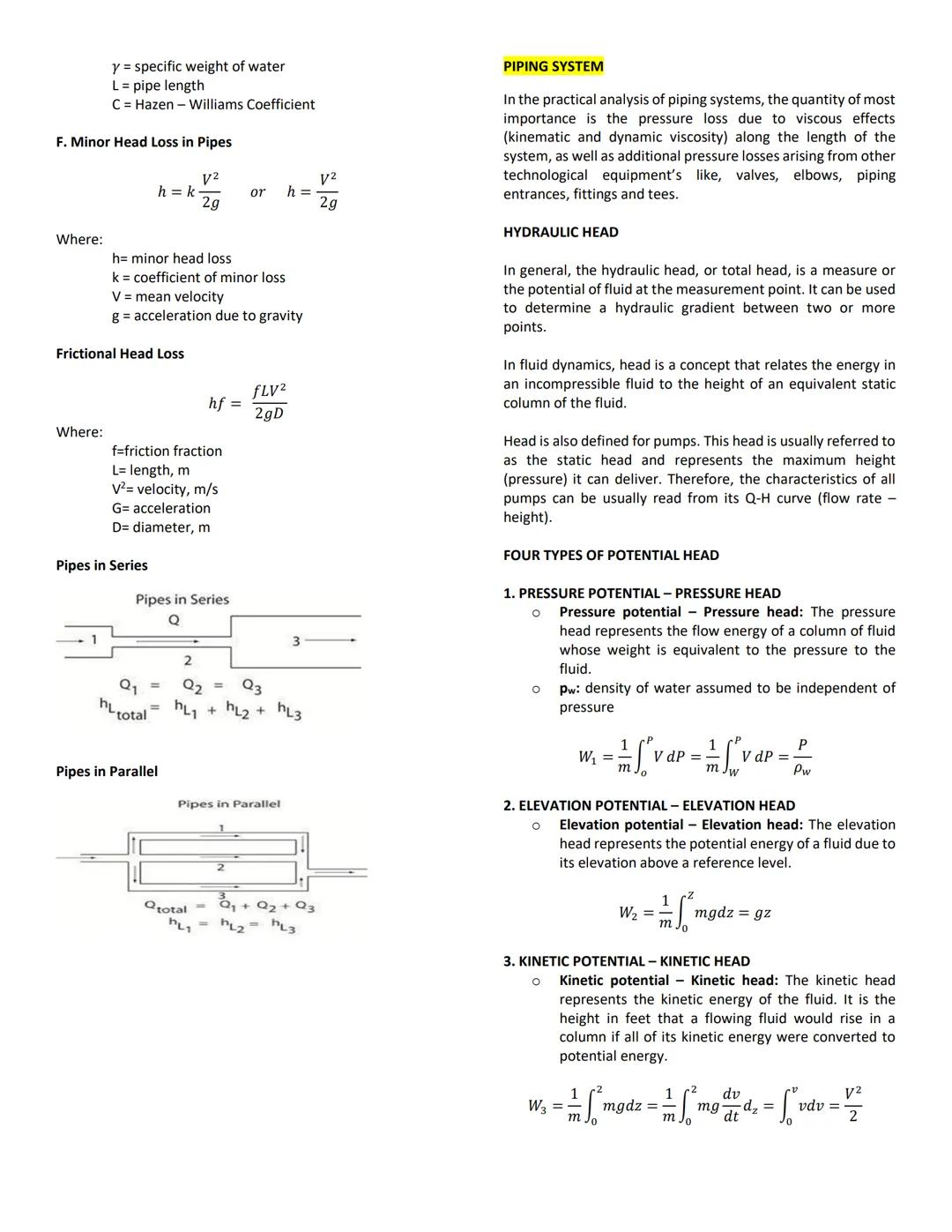

When pipes connect in series, the same flow passes through each section, but head losses add up. In parallel systems, flows split but pressure drops remain equal across each branch.

Hydraulic Head and Energy Components

Hydraulic head measures the total energy potential of fluid at any point, combining three key components that work together. Think of it as the fluid's "energy budget" that determines how it will flow and where pressure will build up.

Pressure head represents energy from the fluid's pressure - imagine how hard water pushes against pipe walls. Elevation head comes from height above a reference point (water at the top of a hill has more potential energy than at the bottom). Velocity head represents kinetic energy from the fluid's motion.

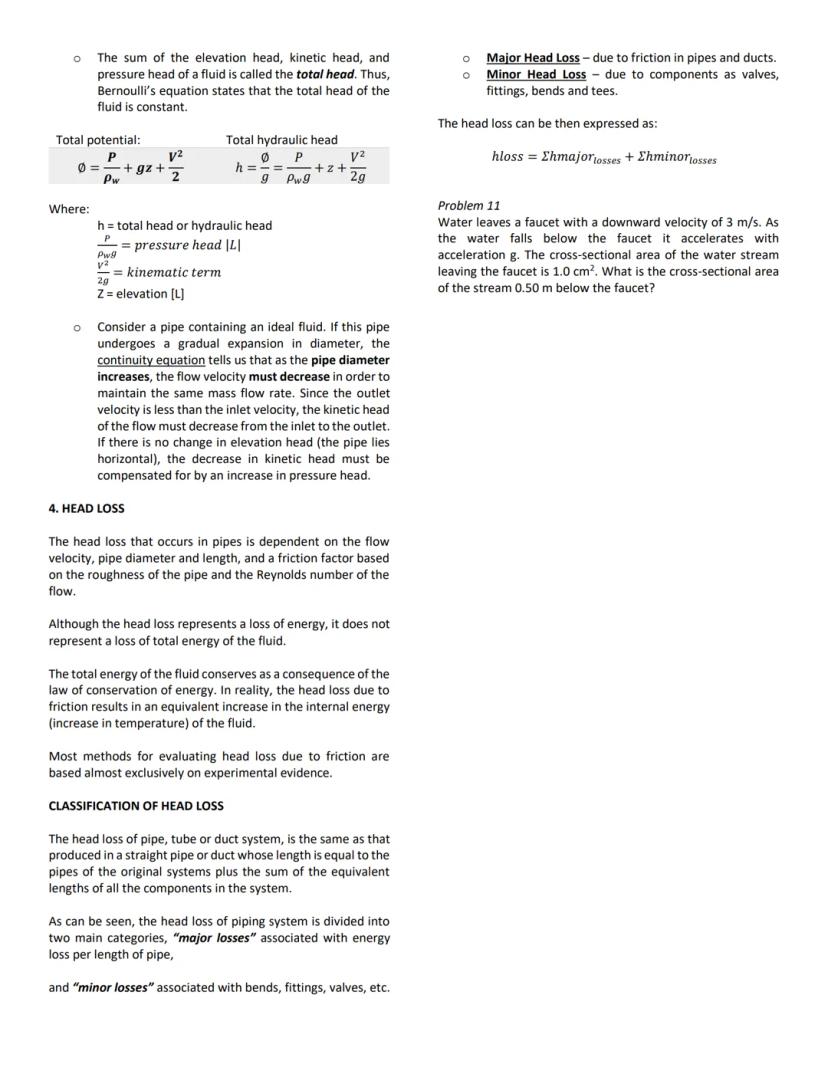

The total head equation $h = P/ρwg + z + V²/2g$ combines all three components. When fluid flows through a system, this total head decreases due to friction losses, but the individual components can trade off against each other.

Understanding these energy transformations helps explain everyday phenomena. When water flows from a wide pipe to a narrow one, velocity head increases while pressure head decreases to maintain energy balance.

Remember: Energy can't be destroyed in fluid flow - it just transforms between different types or gets converted to heat through friction!

Head loss doesn't mean energy disappears - it converts to heat due to friction. This concept is vital for designing efficient piping systems and predicting pressure drops.

Practical Applications and Problem Solving

The relationship between major losses (friction in straight pipes) and minor losses (from fittings and bends) determines total system performance. Engineers must account for both when designing water supply systems or drainage networks.

Real-world problems often involve calculating how cross-sectional area changes affect flow velocity. When water accelerates due to gravity (like falling from a tap), the stream gets narrower to maintain continuity - this explains why water streams thin out as they fall.

Head loss classification helps engineers identify where energy losses occur and how to minimise them. Sometimes minor losses from valves and fittings actually exceed major losses from pipe friction, especially in short pipeline systems.

The total head loss equation $h_loss = Σh_major + Σh_minor$ provides a systematic way to calculate pressure drops throughout complex piping systems. This determines whether pumps have sufficient power and if pipes can handle required flow rates.

Real-world application: When designing a building's plumbing, engineers must ensure adequate water pressure at the highest floors by accounting for all head losses!

Understanding these principles helps solve practical questions: Do pipes have enough capacity? Can flow be controlled properly? Will the system operate economically? These are the questions engineers face daily.

Manning's Equation for Open Channel Flow

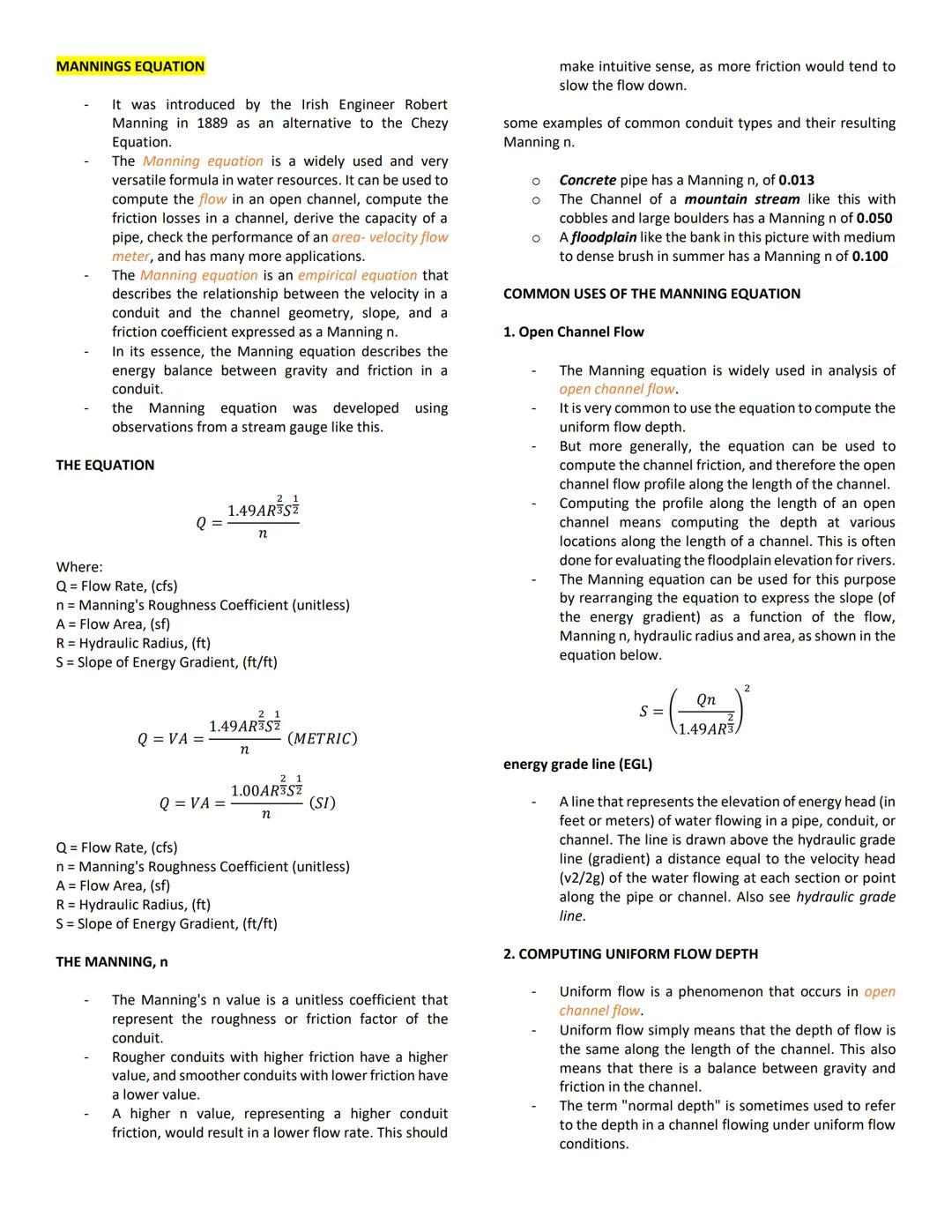

Manning's equation revolutionised water engineering when Irish engineer Robert Manning introduced it in 1889. This versatile formula helps calculate flow in rivers, design drainage channels, and even check flow meter accuracy in real systems.

The equation $Q = 1.49AR^(2/3)S^(1/2)/n$ balances gravity and friction forces in channels. Manning's n represents surface roughness - smooth concrete pipes have low values (0.013), while rocky mountain streams have high values (0.050), and dense brush can reach 0.100.

Open channel flow applications include computing flood depths in rivers and designing irrigation canals. The equation helps determine uniform flow depth where gravity and friction forces balance, creating constant depth along the channel length.

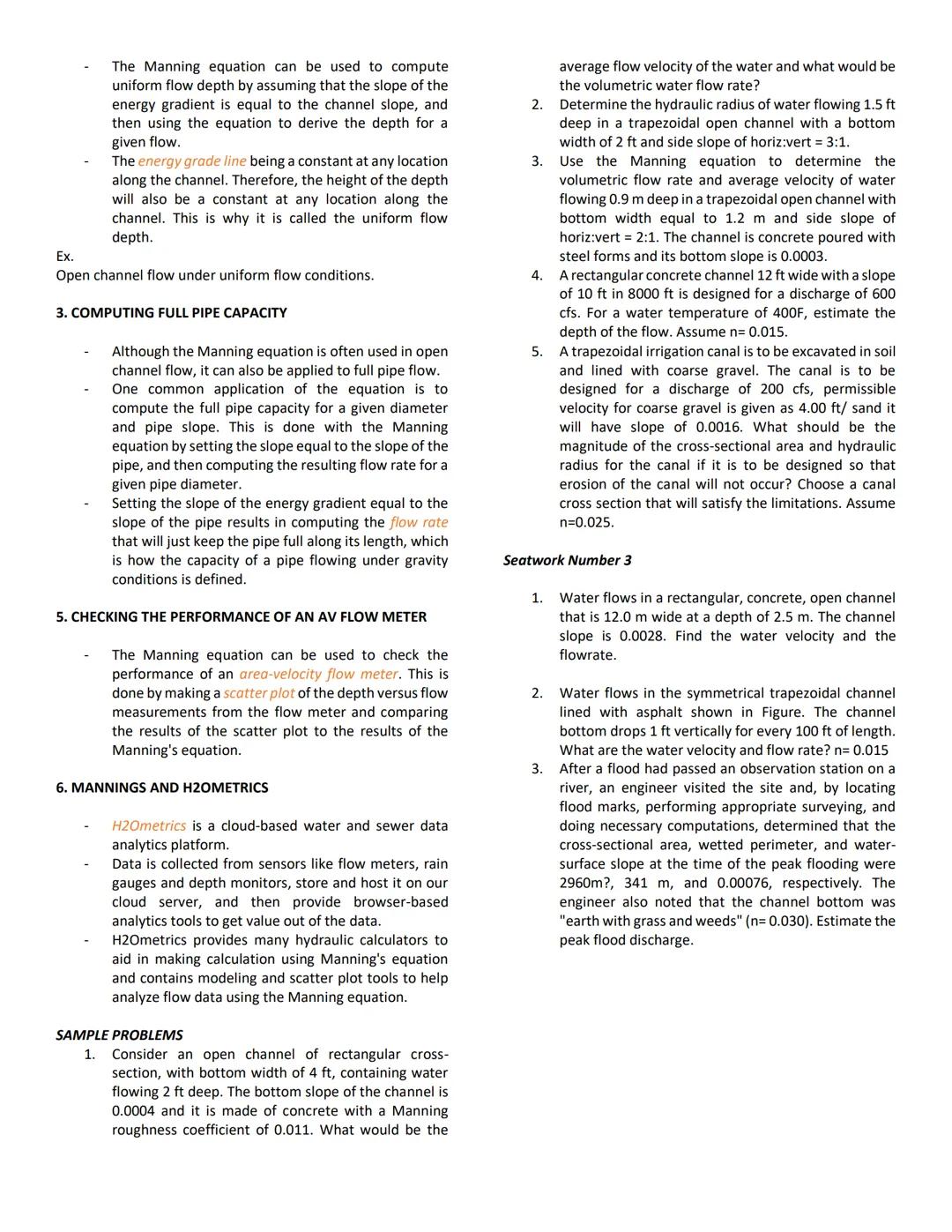

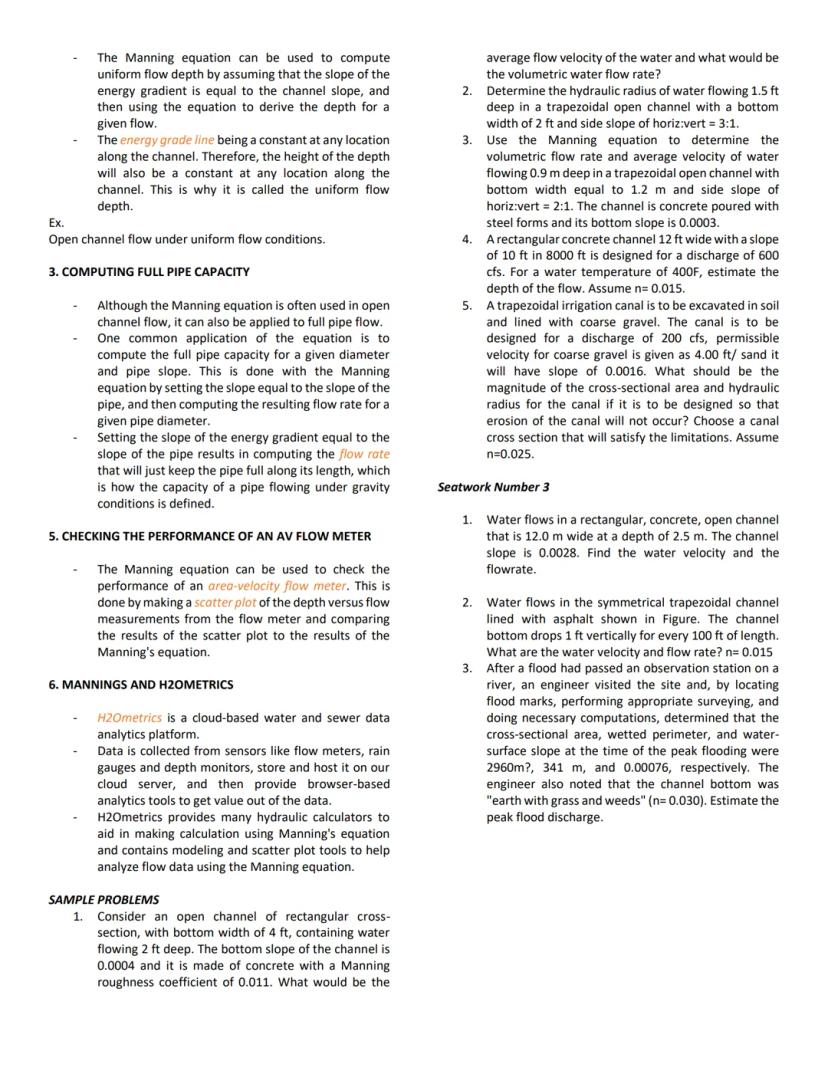

Engineers use Manning's equation to calculate full pipe capacity by setting the energy gradient slope equal to the pipe slope. This determines maximum flow rates for gravity-fed systems like storm drains and sewers.

Key advantage: Manning's equation works for both open channels and closed pipes, making it incredibly versatile for water engineering projects!

Modern applications include checking area-velocity flow meters by comparing measured data with Manning equation predictions. This helps ensure monitoring equipment provides accurate readings for water management systems.

Advanced Applications and Real-World Problem Solving

Uniform flow conditions occur when channel depth remains constant along the flow path, creating a perfect balance between gravitational and friction forces. Engineers call this the normal depth, which simplifies calculations for long channel reaches.

The energy grade line concept helps visualise energy changes along channels and pipes. This line sits above the water surface by the velocity head amount, showing where energy losses occur and helping optimise system design.

Manning's equation enables engineers to solve complex design problems like determining channel dimensions for specific flow rates while preventing erosion. Permissible velocity limits ensure channels won't scour their beds during high flow events.

Trapezoidal and rectangular channels each have advantages - trapezoidal shapes provide more stable side slopes for earthen channels, while rectangular concrete channels maximise flow area for urban applications with space constraints.

Design insight: Successful channel design requires balancing hydraulic efficiency, construction costs, and environmental impacts while meeting safety standards!

Real engineering projects involve iterative calculations to optimise channel cross-sections. Engineers must consider factors like construction materials, maintenance access, and flood capacity when applying Manning's equation to practical designs.

H2Ometrics and similar modern platforms integrate Manning calculations with real-time sensor data, enabling engineers to monitor and optimise water systems using cloud-based analytics tools.
