The Working Memory Model (Baddeley and Hitch)is a multi-component... Show more
Working Memory Model: AO1, AO3, and Baddeley & Hitch's Cool Experiments

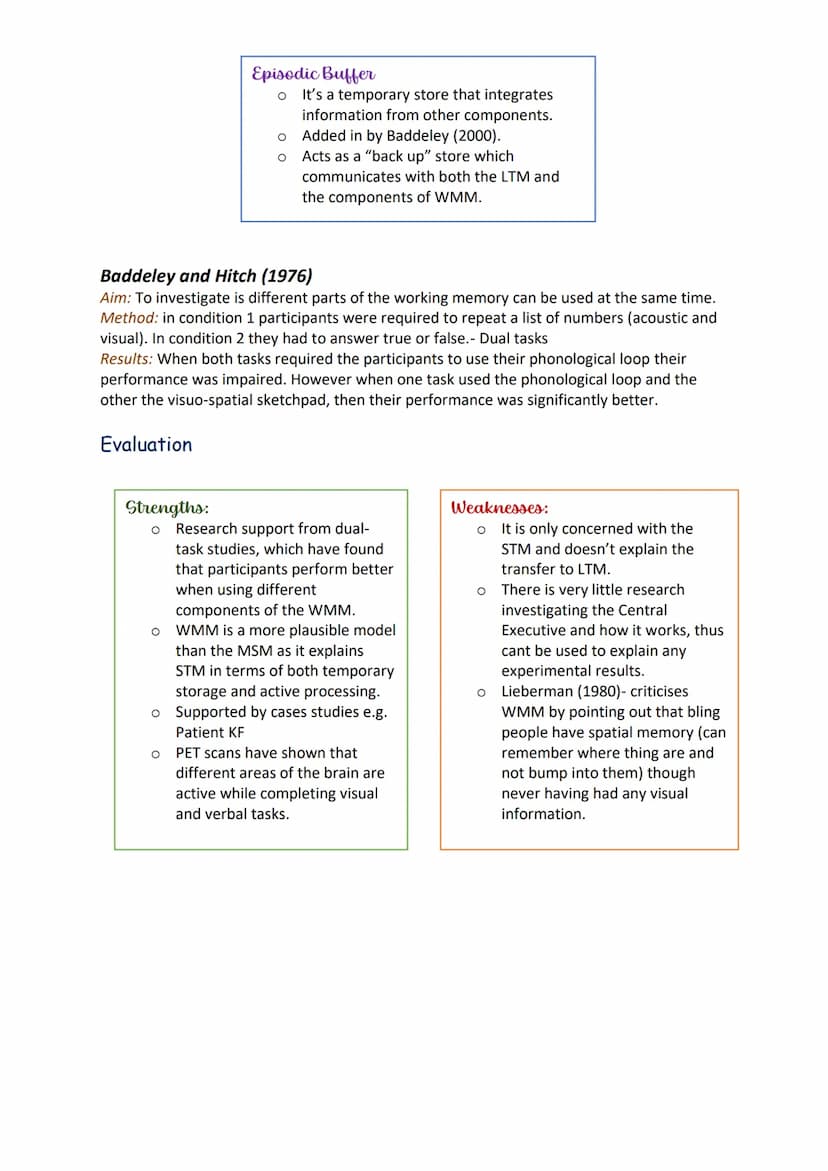

Evaluation of the Working Memory Model
Strengths of the Working Memory Model
The Working Memory Model has several strengths that contribute to its validity and usefulness in understanding memory processes:
- Research support from dual-task studies: Experiments have shown that participants perform better when using different components of the WMM simultaneously.
Example: The Baddeley and Hitch dual task experiment (1976) demonstrated that performance was impaired when both tasks used the phonological loop, but improved when one task used the phonological loop and the other the visuospatial sketchpad.
-
Plausibility: The WMM is considered more plausible than the Multi-Store Model as it explains short-term memory in terms of both temporary storage and active processing.
-
Case study support: Patient studies, such as that of Patient KF, have provided evidence for the model's components.
-
Neuroimaging evidence: PET scans have shown that different areas of the brain are active while completing visual and verbal tasks, supporting the idea of separate components for different types of information.
Weaknesses of the Working Memory Model
Despite its strengths, the Working Memory Model also has some limitations:
- Limited scope: The model is primarily concerned with short-term memory and doesn't fully explain the transfer of information to long-term memory.
Highlight: A weakness of the Working Memory Model is its focus on short-term memory processes, leaving gaps in our understanding of long-term memory interactions.
-
Lack of research on the Central Executive: There is limited research investigating how the Central Executive works, making it difficult to use this component to explain experimental results.
-
Criticism of the visuospatial sketchpad: Lieberman (1980) pointed out that blind people have spatial memory despite never having had visual information, challenging the visual aspect of this component.
Quote: "Blind people have spatial memory (can remember where things are and not bump into them) though never having had any visual information." - Lieberman (1980)
In conclusion, the Working Memory Model evaluation reveals both strengths and weaknesses. While it provides a more comprehensive explanation of short-term memory processes than previous models, there are still areas that require further research and clarification.

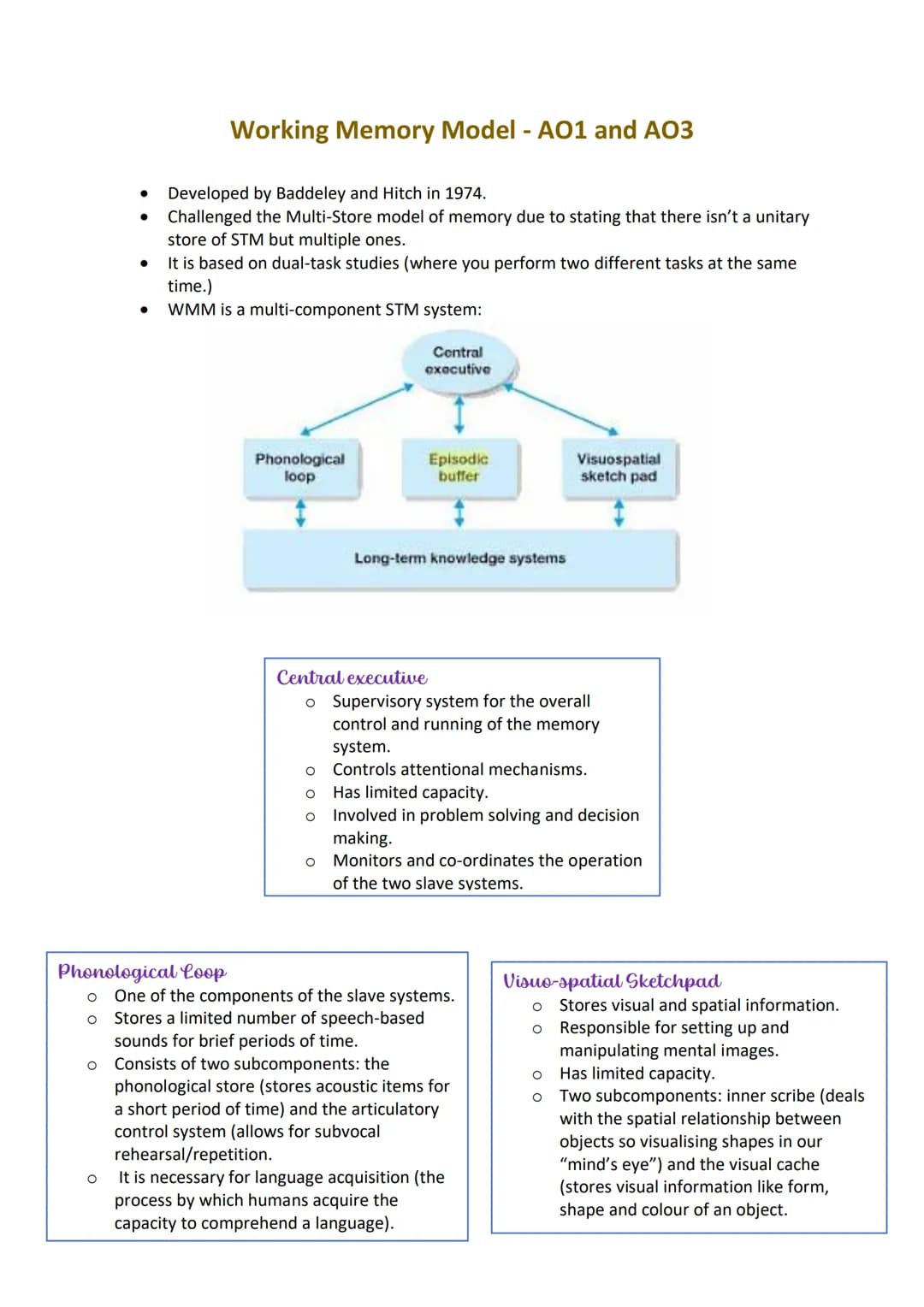

Working Memory Model: Components and Evaluation
The Working Memory Model (WMM), developed by Baddeley and Hitch in 1974, revolutionized our understanding of short-term memory. This model challenges the Multi-Store model by proposing multiple components of short-term memory instead of a single unitary store.
Components of the Working Memory Model
Central Executive
The central executive serves as the supervisory system for the overall control and running of the memory system. It has the following characteristics:
- Controls attentional mechanisms
- Has limited capacity
- Involved in problem-solving and decision-making
- Monitors and coordinates the operation of the two slave systems
Definition: The central executive is the component responsible for overseeing and managing the other components of working memory.
Phonological Loop
The phonological loop is one of the slave systems and is responsible for processing speech-based information. It consists of two subcomponents:
- Phonological store: Stores acoustic items for a short period
- Articulatory control system: Allows for subvocal rehearsal/repetition
Highlight: The phonological loop is crucial for language acquisition and has a limited capacity.
Visuospatial Sketchpad
The visuospatial sketchpad is responsible for storing and manipulating visual and spatial information. It has two subcomponents:
- Inner scribe: Deals with spatial relationships between objects
- Visual cache: Stores visual information like form, shape, and color
Example: The visuospatial sketchpad allows us to visualize shapes in our "mind's eye" and remember the appearance of objects.
Episodic Buffer
Added by Baddeley in 2000, the episodic buffer is a temporary store that integrates information from other components. It acts as a "backup" store, communicating with both long-term memory and the components of WMM.
Vocabulary: The episodic buffer serves as an interface between the other components of working memory and long-term memory.
We thought you’d never ask...
What is the Knowunity AI companion?
Our AI Companion is a student-focused AI tool that offers more than just answers. Built on millions of Knowunity resources, it provides relevant information, personalised study plans, quizzes, and content directly in the chat, adapting to your individual learning journey.
Where can I download the Knowunity app?
You can download the app from Google Play Store and Apple App Store.
Is Knowunity really free of charge?
That's right! Enjoy free access to study content, connect with fellow students, and get instant help – all at your fingertips.
Similar content
Most popular content: Short-term Memory (stm)
9Memory Models & Interference
Explore key concepts of memory, including the multi-store model, types of long-term memory, and the effects of interference on recall. This summary covers essential theories, studies, and techniques related to memory retention and retrieval, making it a valuable resource for psychology students preparing for exams.
Memory Models & Interference
Explore key concepts in memory, including the multi-store model, types of memory (STM, LTM, explicit), and the effects of interference on recall. This summary covers essential theories such as proactive and retroactive interference, state-dependent and context-dependent memory, and the misinformation effect. Ideal for AQA A Level Psychology students seeking concise and accurate study material.
Memory Theories & Models
Explore comprehensive insights into memory, including the multi-store model, working memory, types of long-term memory, and factors affecting recall. This resource covers key concepts such as interference theory, retrieval failure, and the impact of anxiety on eyewitness testimony. Ideal for A-level AQA revision.
Evaluating the Multi-Store Model
Explore key research studies that support and challenge the Multi-Store Model (MSM) of memory. This presentation covers case studies of HM, Clive Wearing, and patient KF, as well as experiments by Glanzer & Cunitz and Baddeley. Understand the implications of these findings on the distinctions between short-term memory (STM) and long-term memory (LTM), and the overall credibility of the MSM framework.
Memory Capacity & Duration
Explore the key concepts of memory capacity, duration, and encoding in this comprehensive summary. Delve into studies by Jacobs, Baddeley, and Peterson, examining the limitations of artificial stimuli and the implications for real-world memory tasks. Ideal for psychology students seeking to understand the multi-store model and the intricacies of memory encoding and storage.
Baddeley's Memory Study Insights
Explore a comprehensive evaluation of Baddeley's 1966 study on memory encoding, focusing on the working memory model and multi-store model. This resource includes key findings, strengths, weaknesses, and evaluation points ideal for essay writing. Perfect for psychology students seeking to understand memory processes and their implications.
Exploring Working Memory Model
Dive into the intricacies of the Working Memory Model (WMM), focusing on its components such as the phonological loop, visuo-spatial sketchpad, and central executive. This summary highlights key strengths, including case studies like Clive Wearing, and discusses the model's limitations in experimental application. Ideal for students studying cognitive psychology and memory theories.
Memory Models Explained
Explore the intricacies of memory models, including the Multi-Store Model, Working Memory Model, and types of long-term memory. This comprehensive summary covers key concepts such as encoding, storage, retrieval, and the impact of interference and context on memory recall. Ideal for AQA A-Level Psychology students preparing for exams.
Memory Theories Overview
Explore key concepts in cognitive psychology related to memory, including the multi-store model, working memory, and the impact of interference. This comprehensive summary covers essential studies, such as HM and Baddeley, and evaluates their implications for understanding memory processes. Ideal for students seeking to grasp the complexities of memory encoding, storage, and retrieval.
Most popular content in Psychology
9Social Influence Overview
Explore key concepts in social influence, including conformity, obedience, and minority influence. This comprehensive summary covers essential studies such as Milgram's experiment, Asch's conformity tests, and the Stanford prison experiment, providing insights into the psychological mechanisms behind social behavior. Ideal for A-Level revision.
Comprehensive Research Methods
Explore essential research methods in psychology, including experimental designs, types of experiments, observations, interviews, and ethical considerations. This summary covers key concepts such as independent and dependent variables, validity, reliability, and statistical significance, tailored for A Level AQA Psychology students.
AQA A Level Sociology Research Methods
Includes all research methods
Attachment Theory Overview
Explore key concepts of attachment theory, including Bowlby's Theory, the Strange Situation, and the role of fathers in attachment. This comprehensive summary covers maternal deprivation, secure and insecure attachments, and insights from animal studies. Ideal for AQA A-Level Psychology students seeking to understand childhood attachment dynamics.
Biopsychology Key Concepts
Explore essential biopsychology concepts including circadian rhythms, brain structure, and neurobiology. This comprehensive summary covers the nervous system, hormonal coordination, and the impact of brain plasticity on behavior. Ideal for AQA A Level Psychology revision.
Paper 2 - Approaches in Psychology ღ
ღ AQA A Level Psychology notes. ღ Covers AO1 + AO3 of: Origins of Psychology, Behaviourist Approach, Social Learning Theory, Cognitive Approach, Biological Approach, Humanistic Approach and Psychodynamic Approach ღ Any Qs, comment!! <3
Attachment- essay plans
All the content needed to answer 16 markers in psych- attachment
A Level AQA Biopsychology Content Mindmap
Biopsychology Content Mind Maps, DOES NOT CONTAIN RESEARCH OR EVALUATION
Attachment AQA
Attachment AQA Alevel Psychology paper one notes
Most popular content
9Sociology of Education Overview
Explore comprehensive A-Level Sociology notes on the education system, covering key theories, policies, and sociological perspectives. This resource includes insights on marketisation, gender roles, cultural deprivation, and educational inequalities, providing a thorough understanding of how education shapes social stratification and individual achievement. Ideal for exam preparation and in-depth study.
Sociology of Families: Comprehensive Revision
Dive into an extensive overview of family dynamics, perspectives, and patterns in sociology. This resource covers key concepts such as family diversity, gender roles, marriage, and the impact of social policies on family structures. Perfect for A-Level Sociology students preparing for Paper 2.
Criminology: Crime & Punishment Overview
Comprehensive mindmaps covering key concepts in the Crime and Punishment topic for WJEC Criminology Unit 4. This resource includes detailed insights into the Criminal Justice System, crime prevention strategies, sentencing models, and the roles of various agencies. Ideal for A-Level revision, ensuring you grasp essential theories and legislative processes to excel in your exams.
An Inspector Calls: Character Insights
Explore in-depth analysis and key quotes for characters in J.B. Priestley's 'An Inspector Calls'. This resource covers Gerald Croft, Inspector Goole, Sheila Birling, Mrs. Birling, Eric Birling, and Eva Smith, focusing on themes of class, gender roles, and social responsibility. Ideal for students aiming for Grade 8 and above.
WJEC Unit 4 Criminology
Criminology unit 4 detailed revision note
Criminology Theories Overview
Explore key criminology theories and their implications on crime and deviance. This comprehensive summary covers biological, psychological, and sociological perspectives, including labelling theory, right realism, and the impact of social campaigns on policy development. Ideal for A-Level criminology students seeking to understand the complexities of criminal behaviour and the factors influencing crime prevention strategies.
Romeo and Juliet: Key themes
Key Romeo and Juliet themes and analysed quotes
Macbeth: Guilt and Ambition
Explore the complex themes of guilt and ambition in Shakespeare's 'Macbeth'. This analysis covers key characters, including Macbeth and Lady Macbeth, their moral dilemmas, and the tragic consequences of their ambition. Ideal for students studying character motivations, thematic elements, and the psychological impact of power. Includes insights on the natural order, manipulation, and the descent into madness.
Cell Biology and Cell structure
cell structures
Can't find what you're looking for? Explore other subjects.
Students love us — and so will you.
The app is very easy to use and well designed. I have found everything I was looking for so far and have been able to learn a lot from the presentations! I will definitely use the app for a class assignment! And of course it also helps a lot as an inspiration.
This app is really great. There are so many study notes and help [...]. My problem subject is French, for example, and the app has so many options for help. Thanks to this app, I have improved my French. I would recommend it to anyone.
Wow, I am really amazed. I just tried the app because I've seen it advertised many times and was absolutely stunned. This app is THE HELP you want for school and above all, it offers so many things, such as workouts and fact sheets, which have been VERY helpful to me personally.
Working Memory Model: AO1, AO3, and Baddeley & Hitch's Cool Experiments
The Working Memory Model (Baddeley and Hitch)is a multi-component system of short-term memory that challenges the unitary store concept. It consists of four main components: the central executive, phonological loop, visuospatial sketchpad, and episodic buffer, each with specific functions... Show more

Sign up to see the content. It's free!
- Access to all documents
- Improve your grades
- Join milions of students

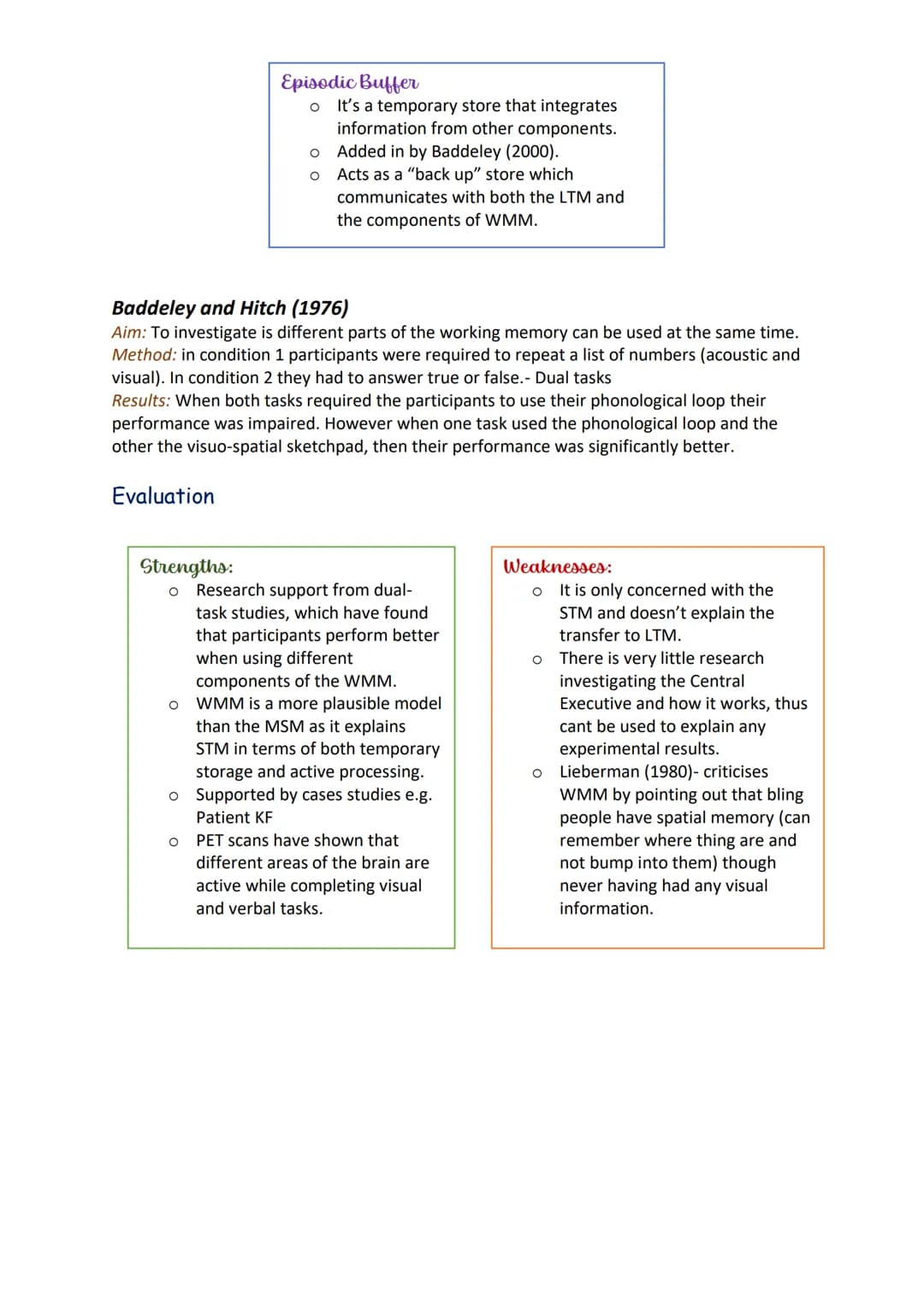

Evaluation of the Working Memory Model
Strengths of the Working Memory Model
The Working Memory Model has several strengths that contribute to its validity and usefulness in understanding memory processes:
- Research support from dual-task studies: Experiments have shown that participants perform better when using different components of the WMM simultaneously.
Example: The Baddeley and Hitch dual task experiment (1976) demonstrated that performance was impaired when both tasks used the phonological loop, but improved when one task used the phonological loop and the other the visuospatial sketchpad.
-
Plausibility: The WMM is considered more plausible than the Multi-Store Model as it explains short-term memory in terms of both temporary storage and active processing.
-
Case study support: Patient studies, such as that of Patient KF, have provided evidence for the model's components.
-
Neuroimaging evidence: PET scans have shown that different areas of the brain are active while completing visual and verbal tasks, supporting the idea of separate components for different types of information.
Weaknesses of the Working Memory Model
Despite its strengths, the Working Memory Model also has some limitations:
- Limited scope: The model is primarily concerned with short-term memory and doesn't fully explain the transfer of information to long-term memory.
Highlight: A weakness of the Working Memory Model is its focus on short-term memory processes, leaving gaps in our understanding of long-term memory interactions.
-
Lack of research on the Central Executive: There is limited research investigating how the Central Executive works, making it difficult to use this component to explain experimental results.
-
Criticism of the visuospatial sketchpad: Lieberman (1980) pointed out that blind people have spatial memory despite never having had visual information, challenging the visual aspect of this component.
Quote: "Blind people have spatial memory (can remember where things are and not bump into them) though never having had any visual information." - Lieberman (1980)
In conclusion, the Working Memory Model evaluation reveals both strengths and weaknesses. While it provides a more comprehensive explanation of short-term memory processes than previous models, there are still areas that require further research and clarification.

Sign up to see the content. It's free!
- Access to all documents
- Improve your grades
- Join milions of students

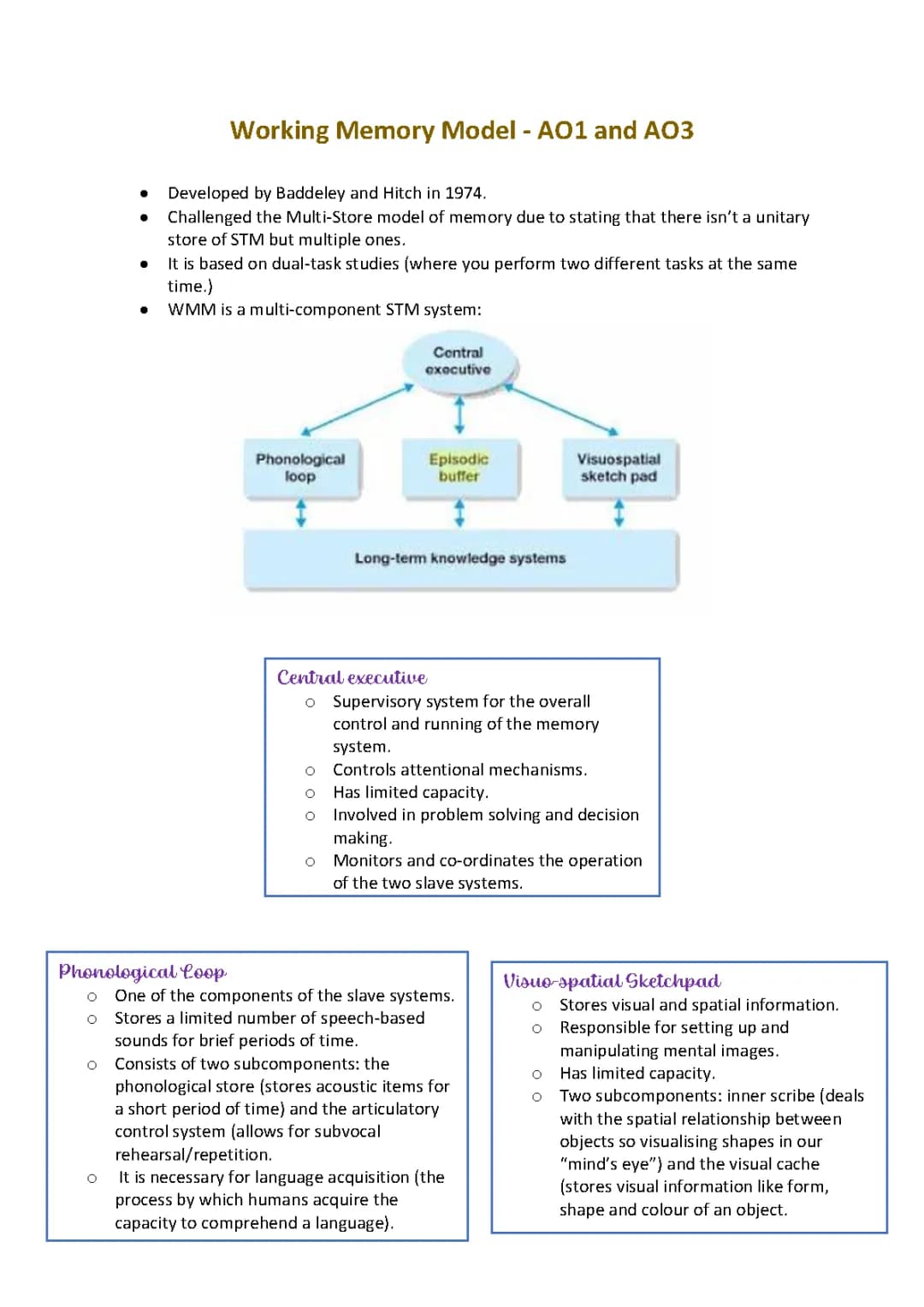

Working Memory Model: Components and Evaluation
