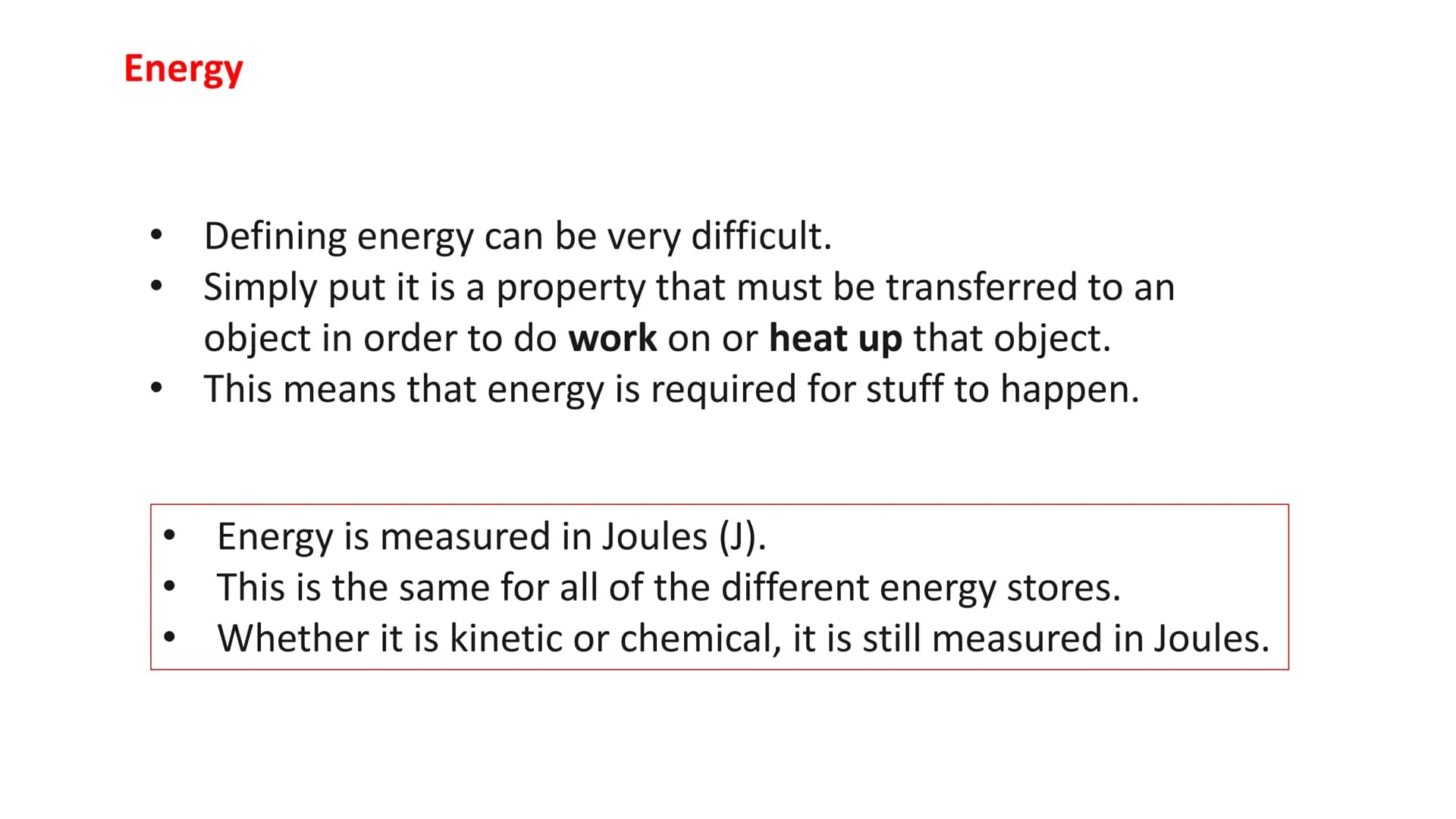

Understanding Energy

This page delves into the fundamental concept of energy, providing a clear and concise explanation for students. Energy is described as a property that must be transferred to an object to perform work or increase its temperature. This definition underscores the importance of energy in facilitating change and action within physical systems.

Key points about energy:

• Energy is essential for things to happen
• It is measured in Joules (J)
• The unit of measurement remains consistent across all energy stores

Definition: Energy is a property that must be transferred to an object in order to do work on or heat up that object.

Highlight: Energy is measured in Joules (J), regardless of the type of energy store.

Example: Whether considering the kinetic energy of a moving car or the chemical energy stored in a battery, both are measured in Joules.

This explanation provides a solid foundation for understanding energy stores and transfers, which is crucial for students studying GCSE physics or exploring energy concepts at the KS3 level.

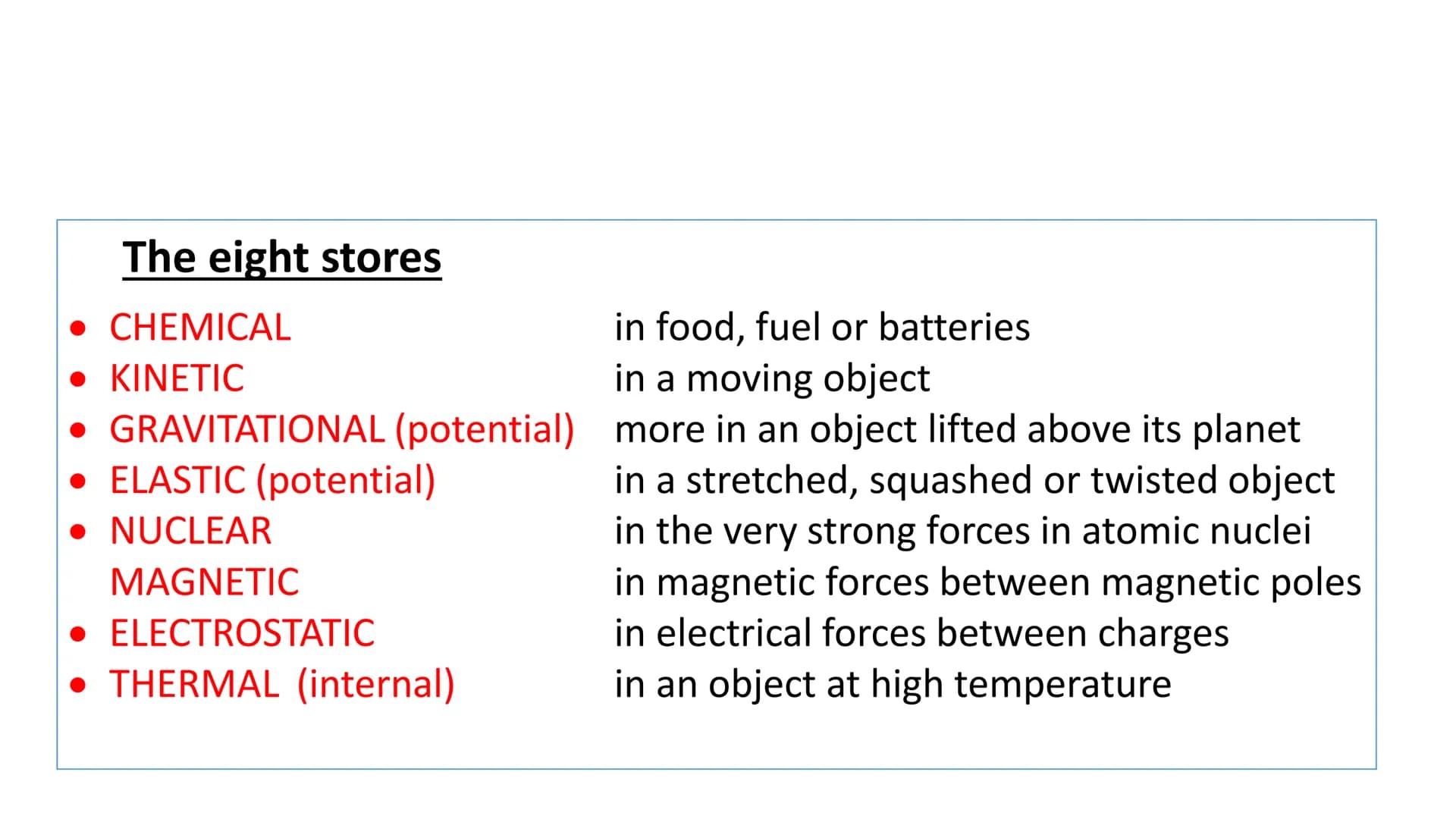

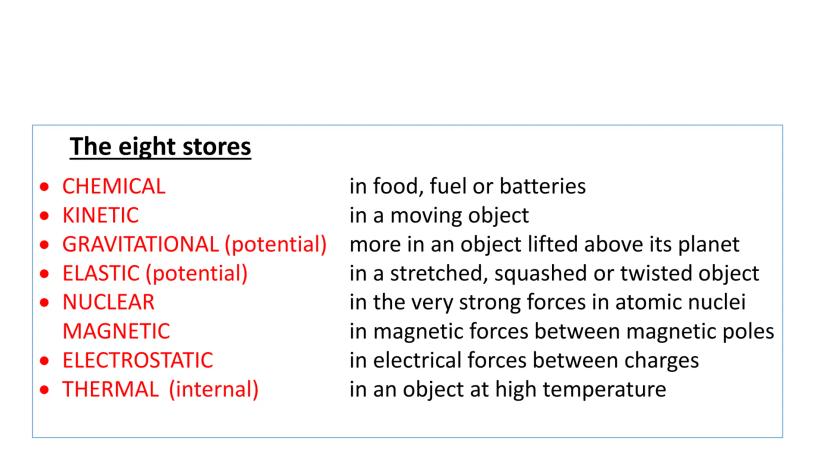

The Eight Energy Stores

This page introduces students to the eight primary energy stores, providing a comprehensive overview of how energy can be stored in various forms within systems. Understanding these stores is crucial for analyzing energy transfers in different scenarios.

The eight energy stores are:

1. Chemical energy (in food, fuel, or batteries)
2. Kinetic energy (in moving objects)
3. Gravitational potential energy (in objects lifted above their planet)
4. Elastic potential energy (in stretched, squashed, or twisted objects)
5. Nuclear energy (in the strong forces within atomic nuclei)
6. Magnetic energy (in magnetic forces between poles)
7. Electrostatic energy (in electrical forces between charges)
8. Thermal energy (in objects at high temperatures)

Vocabulary:

• Kinetic energy: The energy possessed by an object due to its motion.
• Potential energy: Energy stored in an object due to its position or condition.
• Nuclear energy: Energy released during nuclear reactions, involving changes in the nuclei of atoms.

Example: A stretched rubber band possesses elastic potential energy, while a moving car has kinetic energy.

This comprehensive list of energy stores provides students with a solid framework for understanding how energy can be stored in various forms, which is essential for analyzing energy transfers in GCSE physics and beyond.

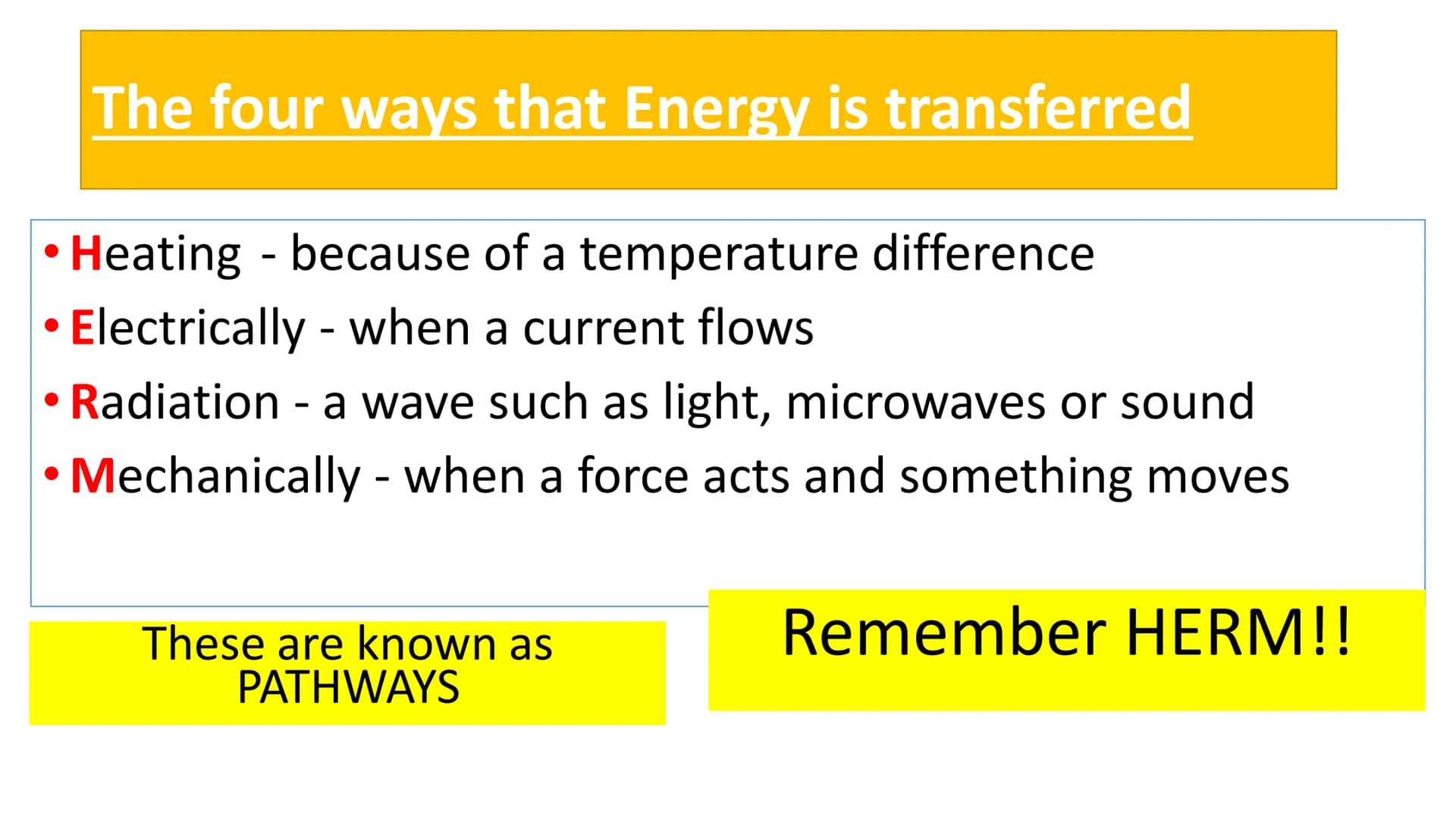

The Four Energy Transfer Pathways

This page introduces the four primary ways in which energy can be transferred between different stores. Understanding these pathways is crucial for analyzing energy flow in various systems, a key concept in GCSE physics and KS3 science.

The four energy transfer pathways are:

1. Heating - due to temperature differences
2. Electrically - when an electric current flows
3. Radiation - through waves such as light, microwaves, or sound
4. Mechanically - when a force acts and something moves

Highlight: The acronym HERM can be used to remember these four pathways: Heating, Electrically, Radiation, Mechanically.

Definition: Pathways are the methods by which energy is transferred from one store to another within a system.

These pathways explain how energy is transferred in different systems, providing students with a framework for analyzing energy flow in various scenarios. This knowledge is essential for understanding energy transfers in both theoretical and practical contexts, as often explored in GCSE physics and BBC Bitesize resources.

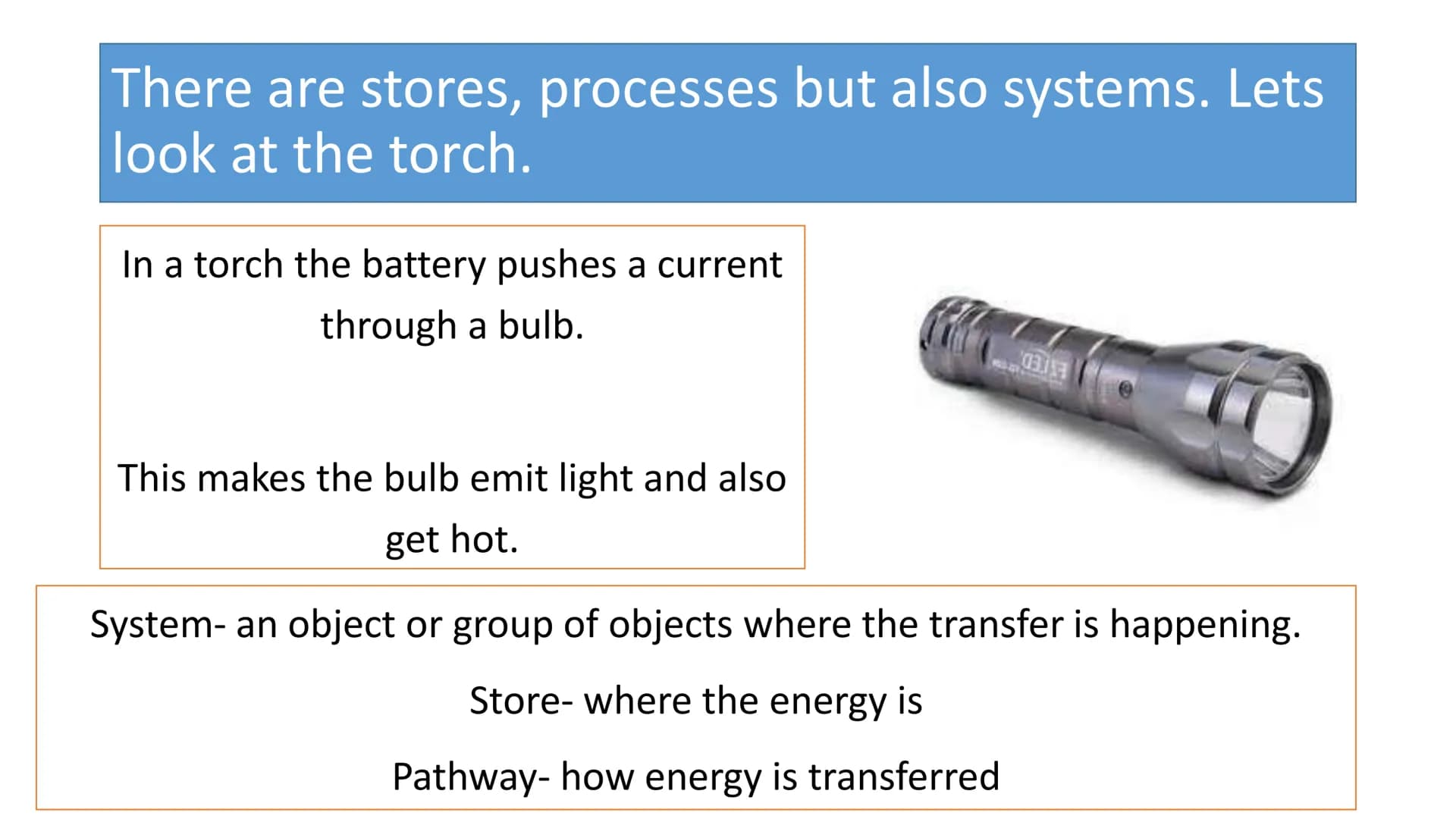

Understanding Systems, Stores, and Pathways

This page introduces the concept of systems in energy transfers, using a torch as a practical example to illustrate the interplay between energy stores and pathways. This approach helps students visualize energy transfers in real-world applications.

Key concepts:

• System: An object or group of objects where energy transfer occurs
• Store: Where energy is located
• Pathway: How energy is transferred

Example of a torch system:

• The battery (chemical energy store) pushes a current through the bulb (electrical pathway)
• The bulb emits light (radiation pathway) and heat (heating pathway)

Example: In a torch system, chemical energy in the battery is transferred electrically to the bulb, which then transfers energy through light and heat to the environment.

Highlight: Understanding the relationship between systems, stores, and pathways is crucial for analyzing energy transfers in various scenarios.

This practical example helps students connect theoretical concepts to real-world applications, enhancing their understanding of energy stores and transfers as studied in GCSE physics and KS3 science.

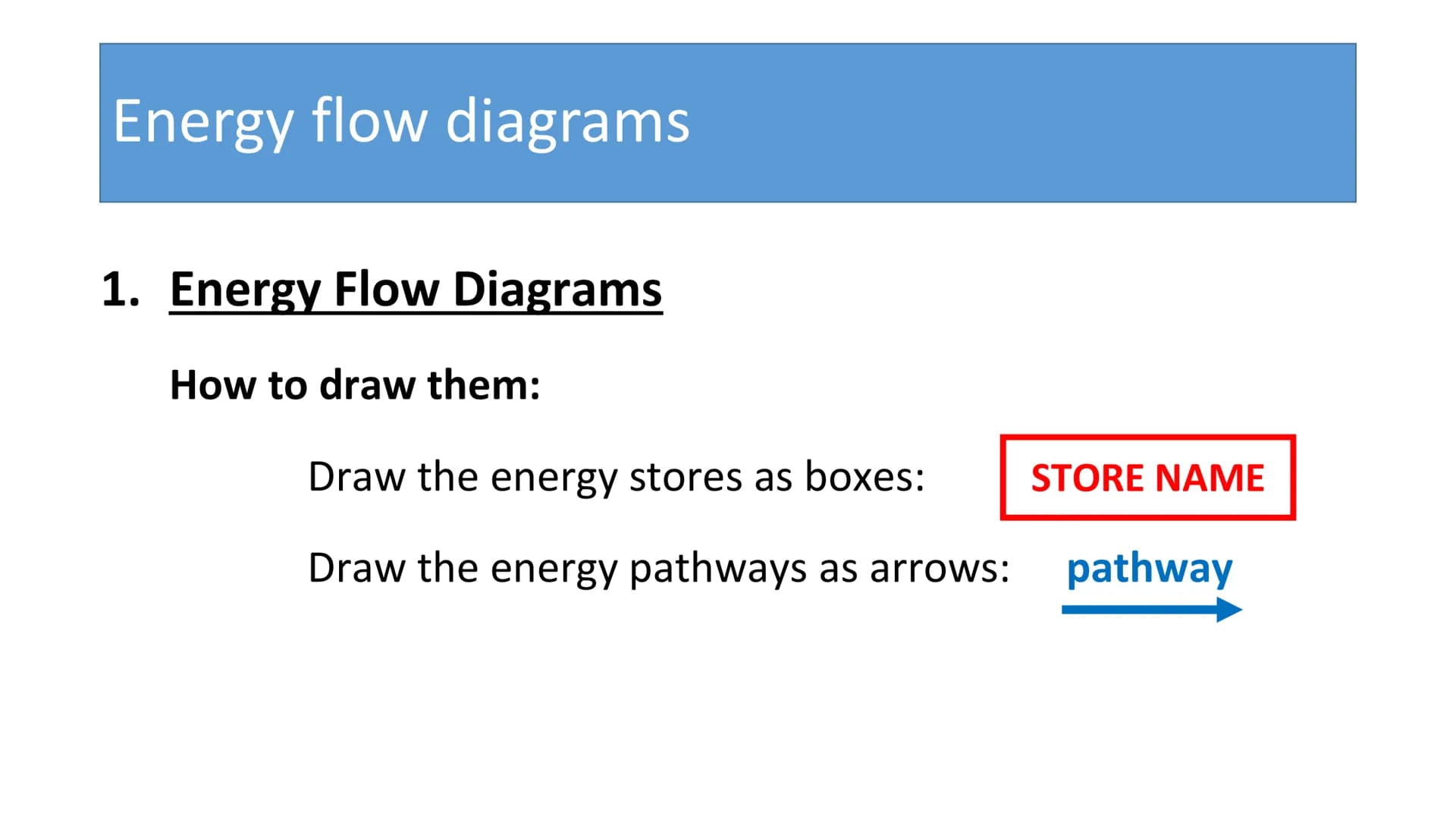

Energy Flow Diagrams

This page introduces energy flow diagrams, a vital tool for visualizing energy transfers between different stores. These diagrams are essential for students studying GCSE physics and help in understanding complex energy systems.

How to draw energy flow diagrams:

1. Represent energy stores as boxes labeled with the store name
2. Show energy pathways as arrows labeled with the transfer method

Definition: Energy flow diagrams are visual representations that show how energy is transferred between different stores within a system.

Highlight: Energy flow diagrams are crucial for analyzing and explaining energy transfers in various systems, from simple machines to complex processes.

Understanding how to create and interpret these diagrams is a key skill for students studying energy stores and transfers at the GCSE and KS3 levels. These diagrams provide a clear visual representation of energy flow, making it easier to understand and analyze complex energy systems.

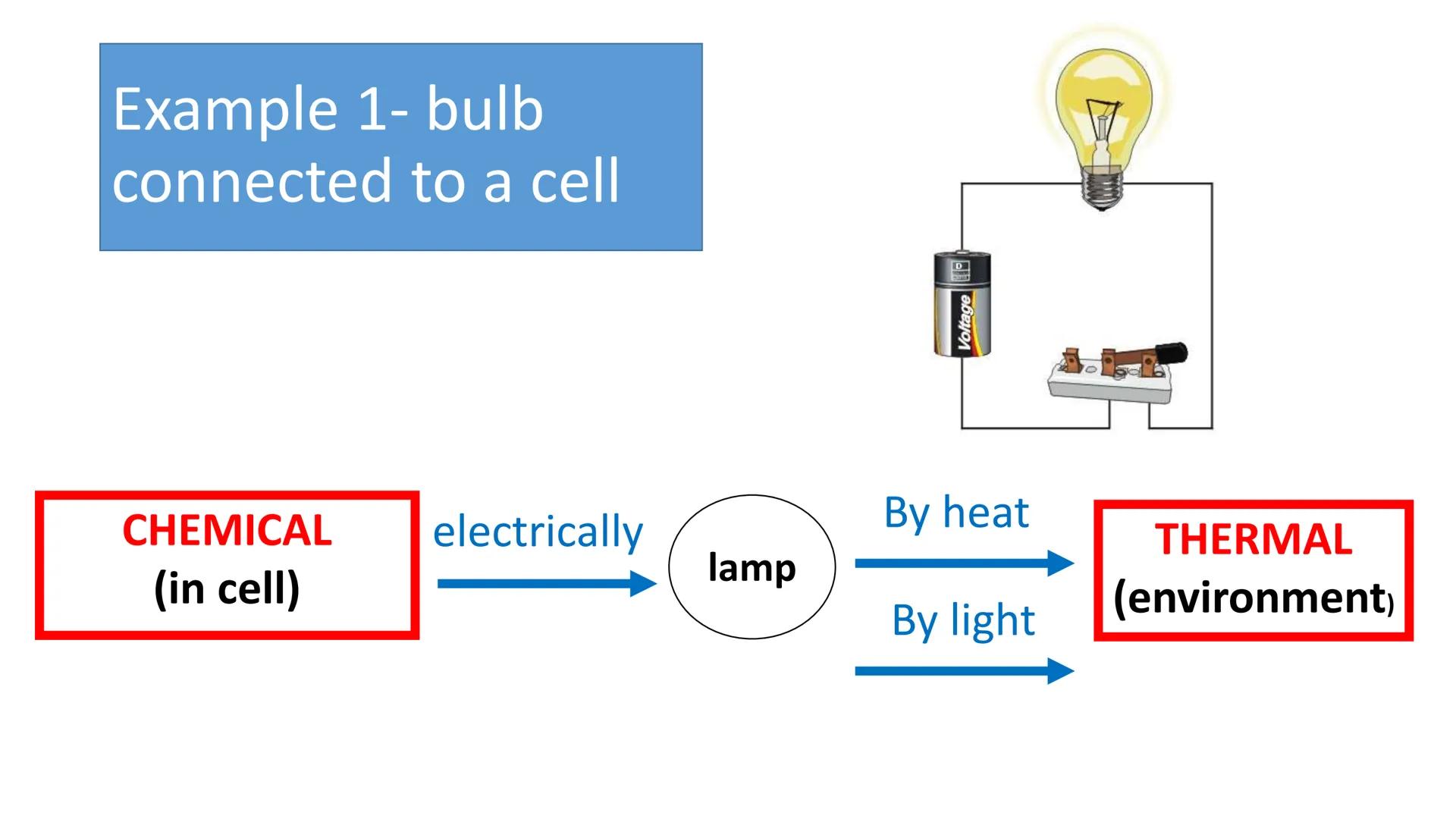

Energy Flow Diagram Example: Bulb Connected to a Cell

This page presents a practical example of an energy flow diagram, illustrating the energy transfers that occur when a bulb is connected to a cell. This example helps students apply their understanding of energy stores and pathways to a real-world scenario.

The energy flow diagram shows:

• Chemical energy store in the cell
• Electrical pathway from the cell to the lamp
• Light and heat pathways from the lamp to the environment
• Thermal energy store in the environment

Example: In this system, chemical energy from the cell is transferred electrically to the lamp, which then transfers energy to the environment through light and heat.

Highlight: This diagram clearly illustrates how energy is transferred from one store to another through different pathways, demonstrating the practical application of energy stores and transfers concepts.

This example helps students visualize energy transfers in a simple electrical system, reinforcing concepts taught in GCSE physics and KS3 science. It provides a clear illustration of how energy flow diagrams can be used to analyze and explain energy transfers in various systems.

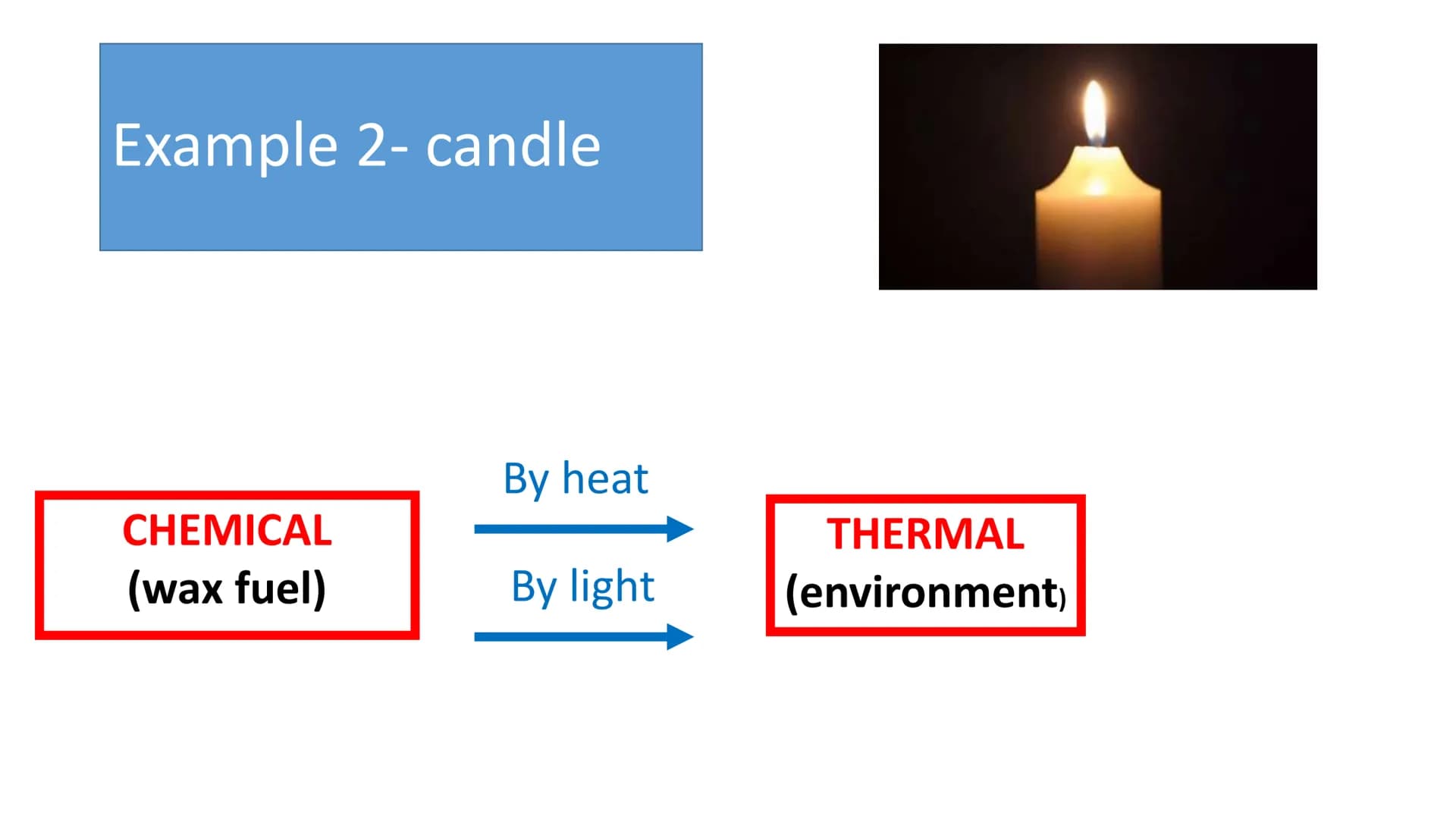

Energy Flow Diagram Example: Candle

This page presents another practical example of an energy flow diagram, this time illustrating the energy transfers that occur in a burning candle. This example helps students apply their understanding of energy stores and pathways to a different type of system, reinforcing the versatility of these concepts.

The energy flow diagram for a candle shows:

• Chemical energy store in the wax fuel
• Heat and light pathways from the burning candle to the environment
• Thermal energy store in the environment

Example: In a burning candle, chemical energy stored in the wax is transferred to the environment through heat and light pathways.

Highlight: This example demonstrates how energy transfers can occur without electrical pathways, showcasing the diversity of energy systems.

This candle example provides a contrast to the previous electrical system, helping students understand how energy stores and transfers apply to various scenarios. It reinforces the importance of chemical energy stores and thermal energy transfers, key concepts in GCSE physics and KS3 science.

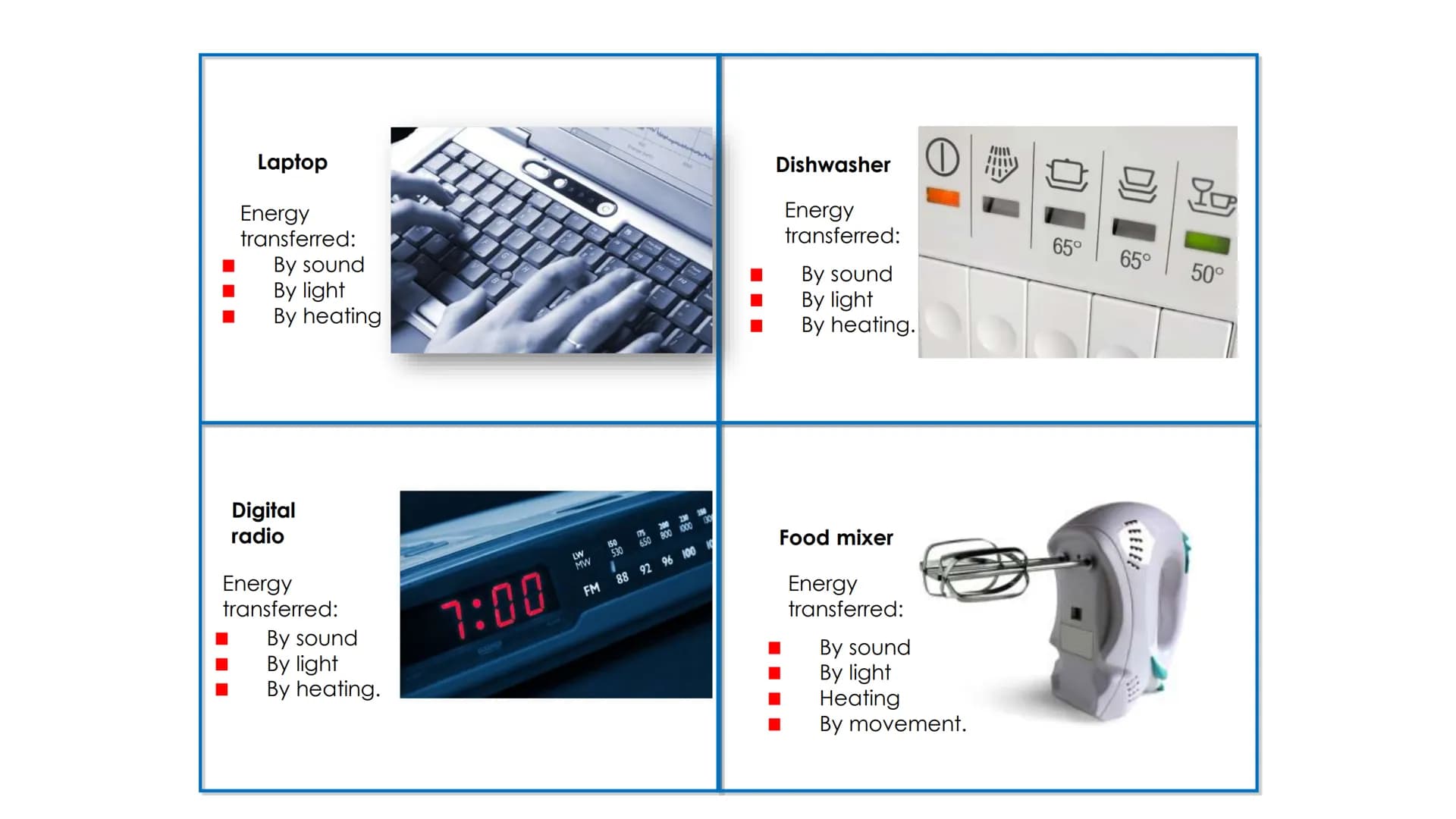

Energy Transfers in Everyday Devices

This final page presents several examples of energy transfers in common household devices, helping students connect theoretical concepts to practical applications. This approach reinforces the relevance of energy stores and transfers in everyday life.

Devices and their energy transfers:

1. Laptop: Transfers energy by sound, light, and heating
2. Digital radio: Transfers energy by sound, light, and heating
3. Dishwasher: Transfers energy by sound, light, and heating
4. Food mixer: Transfers energy by sound, light, heating, and movement

Example: A food mixer demonstrates multiple energy transfers, including mechanical energy (movement), sound, light, and heat.

Highlight: These examples show how energy transfers occur in various forms across different devices, emphasizing the ubiquity of energy transformations in daily life.

This page helps students apply their knowledge of energy stores and transfers to real-world scenarios, bridging the gap between theoretical concepts learned in GCSE physics or KS3 science and practical applications. It reinforces the idea that energy transfers are fundamental to the operation of many common devices, making the subject more relatable and engaging for students.

Energy Stores and Transfers: Introduction

This page introduces the topic of energy stores and transfers, setting the stage for a comprehensive exploration of this fundamental concept in physics. The title "Energy Stores and Transfers" is prominently displayed, indicating the focus of the content to follow. The date 26/11/2022 suggests that this information is current and relevant for students studying GCSE physics or those interested in understanding energy dynamics.

Highlight: The title "Energy Stores and Transfers" emphasizes the dual focus of this guide on both the storage and movement of energy within systems.
