Why Semiconductors Need N-Type and P-Type Doping

A comprehensive guide to n-type and p-type doping in semiconductors, exploring how semiconductor materials are modified to enhance conductivity through strategic atomic manipulation.

  • Understanding how doping affects covalent bonds in silicon through the introduction of specific group elements
  • Exploring the fundamental principles of n-type doping using group 5 atoms and p-type doping using group 3 atoms
  • Examining the role of p-n junctions in transistors and diodes and their significance in creating potential differences
  • Analyzing the electron migration process and charge buildup at semiconductor junctions
  • Investigating the formation and importance of the 0.7V potential difference in doped semiconductors
...

01/08/2022

78

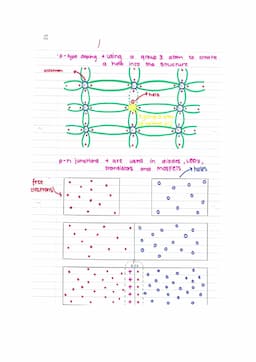

Doping covalent bond electrons, •Silicm and Germanium have 4 outer electrons which form covalent bonds with other aroms Covalent bands Si Si

View

P-Type Doping and Junction Formation

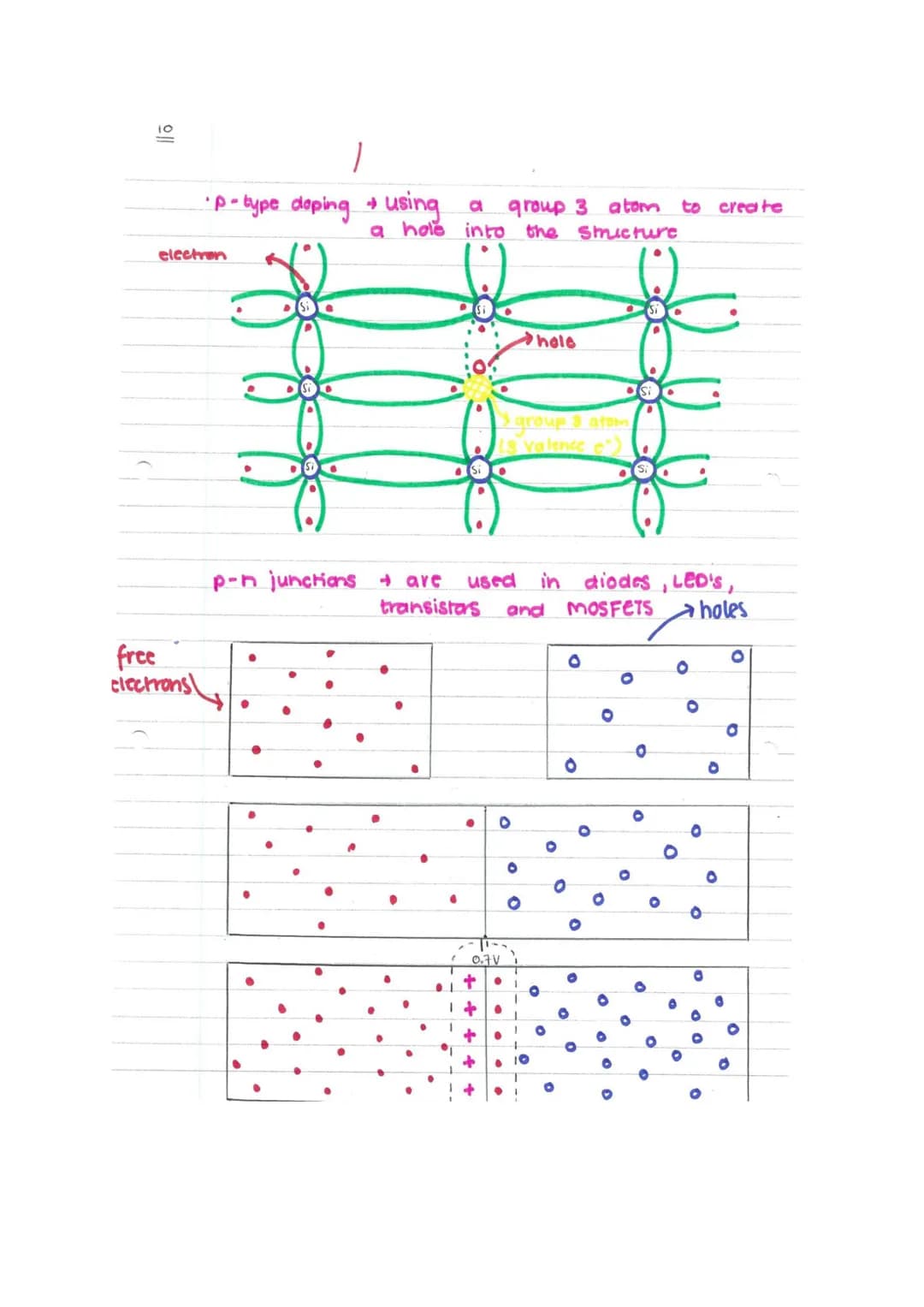

This section details the process of p-type doping and introduces the concept of p-n junctions. The formation of holes and their role in semiconductor behavior is thoroughly explained.

Definition: P-type doping occurs when group 3 atoms are introduced into the semiconductor structure, creating holes that act as charge carriers.

Highlight: P-n junctions are crucial components in various electronic devices including diodes, LEDs, transistors, and MOSFETs.

Example: When a group 3 atom is introduced into the silicon structure, it creates a hole due to having one fewer electron than silicon.

Doping covalent bond electrons, •Silicm and Germanium have 4 outer electrons which form covalent bonds with other aroms Covalent bands Si Si

View

Electron Migration and Potential Difference

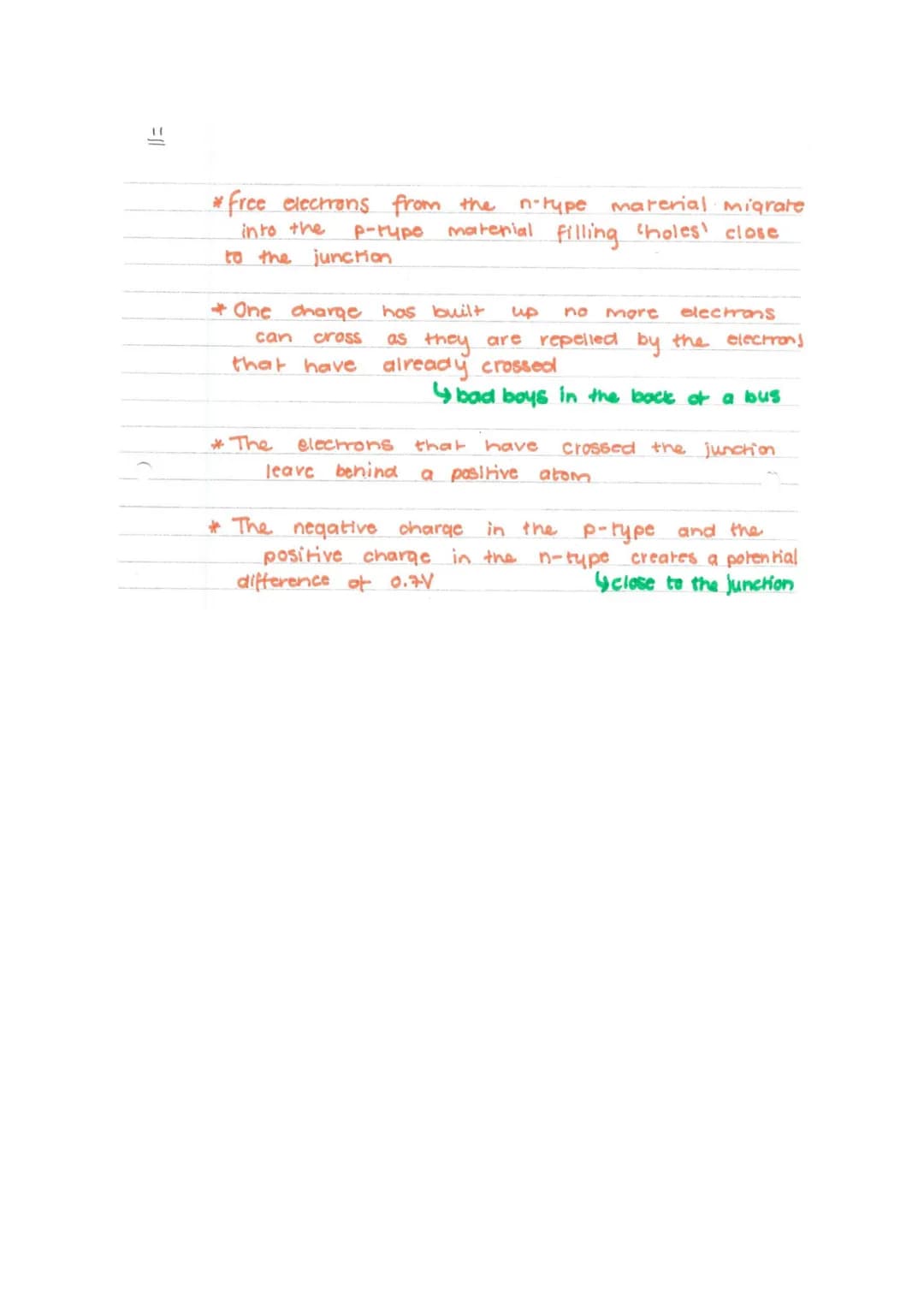

This section examines the behavior of electrons at p-n junctions and the resulting electrical characteristics. The migration of free electrons and the establishment of potential difference are key concepts.

Highlight: Free electrons from the n-type material migrate to fill holes in the p-type material near the junction.

Definition: The potential difference of 0.7V is created by the separation of charges across the p-n junction.

Example: The migration of electrons leaves behind positive atoms in the n-type region while creating negative charge in the p-type region.

Quote: "The electrons that have crossed the junction leave behind a positive atom."

Can't find what you're looking for? Explore other subjects.

Knowunity is the #1 education app in five European countries

Knowunity has been named a featured story on Apple and has regularly topped the app store charts in the education category in Germany, Italy, Poland, Switzerland, and the United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the #1 education app in five European countries

4.9+

Average app rating

21 M

Pupils love Knowunity

#1

In education app charts in 17 countries

950 K+

Students have uploaded notes

Still not convinced? See what other students are saying...

iOS User

I love this app so much, I also use it daily. I recommend Knowunity to everyone!!! I went from a D to an A with it :D

Philip, iOS User

The app is very simple and well designed. So far I have always found everything I was looking for :D

Lena, iOS user

I love this app ❤️ I actually use it every time I study.

Subjects

Physics

Electronics (a-level only)

Discrete semiconductor devices (a-level only)



Physics

•

78

•

1 Aug 2022

•

3 pages

Why Semiconductors Need N-Type and P-Type Doping

A

Amilie du Toit

@amiliedutoit_uajk

A comprehensive guide to n-type and p-type doping in semiconductors, exploring how semiconductor materials are modified to enhance conductivity through strategic atomic manipulation.

  • Understanding how doping affects covalent bonds in silicon through the introduction of specific group elements
  • Exploring... Show more

Doping covalent bond electrons, •Silicm and Germanium have 4 outer electrons which form covalent bonds with other aroms Covalent bands Si Si

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

P-Type Doping and Junction Formation

This section details the process of p-type doping and introduces the concept of p-n junctions. The formation of holes and their role in semiconductor behavior is thoroughly explained.

Definition: P-type doping occurs when group 3 atoms are introduced into the semiconductor structure, creating holes that act as charge carriers.

Highlight: P-n junctions are crucial components in various electronic devices including diodes, LEDs, transistors, and MOSFETs.

Example: When a group 3 atom is introduced into the silicon structure, it creates a hole due to having one fewer electron than silicon.

Doping covalent bond electrons, •Silicm and Germanium have 4 outer electrons which form covalent bonds with other aroms Covalent bands Si Si

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Electron Migration and Potential Difference

This section examines the behavior of electrons at p-n junctions and the resulting electrical characteristics. The migration of free electrons and the establishment of potential difference are key concepts.

Highlight: Free electrons from the n-type material migrate to fill holes in the p-type material near the junction.

Definition: The potential difference of 0.7V is created by the separation of charges across the p-n junction.

Example: The migration of electrons leaves behind positive atoms in the n-type region while creating negative charge in the p-type region.

Quote: "The electrons that have crossed the junction leave behind a positive atom."

Doping covalent bond electrons, •Silicm and Germanium have 4 outer electrons which form covalent bonds with other aroms Covalent bands Si Si

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Understanding Semiconductor Doping Fundamentals

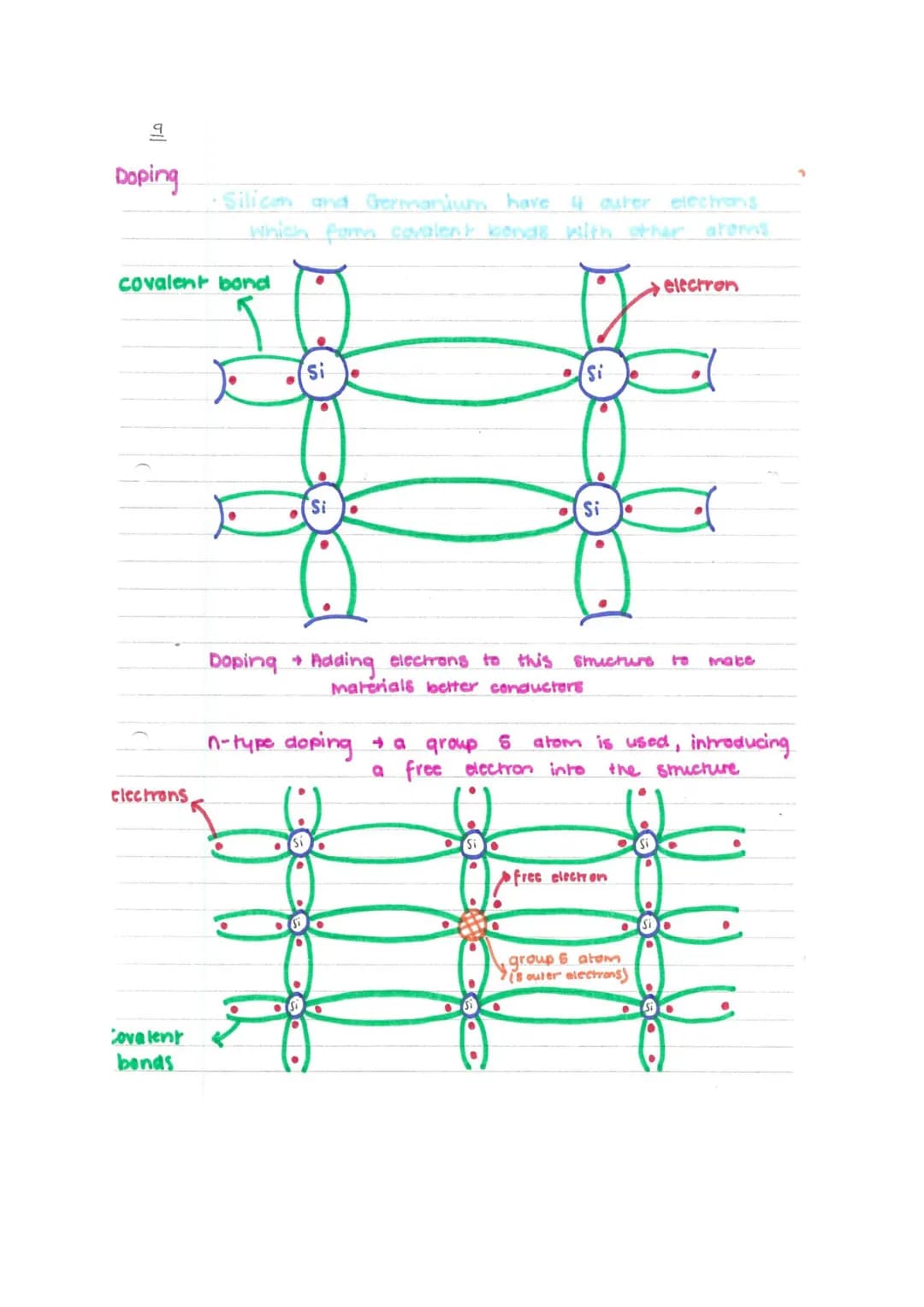

This section explores the basic principles of semiconductor doping and covalent bonding in silicon. Silicon and germanium atoms, with their four outer electrons, form covalent bonds with neighboring atoms in a crystalline structure.
