Exploring Types of Energy Sources

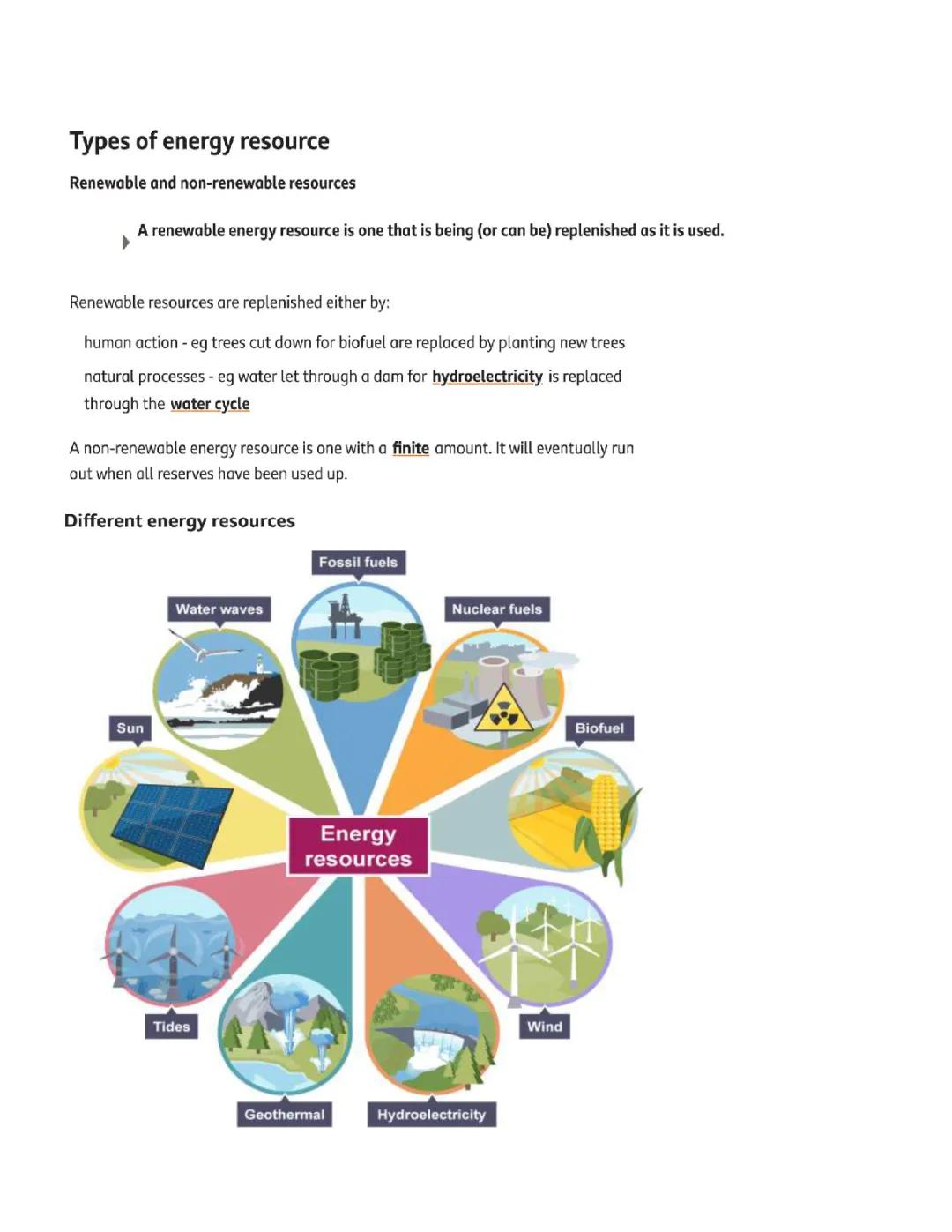

Types of Energy Resource

Think of energy resources like your phone battery - some can be recharged (renewable) whilst others eventually die out completely (non-renewable). Renewable energy resources get replenished naturally or through human action as we use them. Trees planted for biofuel grow back, and water cycles through hydroelectric dams continuously.

Non-renewable energy resources have a finite amount and will eventually run out when all reserves are used up. It's like having a limited supply of sweets that can't be replaced once you've eaten them all.

The main energy resources include fossil fuels, nuclear fuels, wind, solar, hydroelectricity, tidal, geothermal, biofuel, and water waves. Each has different advantages and environmental impacts.

Quick Check: Can you think of why understanding these differences matters for your future?

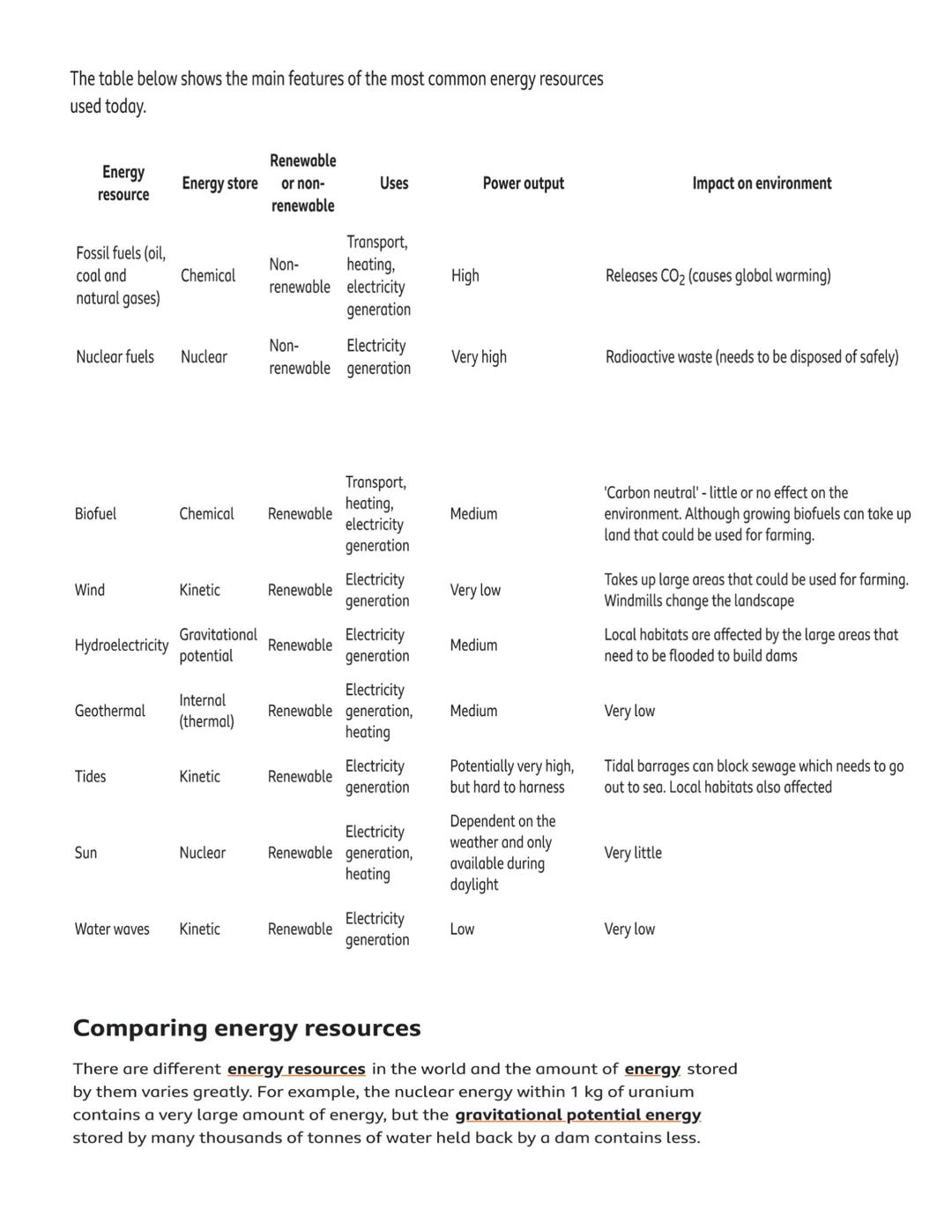

Comparing Energy Resources

Energy resources vary massively in their power output and environmental impact. Fossil fuels and nuclear fuels pack the biggest energy punch but come with serious downsides - CO₂ emissions from fossil fuels drive global warming, whilst nuclear waste stays radioactive for thousands of years.

Renewable sources like wind and solar are much cleaner but often produce less power. Wind turbines need huge areas and only work when it's windy. Solar panels only generate electricity during daylight hours.

Biofuels are considered 'carbon neutral' because they release only the CO₂ they absorbed whilst growing. However, they compete with food crops for farming land, which creates other problems.

Remember: There's no perfect energy source - each involves trade-offs between power output, cost, and environmental impact.

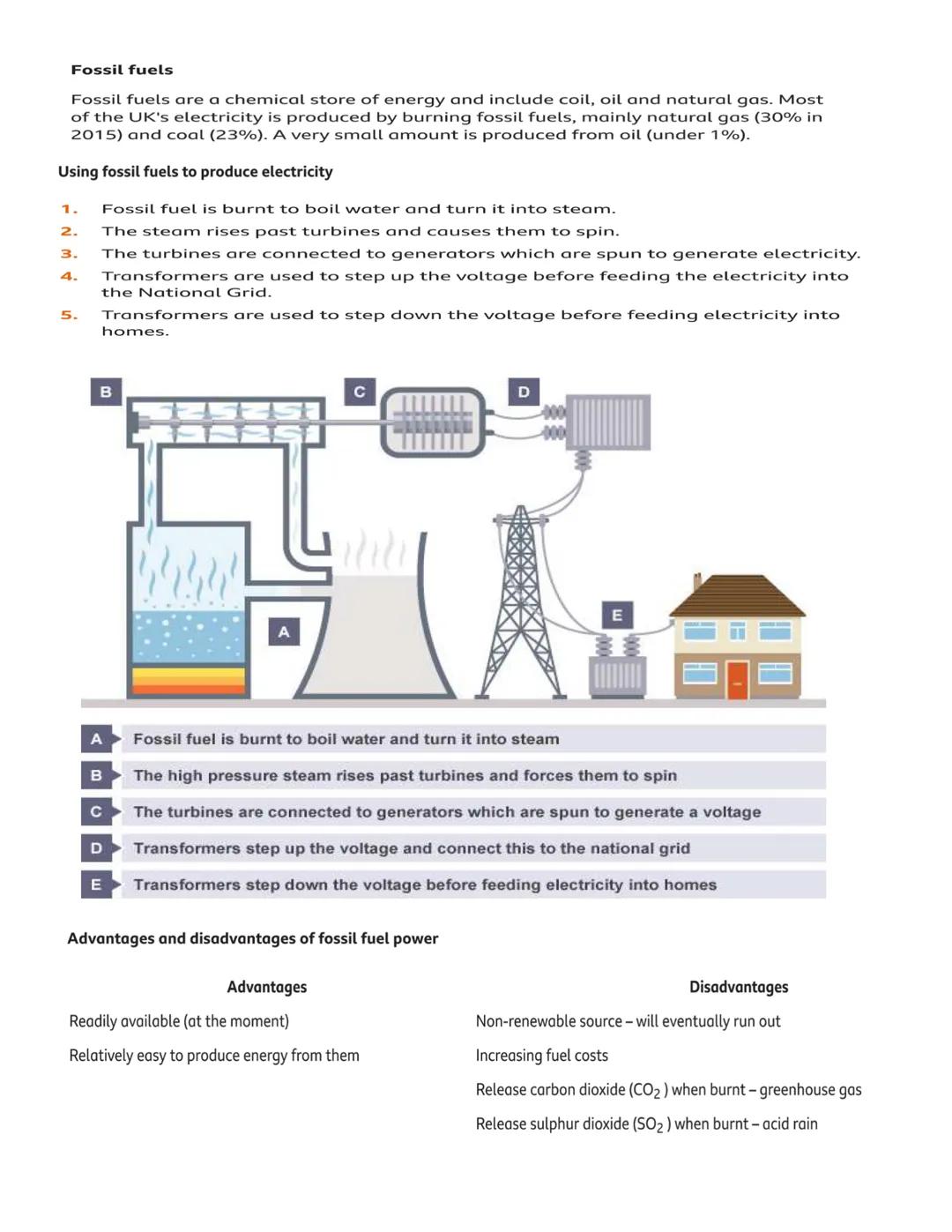

Fossil Fuels

Fossil fuels power most of the UK's electricity - about 30% from natural gas and 23% from coal. They're basically ancient plants and animals that got squashed underground for millions of years, storing massive amounts of chemical energy.

The process is straightforward: burn fossil fuel → boil water → create steam → spin turbines → generate electricity → step up voltage → send through National Grid → step down voltage → power your home.

The big advantages? They're readily available right now and relatively easy to use. But here's the problem - they're non-renewable and getting more expensive. Plus they pump out CO₂ (causing global warming) and SO₂ (creating acid rain).

This is why scientists are pushing hard for cleaner alternatives, even though fossil fuels currently dominate our energy mix.

Think About It: Every time you switch on a light, there's roughly a 50% chance it's powered by burning fossil fuels.

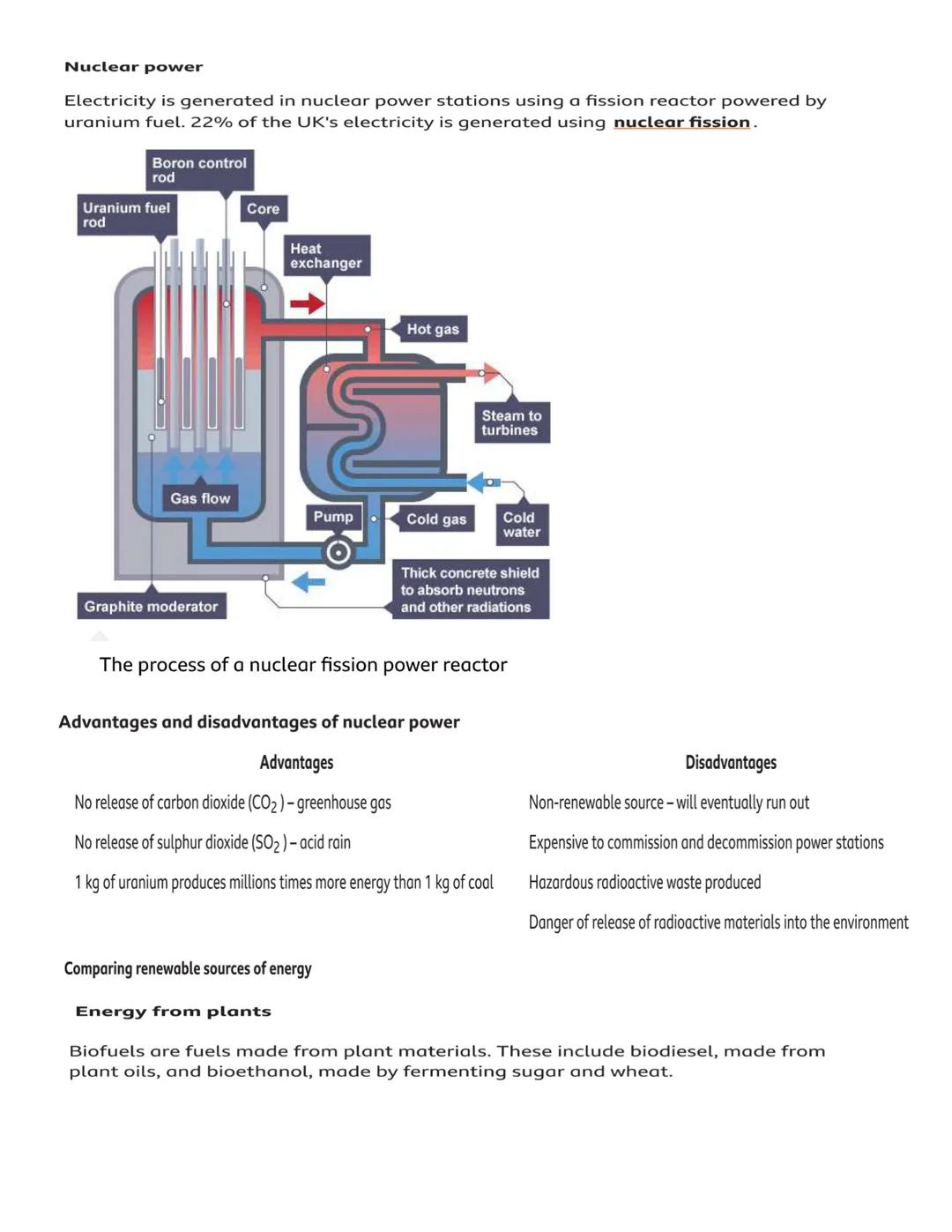

Nuclear Power

Nuclear power generates about 22% of the UK's electricity by splitting uranium atoms in a controlled chain reaction. One kilogram of uranium produces millions of times more energy than the same amount of coal - that's incredible efficiency!

The reactor uses uranium fuel rods controlled by boron rods, with a graphite moderator and thick concrete shielding. Hot gas transfers heat to water, creating steam that spins turbines just like in fossil fuel plants.

The massive advantage? No greenhouse gases or acid rain during operation. The downsides are equally significant though - radioactive waste stays dangerous for thousands of years, power stations cost billions to build and decommission, and accidents could release radiation into the environment.

Biofuels offer a renewable alternative made from plant materials like biodiesel and bioethanol, though they need significant land and labour to produce.

Key Point: Nuclear power is incredibly powerful but comes with long-term waste storage challenges that we're still figuring out.

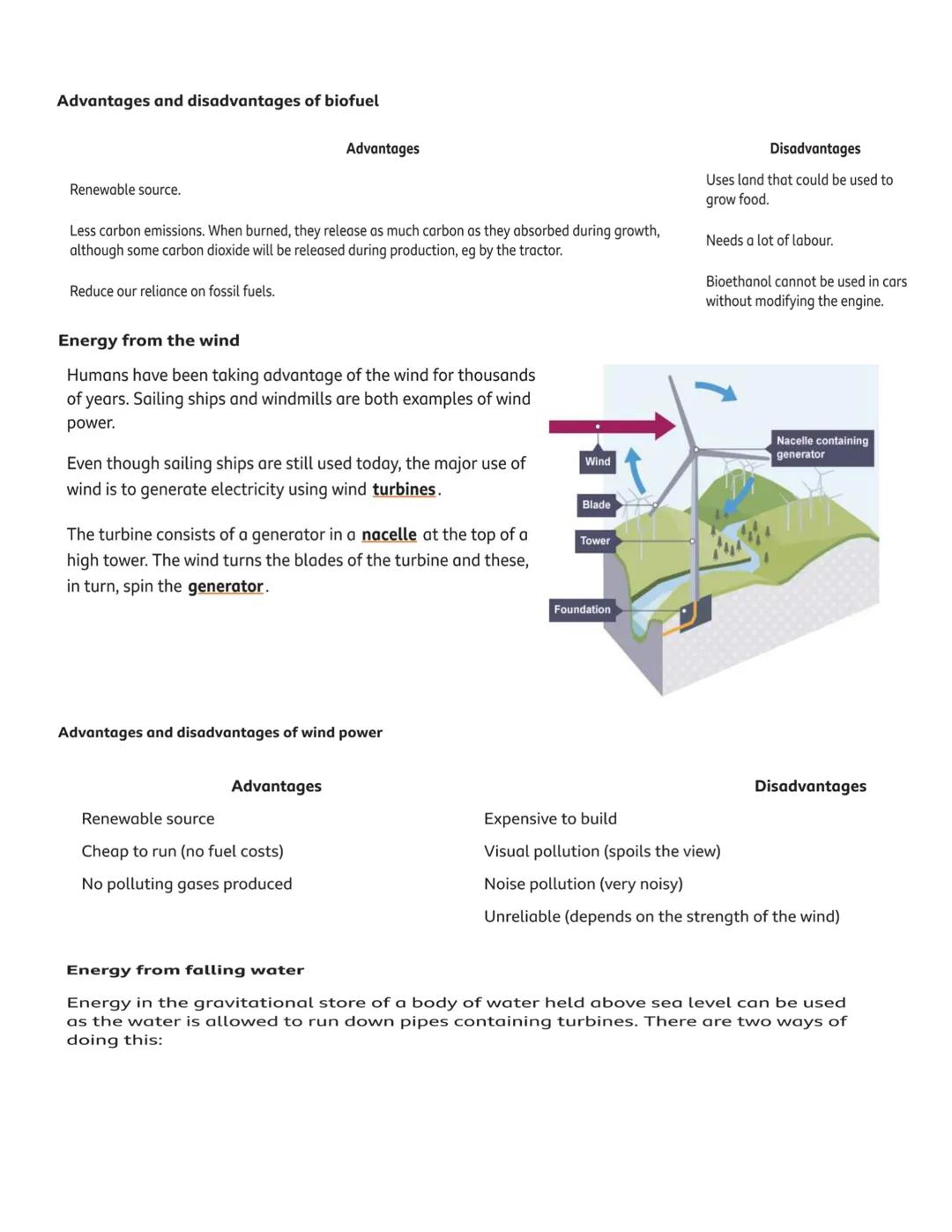

Wind and Biofuel Power

Wind power has been used for thousands of years, from sailing ships to traditional windmills. Modern wind turbines work by converting the kinetic energy of moving air into electricity through spinning generators mounted high on towers.

Wind energy is renewable, cheap to run once built, and produces no pollution. However, wind farms are expensive to construct, create visual and noise pollution, and only work when it's windy enough.

Biofuels like biodiesel and bioethanol are made from plant materials. They're renewable and produce fewer carbon emissions because plants absorb CO₂ whilst growing. The catch? They use valuable farmland that could grow food instead, need lots of labour, and sometimes require engine modifications.

Both sources help reduce our reliance on fossil fuels, but each comes with practical limitations that affect how widely they can be used.

Reality Check: Wind turbines can be as tall as 30-storey buildings and their blades can span the length of a football pitch!

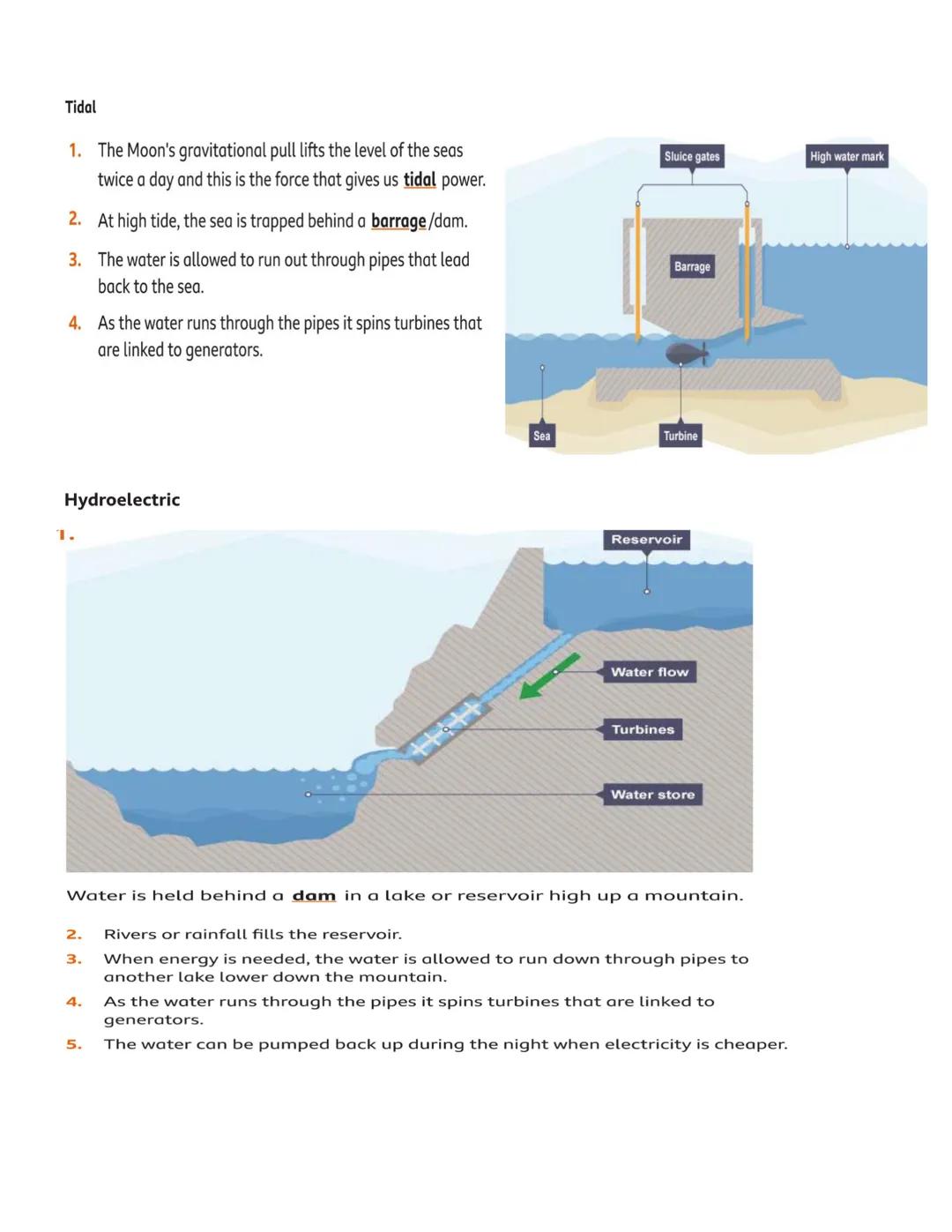

Water Power: Tidal and Hydroelectric

Tidal power harnesses the Moon's gravitational pull that lifts sea levels twice daily. At high tide, seawater gets trapped behind a barrage, then flows back through turbines as the tide goes out, spinning generators to create electricity.

Hydroelectric power works by storing water high up in reservoirs behind dams. When electricity is needed, water rushes down through pipes, spinning turbines connected to generators. The water can even be pumped back up during off-peak hours when electricity is cheaper.

Both sources are renewable, reliable, and produce no polluting gases. They can be switched on exactly when needed, unlike wind or solar power.

The environmental costs are significant though - hydroelectric dams flood entire valleys, destroying habitats, whilst tidal barrages can block sewage outflow and damage coastal ecosystems.

Interesting Fact: Some hydroelectric systems work like giant batteries, storing energy by pumping water uphill when electricity is cheap!

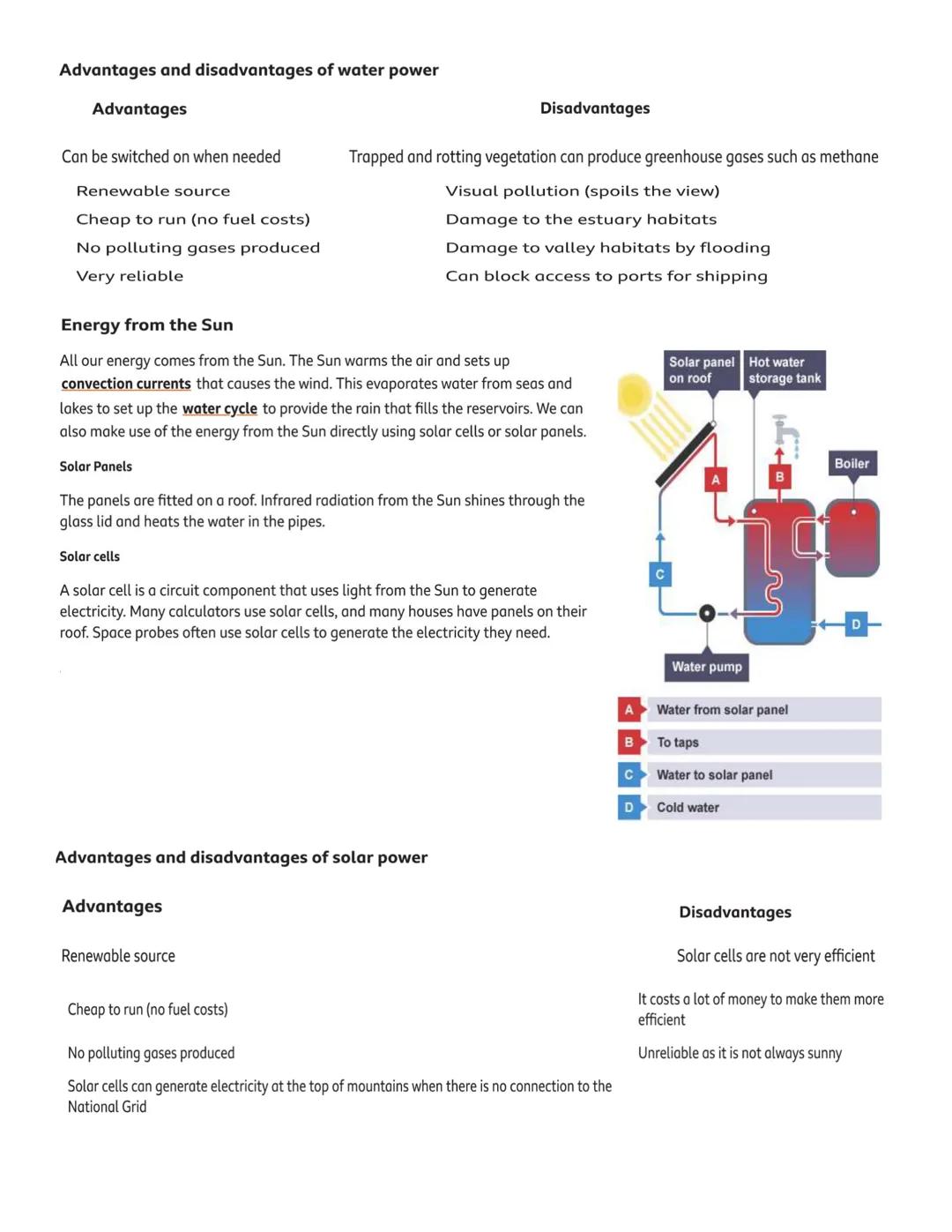

Solar Power

All our energy ultimately comes from the Sun - it drives wind patterns, the water cycle, and photosynthesis. We can harness solar energy directly through solar panels (which heat water) and solar cells (which generate electricity).

Solar panels work by letting infrared radiation heat water flowing through pipes under glass covers. Solar cells convert sunlight directly into electricity - you'll find them in calculators, on house roofs, and powering space probes where there's no connection to the National Grid.

Solar power is renewable, cheap to run, and produces no pollution. It's perfect for remote locations without electricity connections.

The problems? Solar cells aren't very efficient yet, and making them more efficient costs a fortune. They're also completely unreliable when it's cloudy or dark, which is quite often in the UK!

Tech Tip: Modern solar cells only convert about 20% of sunlight into electricity - the rest becomes waste heat.

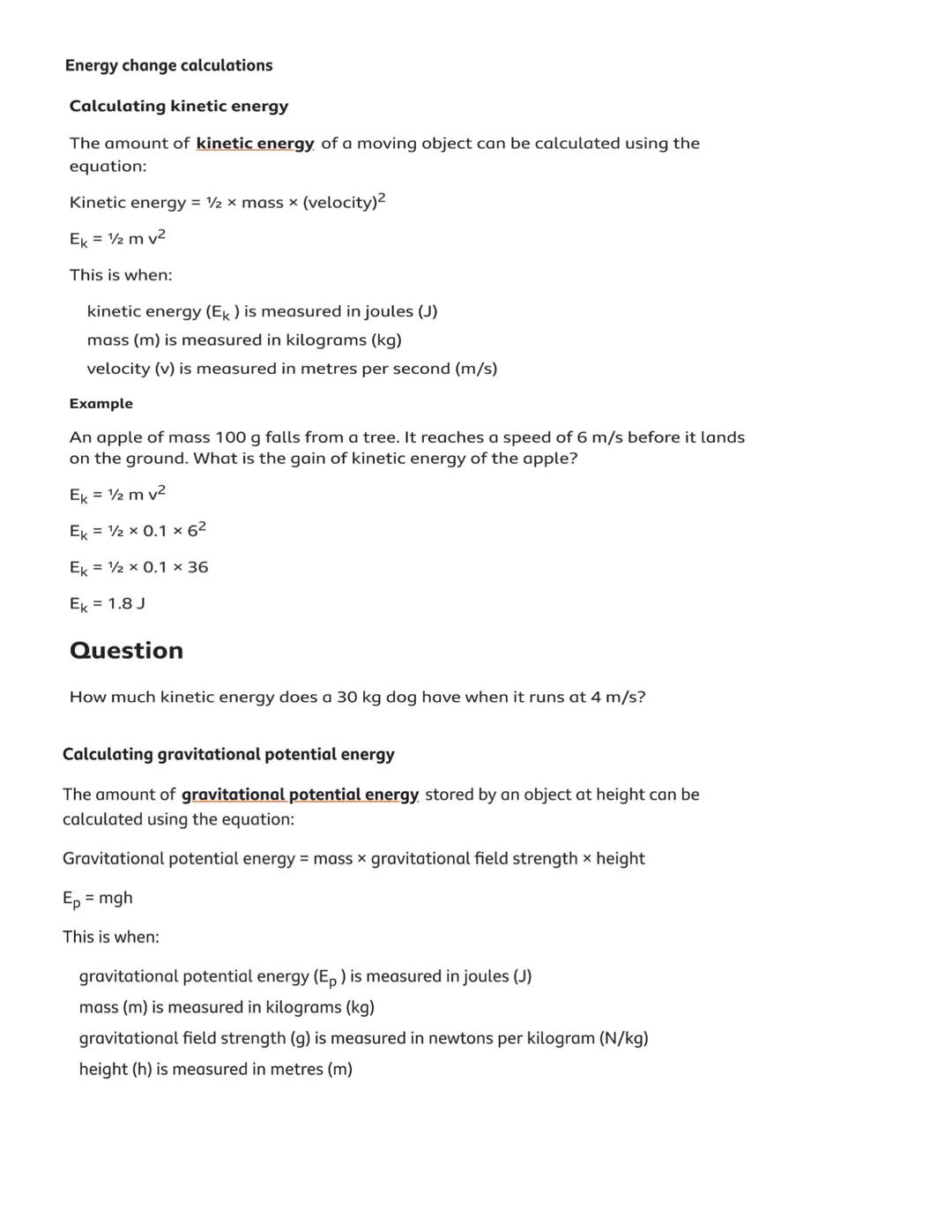

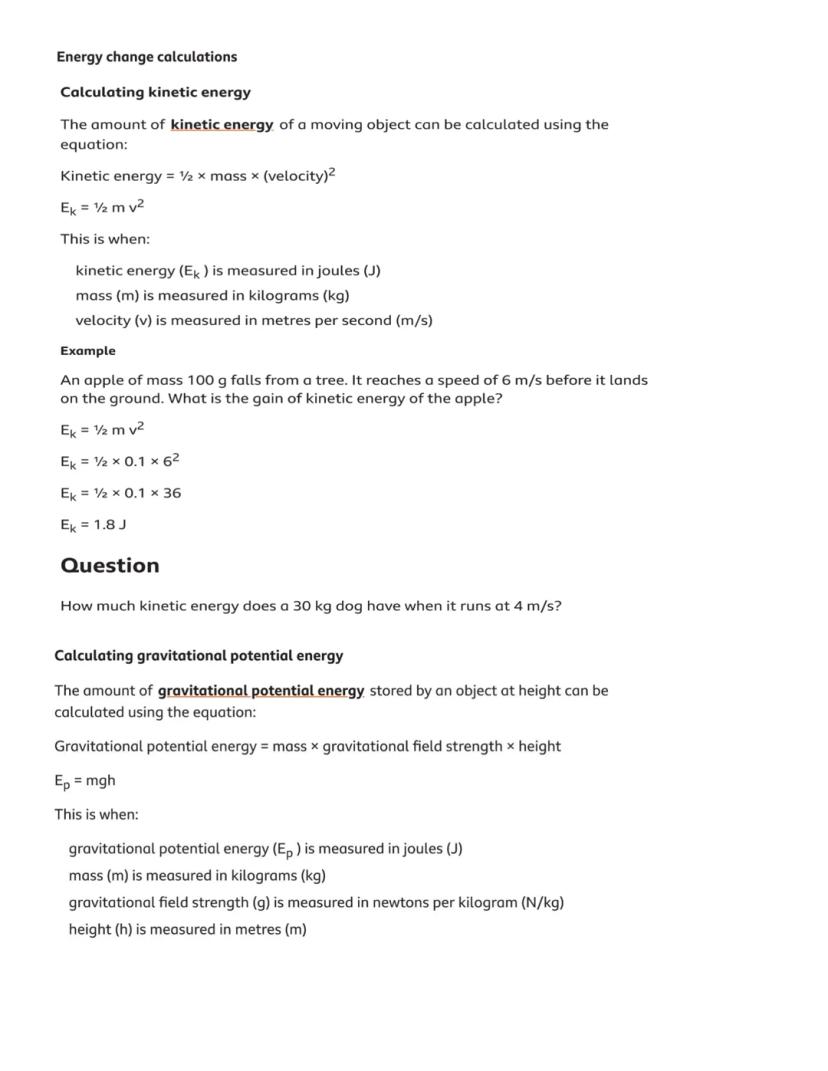

Energy Calculations: Kinetic and Potential

Understanding energy calculations helps you work out how much energy moving objects contain. Kinetic energy uses the formula: Eₖ = ½mv², where m is mass in kg and v is velocity in m/s.

For example, a 100g apple falling at 6 m/s has: Eₖ = ½ × 0.1 × 6² = 1.8 J of kinetic energy.

Gravitational potential energy uses: Eₚ = mgh, where m is mass, g is gravitational field strength (10 N/kg on Earth), and h is height in metres.

A 5 kg ball 56m high has: Eₚ = 5 × 10 × 56 = 2,800 J of potential energy.

For electrical appliances, energy transformed = power × time $E = Pt$, measured in joules when power is in watts and time in seconds.

Practice Makes Perfect: Try calculating the kinetic energy of a 30 kg dog running at 4 m/s - you should get 240 J!

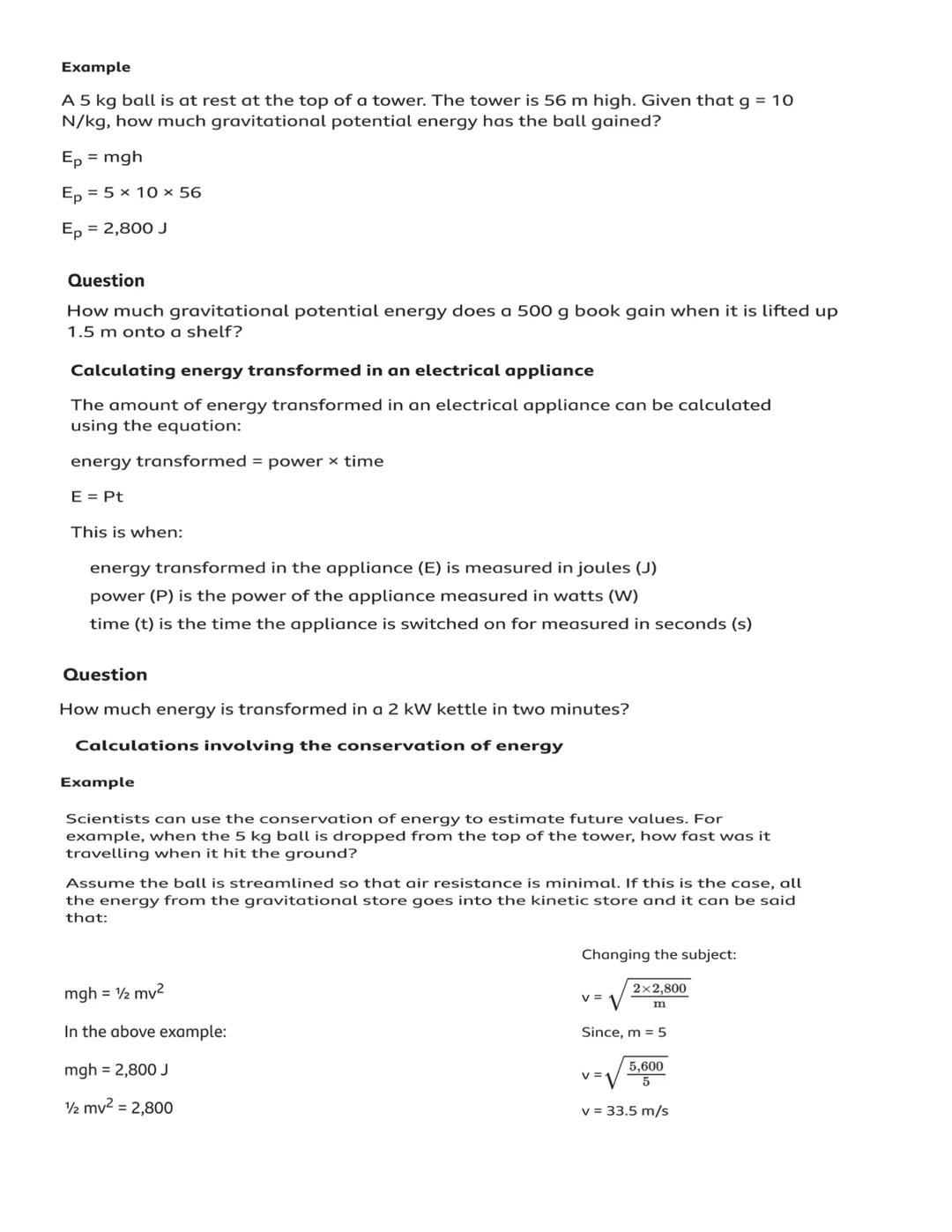

Conservation of Energy Calculations

The conservation of energy principle states that energy cannot be created or destroyed, only transferred between different stores. This lets us predict what happens when energy changes form.

When our 5 kg ball from earlier falls, all its gravitational potential energy (2,800 J) converts to kinetic energy. Using mgh = ½mv², we can calculate its speed when hitting the ground.

Rearranging gives us: v = √(2 × 2,800 ÷ 5) = 33.5 m/s

This works because we assume minimal air resistance - in reality, some energy would transfer to the surroundings as heat and sound.

You can apply this principle to any energy transfer, from electrical appliances converting electrical energy to heat, to renewable energy systems converting natural forces into electricity.

Real World: Engineers use these calculations to design everything from roller coasters to wind turbines!

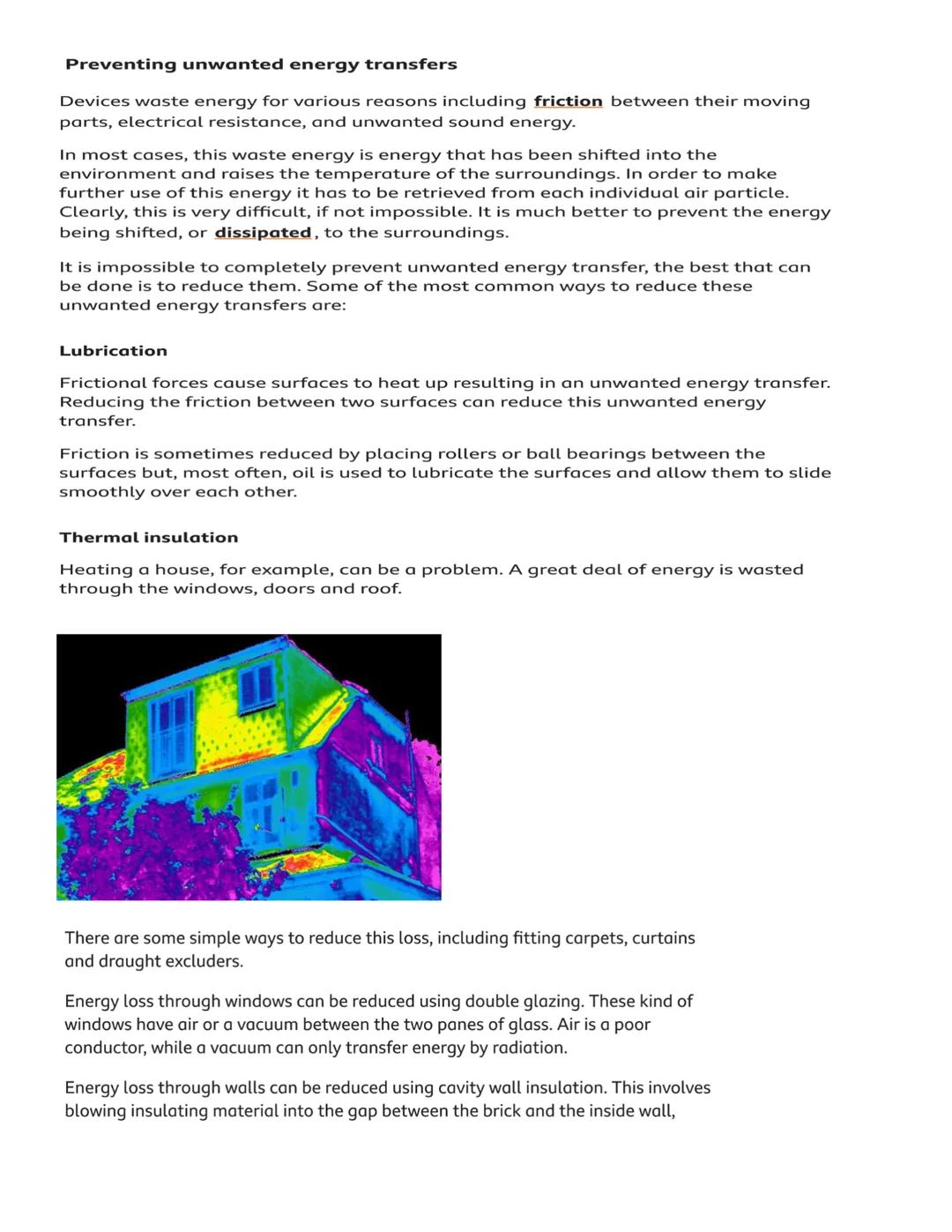

Preventing Energy Waste

All devices waste energy through friction, electrical resistance, and unwanted sound - usually ending up as heat that dissipates into the environment. Once energy spreads out like this, it's nearly impossible to capture and reuse.

Lubrication reduces friction between moving surfaces using oil, ball bearings, or rollers. Less friction means less energy wasted as heat, making machines more efficient.

Thermal insulation prevents energy loss in heated buildings. Simple solutions include carpets, curtains, and draught excluders. Double glazing uses air or vacuum between glass panes - air conducts heat poorly, whilst vacuum can only transfer energy by radiation.

Cavity wall insulation involves blowing insulating material into gaps between outer and inner walls, dramatically reducing heat loss.

While we can't completely eliminate energy waste, these methods significantly reduce unwanted energy transfers, saving money and reducing environmental impact.

Money Saver: Proper home insulation can cut heating bills by up to 40% - that's serious cash in your pocket!
