Explore the Reactivity Series with Simple Cells: Zinc and Copper Sulfate Experiment!

View

Explore the Reactivity Series with Simple Cells: Zinc and Copper Sulfate Experiment!

The reactivity series using simple cells experiment demonstrates how different metals react with solutions to produce electrical energy. This fundamental chemistry concept helps students understand the relationship between metals and their ability to displace other metals from solutions.

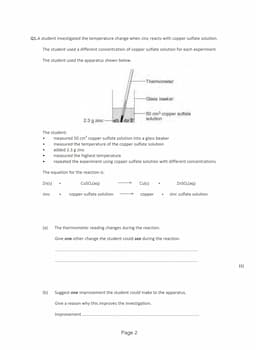

When conducting the investigating temperature change zinc copper sulfate experiment, students observe how zinc metal reacts with copper sulfate solution, creating a noticeable temperature increase. This exothermic reaction occurs because zinc is more reactive than copper, allowing it to displace copper from the sulfate solution. The blue copper sulfate solution gradually loses its color as copper metal forms, while the zinc dissolves into the solution. Temperature changes provide evidence of chemical reactions taking place, with more reactive metals generally producing greater temperature increases.

The trends in metal reactivity with sulfate solutions follow a predictable pattern based on the reactivity series. More reactive metals like magnesium and zinc readily displace less reactive metals like copper and silver from their sulfate solutions. This displacement occurs because the more reactive metals have a greater tendency to form positive ions by losing electrons. Students can observe these trends through various indicators: temperature changes, color changes in solutions, formation of metal deposits, and the speed of reactions. Understanding these patterns helps predict how different metals will behave in similar reactions and explains why certain metals are more suitable for specific applications in everyday life, such as using copper for electrical wiring or zinc for galvanizing steel.

Key points:

  • More reactive metals displace less reactive metals from solutions
  • Temperature changes indicate reaction strength
  • Color changes help track reaction progress
  • Reaction speed varies with metal reactivity
  • Understanding reactivity helps predict chemical behavior

25/11/2022

362

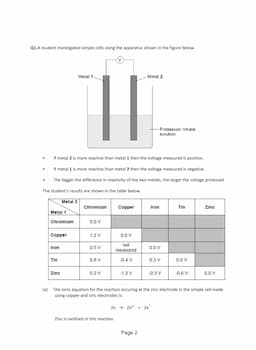

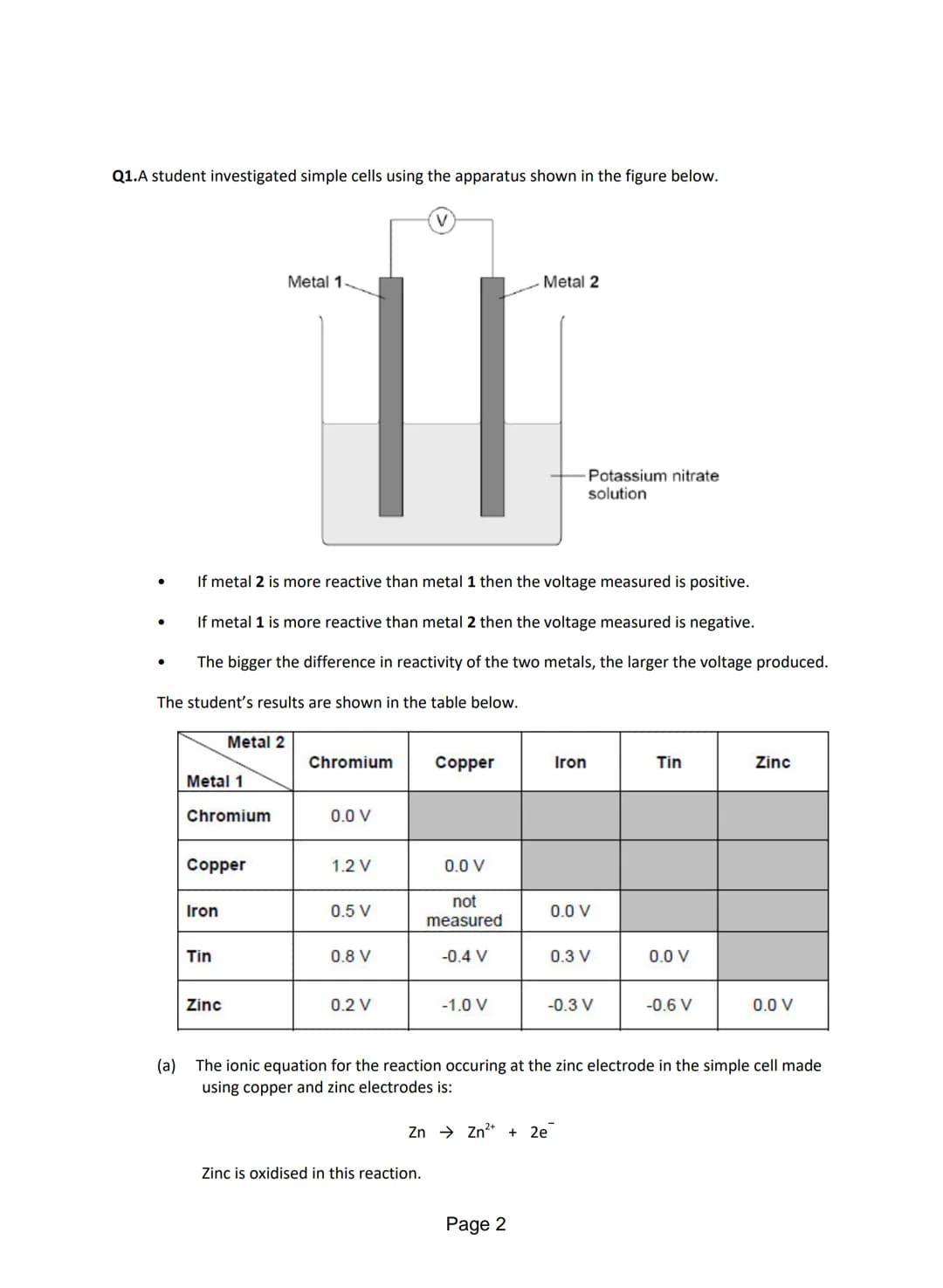

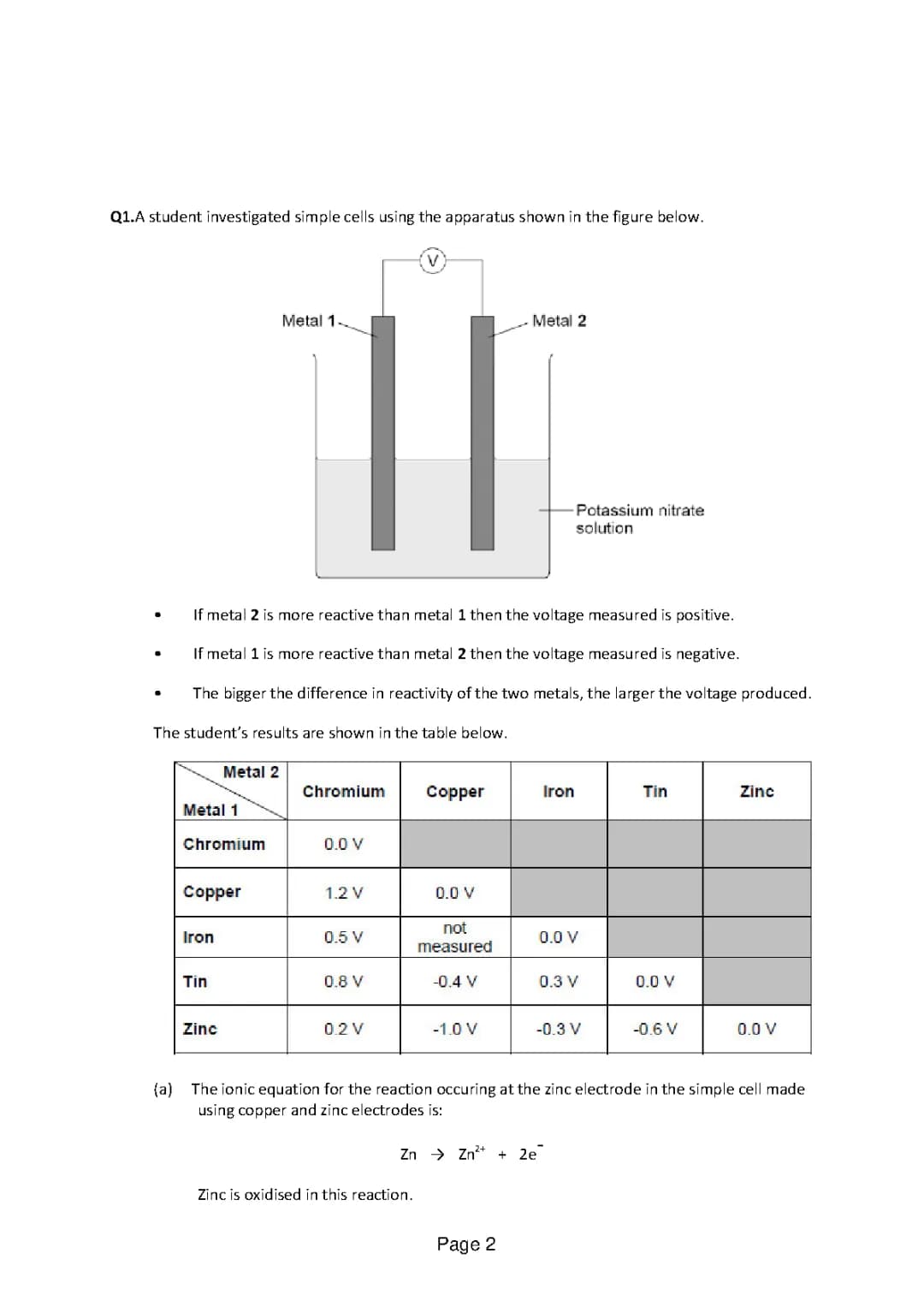

Q1.A student investigated simple cells using the apparatus shown in the figure below.
●
The student's results are shown in the table below.

View

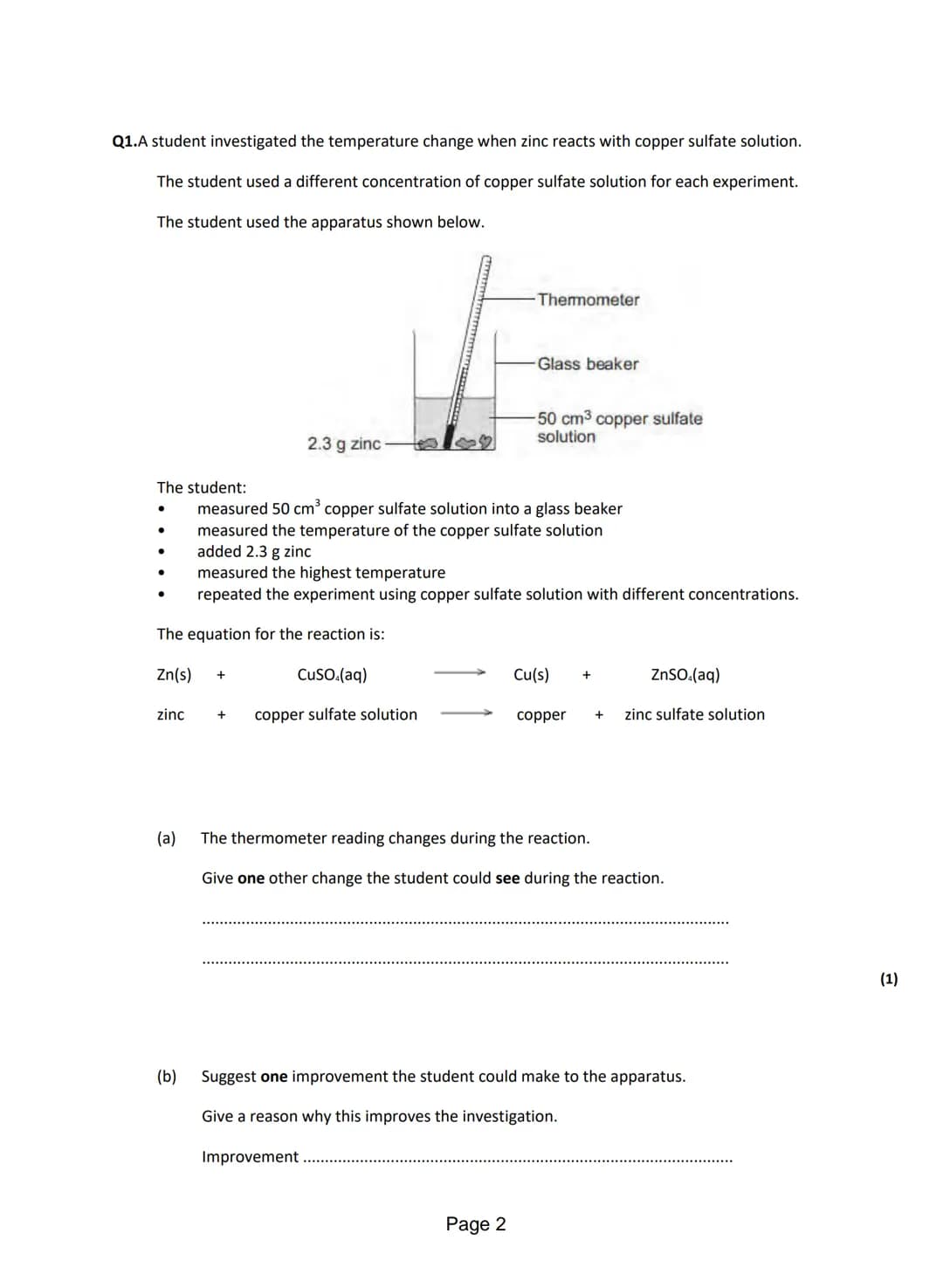

Analyzing Trends in Copper Sulfate Reaction

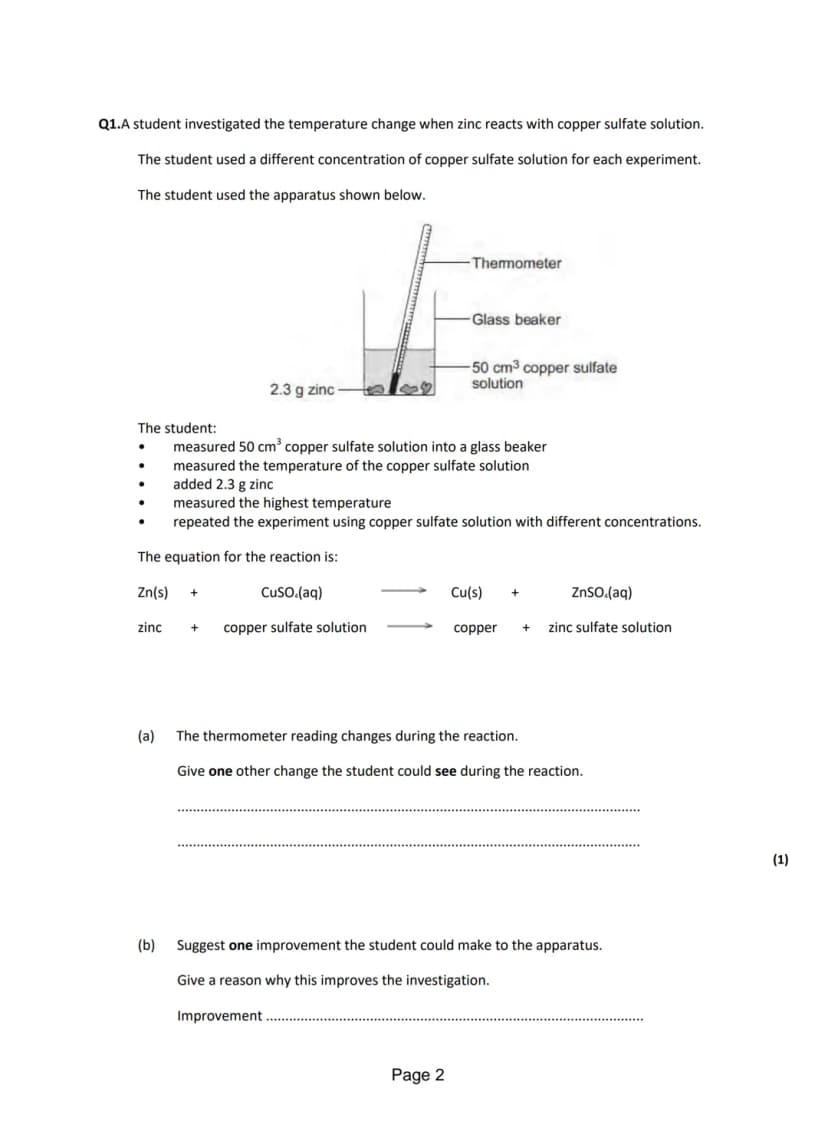

This page focuses on analyzing results from the zinc-copper sulfate reaction at different concentrations.

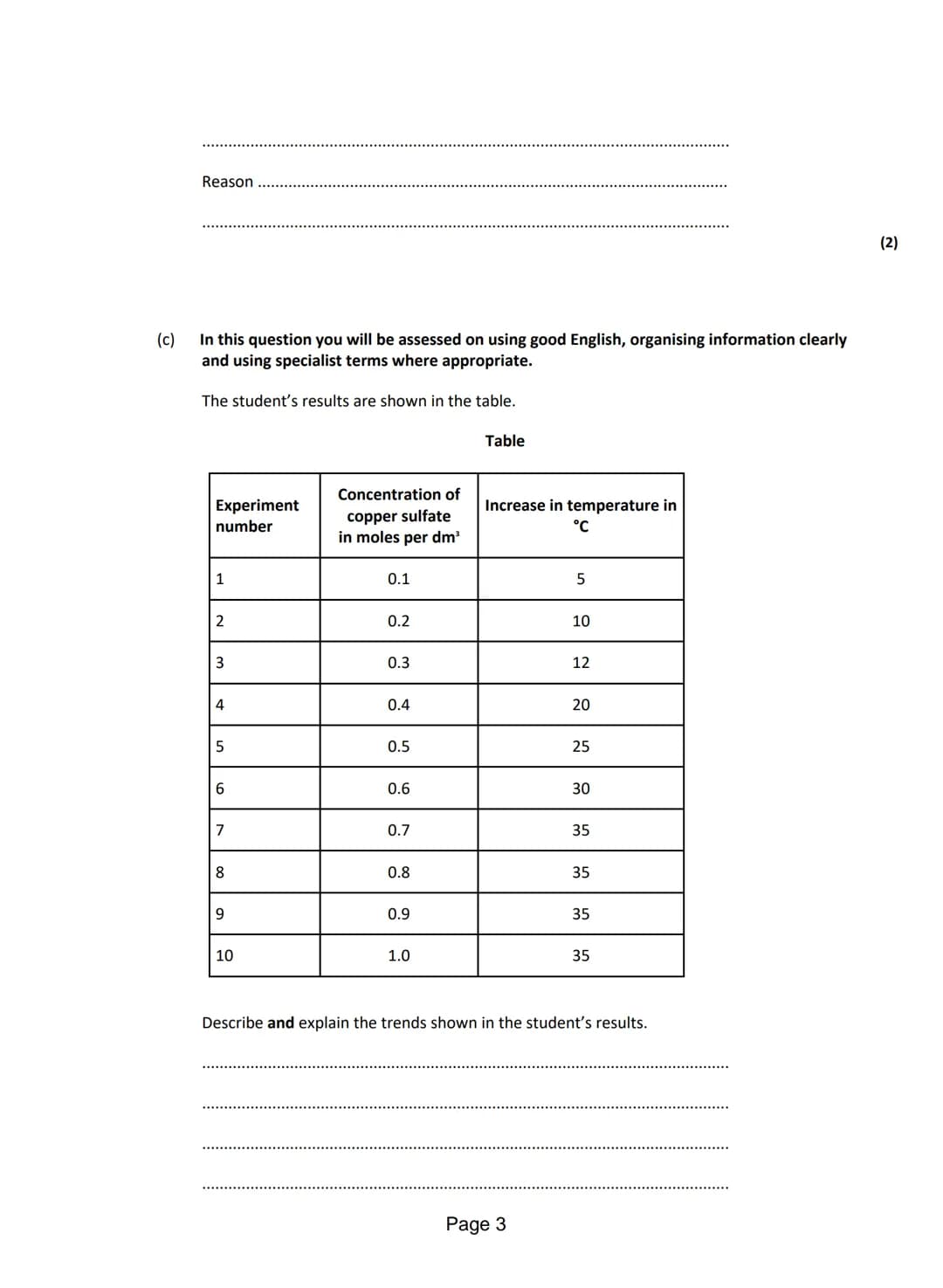

A table is presented showing the temperature increase for copper sulfate concentrations ranging from 0.1 to 1.0 mol/dm³. Students are asked to describe and explain the trends in the data.

Highlight: The temperature increase rises with concentration up to 0.7 mol/dm³, then plateaus at 35°C for higher concentrations.

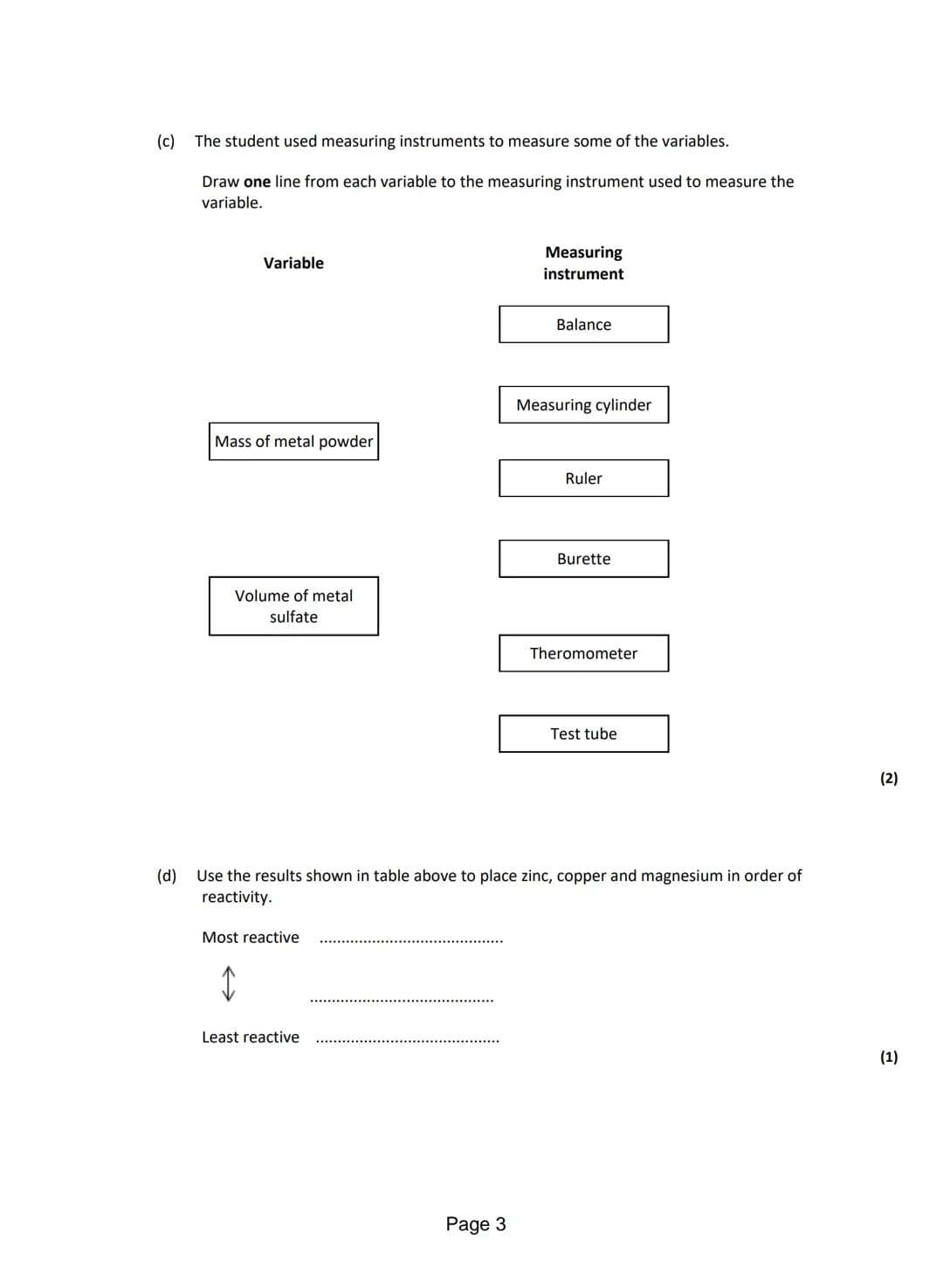

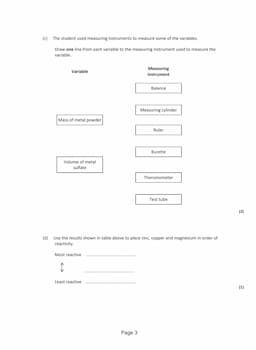

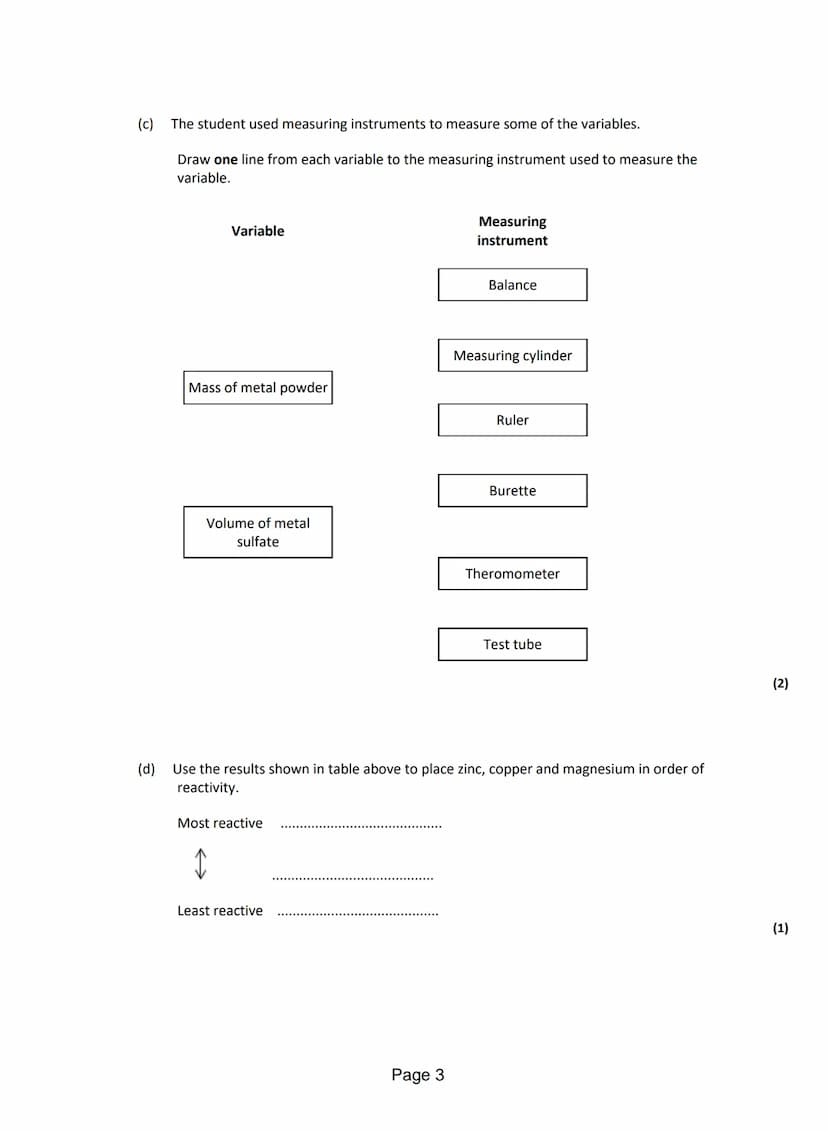

The page also covers proper measurement techniques, asking students to match variables like mass and volume to appropriate measuring instruments.

Lastly, students use the reactivity data from the previous metal sulfate experiments to order zinc, copper, and magnesium by reactivity.

This section emphasizes data analysis, trend identification, and drawing conclusions from experimental results.

Q1.A student investigated simple cells using the apparatus shown in the figure below.
●
The student's results are shown in the table below.

View

Investigating Metal Reactivity Through Temperature Changes and Simple Cells

Overall Summary When investigating reactivity series using simple cells experiment, students can observe fascinating chemical reactions between different metals and solutions. The temperature changes and voltage measurements provide valuable data about metal reactivity patterns.

Understanding the reaction between zinc and copper sulfate solution demonstrates key principles of metal displacement reactions. When investigating temperature change zinc copper sulfate, students can observe both physical and chemical changes including color changes, temperature increases, and the formation of solid copper.

Definition: Metal reactivity refers to how readily a metal will react with other substances, particularly in displacement reactions where a more reactive metal will displace a less reactive metal from its compounds.

The investigation of trends in metal reactivity with sulfate solutions reveals important patterns. When a more reactive metal is placed in a solution containing ions of a less reactive metal, a displacement reaction occurs. This can be observed through:

  • Temperature changes
  • Color changes in the solution
  • Formation of solid metal deposits
  • Changes in the metal's appearance

Example: When zinc metal is added to blue copper sulfate solution:

  • The solution temperature increases
  • The blue color fades as copper ions are displaced
  • Reddish-brown copper metal forms
  • The zinc gradually dissolves

For accurate results when conducting these experiments, several experimental controls are important:

  • Using consistent amounts of reactants
  • Maintaining uniform conditions
  • Using appropriate measuring equipment
  • Recording observations systematically
  • Following proper safety procedures
Q1.A student investigated simple cells using the apparatus shown in the figure below.
●
The student's results are shown in the table below.

View

Understanding Simple Cells and Electrochemical Series

The investigation of simple cells provides insight into the relative reactivity of different metals through voltage measurements. When two different metals are connected through an electrolyte solution, an electrical potential difference is generated based on their relative positions in the reactivity series.

Vocabulary: A simple cell consists of two different metal electrodes immersed in an electrolyte solution, producing electrical energy through oxidation-reduction reactions.

The voltage produced in these cells follows clear patterns:

  • More reactive metals tend to be oxidized (lose electrons)
  • Less reactive metals tend to be reduced (gain electrons)
  • Larger differences in reactivity produce higher voltages
  • The direction of electron flow indicates relative reactivity

Highlight: The magnitude of the voltage produced directly correlates with the difference in reactivity between the two metals used in the cell.

Practical applications of this understanding include:

  • Design of batteries and fuel cells
  • Corrosion prevention
  • Metal extraction processes
  • Electroplating techniques

These electrochemical principles demonstrate how chemical energy can be converted to electrical energy through controlled redox reactions. Understanding these relationships helps explain both natural phenomena and technological applications in our daily lives.

Q1.A student investigated simple cells using the apparatus shown in the figure below.
●
The student's results are shown in the table below.

View

Blast Furnace and Iron Extraction

This final page focuses on the blast furnace process for extracting iron from its ore.

A diagram of a blast furnace is provided, showing the inputs of iron ore (haematite), limestone (calcium carbonate), and coke (carbon). Students complete a word equation for the thermal decomposition of calcium carbonate in the furnace.

Example: Calcium carbonate → Calcium oxide + Carbon dioxide

The page emphasizes understanding the chemical processes occurring in industrial metal extraction, connecting classroom concepts to large-scale metallurgy.

This section reinforces earlier topics on metal reactivity and reduction, applying them to an important industrial process.

Q1.A student investigated simple cells using the apparatus shown in the figure below.
●
The student's results are shown in the table below.

View

Electrochemistry and Redox Reactions

This page delves deeper into electrochemistry concepts related to the simple cell experiments.

Students are asked to:

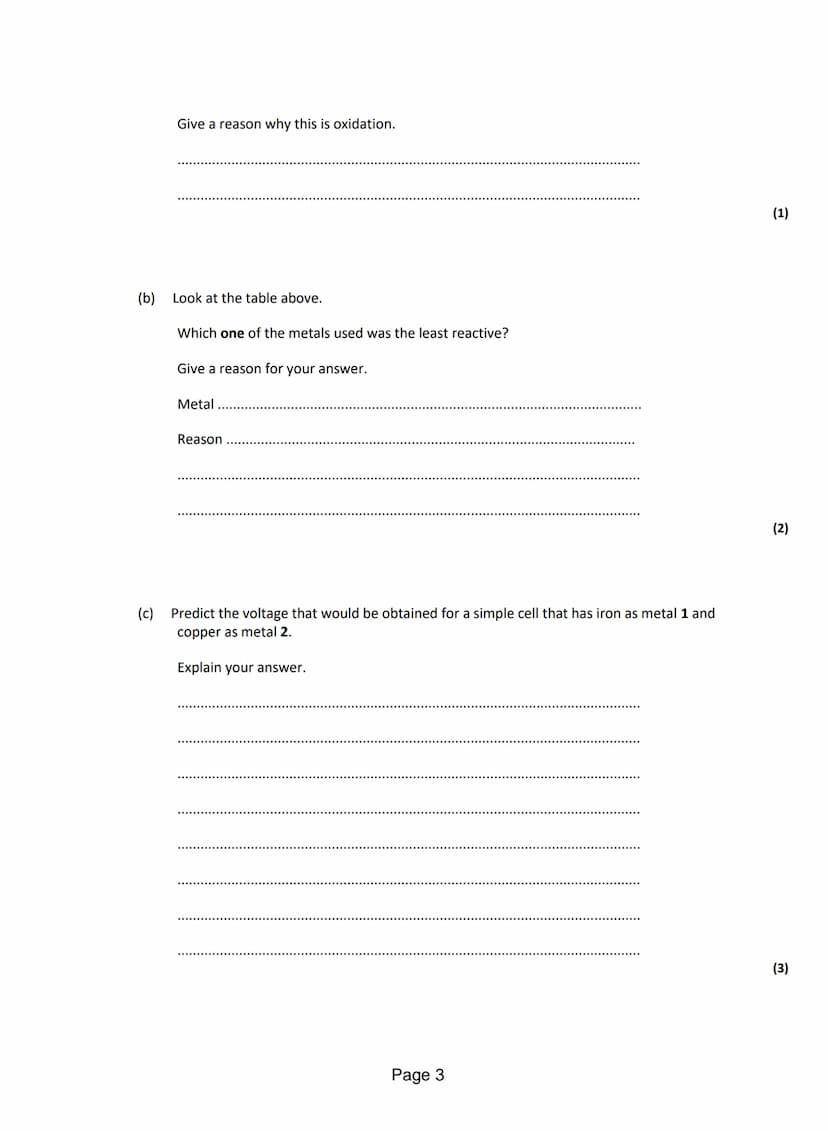

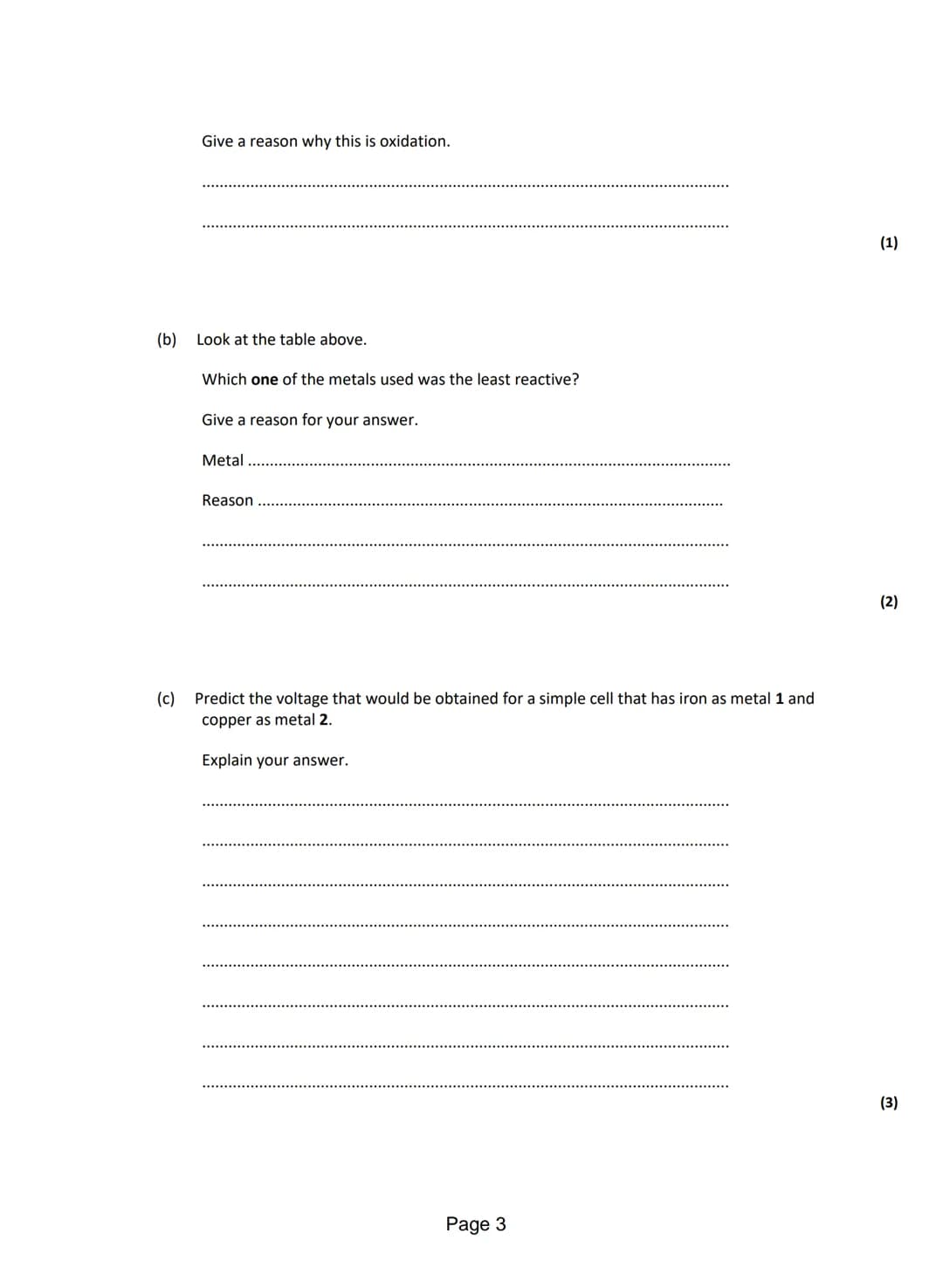

  • Explain why the zinc reaction in the zinc-copper cell is an oxidation
  • Identify the least reactive metal from the experimental data
  • Predict the voltage for an iron-copper cell based on the data

Definition: Oxidation - Loss of electrons by a substance in a chemical reaction.

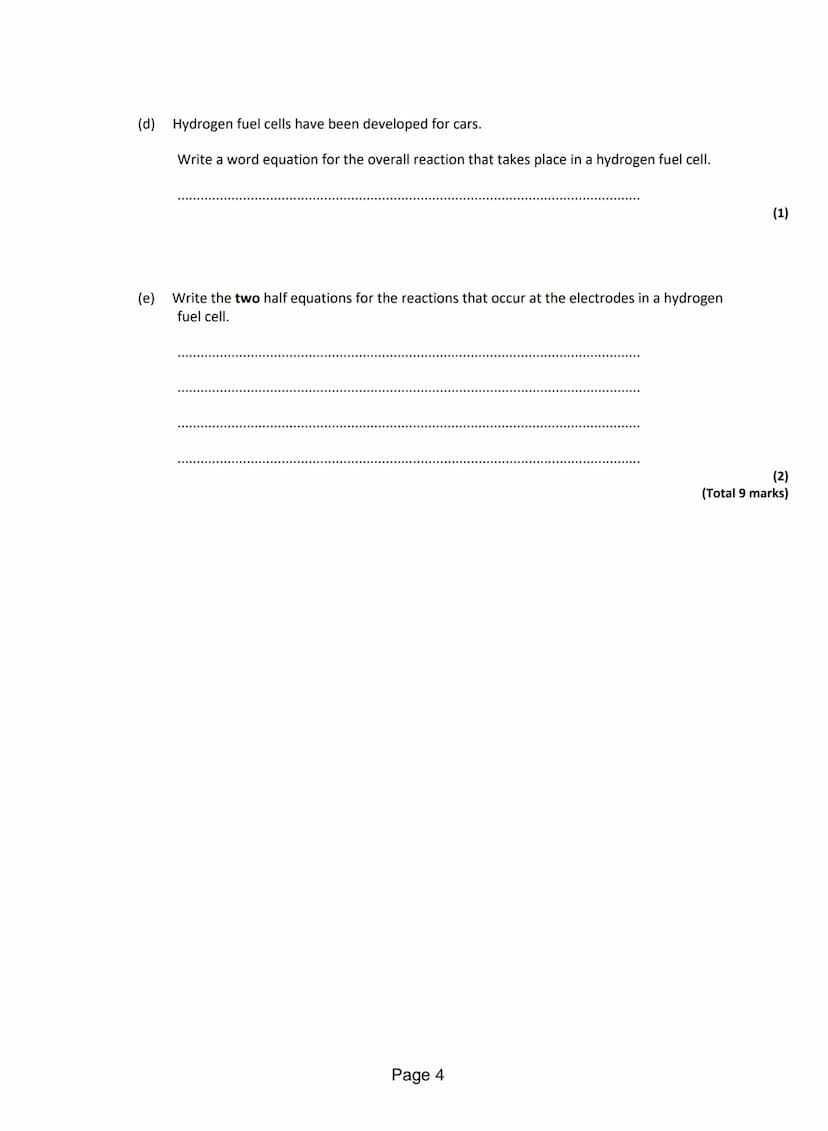

The page then transitions to discussing hydrogen fuel cells:

  • Students write the overall word equation for a hydrogen fuel cell reaction
  • They also write the half equations for reactions at each electrode

This section connects the simple cell experiments to more advanced electrochemistry applications, reinforcing understanding of redox reactions and electrochemical cells.

Q1.A student investigated simple cells using the apparatus shown in the figure below.
●
The student's results are shown in the table below.

View

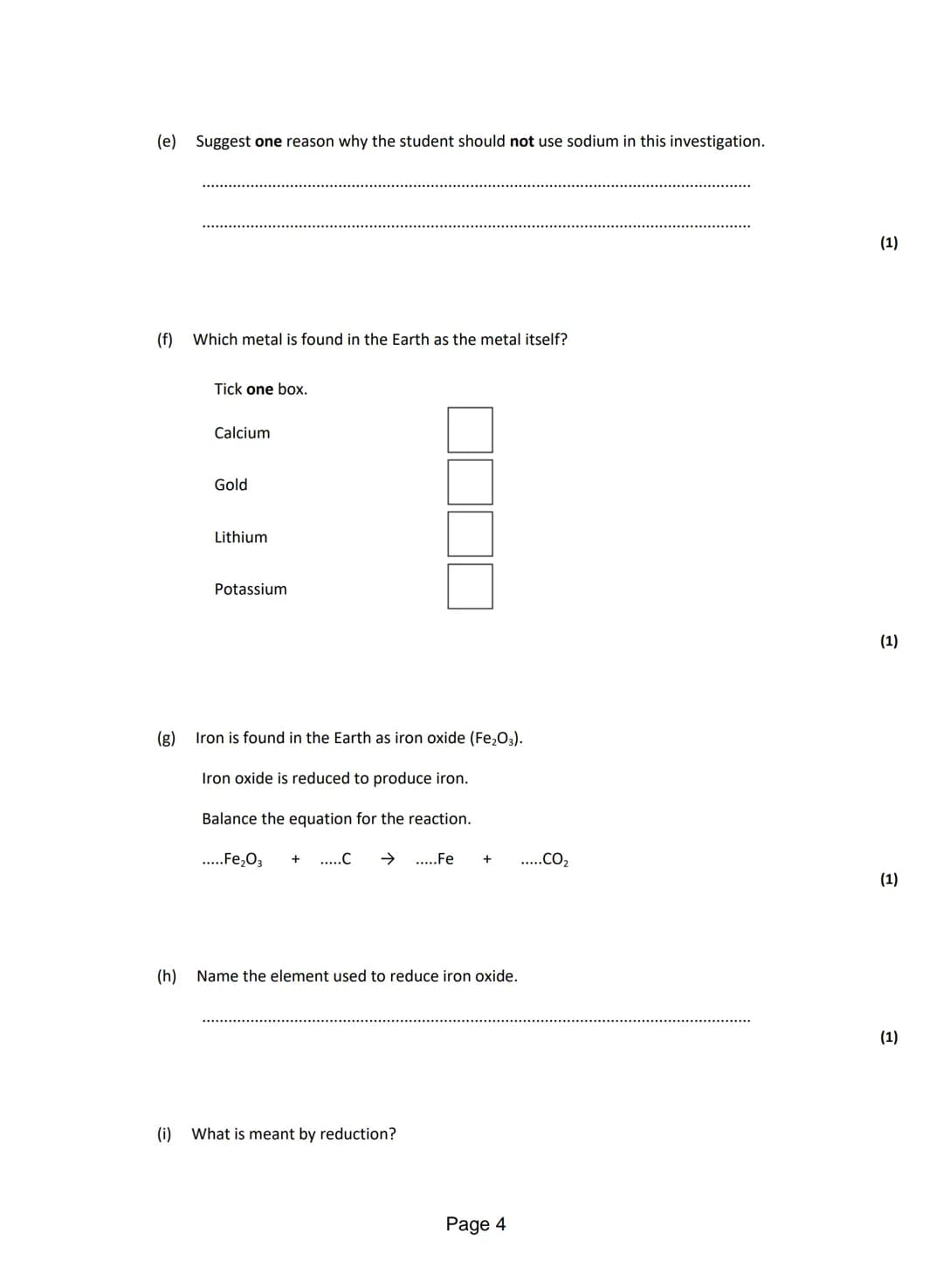

Metal Reactivity and Extraction

This page covers topics related to metal reactivity and extraction methods.

Key points include:

  • Safety considerations for reactive metals like sodium
  • Identifying metals found in elemental form in nature (e.g. gold)
  • Balancing the equation for iron extraction from iron oxide
  • Naming the reducing agent in iron extraction

Vocabulary: Reduction - Gain of electrons by a substance in a chemical reaction.

Students are asked to define reduction in terms of electron transfer or oxygen loss. This section connects reactivity concepts to real-world metallurgy and extraction processes, emphasizing the practical applications of the reactivity series.

Q1.A student investigated simple cells using the apparatus shown in the figure below.
●
The student's results are shown in the table below.

View

Blast Furnace and Iron Extraction

The final section focuses on the blast furnace process for extracting iron from its ore.

Key components of a blast furnace are identified:

  • Hot air input
  • Coke (carbon) as reducing agent
  • Limestone (calcium carbonate) as flux
  • Haematite (iron(III) oxide) as the iron ore

Students are asked to complete the word equation for the decomposition of calcium carbonate, which plays a crucial role in the process.

Definition: Flux - A substance added to promote fusion and remove impurities as slag.

This section ties together concepts of metal reactivity, reduction, and industrial processes, providing a real-world context for the chemical principles studied throughout the unit.

Q1.A student investigated simple cells using the apparatus shown in the figure below.
●
The student's results are shown in the table below.

View

Predicting Cell Voltage

To predict the voltage for an iron-copper cell:

Expected voltage: Approximately -0.3 to -0.4 V

Reasoning:

  • Iron-zinc cell gives -0.3 V (iron less reactive than zinc)
  • Zinc-copper cell gives -1.0 V (zinc more reactive than copper)
  • Iron should be between zinc and copper in reactivity
  • Therefore, iron-copper voltage should be negative but smaller magnitude than zinc-copper

Highlight: This prediction demonstrates how understanding trends in metal reactivity with sulfate solutions can be applied to new metal combinations.

Ability to predict cell voltages is crucial for designing and optimizing electrochemical systems.

Q1.A student investigated simple cells using the apparatus shown in the figure below.
●
The student's results are shown in the table below.

View

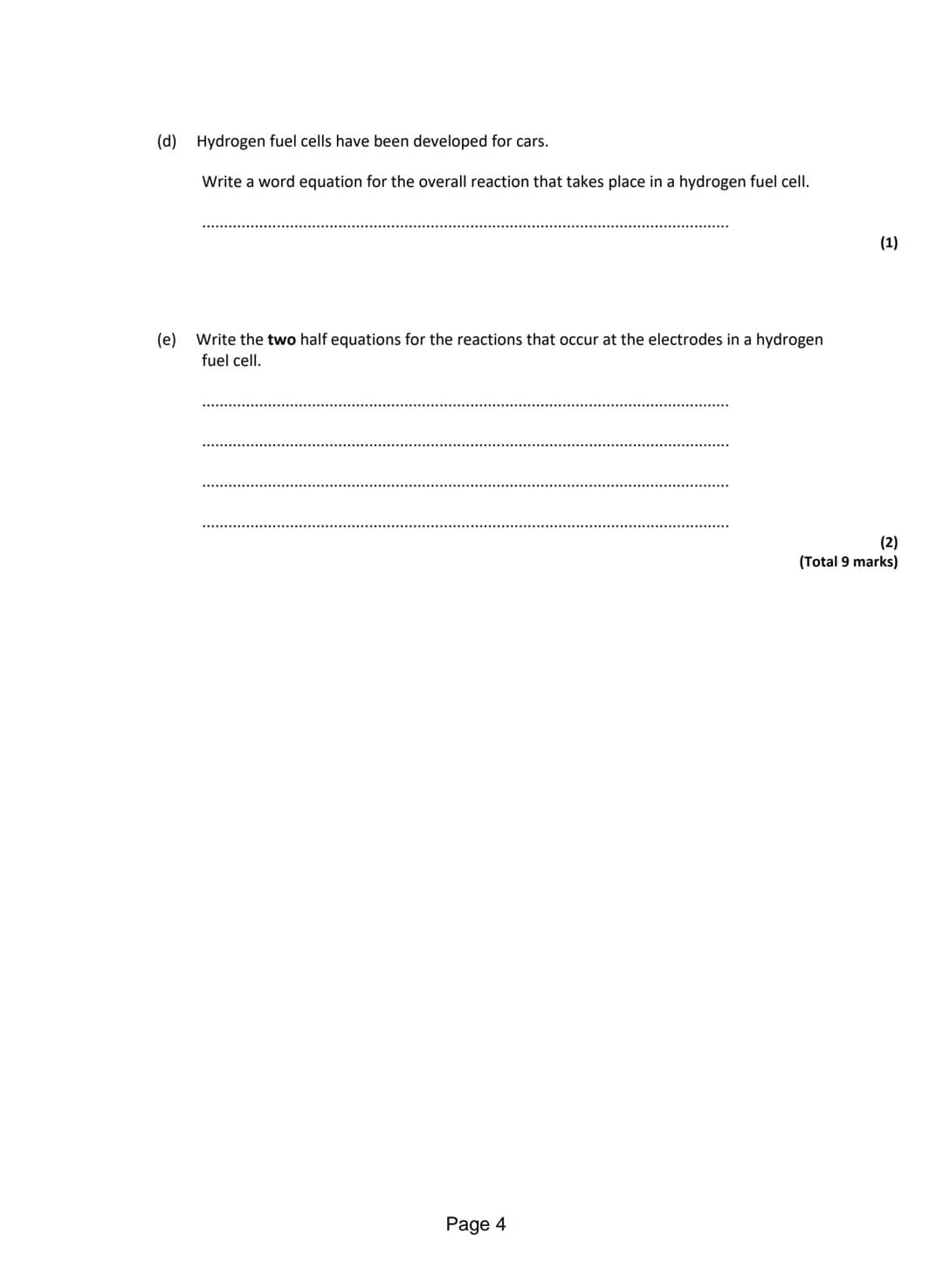

Hydrogen Fuel Cells

Hydrogen fuel cells are an emerging technology for clean energy production, particularly in automotive applications.

Word equation for the overall reaction: Hydrogen + Oxygen → Water

Half equations: Anode: H₂ → 2H⁺ + 2e⁻ Cathode: O₂ + 4H⁺ + 4e⁻ → 2H₂O

Highlight: Hydrogen fuel cells produce electricity through the controlled reaction of hydrogen and oxygen, with water as the only byproduct.

Understanding the chemistry of fuel cells is essential for developing and implementing clean energy technologies.

Q1.A student investigated simple cells using the apparatus shown in the figure below.
●
The student's results are shown in the table below.

View

Safety Considerations in Metal Reactivity Experiments

When investigating metal reactivities, certain metals should be avoided due to safety concerns.

Sodium should not be used in this investigation because:

  • It reacts violently with water
  • It can ignite spontaneously in air
  • It produces strong alkaline solutions

Highlight: Safety is paramount in chemical experiments, and highly reactive metals like sodium require special handling procedures.

Proper risk assessment and safety precautions are essential when designing and conducting chemistry experiments.
