Introduction to Mass Spectrometry: Basics and Applications

How Mass Spectrometry Works

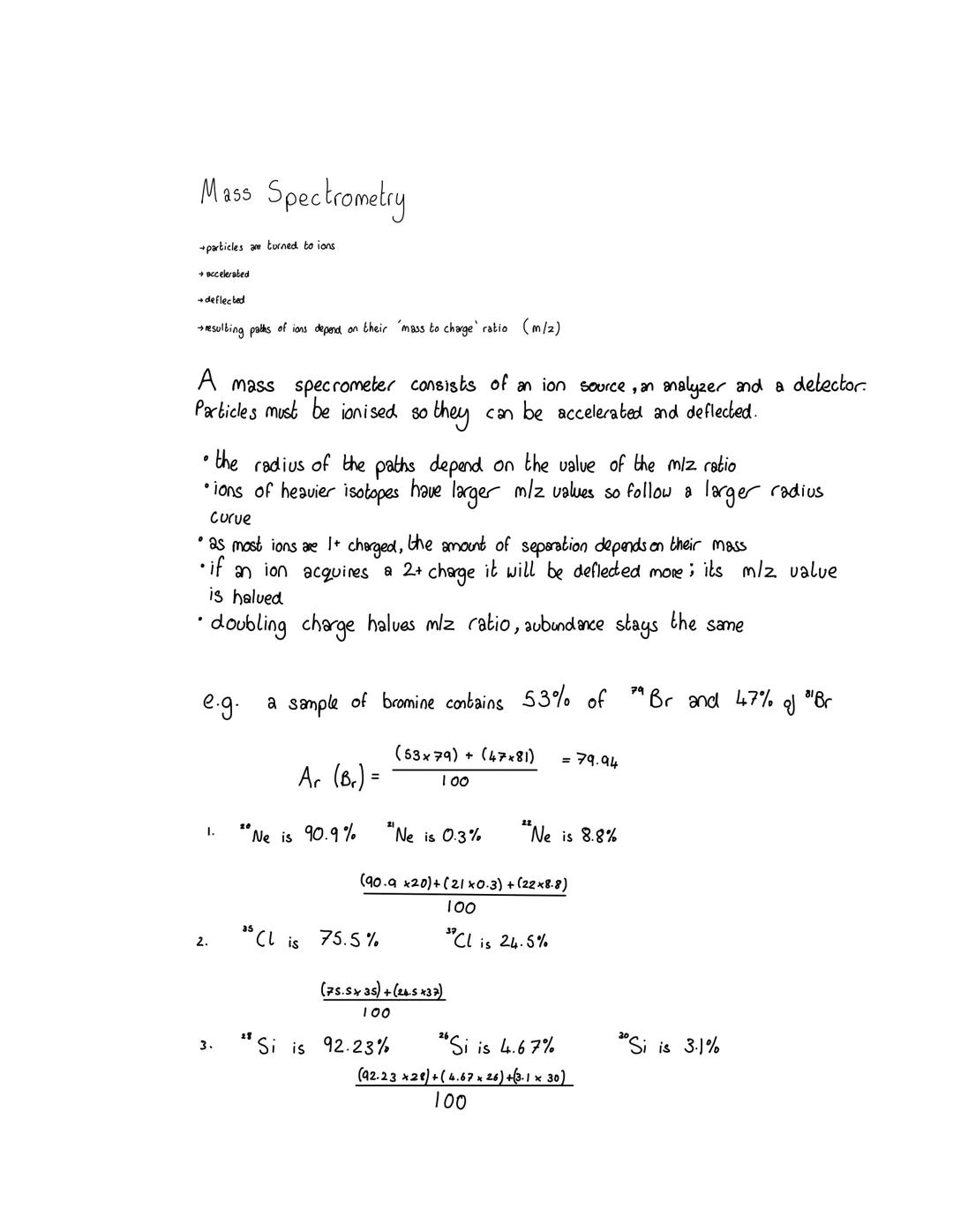

Ever wondered how scientists identify mystery substances? Mass spectrometry is like a molecular fingerprinting system that reveals exactly what's in a sample. The process starts by turning particles into ions (charged particles), then accelerating and deflecting them through the instrument.

The key to understanding mass spectrometry lies in the mass-to-charge ratio (m/z). Heavier isotopes have larger m/z values, so they follow wider curved paths when deflected. Since most ions carry a 1+ charge, the separation mainly depends on their mass.

Here's something interesting: if an ion picks up a 2+ charge instead of 1+, it gets deflected more because its m/z ratio is halved. The abundance stays the same, but the signal appears at a different position on the spectrum.

Quick Tip: Remember that doubling the charge halves the m/z ratio - this often catches students out in exam questions!

Calculating Isotope Percentages

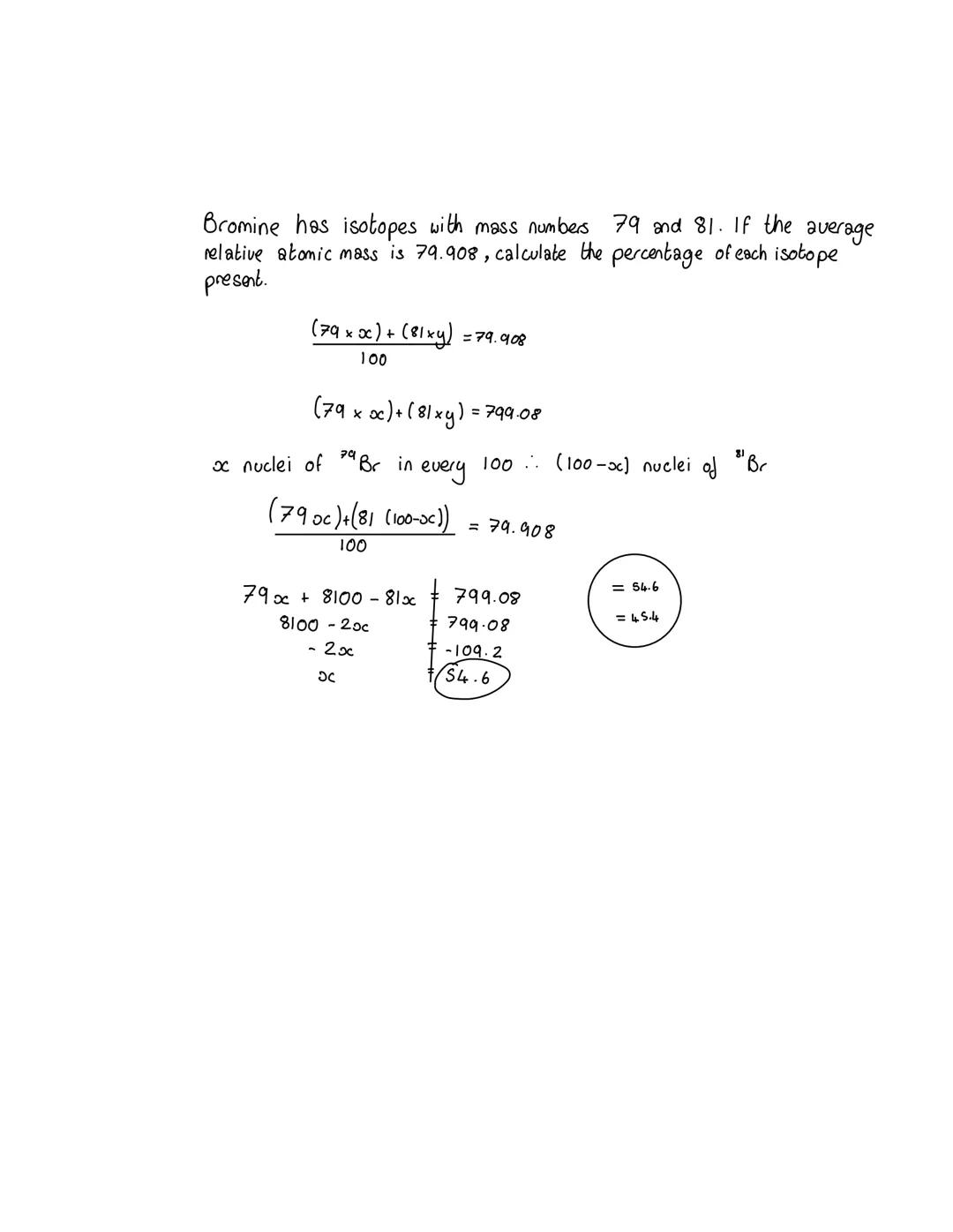

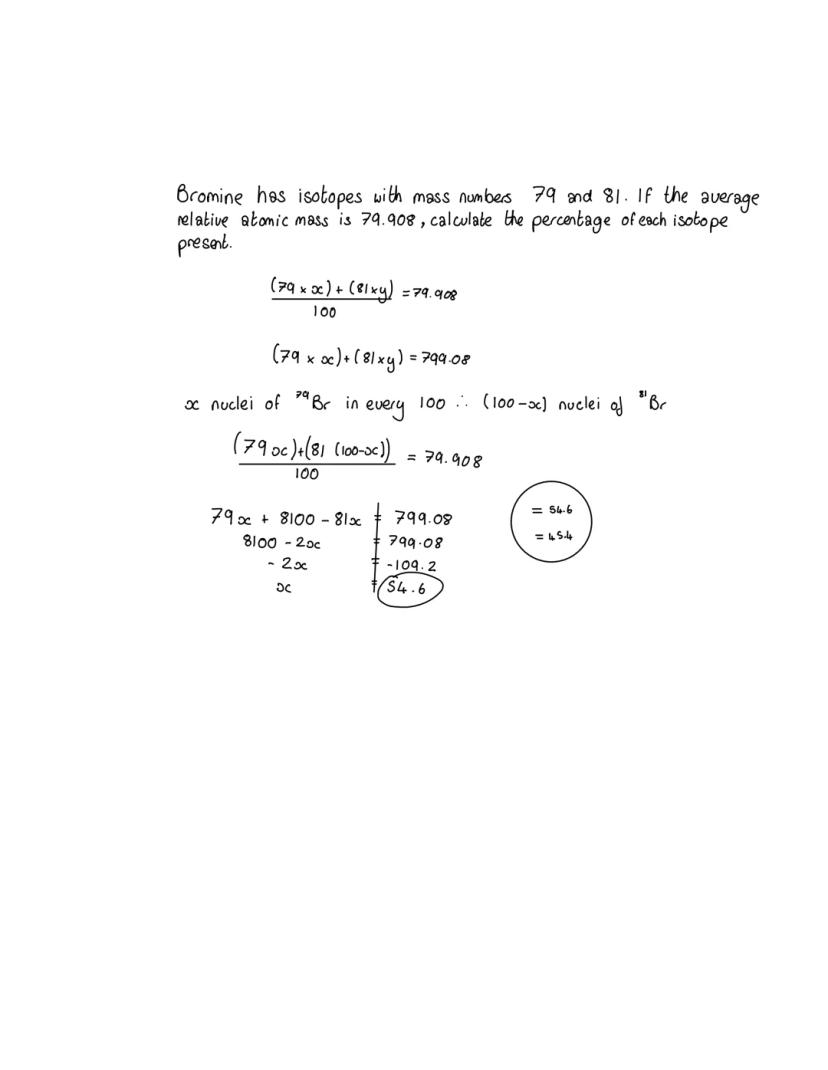

Sometimes you'll need to work backwards from the average relative atomic mass to find isotope percentages. This is easier than it looks once you know the method. Take bromine with isotopes of mass 79 and 81, and an average atomic mass of 79.908.

Set up the equation: if x% is ⁷⁹Br, then $100-x$% must be ⁸¹Br. So: 79x + 81$100-x$ = 7990.8. Expanding this gives: 79x + 8100 - 81x = 7990.8, which simplifies to -2x = -109.2.

Solving gives x = 54.6, meaning ⁷⁹Br is 54.6% and ⁸¹Br is 45.4%. The key is setting up the algebra correctly and remembering that percentages must add up to 100.

Exam Hack: Always check your percentages add to 100% - it's an instant way to spot calculation errors!

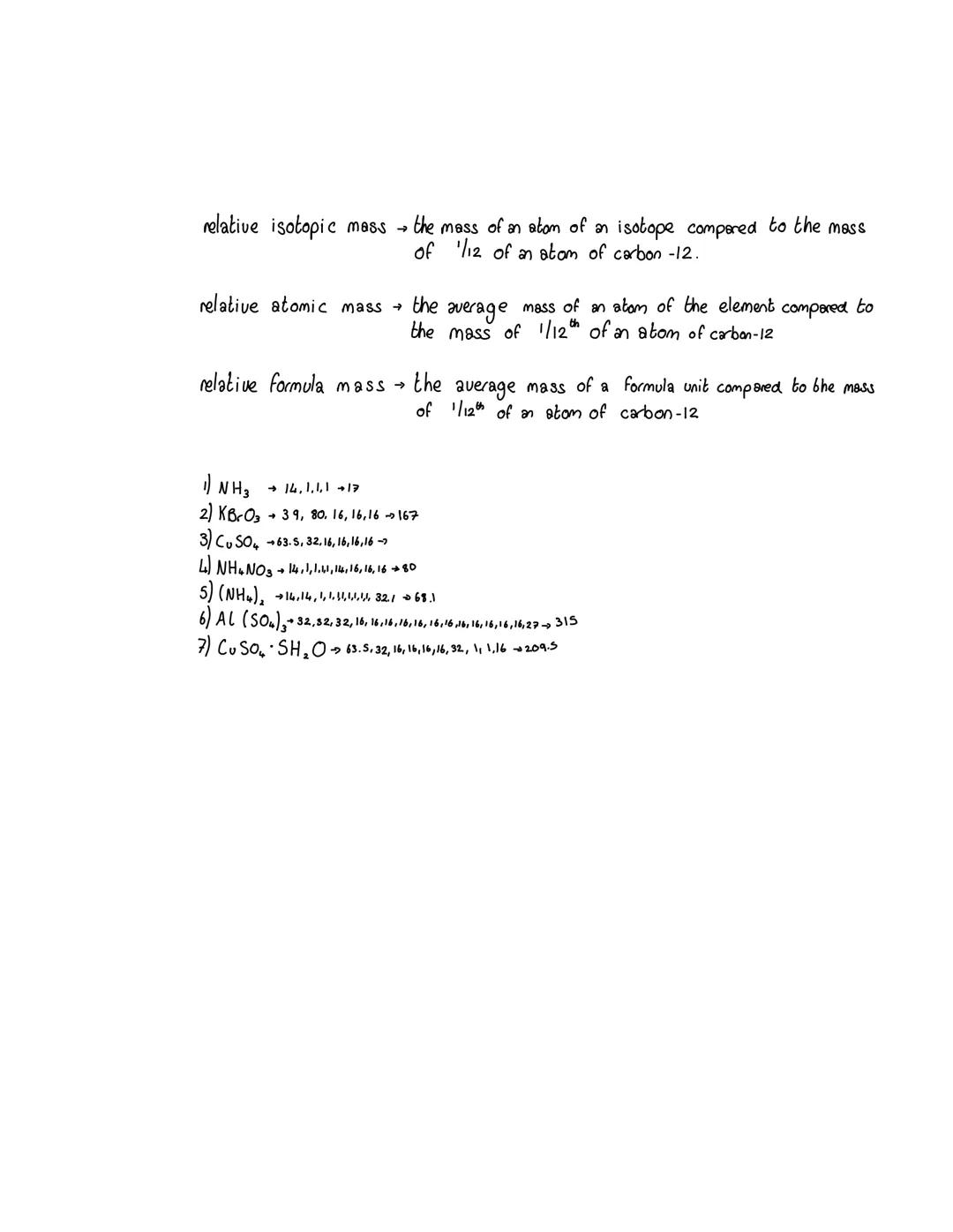

Understanding Relative Masses

Relative isotopic mass compares the mass of one specific isotope to 1/12th of a carbon-12 atom. Think of carbon-12 as the universal reference point - like using metres to measure length. Relative atomic mass is the weighted average of all isotopes of an element.

Relative formula mass (RFM) is simply the sum of all atomic masses in a compound. For NH₃, you add nitrogen (14) plus three hydrogens $1+1+1$ to get 17. For more complex compounds like Al₂(SO₄)₃, count each atom carefully: 2 aluminium, 3 sulphur, and 12 oxygen atoms.

Hydrated compounds like CuSO₄·5H₂O include water molecules in the calculation. The dot means the water is loosely attached, but you still count all the atoms when calculating the RFM.

Memory Trick: Write out each atom individually when calculating RFM - it prevents you from missing atoms in brackets!

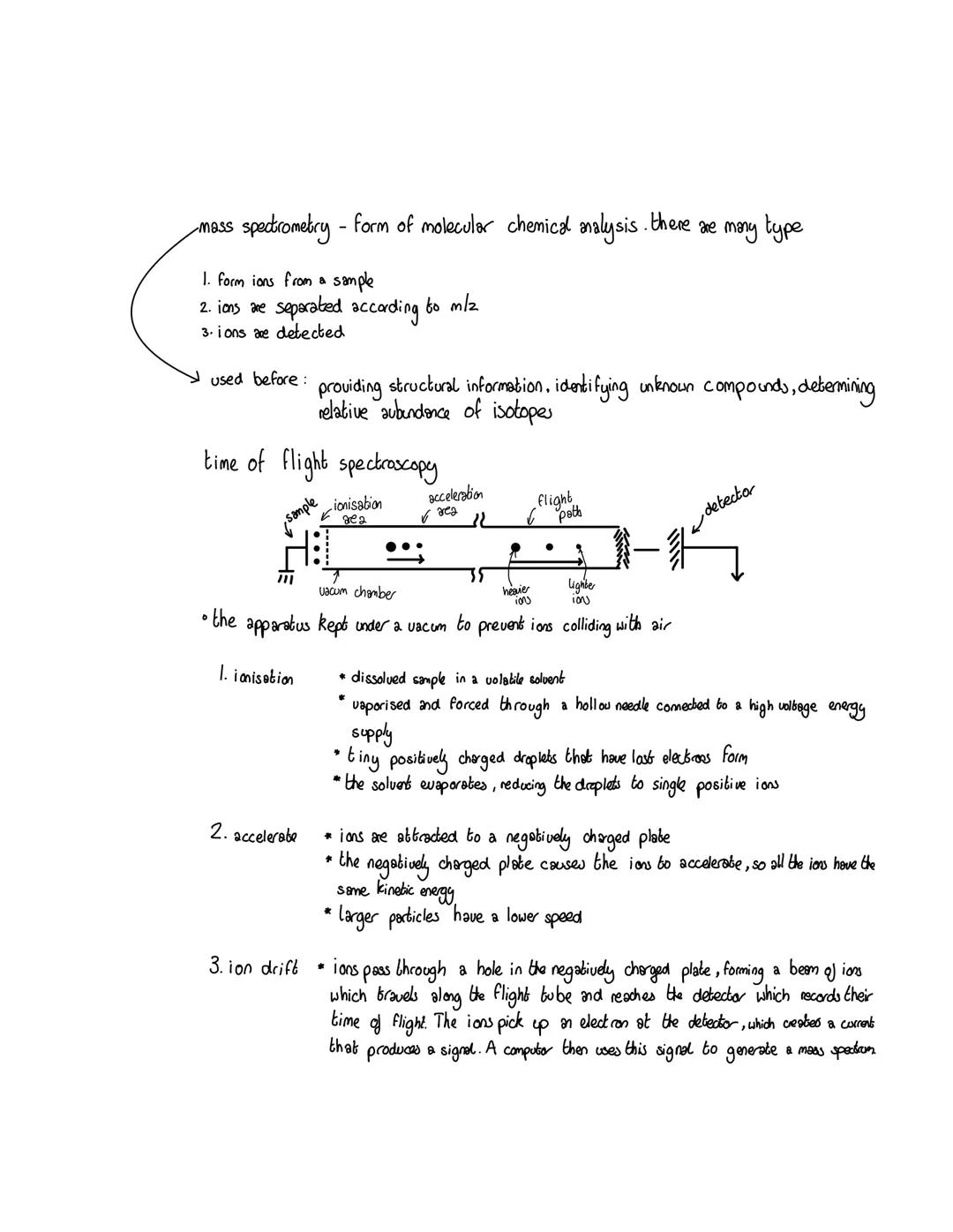

Time of Flight Mass Spectrometry

Time of flight spectroscopy is the most common type of mass spectrometry you'll encounter. The entire apparatus operates under vacuum to prevent ions colliding with air molecules, which would mess up the results.

The process has three main stages: ionisation, acceleration, and ion drift. During ionisation, the sample dissolves in a volatile solvent and gets forced through a needle connected to high voltage. This creates tiny charged droplets that eventually become single positive ions.

All ions receive the same kinetic energy during acceleration, but heavier particles move slower than lighter ones. As ions travel down the flight tube, they separate based on their speed. The detector measures their arrival time and converts this into electrical signals.

Finally, a computer processes these signals to generate a mass spectrum - essentially a graph showing which masses are present and in what amounts. The whole system works because lighter ions reach the detector first.

Real-World Connection: Mass spectrometry is used everywhere from drug testing in sports to identifying explosives at airports!
