Understanding Atomic Structure and the Periodic Table: Key Concepts

user profile picture
Chelsea Tepsiri@chelseatep_

Ever wondered what everything around you is made of? It...

1
of 5

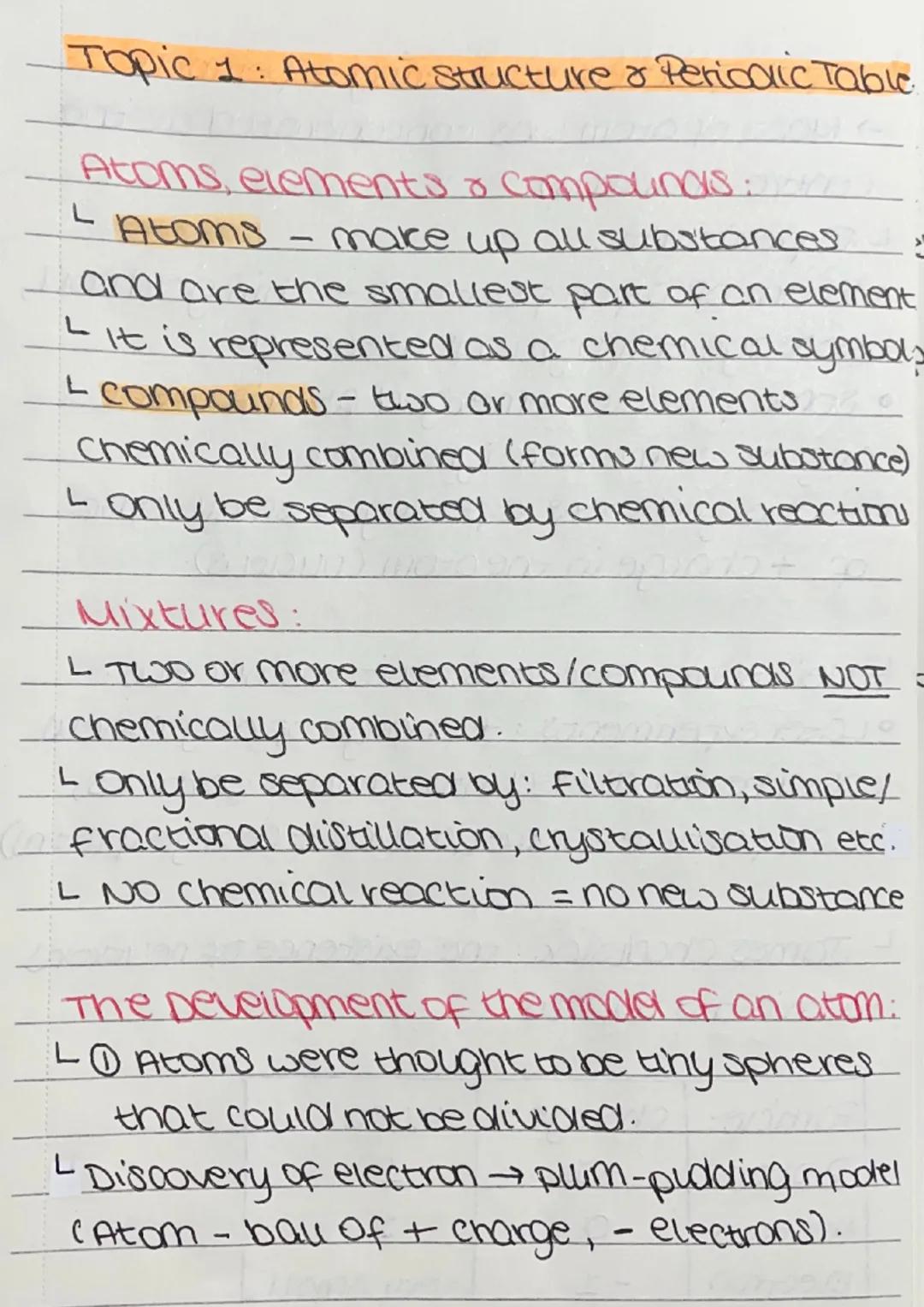

Chemistry Topic 1: Atomic structure and Periodic Table – page 1

Atoms, Elements and Compounds

Think of atoms as the LEGO bricks of the universe - they're the smallest parts of elements that still keep their identity. Each element gets its own chemical symbol, like a name tag (think H for hydrogen, O for oxygen).

When two or more elements team up chemically, they form compounds. This isn't just mixing - it's like a chemical marriage that creates something completely new. You can only break up compounds using chemical reactions, not just by stirring or filtering.

Mixtures are totally different - imagine throwing different LEGO sets into one box. The pieces aren't stuck together, so you can separate them using simple methods like filtration or distillation. No chemical reactions needed!

Quick Tip: If you can separate it physically (like picking out raisins from cereal), it's a mixture. If you need a chemical reaction, it's a compound!

2
of 5
Chemistry Topic 1: Atomic structure and Periodic Table – page 2

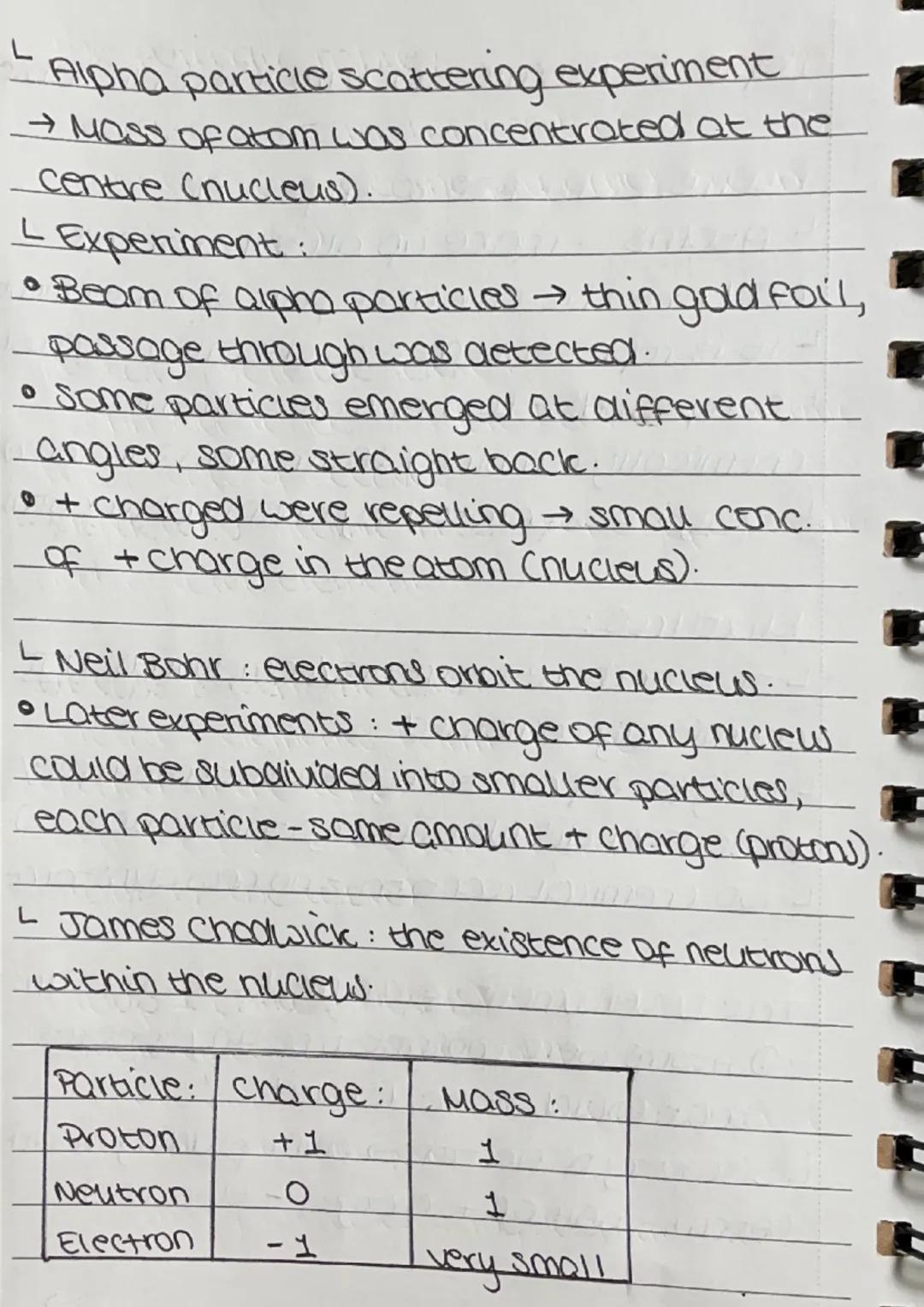

How We Discovered What Atoms Look Like

Scientists once thought atoms were like tiny, solid snooker balls that couldn't be broken apart. Boy, were they wrong! The discovery of electrons led to the "plum-pudding model" - imagine a positively charged cake with negatively charged raisins (electrons) scattered throughout.

Everything changed with the alpha particle scattering experiment. Scientists fired particles at thin gold foil and watched where they went. Most went straight through, but some bounced back at weird angles - even straight back! This was like throwing tennis balls at tissue paper and having some bounce back at your face.

This experiment revealed that atoms have a tiny, dense nucleus at their centre where all the positive charge hangs out. Niels Bohr then figured out that electrons orbit this nucleus like planets around the sun.

Later discoveries by James Chadwick revealed neutrons - particles with no charge that live in the nucleus alongside protons.

3
of 5
Chemistry Topic 1: Atomic structure and Periodic Table – page 3

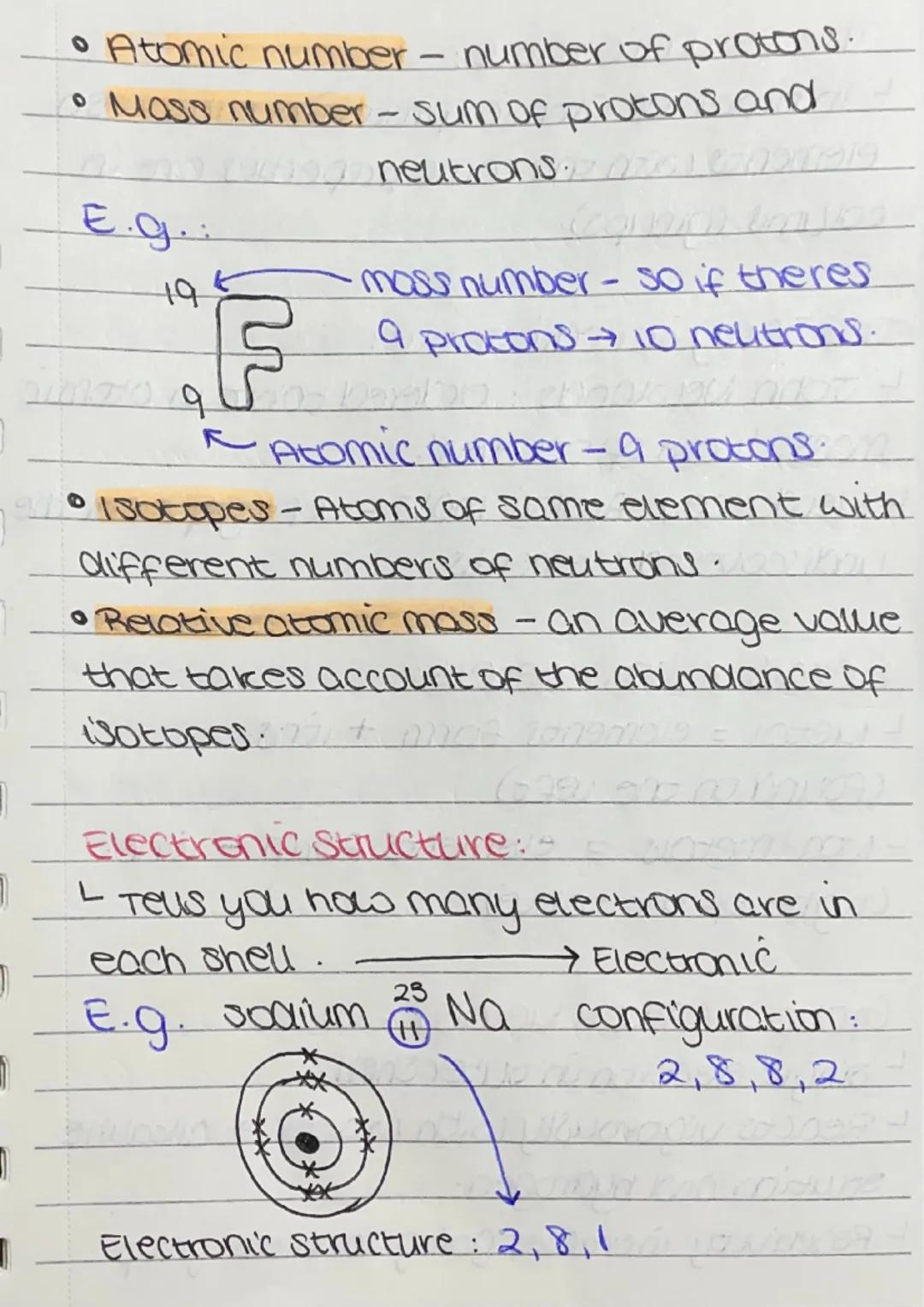

The Numbers Game: Atomic Structure

Here's where atoms get their ID cards! The atomic number tells you how many protons an atom has - it's like an atom's fingerprint because every element has a unique number. The mass number is the total count of protons plus neutrons.

Isotopes are like siblings in the atomic world - same element (same number of protons) but different numbers of neutrons. They're basically the same person wearing different weight clothing!

Electronic structure shows how electrons arrange themselves in shells around the nucleus. For sodium (Na), it's 2,8,1 - meaning 2 electrons in the first shell, 8 in the second, and 1 lonely electron in the outer shell.

Memory Hack: Think of electron shells like seats on a bus - the inner seats fill up first before anyone sits in the back!

Relative atomic mass is an average that accounts for all the different isotopes of an element and how common they are.

4
of 5
Chemistry Topic 1: Atomic structure and Periodic Table – page 4

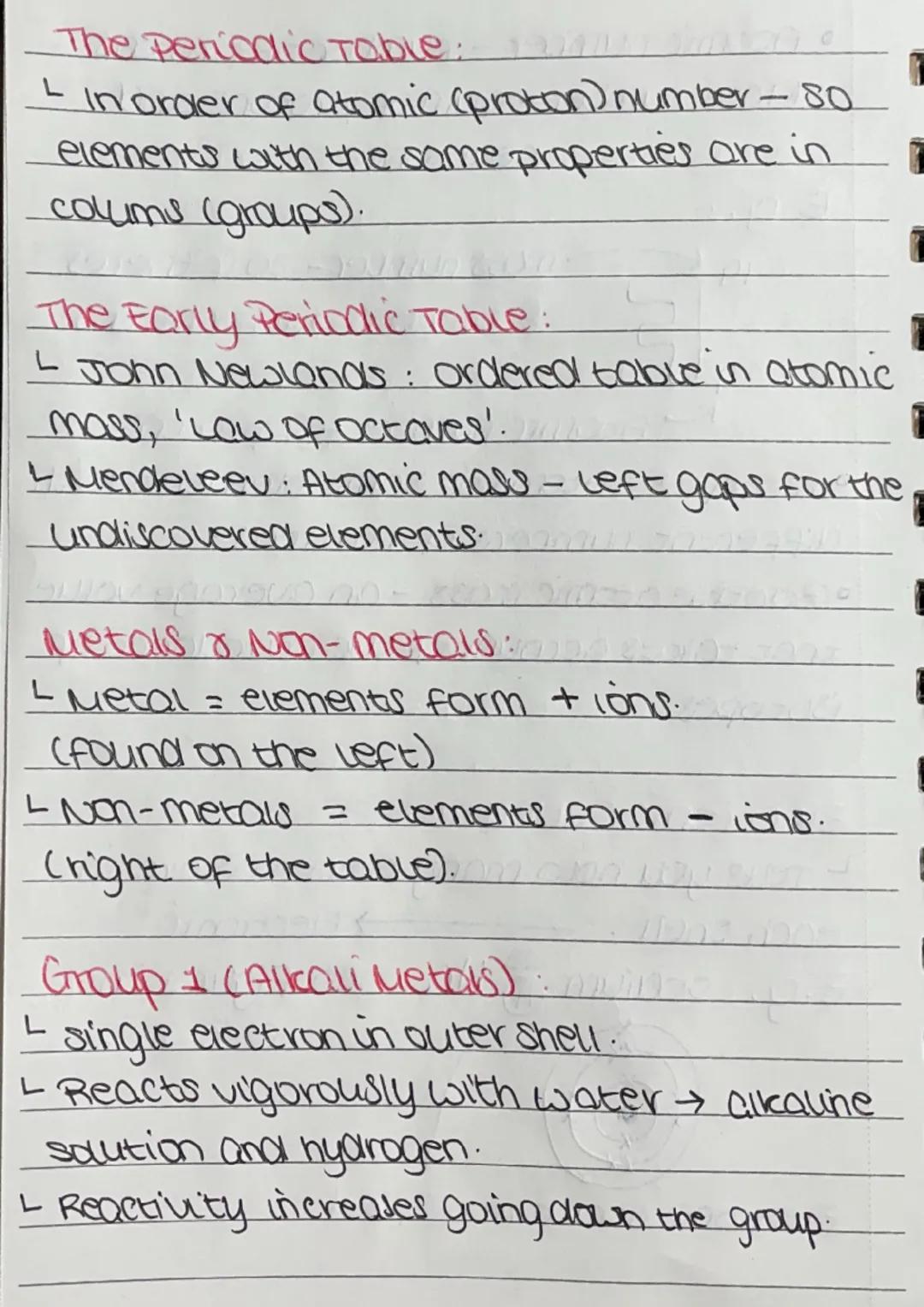

The Periodic Table: Chemistry's Greatest Cheat Sheet

The periodic table arranges all elements by atomic number, and here's the genius bit - elements with similar properties line up in columns called groups. It's like organising your music playlist where all the rock songs are together!

Mendeleev was the mastermind behind this organisation, though he initially used atomic mass. He was so confident in his pattern that he left gaps for elements that hadn't been discovered yet - and he was right!

Metals hang out on the left side and love giving away electrons to form positive ions. Non-metals chill on the right and prefer grabbing electrons to form negative ions. This behaviour determines how elements react with each other.

Group 1 (alkali metals) are the drama queens of chemistry - they have one electron in their outer shell and react explosively with water. The bigger they get (going down the group), the more reactive they become!

Safety Note: Never mess about with Group 1 metals in real life - they can literally explode when they touch water!

5
of 5
Chemistry Topic 1: Atomic structure and Periodic Table – page 5

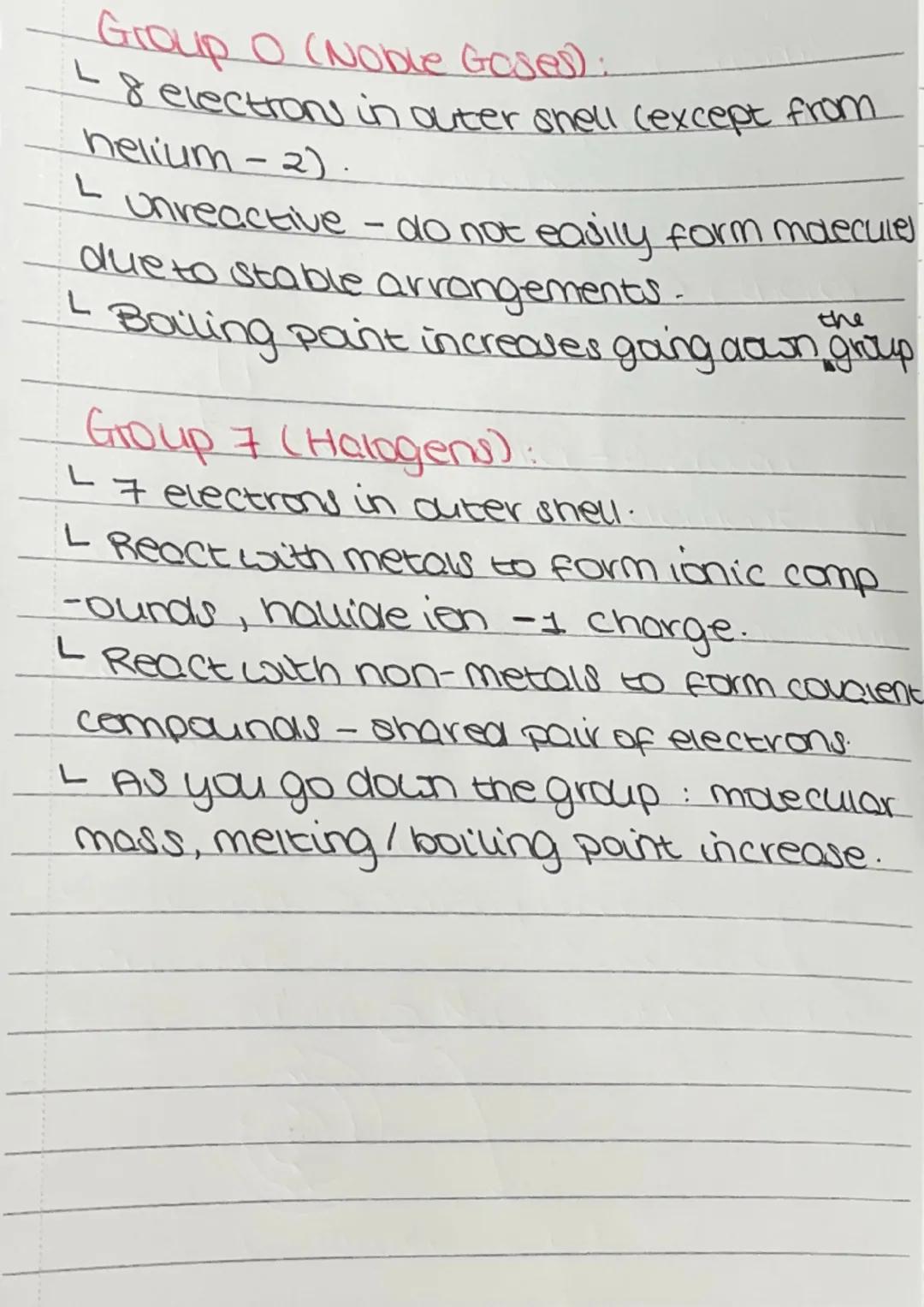

Special Groups: The Extremes of Chemistry

Group 0 (noble gases) are chemistry's loners - they have full outer shells (8 electrons, except helium with 2) and rarely react with anything. They're perfectly content on their own, which makes them super stable and unreactive.

Group 7 (halogens) are one electron short of happiness, so they're desperate to grab that missing electron. They'll react with metals to form ionic compounds or team up with non-metals to share electrons in covalent compounds.

As you travel down any group, patterns emerge. For halogens, molecular mass increases along with melting and boiling points - it's like they get heavier and need more energy to change state.

Pattern Spotter: The periodic table is full of trends - once you spot one pattern, you can predict properties of elements you've never studied!

The beauty of the periodic table lies in its predictability - master the patterns, and you've cracked the code of chemistry!
