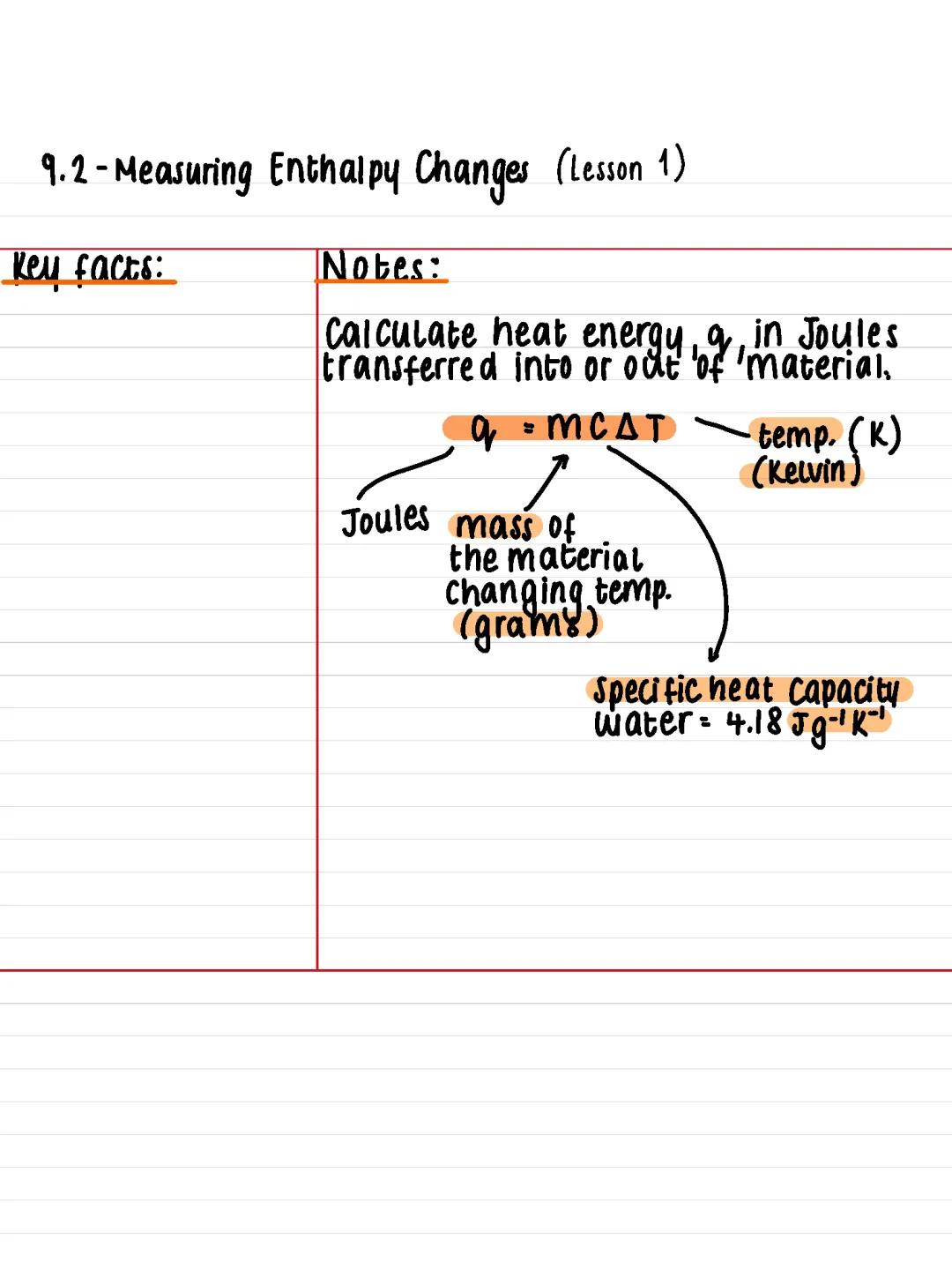

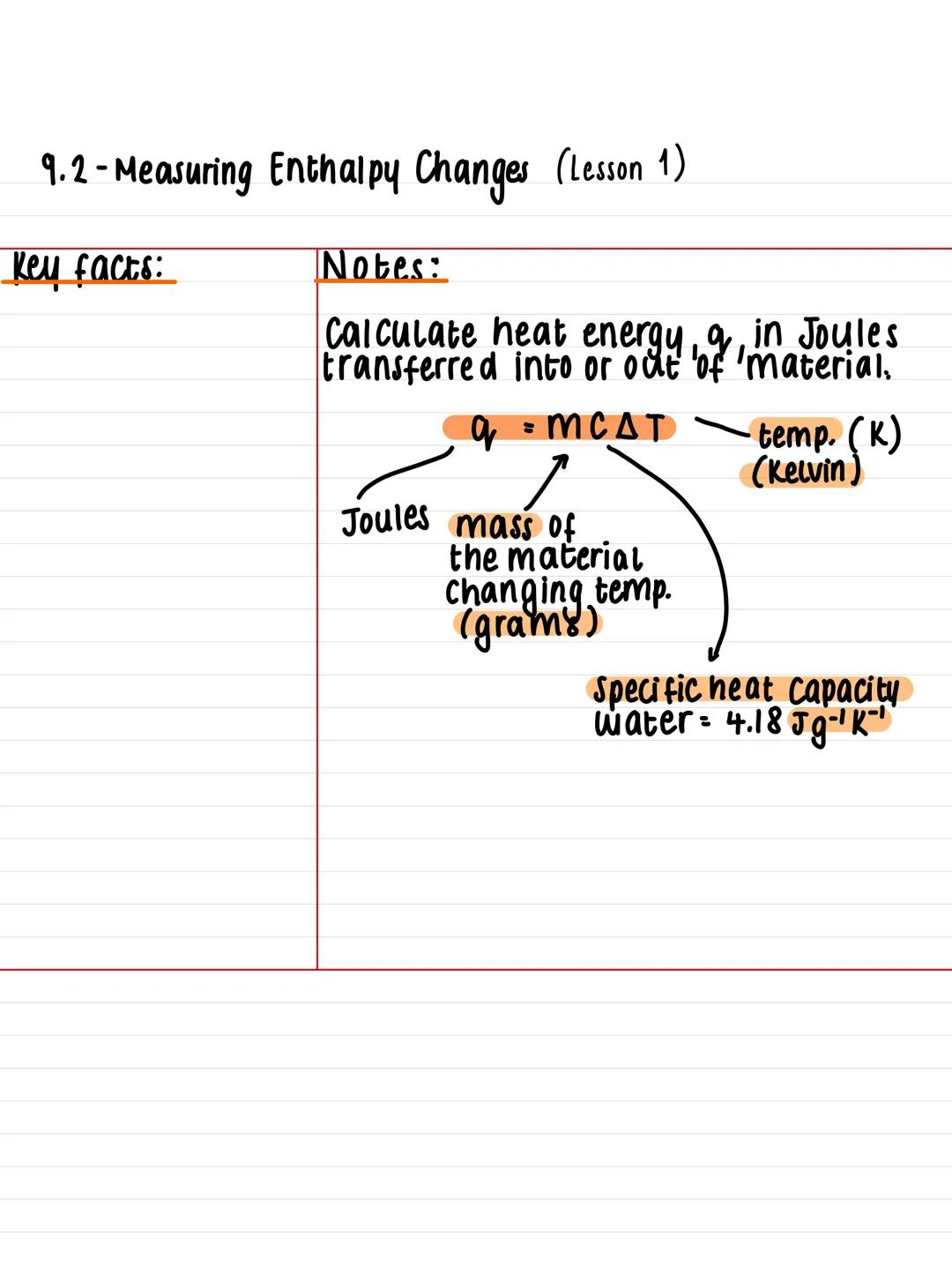

The Basic Heat Energy Formula

The foundation of measuring enthalpy changes is the heat energy equation: q = mcΔT. This formula calculates the heat energy in Joules that's transferred into or out of a material during a reaction.

Here's what each letter represents: q is the heat energy in Joules, m is the mass of the material in grams, c is the specific heat capacity, and ΔT is the temperature change in Kelvin. For water, which you'll use in most experiments, the specific heat capacity is always 4.18 J g⁻¹K⁻¹.

Quick Tip: Remember that temperature change in Celsius equals temperature change in Kelvin, so you don't need to convert your temperature readings!

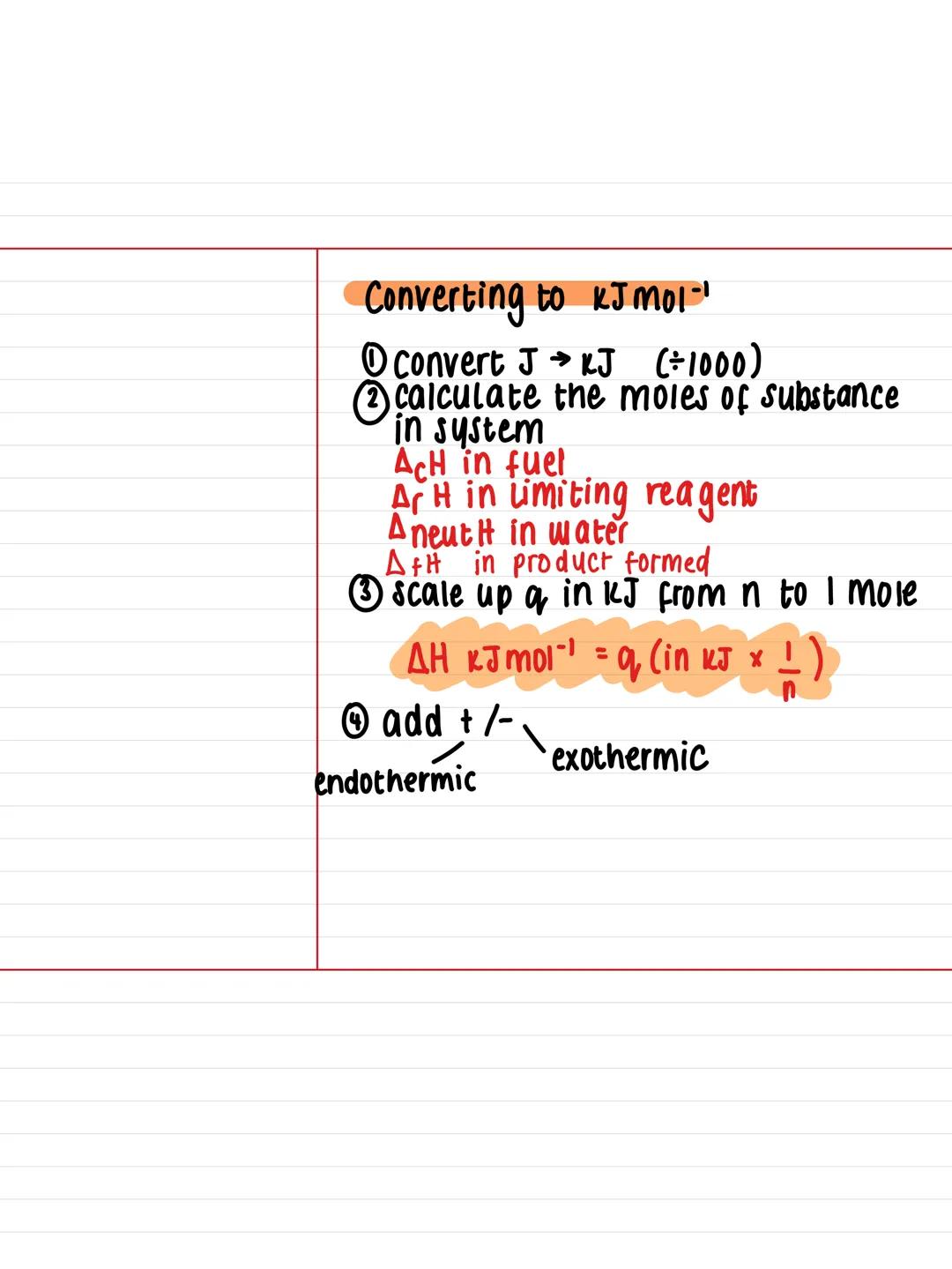

Converting to Standard Units

Once you've calculated q in Joules, you need to convert it to the standard kJ mol⁻¹ format that appears in exams. This involves a simple four-step process that becomes second nature with practice.

First, convert Joules to kilojoules by dividing by 1000. Then calculate the number of moles of the substance in your system - this could be fuel, limiting reagent, water, or product formed depending on your experiment.

Next, scale up from your calculated moles to 1 mole using the formula: ΔH = q (in kJ) × $1/n$. Finally, add the correct sign: positive for endothermic reactions (absorbing heat) and negative for exothermic reactions (releasing heat).

Exam Focus: Most reactions you'll encounter are exothermic, so expect negative ΔH values in your answers!

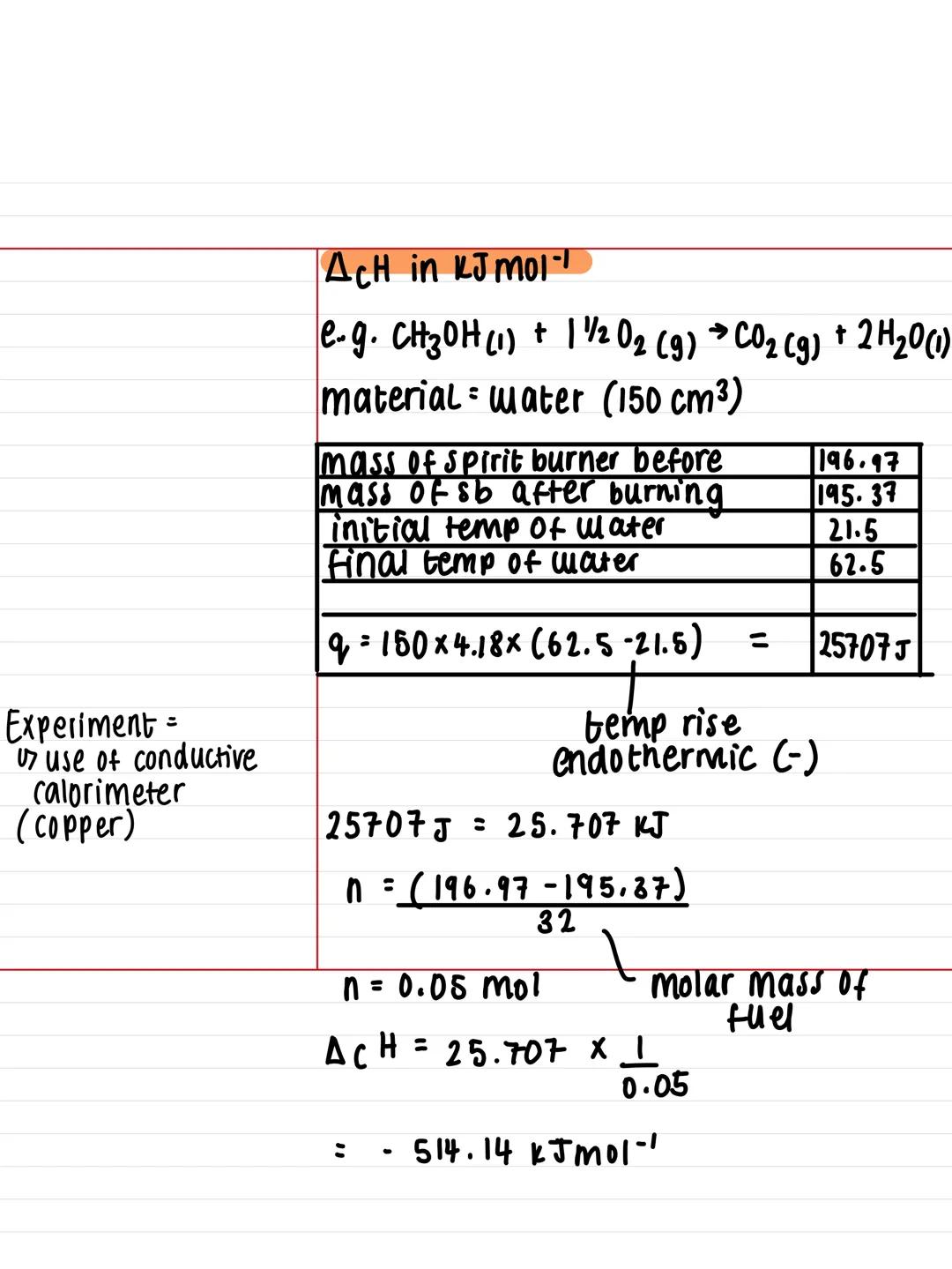

Combustion Experiment Example

Combustion experiments use a spirit burner and conductive calorimeter to measure enthalpy of combustion. In this methanol example, 150 cm³ of water was heated from 21.5°C to 62.5°C whilst burning methanol.

The calculation follows our standard steps: q = 150 × 4.18 × (62.5 - 21.5) = 25,707 J = 25.707 kJ. The mass of methanol burned was 1.60g (196.97 - 195.37), giving 0.05 moles when divided by methanol's molar mass of 32.

Scaling up to 1 mole: ΔcH = 25.707 × (1/0.05) = -514 kJ mol⁻¹. The negative sign indicates this combustion reaction releases energy, which makes sense for burning fuel.

Practical Tip: Always weigh the spirit burner before and after to find the exact mass of fuel burned!

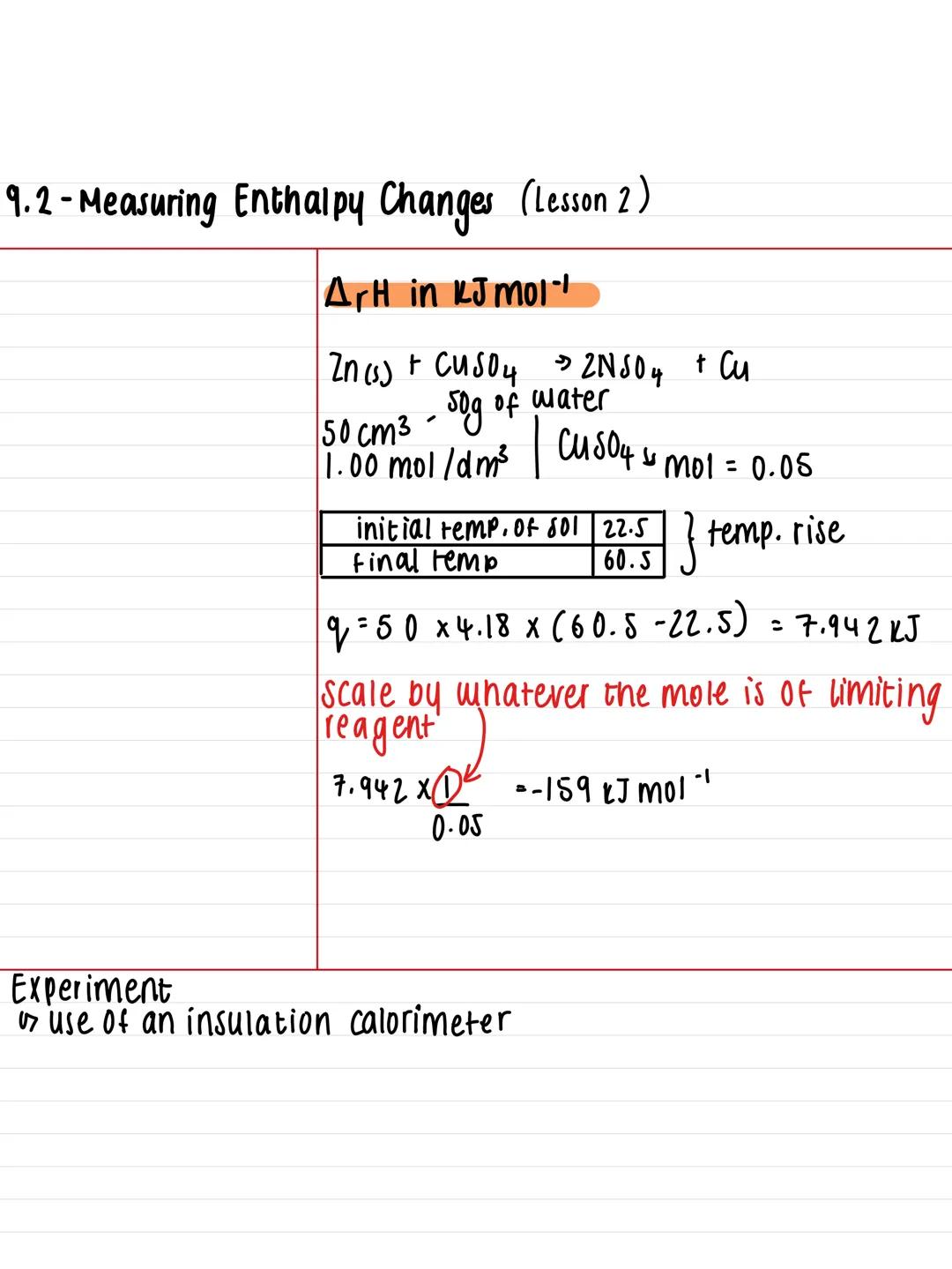

Displacement Reaction Experiment

Displacement reactions like zinc replacing copper use insulated calorimeters to measure enthalpy changes. Here, 50 cm³ of 1.00 mol/dm³ CuSO₄ solution reacted with zinc, heating the solution from 22.5°C to 60.5°C.

The heat calculation gives: q = 50 × 4.18 × (60.5 - 22.5) = 7,942 J = 7.942 kJ. The moles of limiting reagent (CuSO₄) = 0.05 mol from the volume and concentration given.

Scaling to standard conditions: ΔrH = 7.942 × (1/0.05) = -159 kJ mol⁻¹. This negative value shows the displacement reaction releases energy when zinc displaces copper from solution.

Remember: Use the limiting reagent's moles for scaling - this is usually determined by the reaction equation!

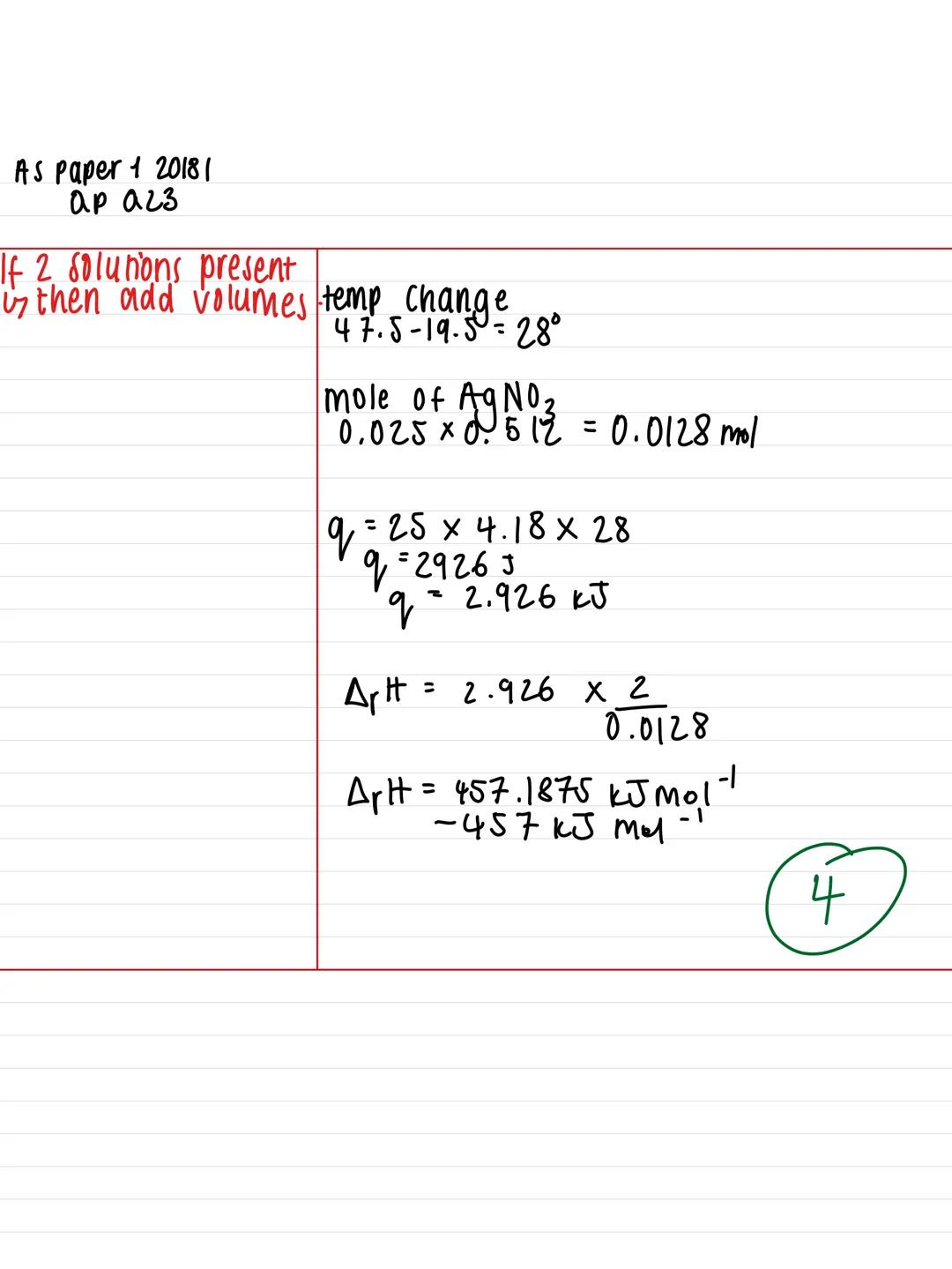

Multiple Solutions Method

When two solutions mix in precipitation or neutralisation reactions, you add their volumes together for the mass calculation. This example shows a silver nitrate precipitation where the total volume becomes 25 cm³.

The temperature rose from 19.5°C to 47.5°C, giving ΔT = 28°C. Using our formula: q = 25 × 4.18 × 28 = 2,926 J = 2.926 kJ. The moles of AgNO₃ = 0.025 × 0.512 = 0.0128 mol.

The scaling calculation becomes: ΔrH = 2.926 × (2/0.0128) = -457 kJ mol⁻¹. Notice the factor of 2 in the scaling - this comes from the balanced equation showing the stoichiometric ratio.

Key Point: Always check the balanced equation to get the correct mole ratio for scaling!

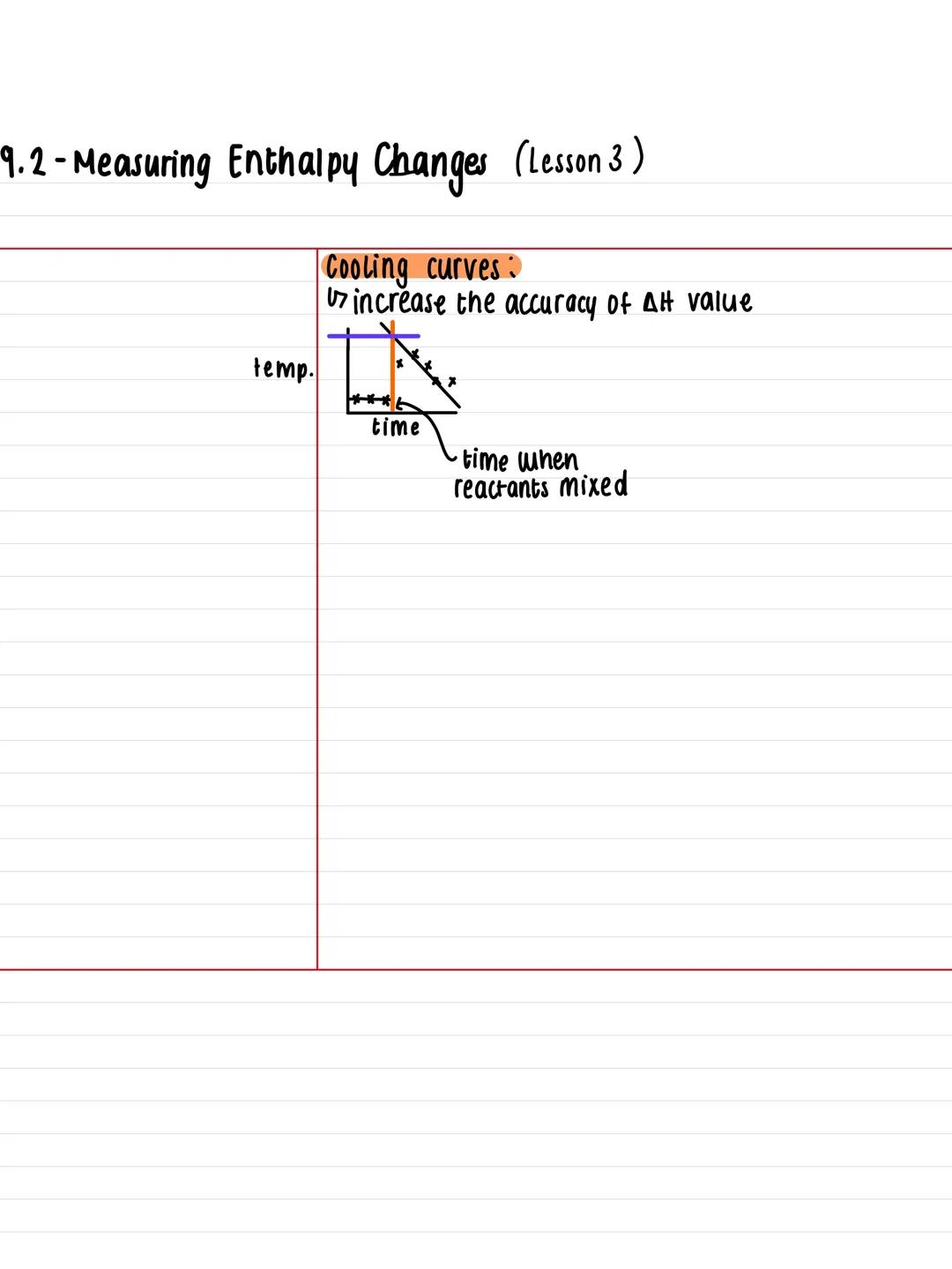

Improving Accuracy with Cooling Curves

Cooling curves help you get more accurate ΔH values by accounting for heat loss to surroundings. You plot temperature against time and extrapolate back to find what the maximum temperature would have been without heat loss.

The graph shows temperature rising sharply when reactants mix, then gradually falling as heat escapes. By drawing a line back from the cooling section, you can estimate the true maximum temperature that would occur in a perfectly insulated system.

This technique is particularly important for slower reactions where significant cooling occurs before you can measure the peak temperature. Using the corrected temperature gives you a more accurate enthalpy value.

Exam Technique: You might need to read maximum temperature values from cooling curve graphs, so practise interpreting these diagrams!
