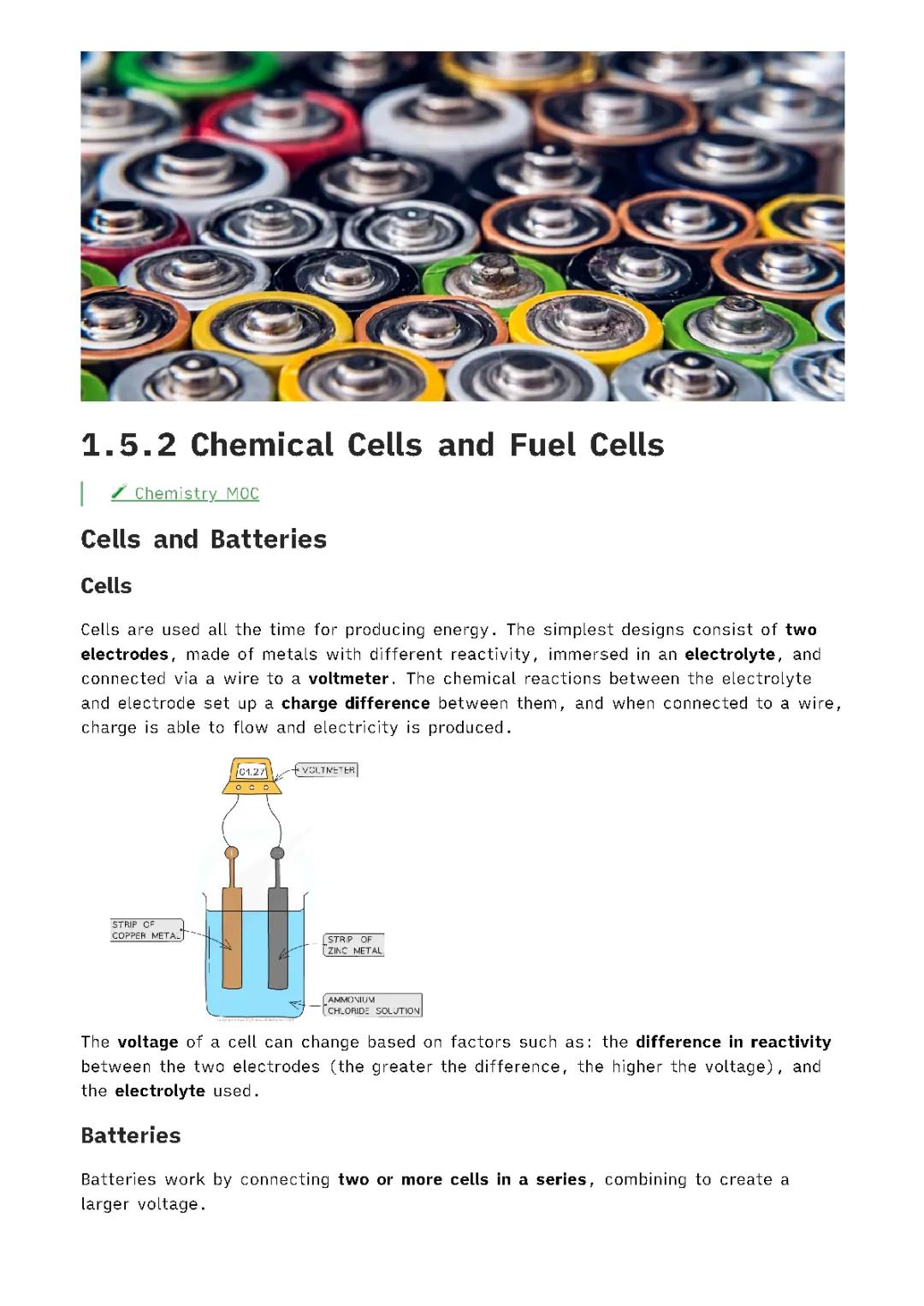

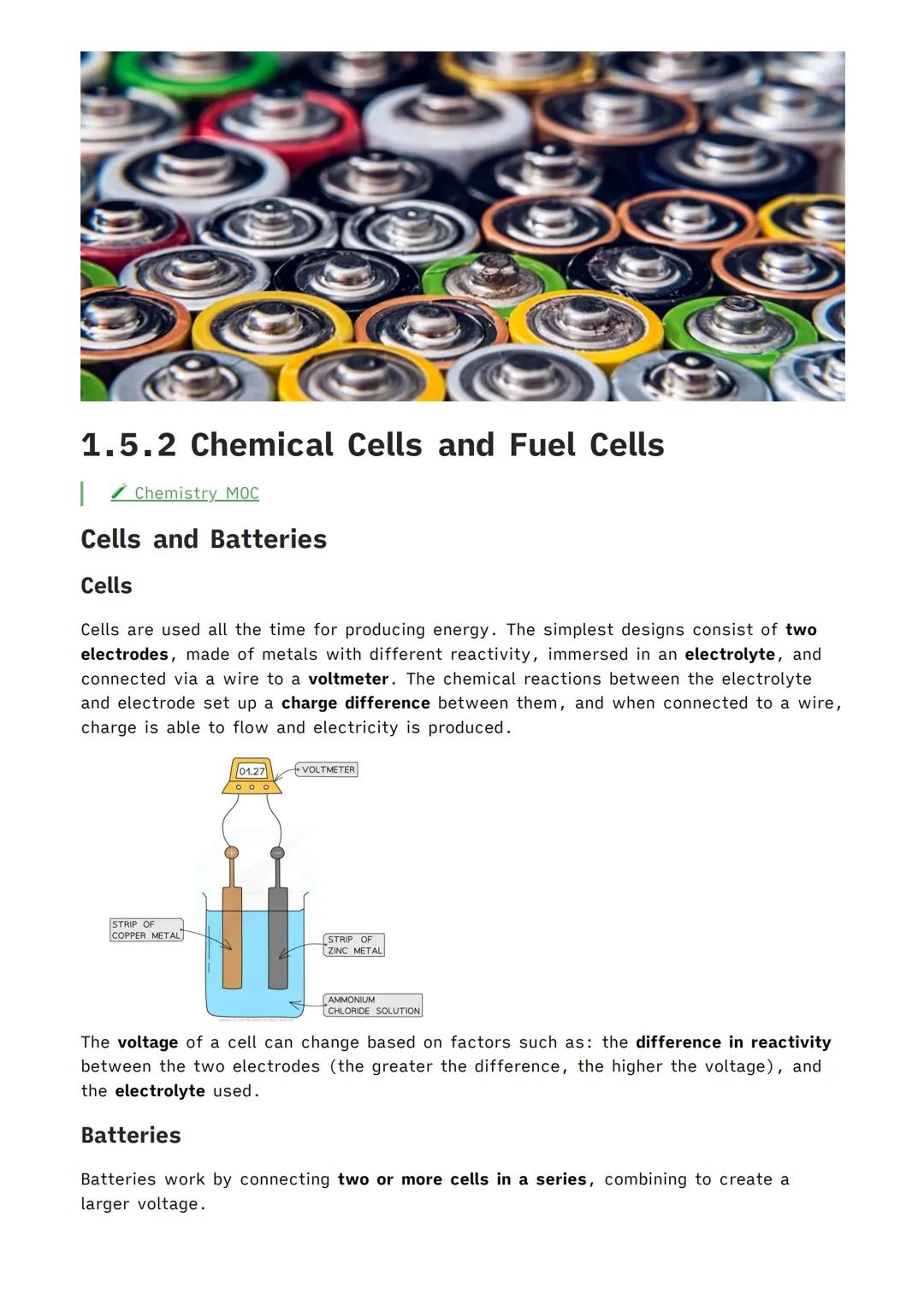

Chemical Cells and Batteries
Your phone, laptop, and even that old TV remote all rely on chemical cells to work. These brilliant devices are surprisingly simple - just two different metals (called electrodes) sitting in a chemical solution (the electrolyte), connected by a wire.
Here's the clever bit: the metals react differently with the electrolyte, creating a charge difference between them. When you connect them with a wire, electrons flow from one electrode to the other, and boom - you've got electricity!
The voltage you get depends on how different your two metals are. Pick metals that are really different in reactivity (like zinc and copper), and you'll get more voltage than if you choose similar ones.
Quick Tip: Think of it like a chemical see-saw - the bigger the difference between your metals, the more "unbalanced" it gets, creating more electrical energy!
2
of 3
How Batteries Actually Work

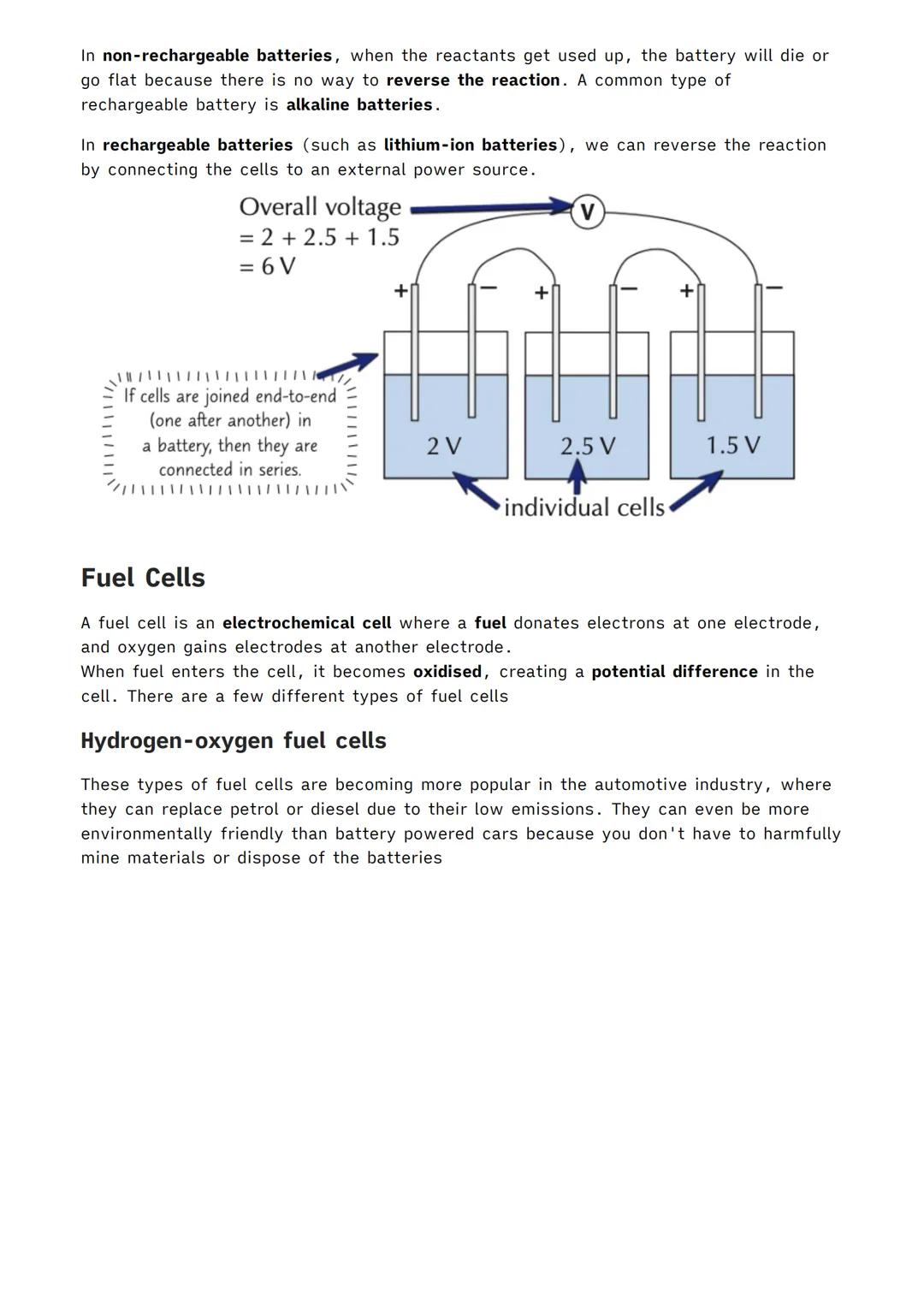

A single cell doesn't give you much power, so batteries are just several cells connected together in a chain (called series). It's like adding up voltages - a 2V cell plus a 2.5V cell plus a 1.5V cell gives you 6V total.
Non-rechargeable batteries (like the ones in your TV remote) die when the chemical reactants get used up. There's no way to reverse what's happened - once they're flat, they're done.
Rechargeable batteries are much smarter. Lithium-ion batteries in your phone can reverse their chemical reactions when you plug them into the wall. The external power source forces the electrons to flow backwards, essentially "undoing" the reaction that created electricity in the first place.
Real Talk: This is why your phone battery eventually stops holding charge well - after hundreds of charge cycles, the chemical reactions become less efficient at reversing themselves.
3
of 3
Fuel Cells: The Future of Clean Energy
Fuel cells are like the cool, environmentally-friendly cousins of regular batteries. Instead of storing chemicals inside, they continuously take in fuel (usually hydrogen) and oxygen from the air to create electricity and water.
Hydrogen-oxygen fuel cells are becoming massive in the car industry. They're cleaner than petrol cars because they only produce water as waste, and they might even beat electric cars for being green since you don't need to mine rare metals or dispose of toxic batteries.

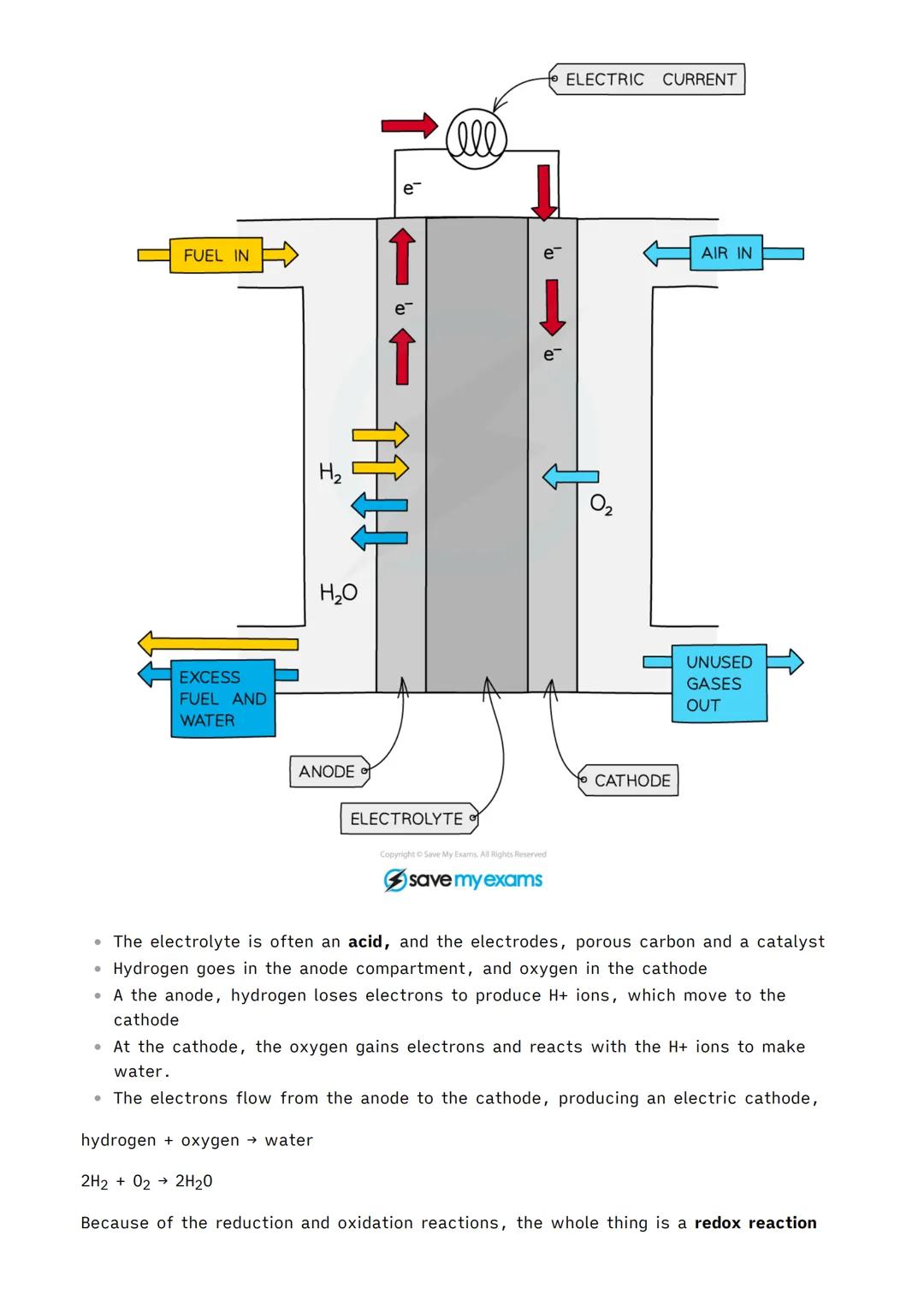

Here's how they work: hydrogen enters at the anode and loses electrons, creating H+ ions. Meanwhile, oxygen enters at the cathode and gains those electrons. The H+ ions travel through the electrolyte to meet the oxygen, forming water. The flowing electrons create your electricity - it's a redox reaction in action.
Future Focus: Many car manufacturers are betting big on hydrogen fuel cells as the next step beyond electric vehicles, especially for lorries and buses that need to travel long distances.
