Transforming Curves
Understanding how curves transform is like learning the secret language of graphs. You'll see how equations change to create different positions and shapes on your coordinate system.
The key to mastering transformations is recognising patterns in equations and linking them to visual changes on the graph. Once you spot these patterns, you can predict transformations without even drawing the curve!
Quick Tip: Think of transformations as giving directions to a graph - "move left 3 units" or "stretch by factor 2" - the maths just codes these instructions!

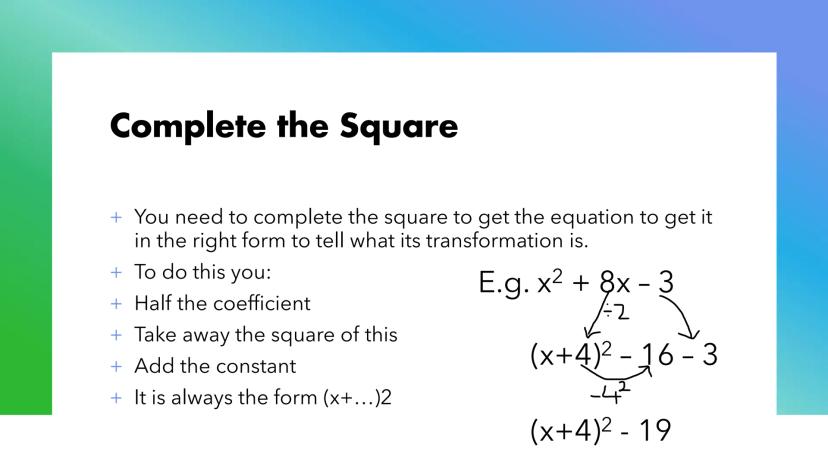

Complete the Square
Completing the square is your essential first step for spotting transformations. This technique converts messy quadratic expressions into a neat form that reveals exactly how the graph has moved.
Here's the process: take half the coefficient of x, square it, then subtract this value whilst adding the constant. For example, with x² + 8x - 3, you get ² - 19.
The result always follows the pattern (x ± a)² ± b, which immediately shows you the horizontal and vertical shifts of your parabola.
Remember: Half the coefficient, square it, subtract it - this sequence becomes automatic with practice!

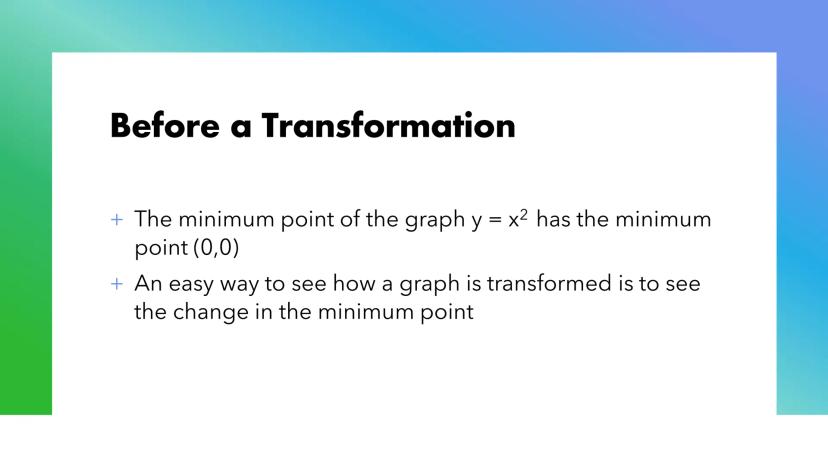

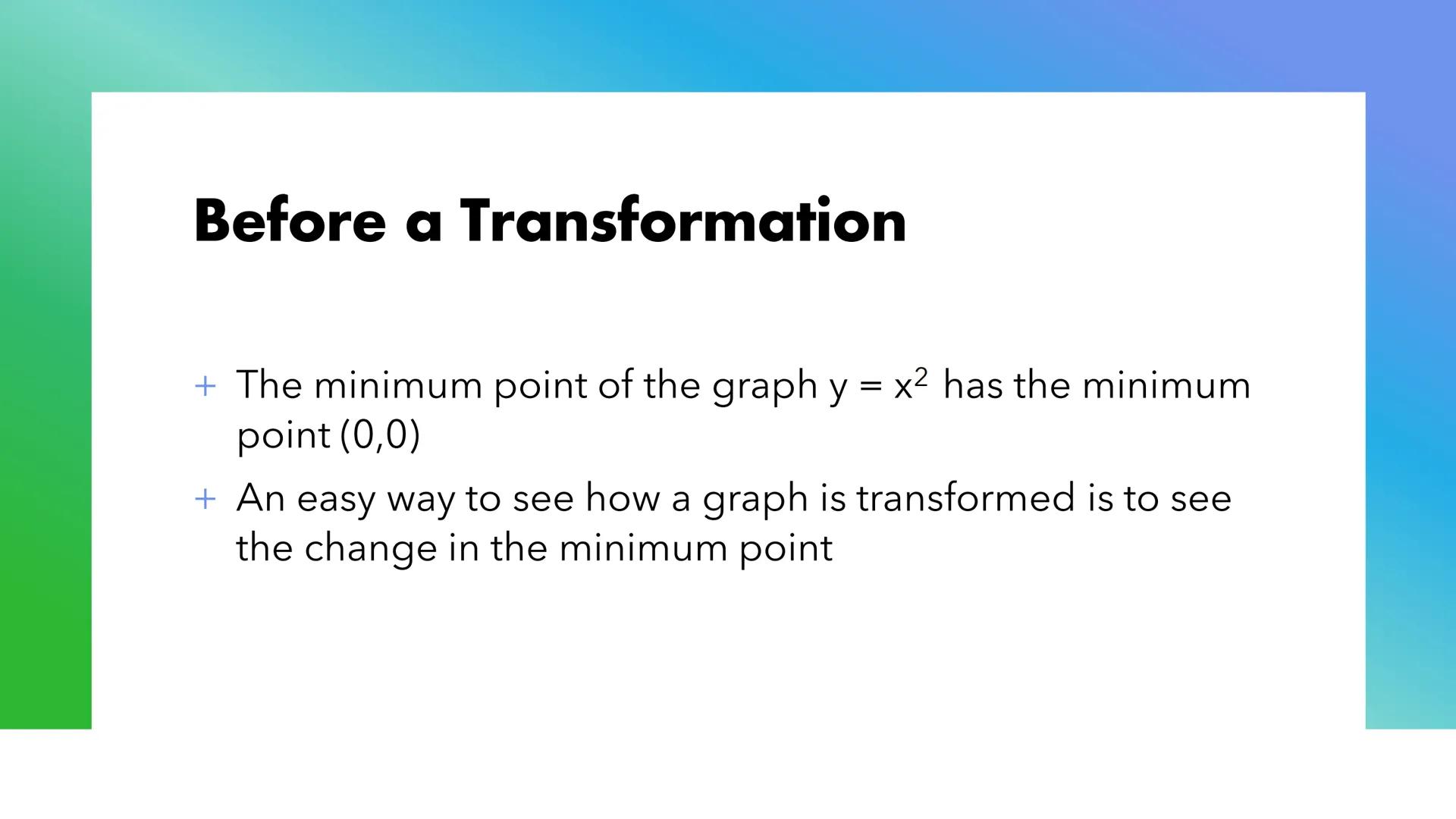

Before a Transformation
The basic graph y = x² has its minimum point at the origin (0,0). This is your starting reference point for all transformations.
Tracking how this minimum point moves is the smartest way to understand transformations. Instead of plotting lots of coordinates, just follow where (0,0) ends up - this tells you everything about the shift.
Pro Strategy: Always identify the minimum point first - it's like having a GPS tracker for your parabola!

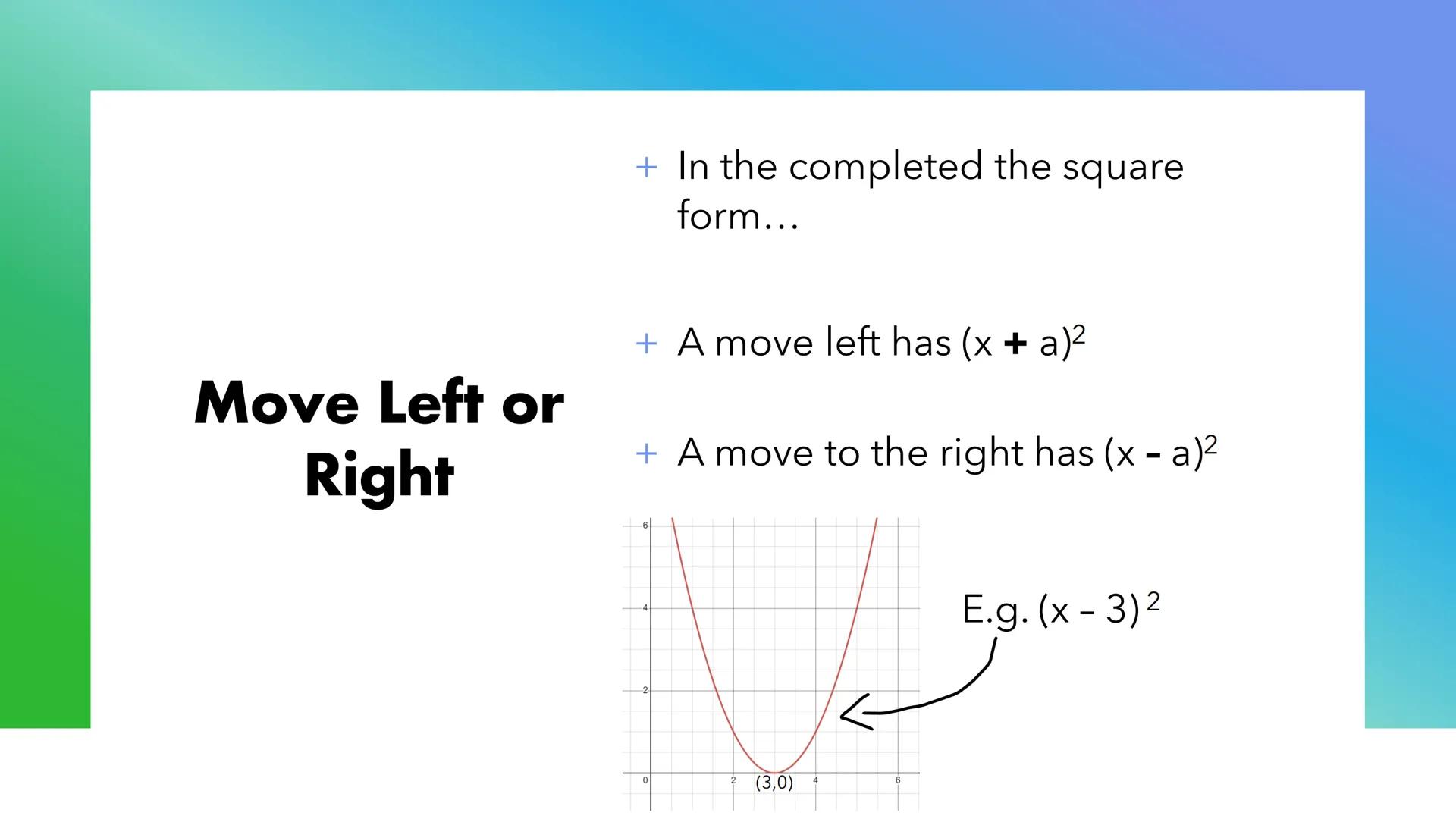

Move Left or Right
Horizontal shifts might seem backwards at first, but there's a simple rule to remember. When you see ², the graph moves left by 'a' units. When you see ², it moves right by 'a' units.
For example, ² shifts the parabola 3 units to the right, placing the minimum point at (3,0). The sign inside the brackets works opposite to the direction you might expect.
Think of it as the x-value that makes the bracket equal zero - that's where your new minimum point sits horizontally.
Memory Trick: The sign is opposite to the movement - plus means left, minus means right!

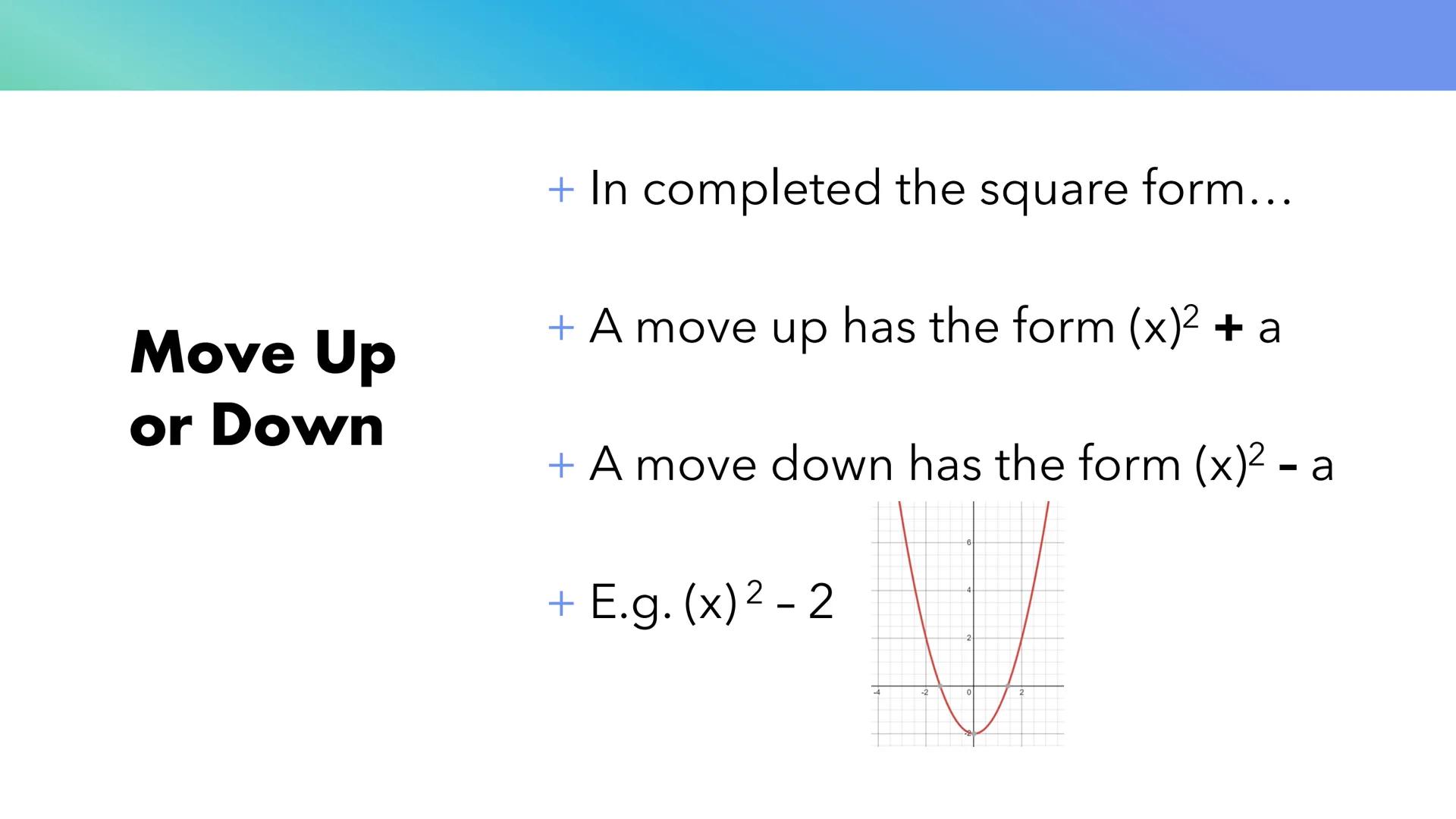

Move Up or Down
Vertical shifts are much more straightforward than horizontal ones. Adding a number outside the squared term moves the graph up, whilst subtracting moves it down.
The form (x)² + a shifts up by 'a' units, and (x)² - a shifts down by 'a' units. For instance, (x)² - 2 drops the entire parabola down 2 units.
These vertical transformations change the y-coordinate of every point on the curve by the same amount.
Easy Rule: What you see is what you get - plus goes up, minus goes down!

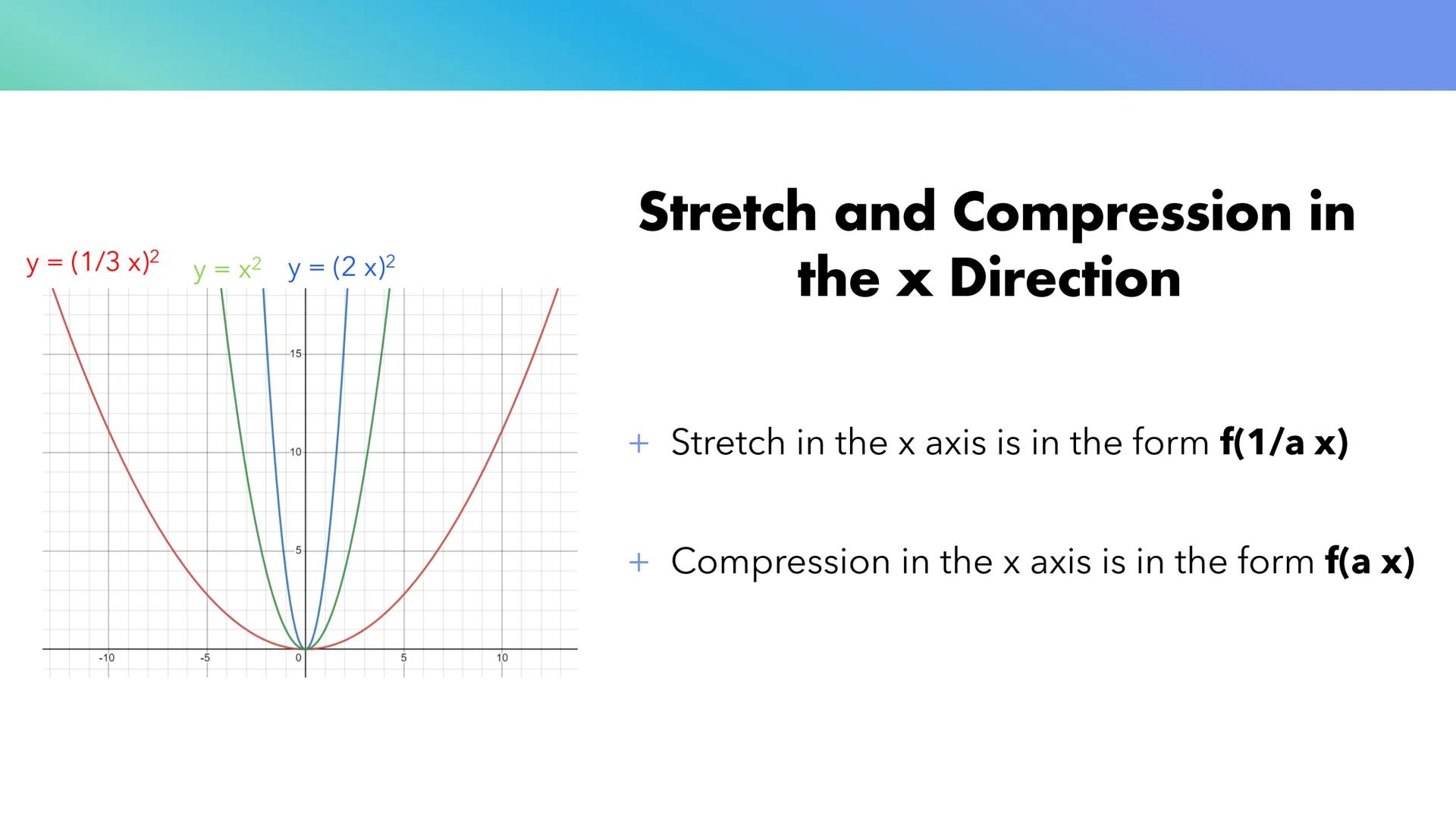

Stretch and Compression in the x Direction
Horizontal stretching and compression happen when you multiply x by a factor inside the function. The form f(ax) creates compression when a > 1, and f creates stretching.
For example, y = (2x)² squashes the parabola horizontally, making it narrower. Meanwhile, y = ² stretches it out, making it wider.
This can feel counterintuitive because larger numbers inside actually make the graph narrower, whilst fractions make it wider.
Key Insight: Think about what x-values give the same y-output - that reveals the stretch factor!

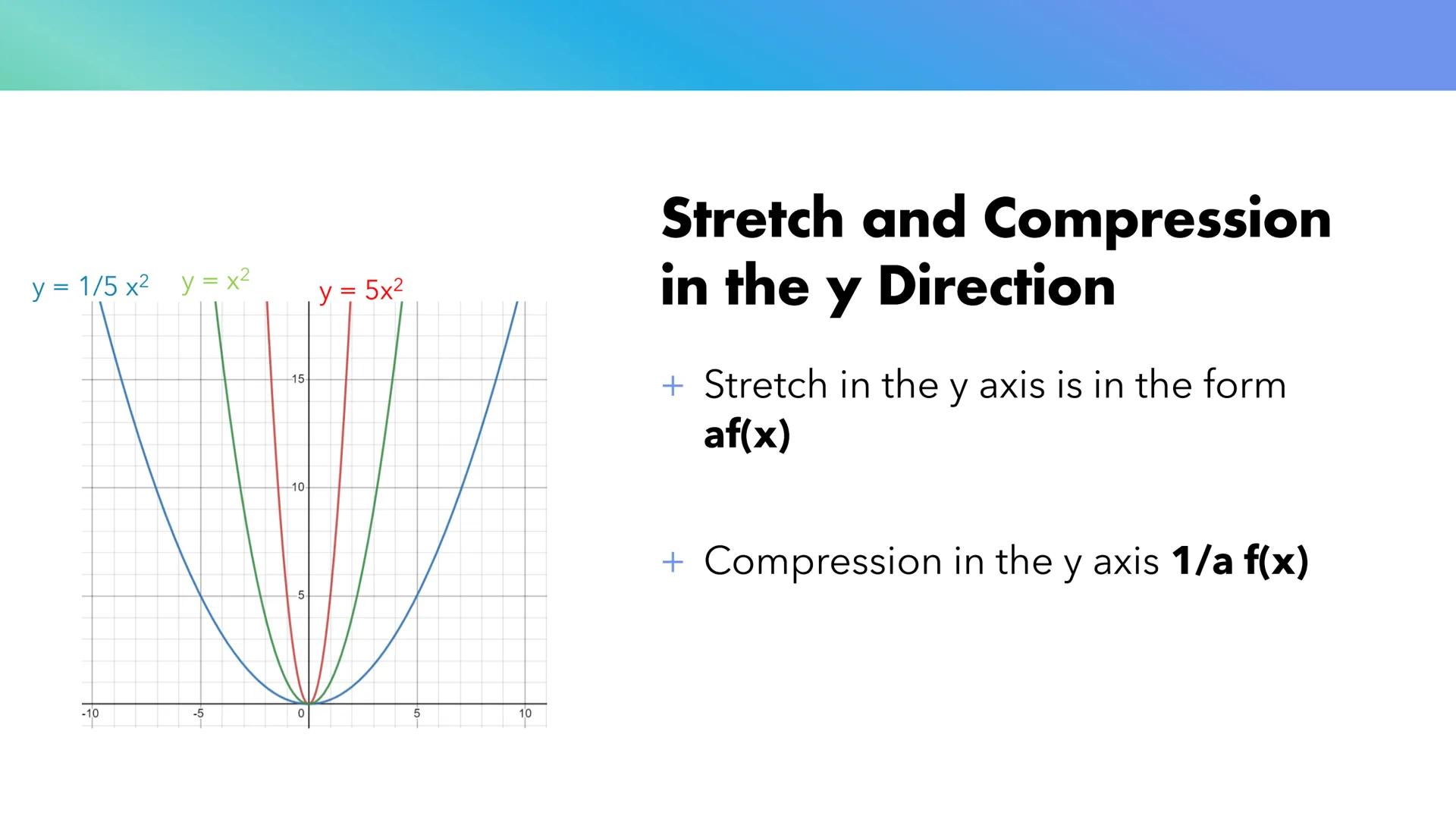

Stretch and Compression in the y Direction
Vertical transformations multiply the entire function by a factor. The form af(x) stretches vertically when a > 1, and compresses when 0 < a < 1.
For example, y = 5x² makes the parabola five times taller, whilst y = (1/5)x² squashes it down to one-fifth of its original height.
These changes affect every y-coordinate on the graph, multiplying each one by your transformation factor.
Visual Check: Vertical stretches make graphs look skinnier, compressions make them look flatter!

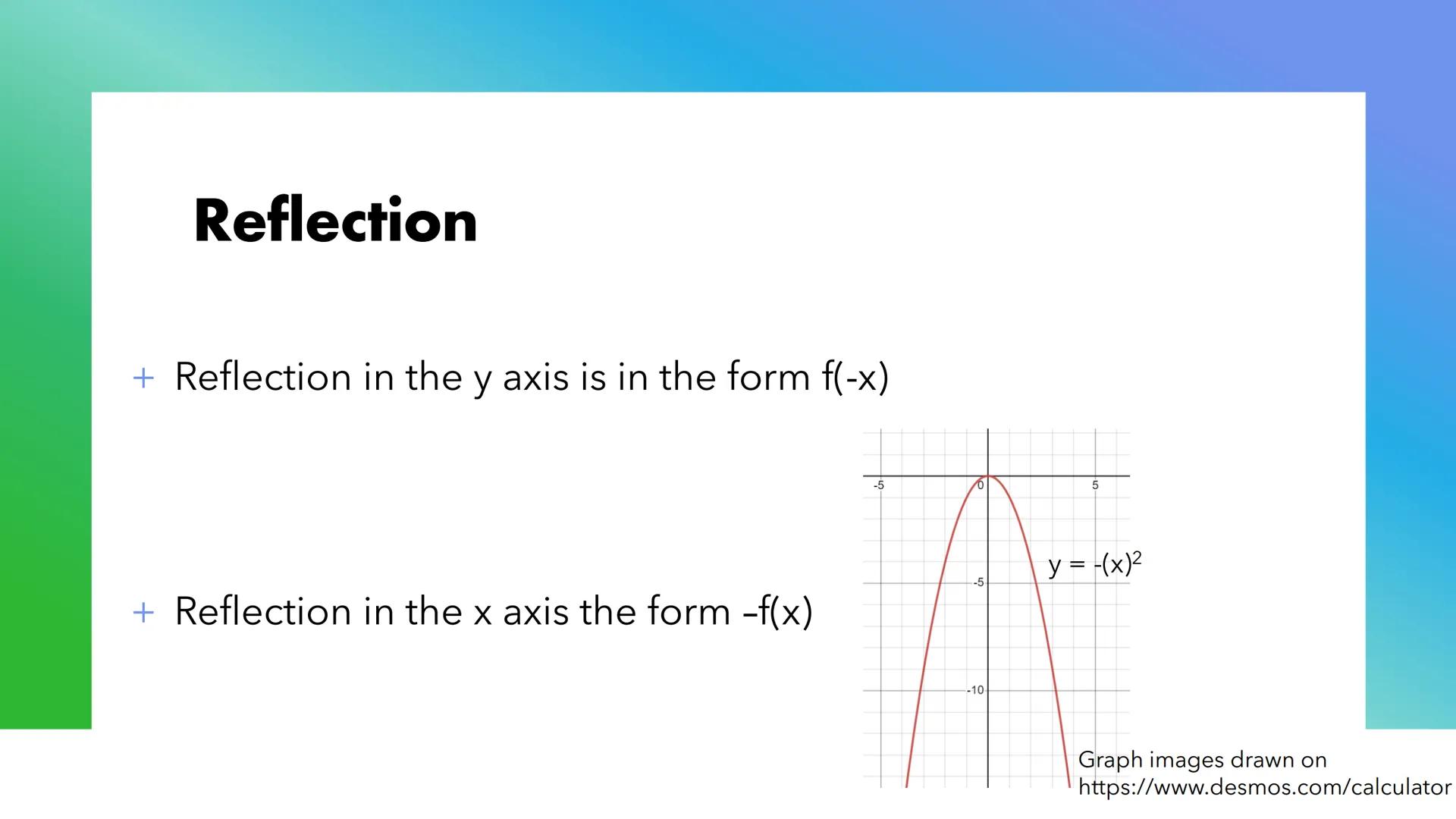

Reflection
Reflections flip your graph across an axis. The form f reflects across the y-axis, whilst -f(x) reflects across the x-axis.
For parabolas like y = x², reflecting in the y-axis doesn't change anything because they're symmetrical. However, y = -(x)² flips it upside down, creating an upside-down parabola.
These transformations are like holding up a mirror to your graph - every point flips to the opposite side of the axis.
Mirror Rule: Negative outside flips vertically, negative inside flips horizontally!
