Cell Structure and Function overview: A comprehensive guide covering cellular biology, microscopy, and classification of living organisms.

Cell structure and transport fundamentals include detailed examination of prokaryotic and eukaryotic cells
• Explores the five kingdom classification system and cellular components
• Covers microscopy techniques including light and electron microscopy
• Details the differences between various cell types and their organelles
• Includes essential information about cell structure and function across different organisms

28/03/2023

2922

Biology Paper 1
Biology Cell biology Cytoplasm-
Cell membrane
Murcin cell wall-
Cell capsule
Mitochondrion
Nucleoid
Plasmid
Flagellum
}
1.1

View

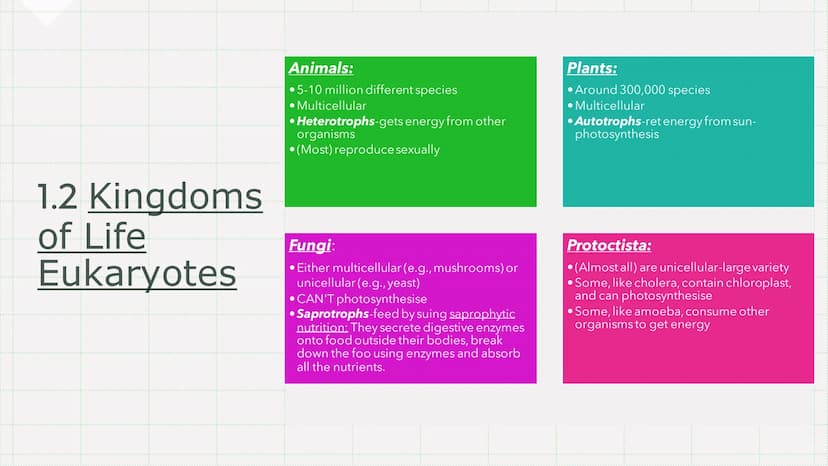

Kingdoms of Life

The five kingdoms of life encompass the diversity of organisms on Earth:

Eukaryotes:

  1. Animals
    • Multicellular heterotrophs
    • Most reproduce sexually
  2. Fungi
    • Can be multicellular or unicellular
    • Saprotrophs that digest food externally
  3. Plants
    • Multicellular autotrophs
    • Conduct photosynthesis
  4. Protists
    • Mostly unicellular
    • Diverse group with plant-like and animal-like characteristics

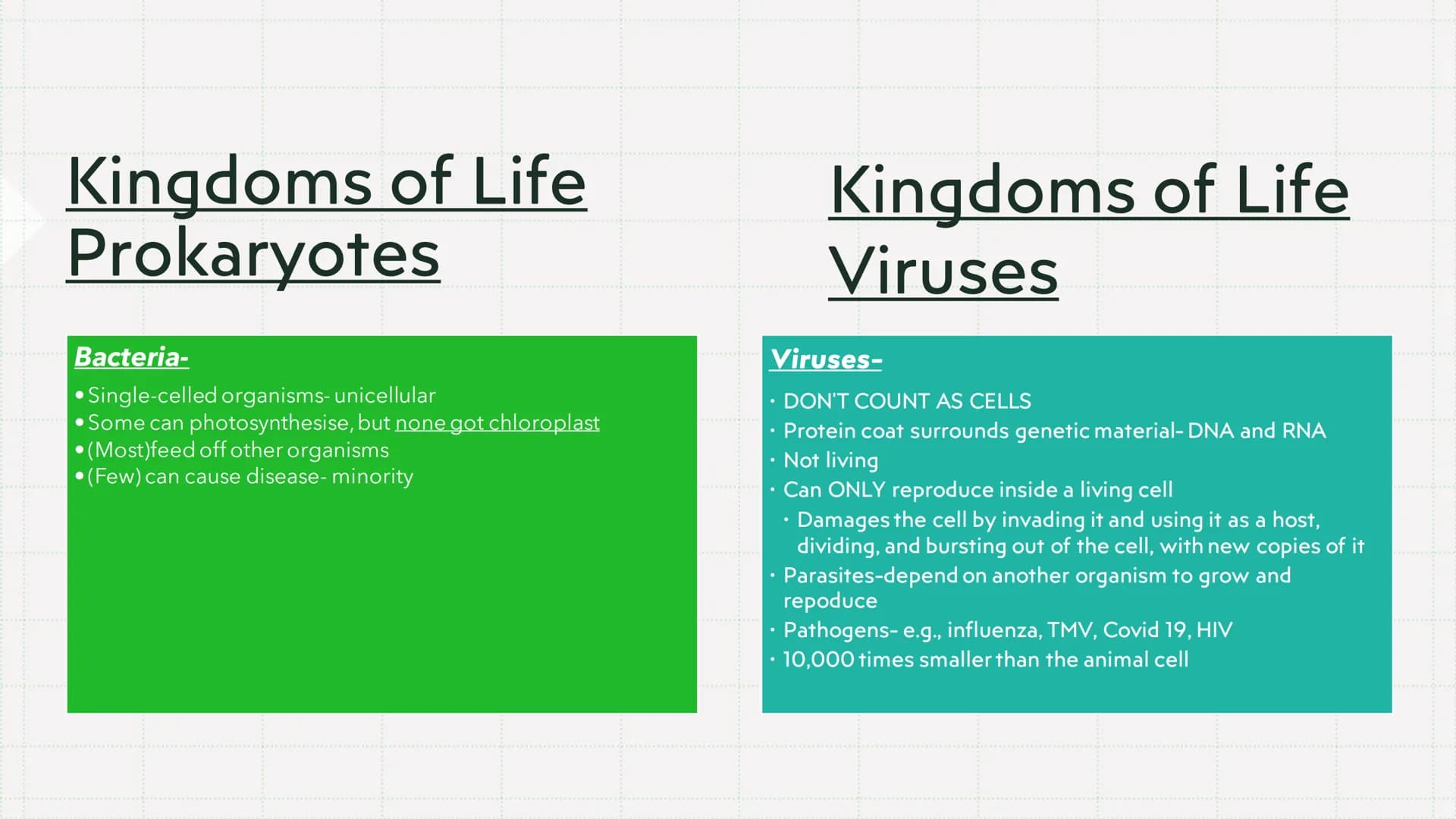

Prokaryotes: 5. Bacteria

  • Unicellular organisms
  • Some can photosynthesize
  • Few cause diseases

Definition: Autotrophs - organisms that produce their own food, like plants through photosynthesis.

Definition: Heterotrophs - organisms that obtain energy by consuming other organisms.

Example: Yeast is an example of a unicellular fungus, while mushrooms are multicellular fungi.

Viruses are not considered living organisms and do not belong to any kingdom. They are much smaller than cells and can only reproduce inside living host cells.

Understanding the 5 kingdom classification helps organize the vast diversity of life on Earth. The kingdom definition biology provides a framework for studying the relationships between different groups of organisms.

Biology Paper 1
Biology Cell biology Cytoplasm-
Cell membrane
Murcin cell wall-
Cell capsule
Mitochondrion
Nucleoid
Plasmid
Flagellum
}
1.1

View

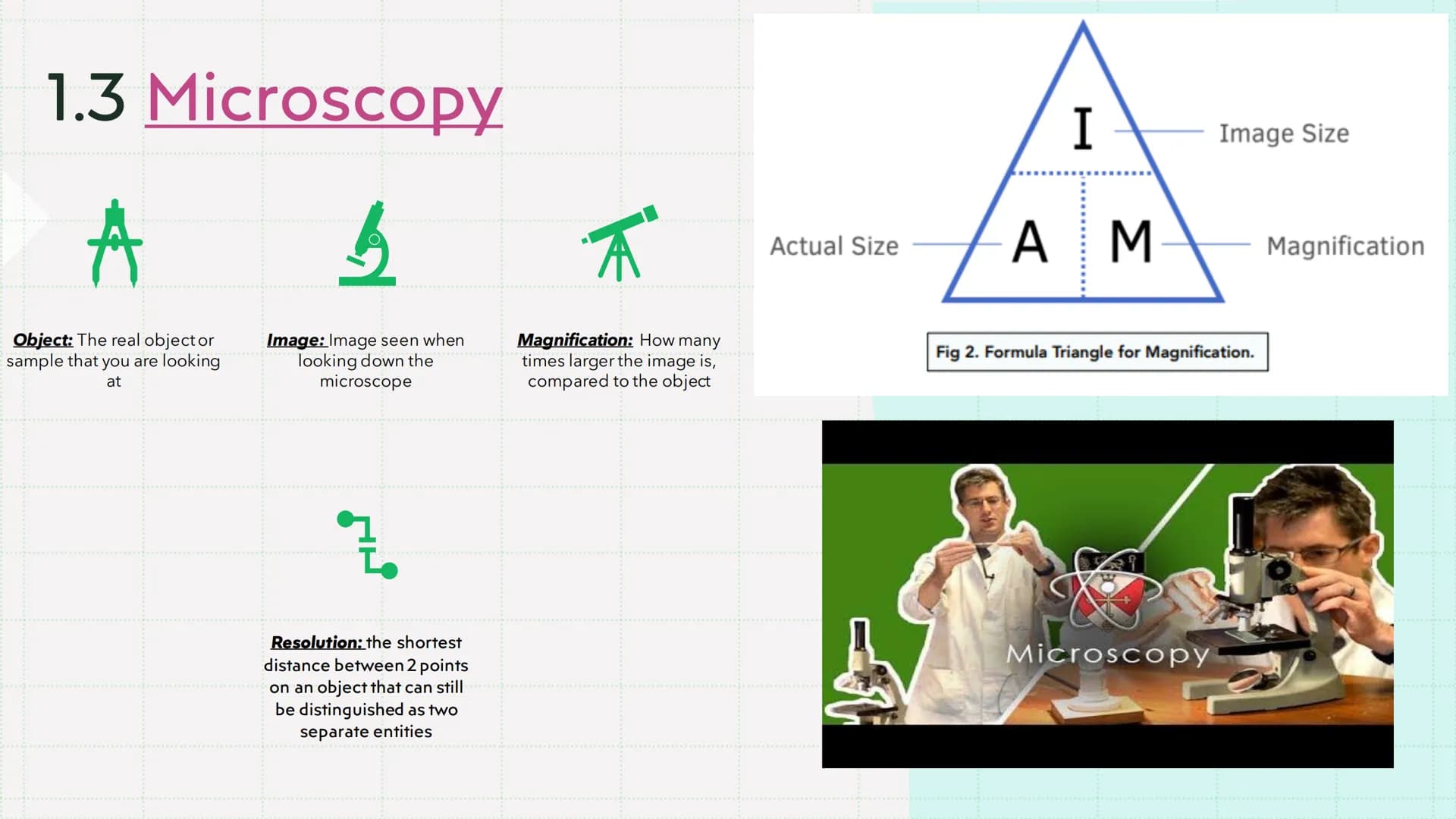

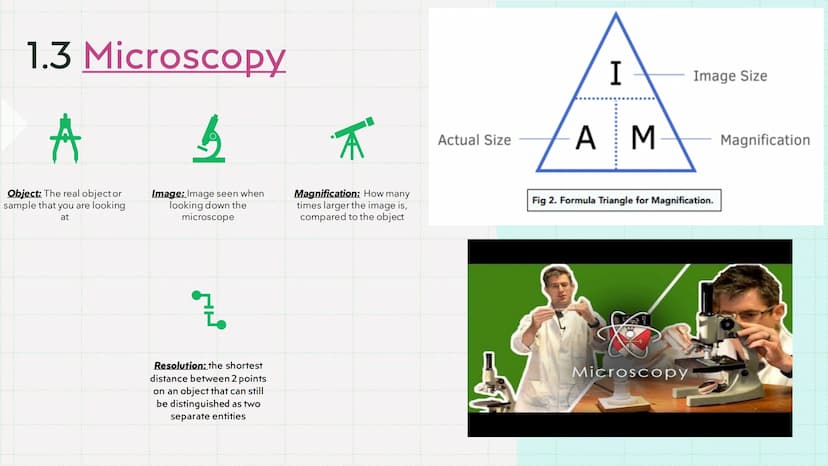

Microscopy

Microscopes are essential tools for studying cell structure and function. There are two main types:

  1. Light Microscopes

    • Use visible light to magnify specimens
    • Less expensive and easier to use
    • Lower magnification and resolution
  2. Electron Microscopes

    • Use beams of electrons for magnification
    • More expensive and complex
    • Much higher magnification and resolution

Vocabulary: Resolution - the shortest distance between two points on an object that can still be distinguished as separate entities.

Vocabulary: Magnification - how many times larger the image is compared to the actual object.

The formula for calculating magnification is:

Magnification = Image Size / Actual Size

Understanding microscopy techniques is crucial for studying cell structure and transport at various levels of detail. The biology paper 1 cell structure details pdf resources often include information on microscopy alongside cell structure content.

Biology Paper 1
Biology Cell biology Cytoplasm-
Cell membrane
Murcin cell wall-
Cell capsule
Mitochondrion
Nucleoid
Plasmid
Flagellum
}
1.1

View

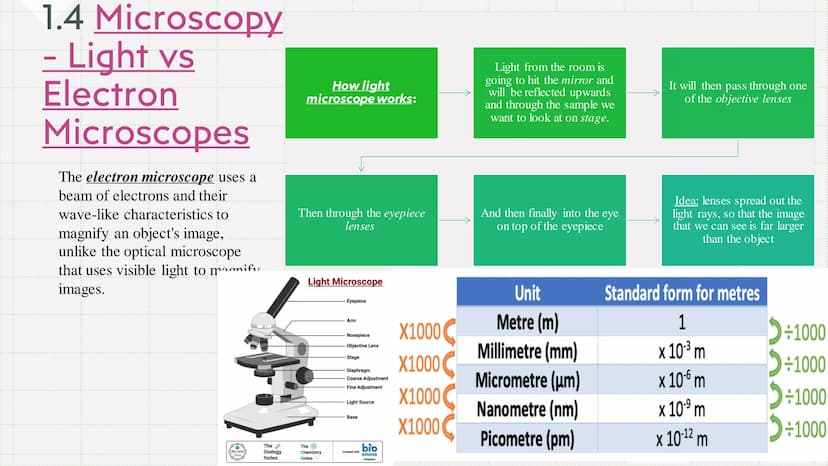

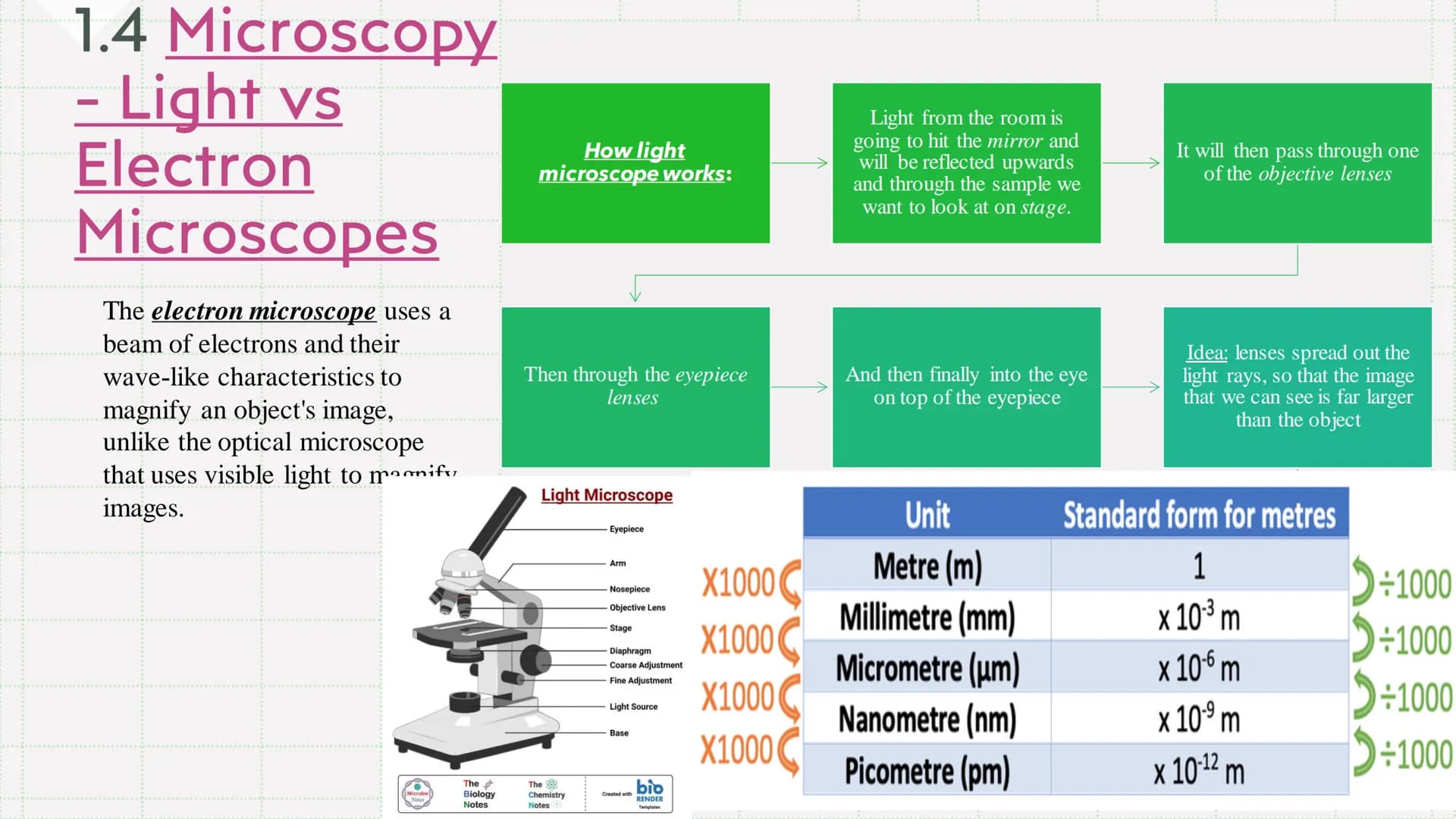

Comparison of Light and Electron Microscopes

Light Microscopes:

  • Smaller and more portable
  • Less expensive
  • Use visible light (wavelength 400-700 nm)
  • Lower magnification (up to about 1500x)
  • Image formation controlled by glass lenses
  • Lower resolution

Electron Microscopes:

  • Larger and less portable
  • More expensive
  • Use beams of electrons
  • Much higher magnification (up to 2,000,000x)
  • Image formation controlled by electromagnets
  • Much higher resolution

Highlight: Electron microscopes can achieve much higher magnification and resolution than light microscopes, allowing scientists to study cellular structures in greater detail.

Understanding the differences between these microscopy techniques is important for interpreting cell structure bbc bitesize resources and advanced biology texts. The choice of microscope depends on the level of detail required and the specific structures being studied.

This comprehensive overview of cell biology, covering cell structure, kingdoms of life, and microscopy techniques, provides a solid foundation for students studying aqa biology paper 1 cell structure details. The information presented here aligns with key topics found in gcse biology paper 1 cell structure details and can be supplemented with resources like cell structure bbc bitesize for further study.

Biology Paper 1
Biology Cell biology Cytoplasm-
Cell membrane
Murcin cell wall-
Cell capsule
Mitochondrion
Nucleoid
Plasmid
Flagellum
}
1.1

View

Page 9-10: Microscopy Basics Introduces fundamental concepts of microscopy, including magnification and resolution, essential for studying cell structure bbc bitesize ks3 content.

Definition: Magnification shows how many times larger the image is compared to the actual object. Example: The formula triangle for magnification demonstrates the relationship between image size and actual size. Vocabulary: Resolution is defined as the shortest distance between two points that can be distinguished as separate entities.

Biology Paper 1
Biology Cell biology Cytoplasm-
Cell membrane
Murcin cell wall-
Cell capsule
Mitochondrion
Nucleoid
Plasmid
Flagellum
}
1.1

View

Page 11: Light vs Electron Microscopy Compares and contrasts light and electron microscopy techniques, essential for understanding cell structure and function.

Highlight: Electron microscopes offer higher magnification and resolution but are more expensive and less portable than light microscopes. Example: Light microscopes use visible light (400-700 nm wavelength) while electron microscopes use electron beams. Definition: Resolution in microscopy refers to the ability to distinguish between two separate points in an image.

Biology Paper 1
Biology Cell biology Cytoplasm-
Cell membrane
Murcin cell wall-
Cell capsule
Mitochondrion
Nucleoid
Plasmid
Flagellum
}
1.1

View

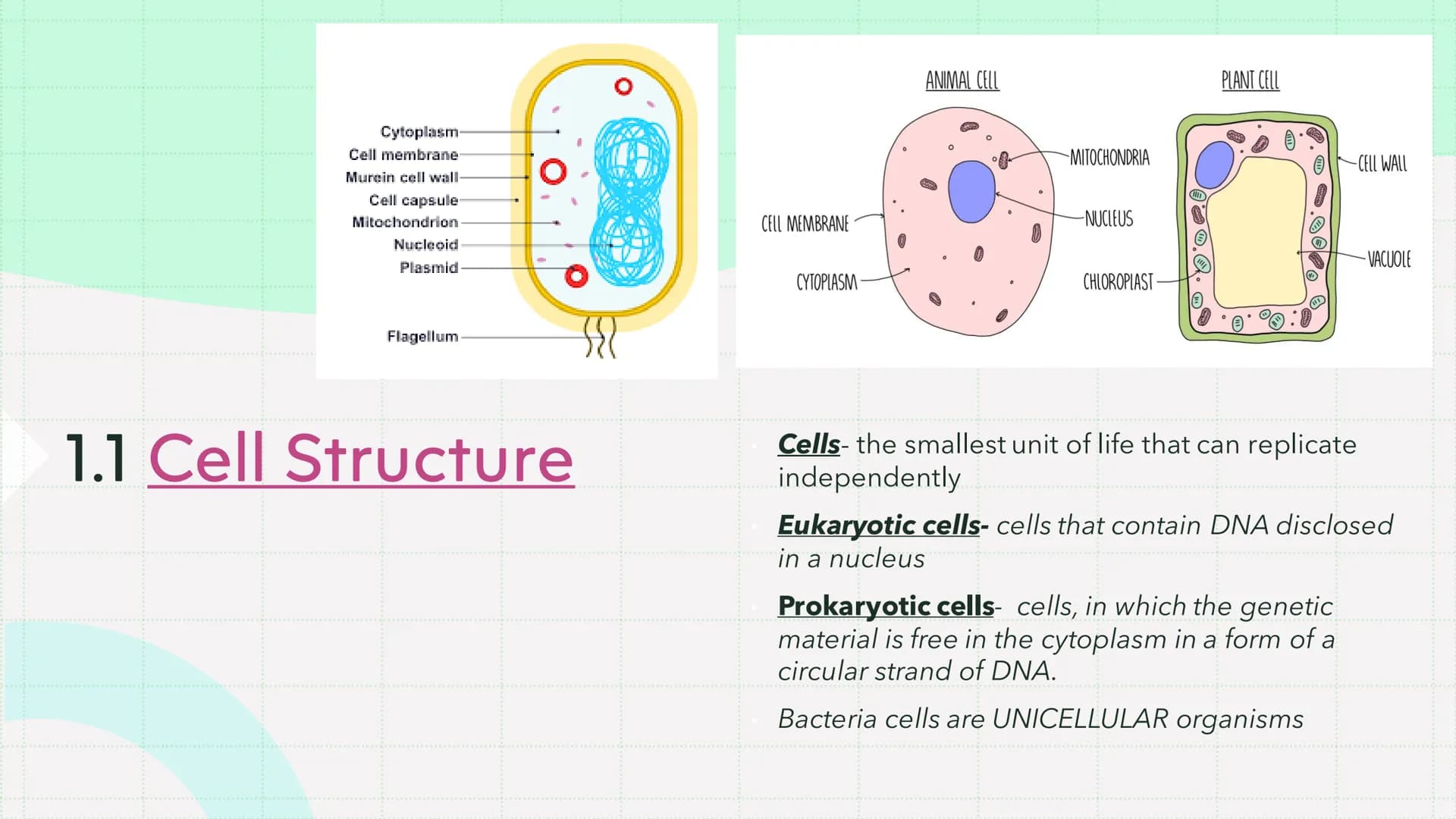

Cell Structure

The basic structure of cells includes several key components:

Vocabulary: Prokaryotic cells - cells in which the genetic material is free in the cytoplasm as a circular DNA strand.

Vocabulary: Eukaryotic cells - cells that contain DNA enclosed within a nucleus.

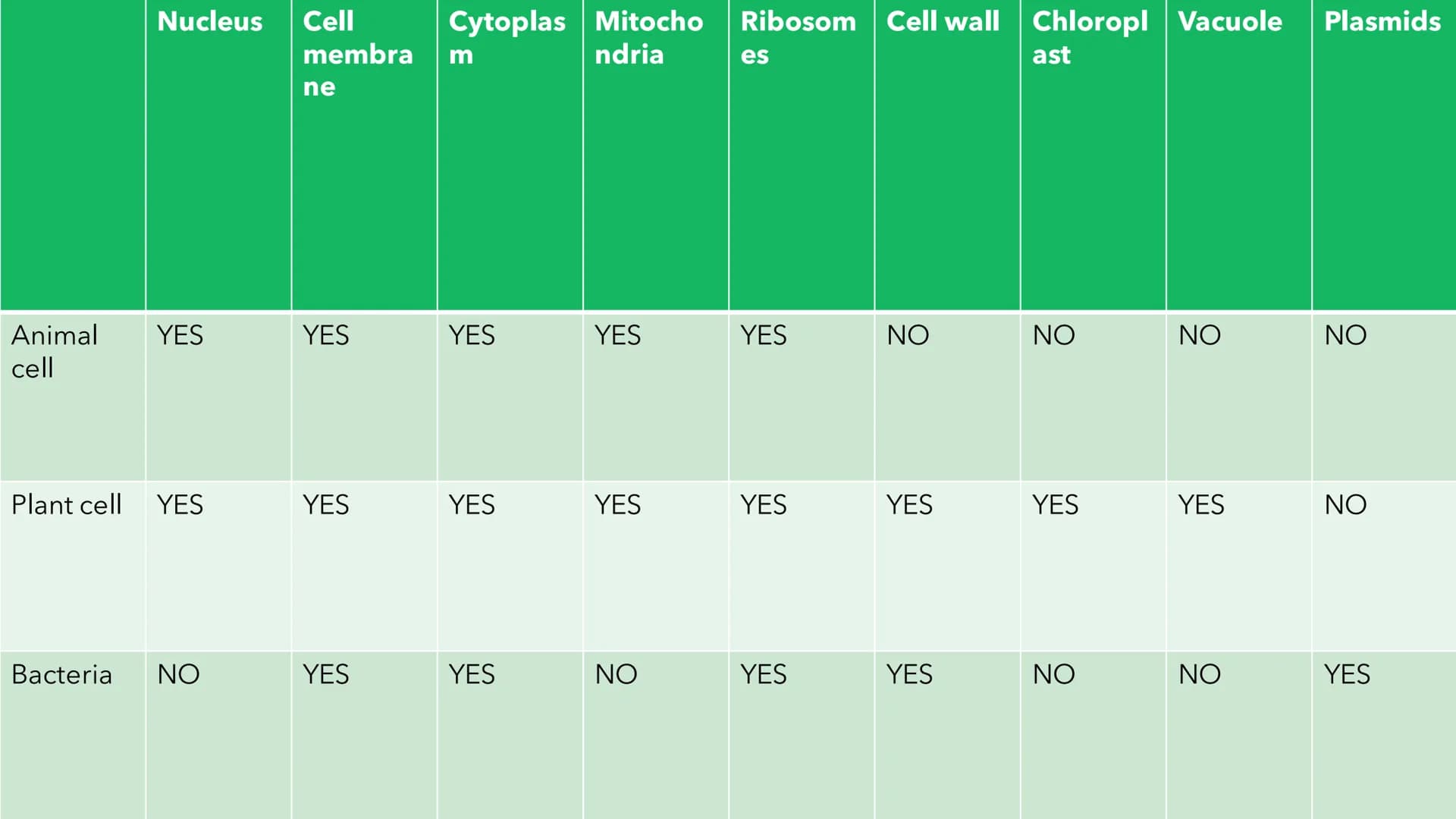

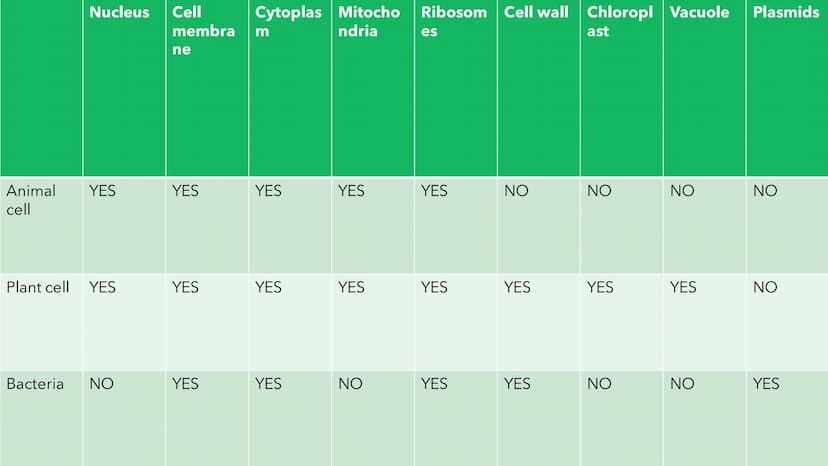

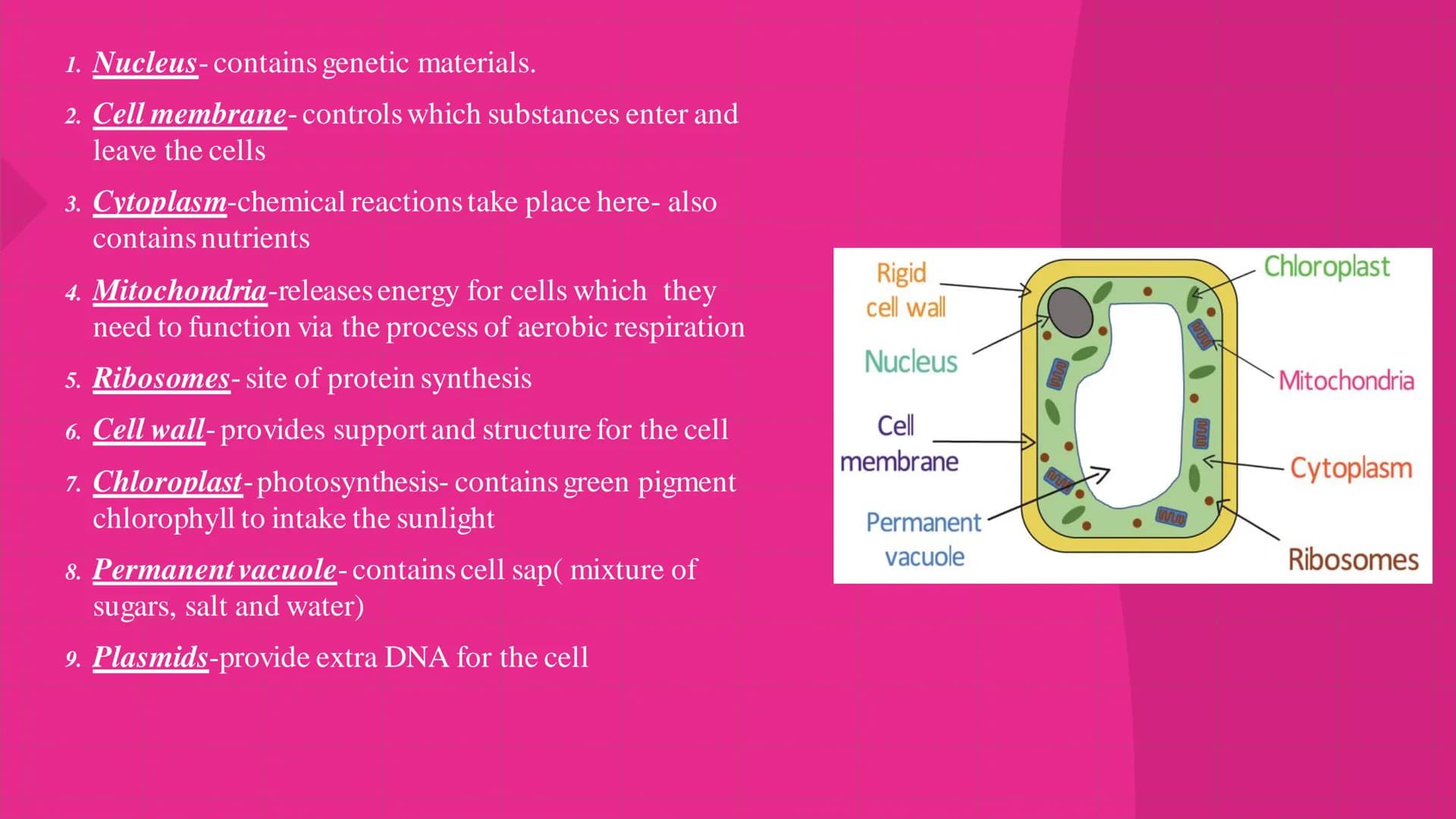

Animal and plant cells are eukaryotic and share some common structures:

  • Nucleus - contains genetic material
  • Cell membrane - controls substance movement in/out of cell
  • Cytoplasm - site of chemical reactions
  • Mitochondria - produce energy through respiration
  • Ribosomes - synthesize proteins

Plant cells have additional structures:

  • Cell wall - provides support and structure
  • Chloroplasts - conduct photosynthesis
  • Large vacuole - contains cell sap

Highlight: The key differences between prokaryotic and eukaryotic cells are the presence of membrane-bound organelles and a nucleus in eukaryotes.

This overview of cell structure and function provides essential knowledge for understanding more complex biological processes. The cell structure bbc bitesize ks3 resources offer additional details for students studying this topic.
